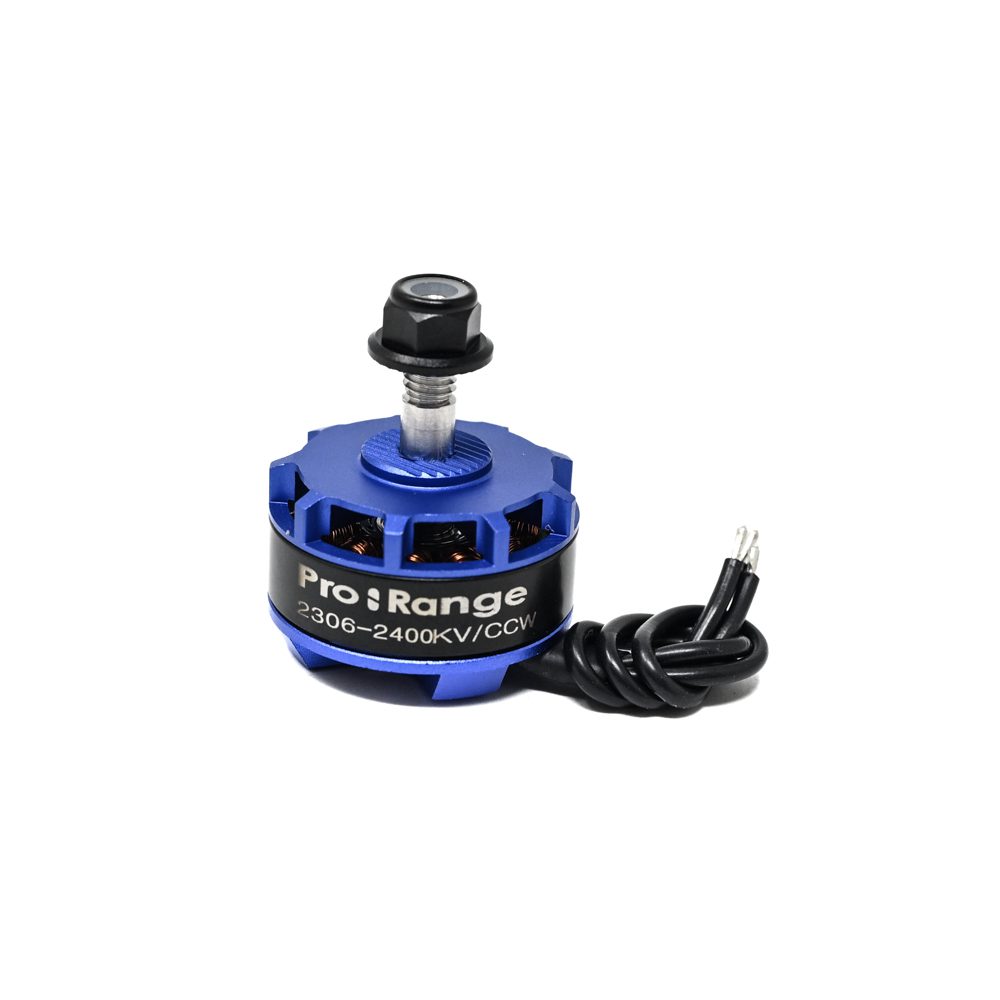

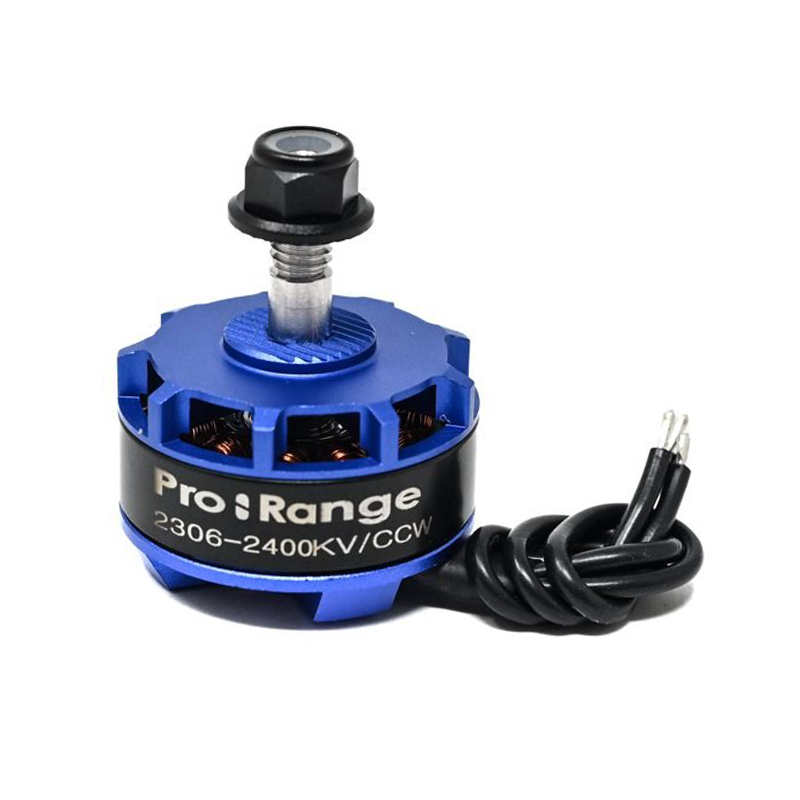

Pro-Range DX2306 2400KV CCW Brushless Drone Motor

Name: Pro-Range DX2306 2400KV CCW Brushless Drone Motor
Brand: Pro-Range
SKU: DRFC-3197
Price: 879.00 INR
Availability: OutOfStock

₹879.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range DX2306 2400KV CCW is a high-performance brushless motor engineered for 3-5 inch FPV racing and freestyle drones, offering optimal efficiency and thrust across a 2-4S LiPo voltage range.

Features

High-performance 2306 stator size with a 2400KV rating for responsive throttle control.
Compatible with 2S to 4S LiPo batteries, ideal for a wide range of FPV drone builds.
Features a 5mm shaft diameter and a hexagonal flange nut for secure propeller mounting.
Engineered for low heat generation and stable torque under high current loads.
Lightweight 29g design with a 14-pole configuration for smooth, efficient operation.

Out of stock

Get Notified When Available

Description

The Pro-Range DX2306 2400KV CCW brushless motor is designed to deliver exceptional power-to-weight ratio for demanding FPV flight profiles. Its robust construction and optimized magnetic circuit ensure reliable performance with minimal energy loss, even during aggressive maneuvers and high-current draws.

This motor’s 2400KV rating provides high rotational speed, making it perfectly suited for 3-inch to 5-inch propeller setups on 3S or 4S battery configurations. The integrated design prioritizes thermal management, allowing for sustained performance without significant efficiency drop-off during extended flight sessions.

Key Features

Optimized Stator Design: The 2306 stator size balances torque and RPM for aggressive freestyle and racing performance.
Wide Voltage Compatibility: Efficiently operates on 2S, 3S, and 4S LiPo battery packs for versatile build options.
Secure Mounting System: Includes a 5mm shaft with a proprietary hexagonal flange nut to prevent propeller loosening under vibration.
Advanced Thermal Management: Engineered for lower operational temperatures, extending motor lifespan and maintaining peak power.
High Pole Count: The 14-pole configuration contributes to smoother rotation and more precise throttle control.
Lightweight Durable Build: Weighing only 29 grams, the motor uses high-quality materials for strength without sacrificing agility.

Applications

Primary motor for 3-inch to 5-inch FPV racing drones requiring high top-end speed.
Ideal for 4S-powered freestyle quadcopters where a balance of torque and responsiveness is critical.
Suitable for lightweight long-range or cinewhoop builds on 3S configurations for efficient cruise flight.
Upgrade motor for micro and mini drone platforms needing increased thrust and power delivery.

Technical Specifications

Model Number	DX2306
KV Rating	2400 RPM/V
Stator Size	2306 (23mm diameter x 6mm height)
Shaft Diameter	5 mm
Rotation Direction	CCW (Counter-Clockwise)
Voltage Range	2S to 4S LiPo
Max Continuous Current	16.5 – 25 A
Max Power	Up to 1070 W
No-Load Current	1200 mA @ 10V
Number of Poles	14
Motor Weight	29 g

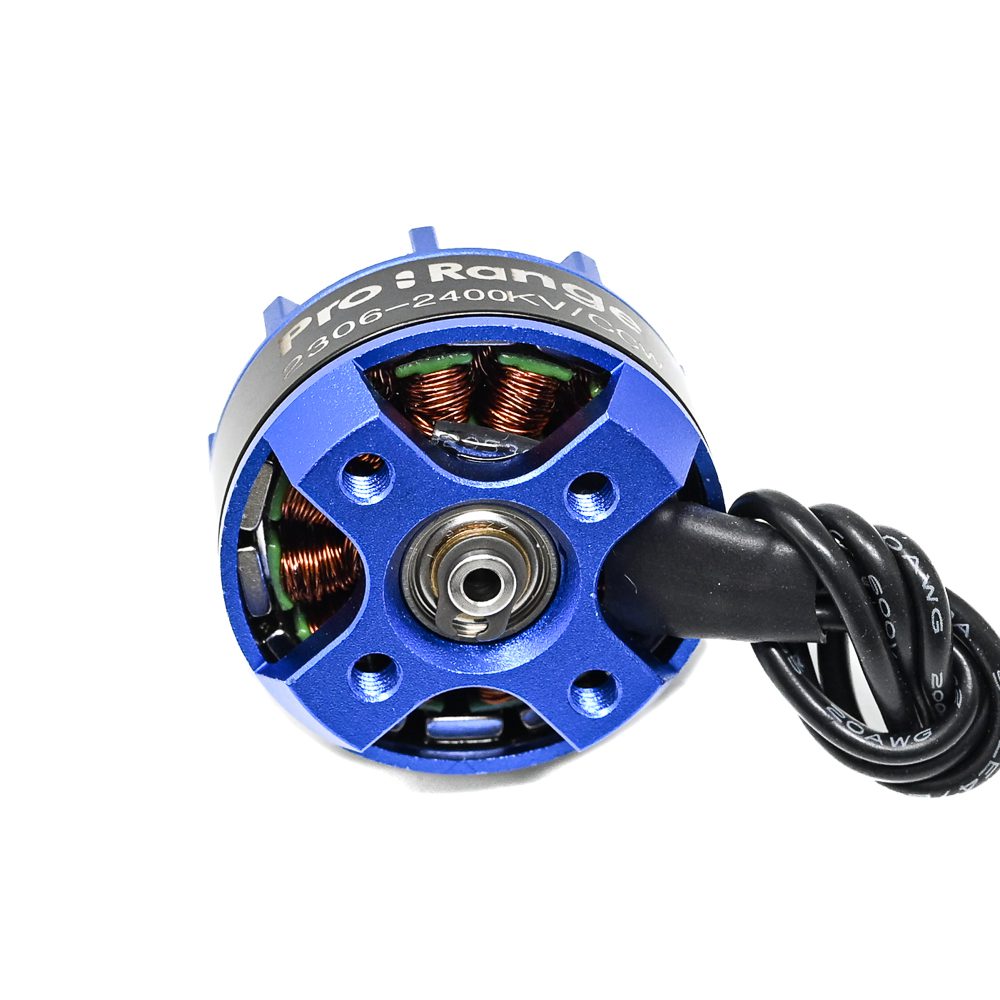

Mounting Pattern	16x19 mm M3

Frequently Asked Questions

What is the correct propeller size for this 2400KV motor?

This 2400KV motor is optimized for 3-inch to 5-inch propellers. For 4S batteries, 5x4.3x3 or similar tri-blade props are recommended for freestyle. For 3S setups or lighter builds, you can use 5x3x3 or 4-inch props. Always check amp draw with your specific prop and ESC combination.

Is this motor compatible with 6S LiPo batteries?

No, the Pro-Range DX2306 2400KV is rated for 2S to 4S LiPo batteries only. Applying 6S voltage (22.2V nominal) would exceed its design limits, leading to excessive current draw, overheating, and almost certain motor failure. Always adhere to the specified 2-4S voltage range.

What is the mounting hole pattern for this motor?

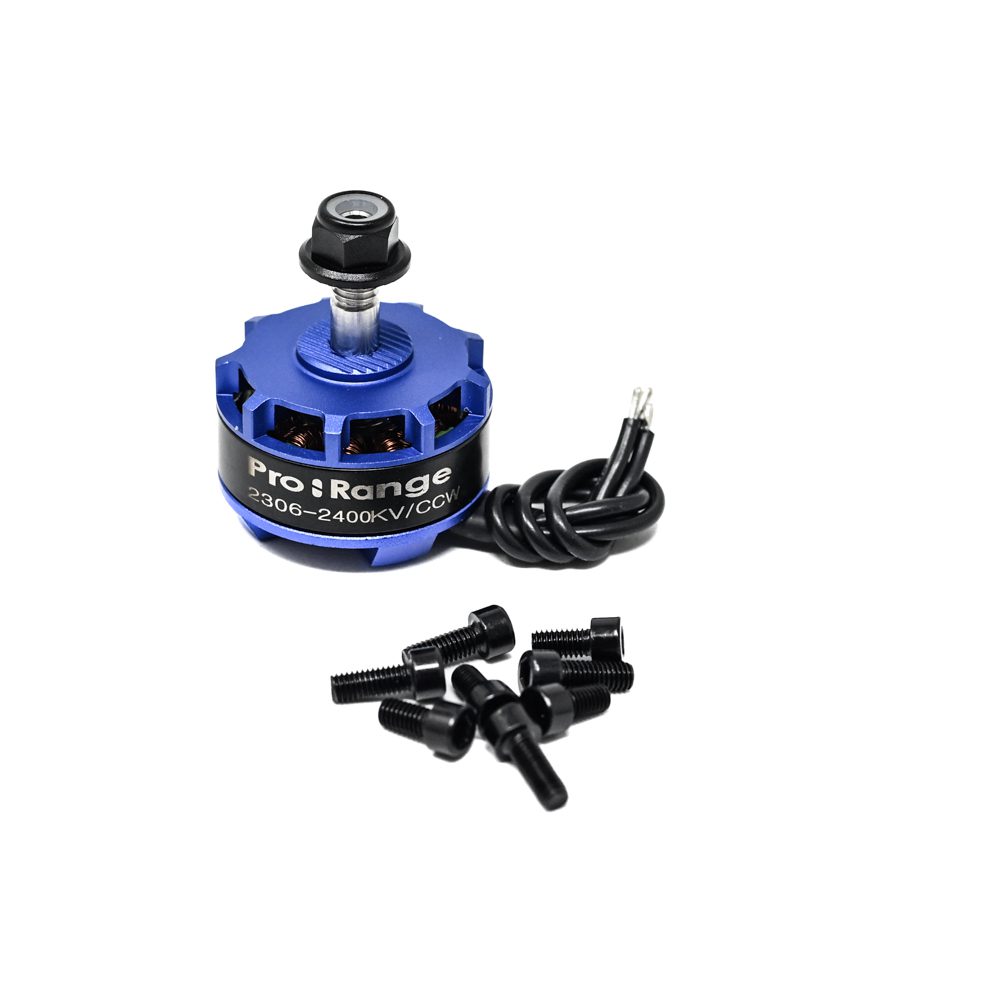

This motor uses the standard 16x19mm M3 mounting hole pattern, which is common for 2306-sized motors. It is compatible with most modern 3-inch, 4-inch, and 5-inch FPV drone frames designed for this motor size. Ensure you use the included or high-quality M3 screws.

Can I use this CCW motor on all four arms of my quad?

No, you cannot. This is a Counter-Clockwise (CCW) rotation motor. A standard quadcopter requires two CW and two CCW motors. You must pair this CCW motor with its CW counterpart (same model and KV) for the opposing arms (typically front-right and rear-left in Betaflight's default motor mapping) to achieve correct yaw control.
