Pro-Range D63 Ducted PC 5-Blade Propellers 4CW+4CCW - Purple

Name: Pro-Range D63 Ducted PC 5-Blade Propellers 4CW+4CCW - Purple
Brand: Pro-Range
SKU: DRFC-1160
Price: 269.00 INR
Availability: OutOfStock

₹269.00 (Inclusive of all taxes)

Out of Stock

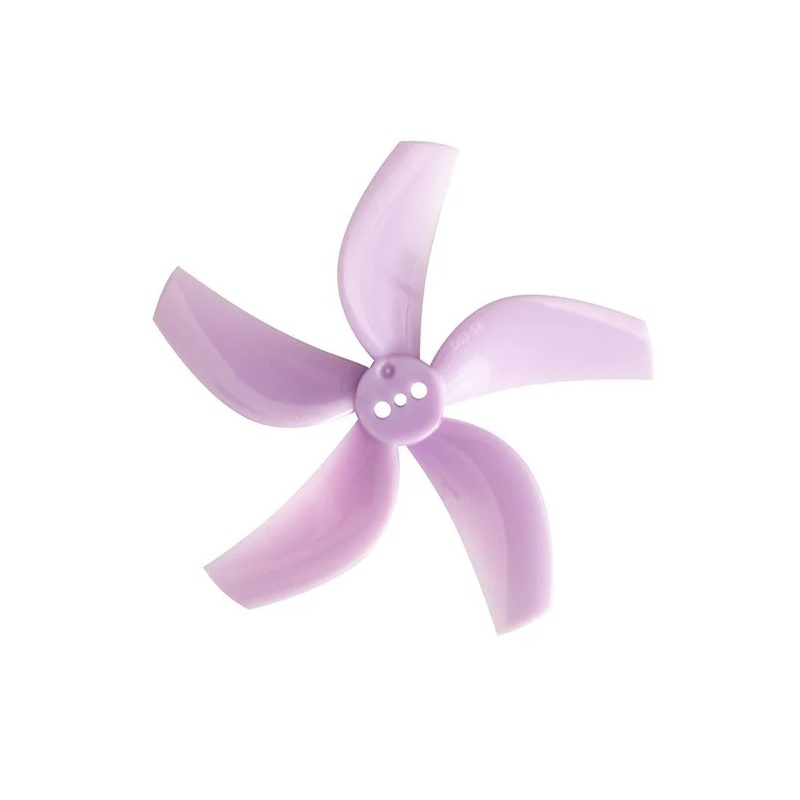

The Pro-Range D63 is a 5-blade ducted propeller crafted from durable Polycarbonate (PC), featuring a 1.65-inch pitch and a 1.5mm center hole for compatibility with 1105 to 5500-class brushless motors. This 4CW+4CCW set is engineered for enhanced thrust and stability in compact ducted drone platforms.

Features

D63 Ducted 5-Blade Design: 63.5mm diameter propellers optimized for maximum thrust and smooth airflow within ducted frames.
Polycarbonate (PC) Construction: Delivers a high-strength, lightweight build for excellent durability and flight performance.
1.5mm 3-Hole Mounting Pattern: Specifically designed for 1105, 1204, and similar small brushless motors commonly used in micro and nano drones.
1.65-Inch Pitch: Engineered for efficient thrust generation, balancing speed and power for agile flight characteristics.
4CW + 4CCW 8-Pack: Complete set for building or maintaining two identical ducted quadcopters.

Out of stock

Get Notified When Available

Description

The Pro-Range D63 ducted propellers utilize a five-blade aerodynamic profile to generate high static thrust, making them ideal for the confined airflow of ducted whoop and cinewhoop frames. The Polycarbonate material provides the necessary rigidity to maintain blade shape under load while minimizing weight, contributing to responsive throttle control and extended flight times.

With a precise 1.65-inch pitch and a 63.5mm diameter, these props are tuned for 1S to 3S LiPo applications, offering pilots a blend of punchy acceleration and controllable top-end speed. The reinforced 5mm center hub and 1.5mm mounting hole pattern ensure a secure, vibration-free connection to the motor shaft, which is critical for clean FPV video feed quality.

Key Features

High-Thrust 5-Blade Design: Increases disc area for superior lift and stability, especially at lower RPMs.
Durable Polycarbonate (PC) Material: Resists deformation and cracking from minor impacts and high-RPM stress.
Optimized for Ducted Frames: Blade shape and diameter are engineered to perform efficiently within the physical constraints of duct guards.
Precision-Balanced Hubs: Manufactured to minimize inherent imbalance, reducing motor wear and high-frequency vibrations.
Vibrant Color Options: The purple finish allows for easy motor orientation identification and personalized build aesthetics.
Wide Motor Compatibility: Designed for 1105, 1202, 1204, and 1207 brushless motors with a 1.5mm shaft diameter.

Applications

65mm to 75mm Cinewhoop Drones: Ideal for lightweight HD digital whoops like the GEPRC CineLog or iFlight Cinebee using 1105 or 1204 motors.
Tiny Whoop FPV Racing Drones: Provides the thrust needed for agile racing in 1S and 2S ducted micro-class racers.
Indoor/Backyard Freestyle Drones: Perfect for safe, proximity flying in confined spaces due to the protected ducted blade design.
Lightweight Micro Long-Range Builds: Suitable for efficient, low-drag builds on 2S-3S power systems aiming for extended flight duration.

Technical Specifications

Model Series	D63
Number of Blades	5
Material	Polycarbonate (PC)
Propeller Diameter	63.5 mm / 2.5 inches
Pitch	1.65 inches
Center Hole Diameter	1.5 mm (3-hole pattern)
Center Hub Thickness	5 mm
Rotation Direction	CW & CCW
Compatible Motors	1105, 1202, 1204, 1207 (1.5mm shaft)
Weight (per prop)	1.76 g
Color	Purple

Frequently Asked Questions

What size motors are these D63 propellers compatible with?

These propellers are designed for brushless motors with a 1.5mm shaft diameter, specifically the 1105, 1202, 1204, and 1207 motor sizes commonly used in micro and nano drones. Always verify your motor's shaft size and thread pattern before installation.

Are these propellers balanced out of the package?

Pro-Range propellers are manufactured with precision-molded hubs to minimize inherent imbalance. For competitive racing or the smoothest possible video feed, fine-tuning with a propeller balancer is always recommended, especially when using high-RPM powertrains.

What is the advantage of a 5-blade design for ducted drones?

A 5-blade design increases the total disc area compared to 3 or 4 blades, generating more static thrust at a given RPM. This is particularly beneficial for ducted drones (whoops/cinewhoops) where the duct restricts airflow, as it improves punch-outs, stability in turns, and overall lifting efficiency.
