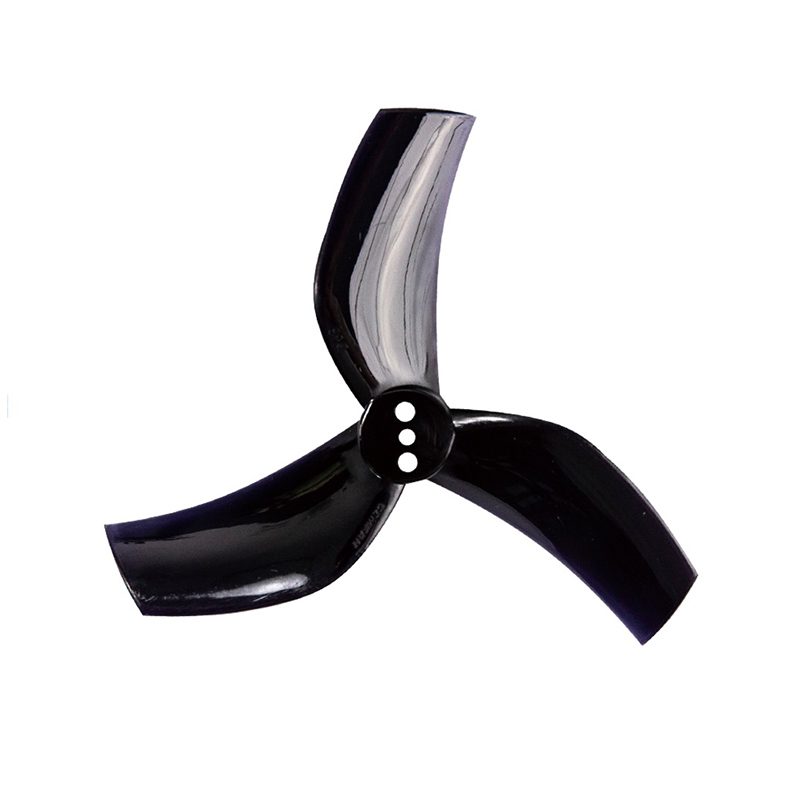

Pro-Range D63 Ducted PC 3 Blade 1.5mm Propellers 4CW+4CCW - Black

Name: Pro-Range D63 Ducted PC 3 Blade 1.5mm Propellers 4CW+4CCW - Black
Brand: Pro-Range
SKU: DRFC-1168
Price: 289.00 INR
Availability: OutOfStock

₹289.00 (Inclusive of all taxes)

Out of Stock

Pro-Range D63 ducted propellers are 3-inch, 3-blade polycarbonate props designed for 1.5mm motor shafts on compact ducted drone builds. They provide balanced thrust and stability for 1204 and larger brushless motors in CineWhoop and micro FPV applications.

Features

3-inch pitch, 63.5mm diameter ducted propeller design.
Constructed from durable, lightweight Polycarbonate (PC) material.
Features a 1.5mm center hole with a 3-hole mounting pattern.
Optimized for 1204 and larger brushless motors on compact drones.
Sold as a balanced 4CW + 4CCW set for immediate use.

Out of stock

Get Notified When Available

Description

The Pro-Range D63 ducted propeller is engineered for micro and CineWhoop-style drones requiring efficient, low-profile blades. Its 3-blade design and 3-inch pitch generate responsive thrust while maintaining smooth flight characteristics within ducted frames. The polycarbonate construction delivers a high strength-to-weight ratio, resisting deformation during high-RPM operation.

With a precise 1.5mm center hole and a 4.6mm hub thickness, these props ensure secure mounting on compatible motor shafts, minimizing vibration. The included set provides a balanced mix of clockwise and counterclockwise rotation blades, ready for installation on any quadcopter configuration.

Key Features

Ducted Propeller Profile: Specifically shaped for optimal airflow within ducted frames, reducing turbulence and increasing efficiency.
Polycarbonate Durability: Offers high impact resistance and rigidity to maintain blade integrity during aggressive maneuvers and light crashes.
Precision Balanced Set: Each 4CW+4CCW pack is factory-balanced to minimize motor vibration and ensure smooth flight performance.
Wide Motor Compatibility: Designed for 1204, 1303, 1404, and similar sized brushless motors with a 1.5mm shaft diameter.
Enhanced Flight Stability: The 3-blade configuration provides a favorable balance of thrust and prop-wash handling for precise control.

Applications

3-inch CineWhoop and ducted FPV drones for cinematic indoor/outdoor flying.
Micro long-range and freestyle builds utilizing 1204-1404 brushless motors.
Compact HD digital FPV drones requiring efficient, low-profile propellers.
Lightweight toothpick-style quadcopters designed for agility and longer flight times.

Technical Specifications

Model Series	D63
Number of Blades	3
Material	Polycarbonate (PC)
Color	Black
Propeller Diameter	63.5 mm (2.5")
Pitch	3 inch
Center Hole Diameter	1.5 mm
Hub Thickness	4.6 mm
Mounting Pattern	3-hole
Compatible Motor Shaft	1.5 mm
Recommended Motor Size	1204 and larger
Propeller Weight (approx.)	1.4 g

Frequently Asked Questions

What motor shaft size are these Pro-Range D63 propellers compatible with?

These propellers are designed for a 1.5mm motor shaft diameter. They feature a 3-hole mounting pattern on a 4.6mm thick hub for secure attachment. Always ensure your motor's shaft diameter and bolt pattern match these specifications before installation.

Are these propellers suitable for 3-inch freestyle drones without ducts?

While primarily designed for ducted frames (CineWhoops), the D63 propellers can be used on open-prop 3-inch builds. Their polycarbonate construction provides durability for freestyle flying. Ensure your motor KV and battery voltage (e.g., 3S or 4S) are appropriate for the 3-inch pitch to achieve desired thrust and flight characteristics.

What is the main advantage of a 3-blade ducted propeller design?

A 3-blade ducted design offers a balance between thrust efficiency and prop-wash control within confined spaces. The extra blade provides more immediate thrust response compared to 2-blade props, while the ducted profile helps contain and direct airflow, improving stability in tight maneuvers and protecting the blades in crashes.
