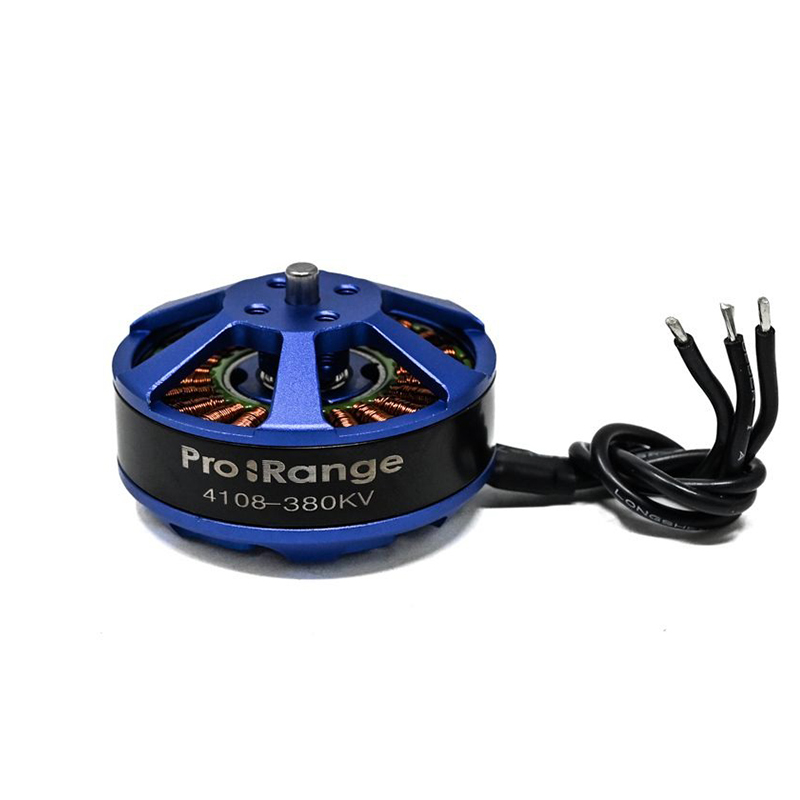

Pro-Range D4108 380KV CW Brushless Drone Motor

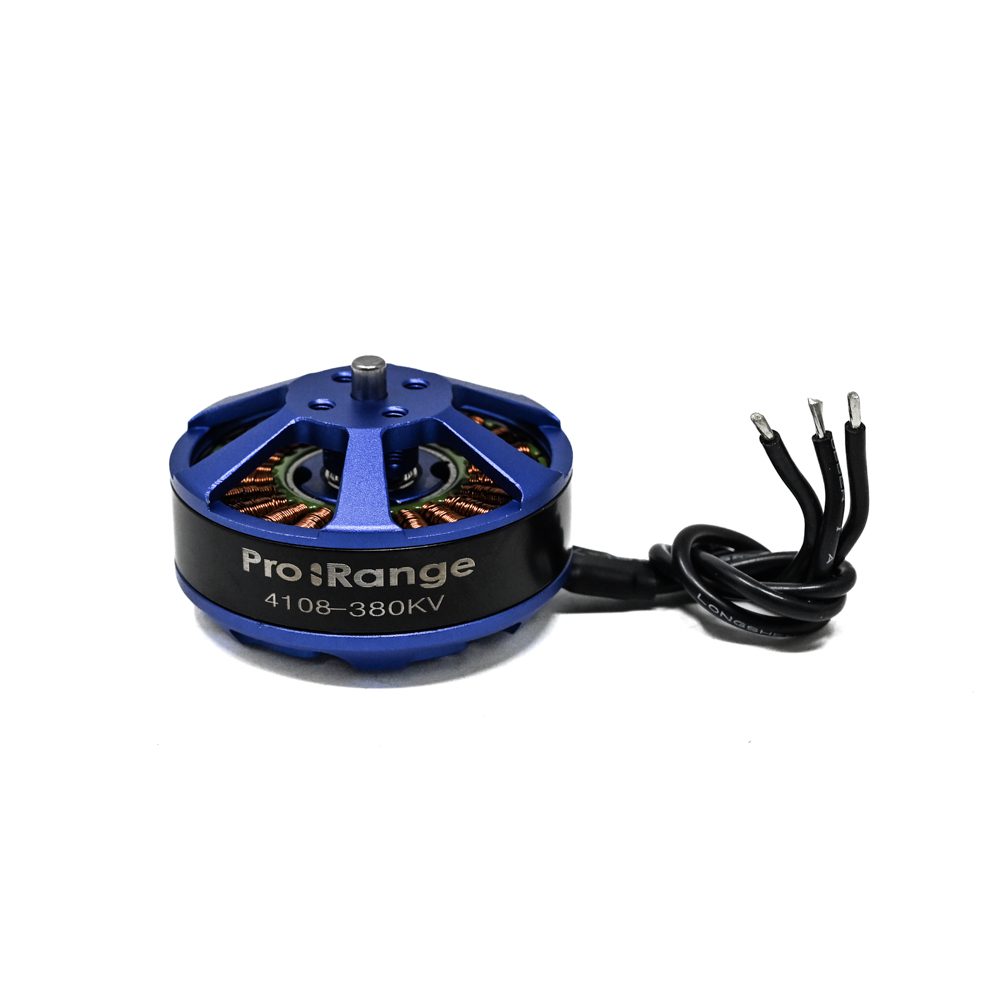

Pro-Range D4108 380KV CW Brushless Drone Motor - Image 2

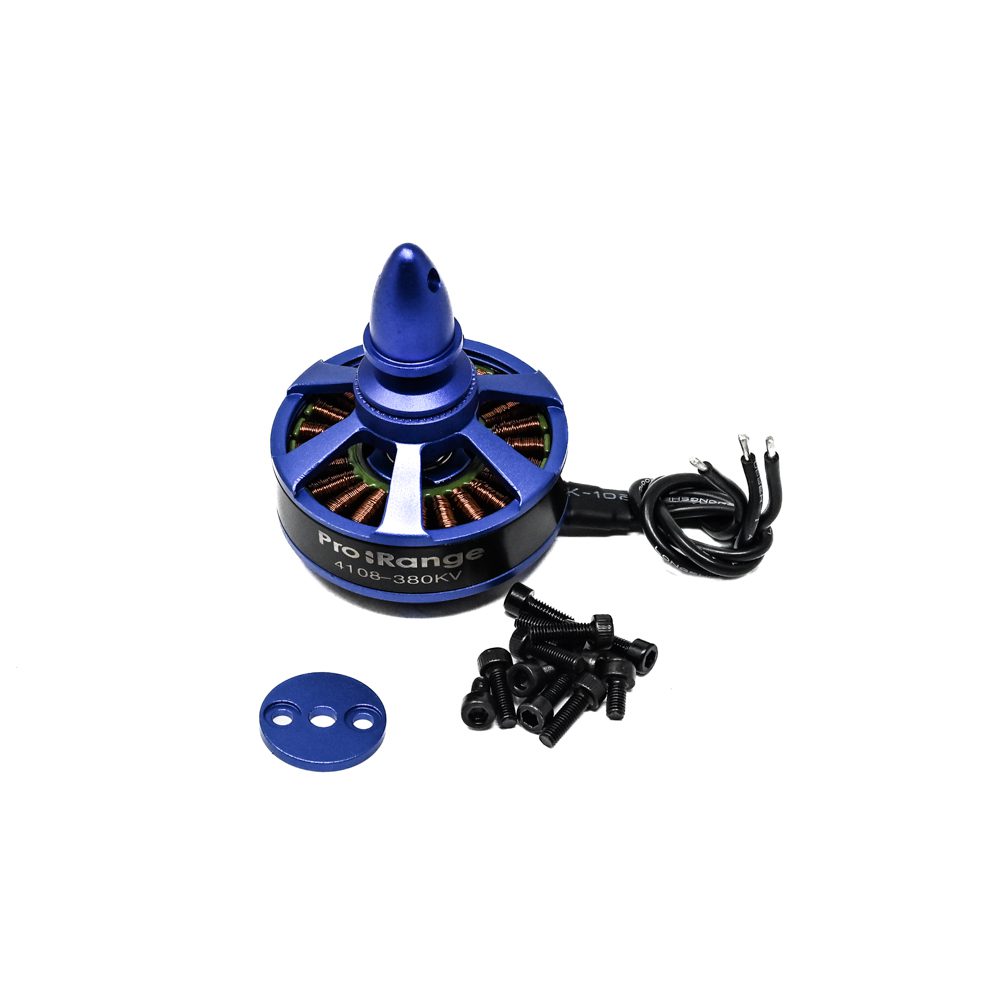

Pro-Range D4108 380KV CW Brushless Drone Motor - Image 3
SKU: DRFC-3205
📋 GST Invoice Available

Pro-Range D4108 380KV CW Brushless Drone Motor

₹1,729.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range D4108-380KV CW brushless motor is engineered for medium to heavy-lift multirotor drones, delivering up to 2140g of thrust with high efficiency from 4S to 6S LiPo battery configurations.

Features

  • 380KV rating optimized for high torque and smooth, stable flight performance.
  • Wide voltage compatibility from 14.8V to 22.2V (4S–6S LiPo).
  • Delivers up to 2140g of maximum thrust with a peak power output of 480W.
  • High efficiency rating up to 5.8g/W for extended flight times.
  • Lightweight construction at approximately 92g with a 4mm shaft diameter.

Out of stock

Description

The D4108-380KV motor is a high-performance brushless unit designed for demanding multirotor applications requiring reliable power and efficiency. Its 14-pole design and optimized magnetic circuit provide smooth rotation and excellent thermal management, minimizing vibration for stable flight control.

Engineered for durability, the motor operates within a wide temperature range and features a robust construction suitable for professional aerial photography, surveying, and industrial drone platforms. Its electrical characteristics, including a low no-load current, ensure efficient power utilization across its supported voltage range.

Key Features

  • High-torque 380KV design for stable lift and precise control.
  • Broad 4S to 6S LiPo voltage range compatibility (14.8V–22.2V).
  • Optimized for high efficiency, achieving up to 5.8 grams per watt.
  • Robust 14-pole stator and neodymium magnet configuration for smooth power delivery.
  • Lightweight aluminum alloy housing with integrated cooling for sustained high-power operation.
  • 4mm hardened steel shaft for reliable propeller mounting and torque transfer.
  • Low no-load current (0.6A) minimizes idle power consumption.

Applications

  • Medium to heavy-lift multirotor drones for aerial photography and cinematography.
  • Industrial inspection and surveying platforms requiring stable, efficient propulsion.
  • Custom heavy-lift drone builds compatible with large propellers like APC1238, APC1447, and 1555CF.
  • Extended-range UAVs where high efficiency (g/W) is critical for flight time.

Technical Specifications

ModelD4108
KV Rating380 KV
Motor TypeBrushless Outrunner
Shaft Diameter4 mm
Voltage Range14.8V – 22.2V (4S–6S LiPo)
Max Continuous Power480W
Max Thrust2140g
Max Efficiency Current11.8A
No-Load Current0.6A (600mA)
Number of Poles14
Operating Temperature-20°C to 80°C
Weight92g

Frequently Asked Questions

What is the compatible voltage range for the D4108-380KV motor?

The motor is optimized for 4S to 6S LiPo batteries (14.8V to 22.2V). While some specifications mention compatibility up to 8S, optimal performance and efficiency are achieved within the 4S-6S range. Always verify your ESC's voltage rating matches your chosen battery configuration.

What propellers are recommended for this motor?

This 380KV motor is designed for medium to large propellers to generate high thrust efficiently. It is compatible with propellers such as the APC1238, APC1447, and 1555CF. The ideal propeller size depends on your desired thrust, flight time, and specific multirotor frame size.

What is the shaft diameter and mounting pattern?

The motor features a standard 4mm diameter output shaft. The specific bolt-hole mounting pattern (e.g., 16x19mm, 25x25mm) is not provided in the standard specifications and should be verified from the motor's physical base or manufacturer documentation for frame compatibility.

Is this motor suitable for long-duration flight operations?

Yes, with its high efficiency rating of up to 5.8g/W and optimized thermal design, the D4108 is well-suited for applications requiring extended flight times, such as mapping, surveying, and cinematic video, when paired with an appropriately sized battery and propeller.

Package Includes

  • 1 x Pro-Range D4108-380KV CW Brushless Motor
  • 1 x Screw set

Additional Information

Weight 0.094 kg
Dimensions 7 × 7 × 5 cm
