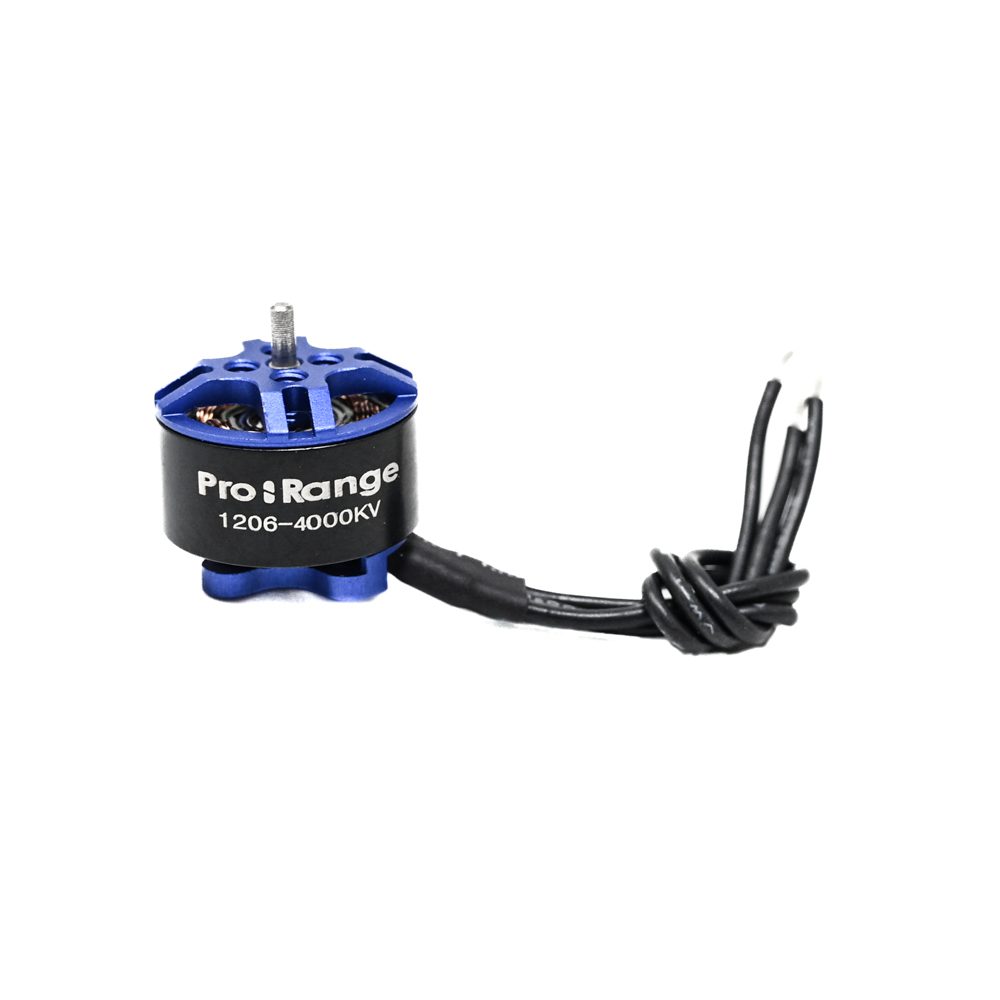

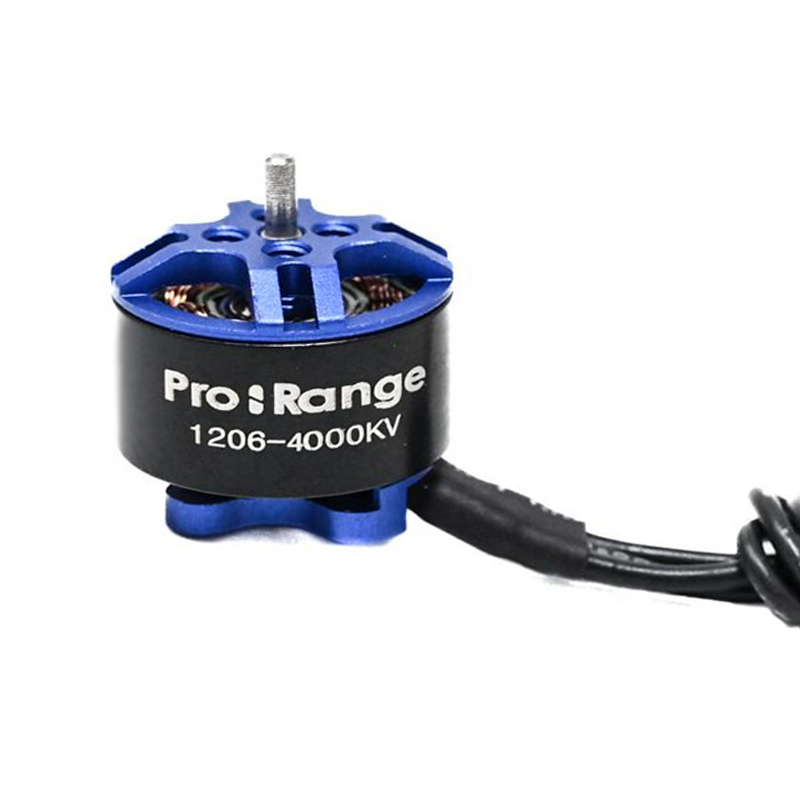

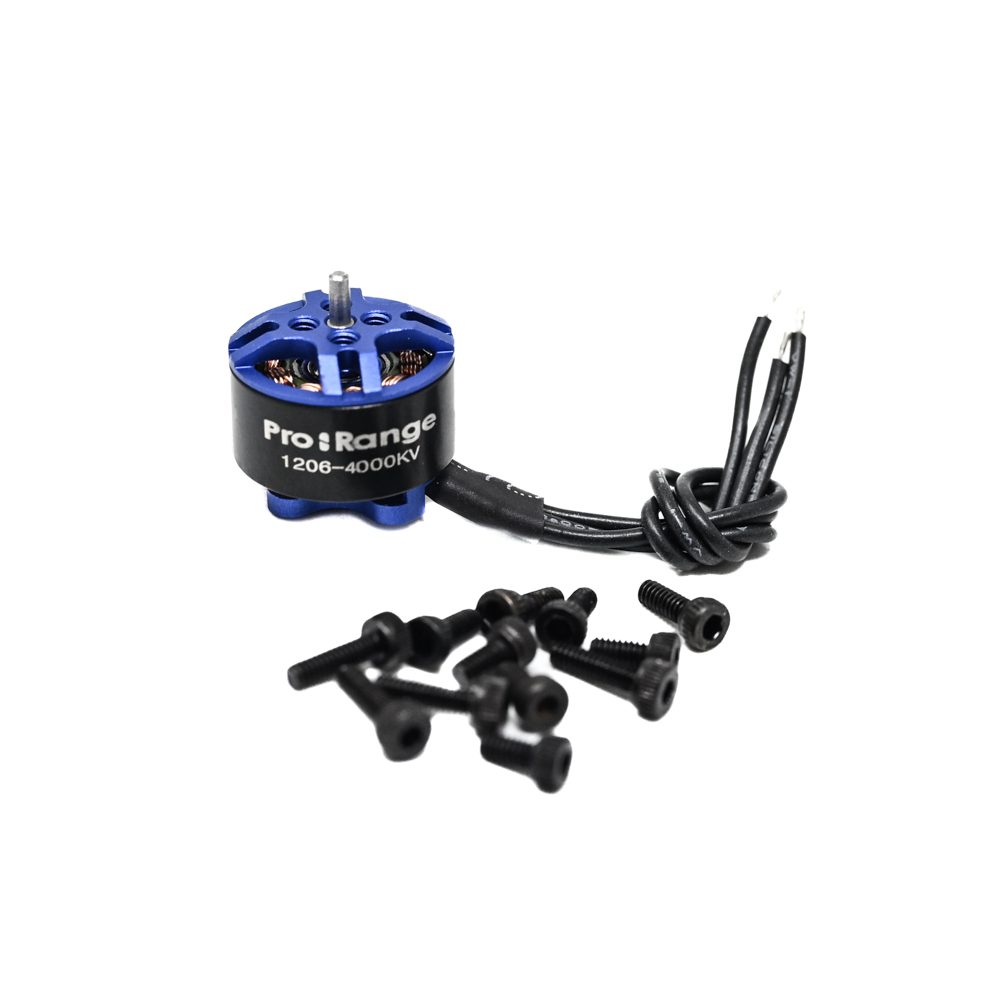

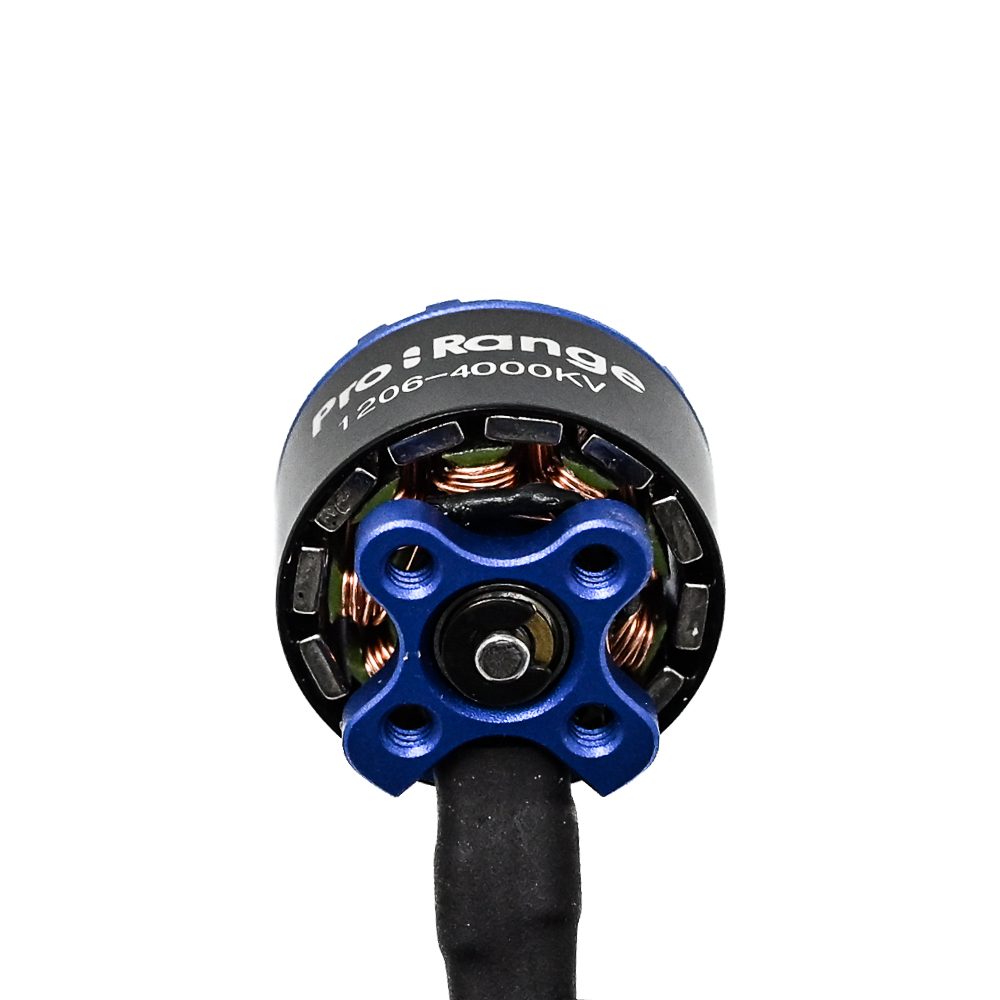

Pro-Range D1206 4000KV CCW Brushless Drone Motor
The Pro-Range D1206 4000KV brushless motor is a compact, high-efficiency powerplant designed for 1S to 3S micro and lightweight FPV drones, delivering up to 320g of thrust with a 1.5mm shaft for compatibility with small propellers.
Features
- 4000KV rating optimized for 1S-3S LiPo voltage range (3.7V-11.1V).
- Ultra-lightweight 9.2g design minimizes overall drone weight for agile flight.
- Delivers up to 320g of maximum thrust with a high efficiency of up to 2.7g/W.
- 1.5mm shaft diameter compatible with micro propellers like 2540 and 3024.
- CCW (Counterclockwise) rotation motor, ideal for standard quadcopter configurations.
Out of stock
The Pro-Range D1206 4000KV motor is engineered for micro and lightweight drone builds where power-to-weight ratio is critical. Its 12-pole stator design and optimized magnetic circuit provide a balanced combination of torque and rotational speed, making it suitable for both agile freestyle and efficient cruising on 1S to 3S battery packs.
Constructed with a durable housing and precision bearings, the motor maintains reliable performance across an operating temperature range of 0 to 80°C. With a maximum power handling of 163W and a peak efficiency current of 7.4A, it is designed for sustained operation with minimal electrical and thermal losses.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
