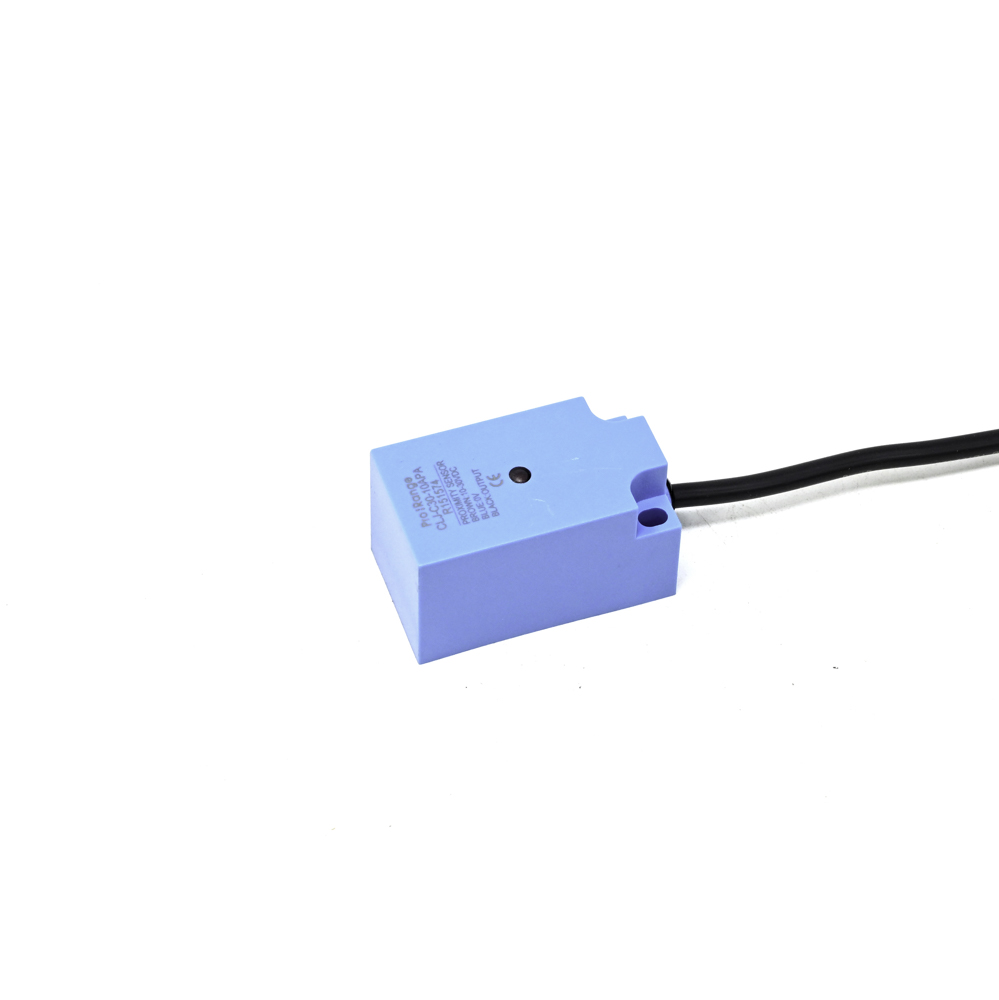

Pro-Range CLJ-C30-10APA Inductive Proximity Sensor NO PNP 30x30mm - 10mm Detection

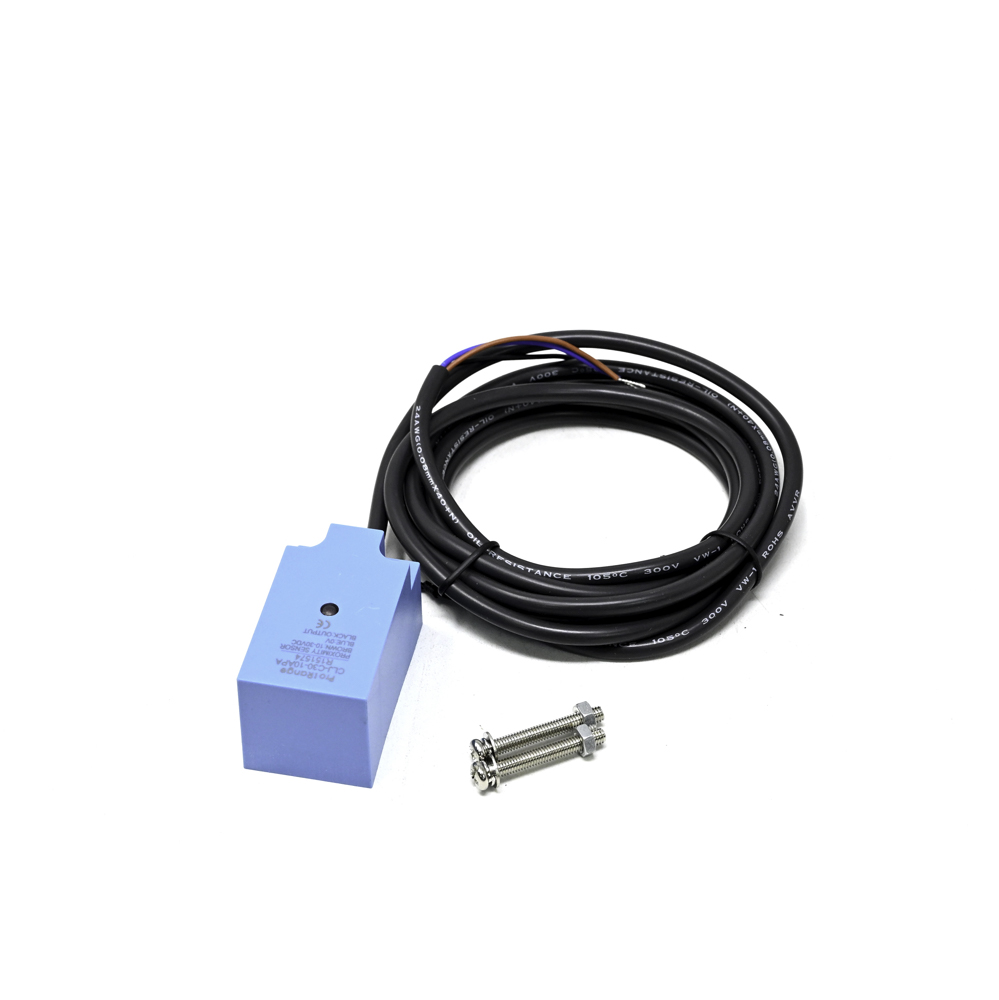

Pro-Range CLJ-C30-10APA Inductive Proximity Sensor NO PNP 30x30mm - 10mm Detection - Image 2
SKU: SENS-2359
📋 GST Invoice Available

Pro-Range CLJ-C30-10APA Inductive Proximity Sensor NO PNP 30x30mm - 10mm Detection

₹779.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range CLJ-C30-10APA is a non-contact inductive proximity sensor with a 10mm detection range, designed for industrial automation. It features a PNP (sourcing) output type, housed in a compact 30x30mm threaded barrel, and is ideal for detecting ferrous metal objects in machinery, PLCs, and CNC equipment.

Features

  • PNP (NO) output for direct interface with PLCs and 24V DC control systems.
  • 10mm standard detection distance for reliable non-contact sensing of ferrous metals.
  • Compact M30 (30x30mm) threaded barrel housing for easy panel mounting.
  • Built-in polarity and short-circuit protection for enhanced system durability.
  • High-speed response and long operational life for demanding industrial automation.

Out of stock

Description

The CLJ-C30-10APA operates on the electromagnetic induction principle, generating an oscillating field from its sensing face. When a conductive (typically ferrous) metal object enters this field, it induces eddy currents, causing a detectable change in the sensor’s internal oscillation amplitude. This change is processed by the internal circuitry to switch the PNP transistor output.

Engineered for harsh industrial environments, the sensor provides a robust and maintenance-free solution for position verification, limit switching, and object counting. Its solid-state design ensures high reliability and fast response times, critical for high-speed production lines and automated machinery.

Key Features

  • Inductive sensing principle for non-contact detection of ferrous metals.
  • Normally Open (NO) PNP output configuration (sourcing).
  • Standard 10mm sensing distance with high repeatability.
  • M30 x 1.5mm threaded barrel for secure IP67-rated mounting.
  • Integrated protection against reverse polarity and output short circuits.
  • Wide operating voltage range compatible with standard 10-30V DC industrial supplies.
  • LED status indicator for visual confirmation of output state and power.
  • High-value build with a nickel-plated brass housing for corrosion resistance.

Applications

  • Position sensing and end-of-travel limit switches in CNC machines and automated milling equipment.
  • Object detection and counting on conveyor belts in packaging and assembly lines.
  • Presence verification of metal parts in robotic pick-and-place and sorting systems.
  • Safety interlocking and door position monitoring in industrial machinery guards.
  • Proximity switching in hydraulic and pneumatic cylinder position feedback systems.

Technical Specifications

Model NumberCLJ-C30-10APA
Output TypePNP, Normally Open (NO)
Detection Distance10 mm
Housing Size30 x 30 mm (M30 Thread)
Sensing ObjectFerrous Metals (Steel, Iron)
Supply Voltage10-30V DC
Output Current≤ 200 mA
Response FrequencyUp to 500 Hz
Protection FeaturesPolarity Protection, Short-Circuit Protection
Housing MaterialNickel-Plated Brass
IP RatingIP67
Operating Temperature-25°C to +70°C

Frequently Asked Questions

What is the output type of the CLJ-C30-10APA sensor and how do I wire it?

This sensor has a 3-wire PNP (sourcing) Normally Open (NO) output. Connect the brown wire to your DC positive supply (10-30V), the blue wire to DC negative/common, and the black wire is the switched positive output. When a metal target is detected within 10mm, the black wire switches to supply voltage.

What types of metals can this inductive sensor detect?

It is designed primarily for ferrous metals like mild steel and iron. Detection distance is standardized for a 1mm thick, 30x30mm square of mild steel (Fe360). Non-ferrous metals like aluminum or copper may have a significantly reduced sensing range and are not guaranteed to trigger the sensor reliably.

What is the recommended mounting procedure for this M30 threaded sensor?

Use a standard M30 x 1.5mm locknut to secure the sensor in a drilled panel. Ensure the sensing face is flush and unobstructed. Maintain the specified lateral and axial clearance from surrounding metal (typically 2x the sensor diameter) to prevent false triggering from the mounting bracket itself.

Package Includes

  • 1 x Pro-Range CLJ-C30-10APA Inductive Proximity Sensor

Additional Information

Weight 0.03 kg
Dimensions 15 × 5 × 10 cm
