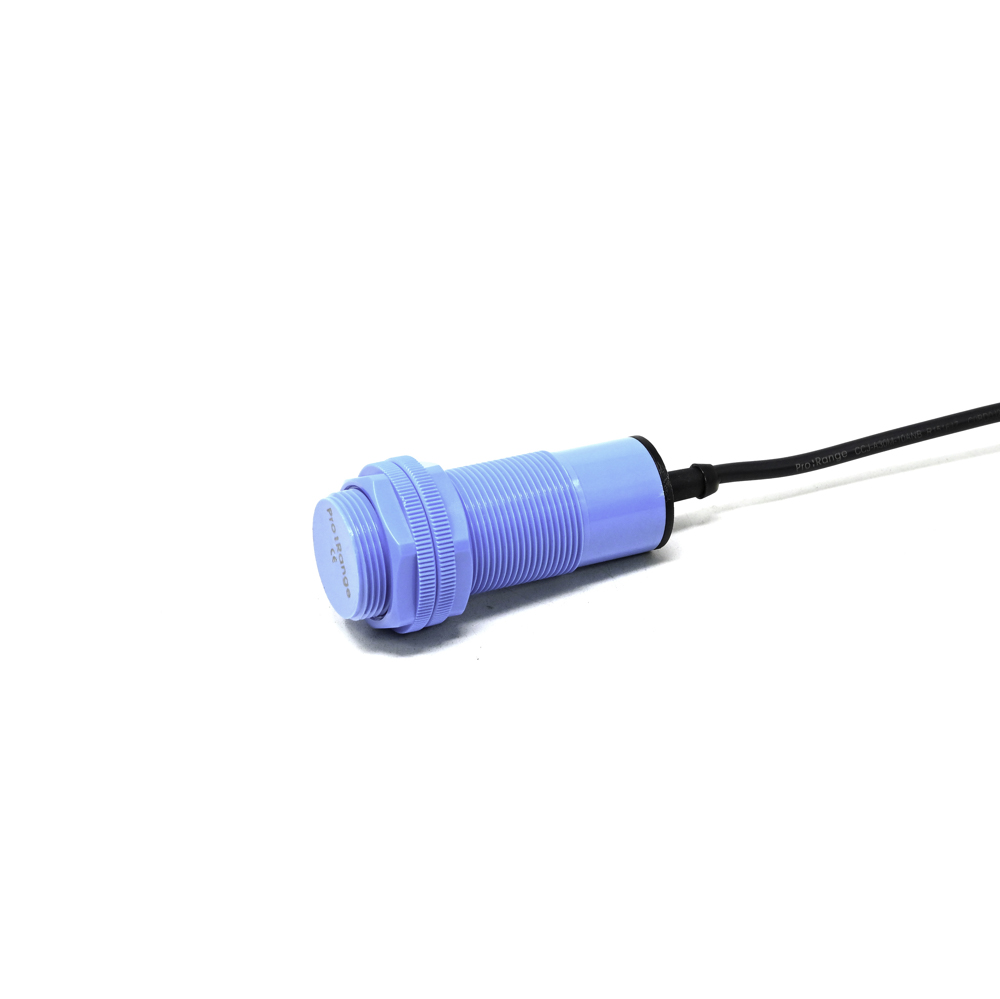

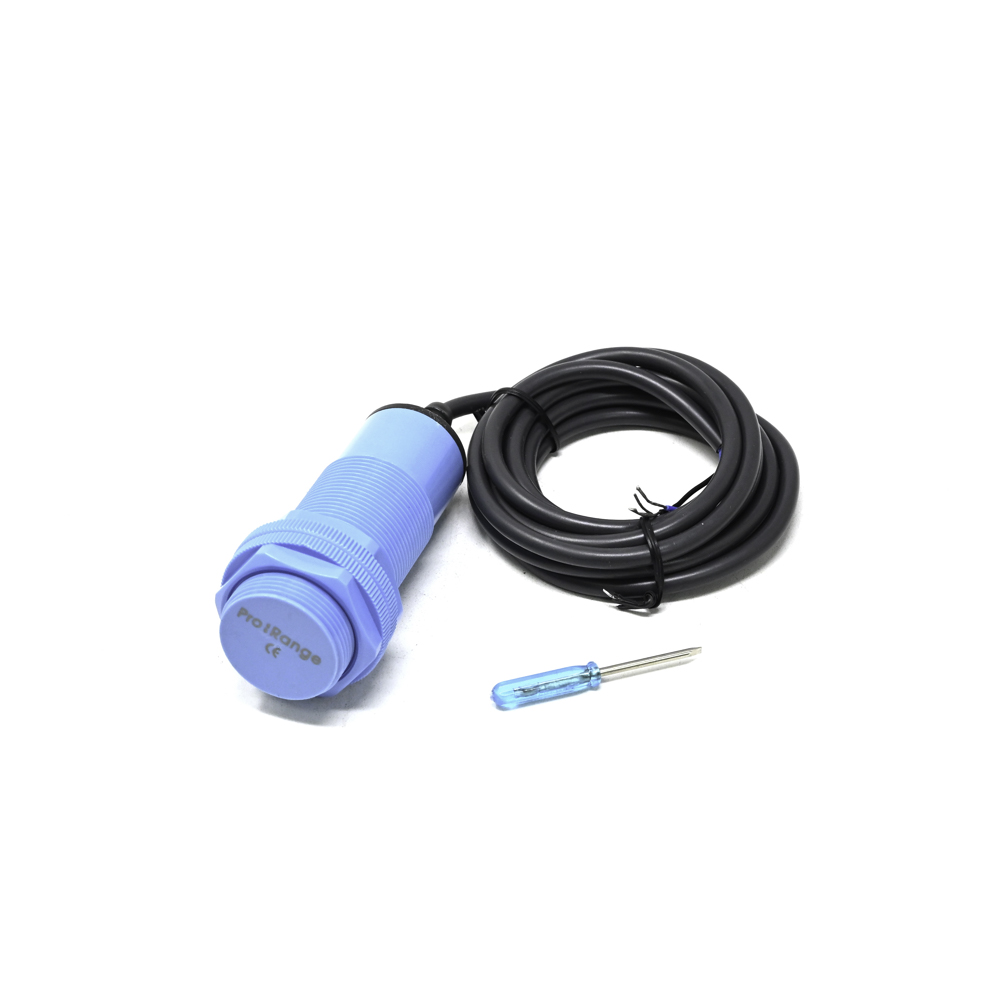

Pro-Range CCJ-A30M-10ANB Capacitive Proximity Sensor NPN M30 Thread 10mm Detection
The Pro-Range CCJ-A30M-10ANB is an NPN-output capacitive proximity sensor with a 10mm detection range and M30 threaded housing, designed for non-contact detection of non-metallic objects in industrial automation systems, PLCs, and material handling applications.
Features
- NPN (sinking) output configuration for standard PLC and industrial controller compatibility.
- 10mm nominal detection distance for non-metallic objects (liquids, plastics, powders).
- M30 x 1.5mm threaded stainless steel housing for robust industrial mounting.
- Integrated sensitivity adjustment potentiometer for fine-tuning detection thresholds.
- Features polarity protection, short-circuit protection, and a red LED status indicator.
Out of stock
The CCJ-A30M-10ANB capacitive sensor operates by generating an electrostatic field and detecting changes in capacitance caused by the presence of a target object. This principle allows for reliable detection of a wide range of materials, including liquids, granules, plastics, and glass, without physical contact. The sensor’s dedicated IC provides excellent immunity to electrical noise and interference common in industrial environments.
Constructed with a durable metal housing, this sensor is built for long-term reliability in demanding applications such as packaging, food processing, and automated assembly lines. Its fast response time and high repeatability ensure accurate positioning, counting, and level monitoring tasks.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
