SKU: DRFC-1623
📋 GST Invoice Available

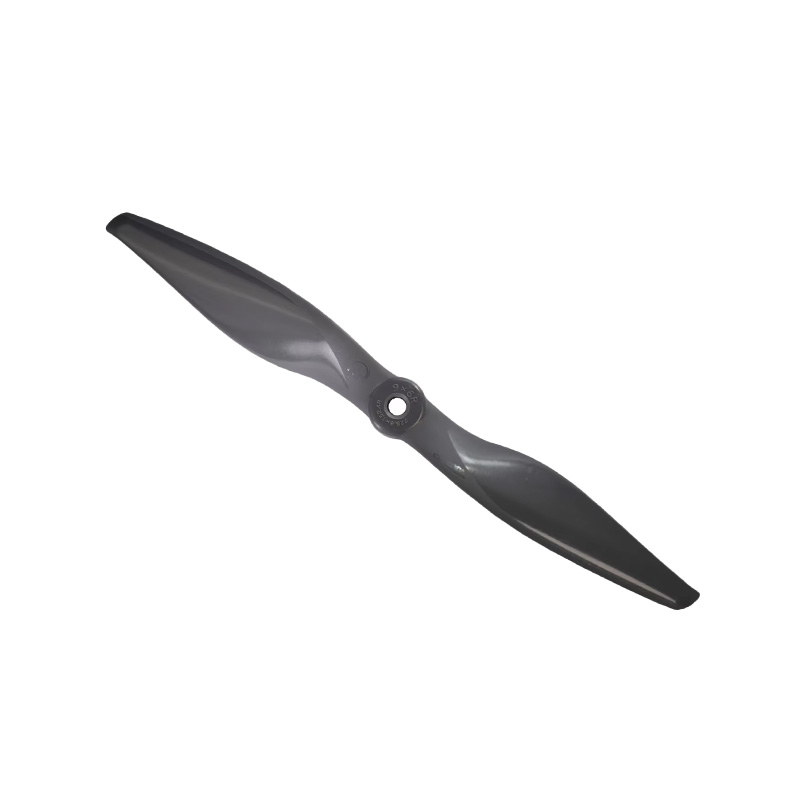

Pro-Range 9X6R VORTEX Electric Glass Fiber Nylon Propeller - Reverse Rotation, Dark Grey

₹158.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 9X6R VORTEX is a reverse-rotation (R) electric propeller designed for small to medium-sized drones and RC aircraft, featuring a 9×6-inch profile and a durable glass fiber-nylon composite construction for a high strength-to-weight ratio and efficient flight performance.

Features

  • 9-inch diameter with a 6-inch pitch for balanced thrust and speed control.
  • Constructed from a high-strength glass fiber and nylon composite for durability and flexibility.
  • Lightweight 20g design contributes to improved flight efficiency and longer endurance.
  • Includes six hole adapters (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm) for broad motor shaft compatibility.
  • Reverse rotation (R) variant for use in counter-rotating motor setups on multirotors or twin-engine aircraft.

Out of stock

Description

Engineered for electric-powered flight, the Pro-Range 9X6R VORTEX propeller utilizes a composite of glass fiber and nylon to achieve an optimal balance between structural rigidity and impact resistance. This material choice minimizes weight while maintaining the integrity needed for high-RPM operation, resulting in smooth and responsive thrust.

The propeller’s 9.9mm center thickness and 19.6mm prop disk hub provide a stable mounting platform, distributing stress evenly during operation. Its reverse rotation designation makes it essential for creating balanced, torque-neutral propulsion systems in quadcopters or other multi-engine configurations, reducing yaw drift and improving overall flight stability.

Key Features

  • Composite Durability: Glass fiber-reinforced nylon construction offers superior resistance to fatigue and impact compared to standard plastic props.
  • Aerodynamic Profile: The 9x6 airfoil is optimized for a blend of static thrust and forward speed efficiency in electric flight.
  • Universal Mounting: Supplied with six interchangeable hole adapters, ensuring compatibility with a vast range of brushless motor shaft diameters.
  • Precision Balanced: Manufactured to tight tolerances for minimal vibration, contributing to smoother video and reduced motor wear.
  • Reverse Rotation Specific: Designed as a matched pair with standard rotation props for counter-rotating setups on multirotor and fixed-wing aircraft.

Applications

  • Medium-sized FPV and aerial photography drones requiring efficient 9-inch propellers.
  • RC fixed-wing aircraft and twin-engine models where a reverse rotation prop is needed for counter-torque.
  • Electric-powered multirotor builds, such as heavy-lift hexacopters or octocopters, utilizing counter-rotating motor pairs.
  • DIY drone projects and educational platforms where broad motor shaft compatibility is essential.

Technical Specifications

ModelPFGN9X6-EAR
Diameter9 Inch
Pitch6 Inch
RotationReverse (R)
MaterialGlass Fiber & Nylon Composite
ColorDark Grey
Weight20g
Center Thickness9.9mm
Prop Disk Diameter19.6mm
Hole Adapters Included3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm

Frequently Asked Questions

What does 'Reverse Rotation' (R) mean for this propeller?

A reverse rotation propeller spins in the opposite direction to a standard propeller. It is used in multirotor drones (like quadcopters) and twin-engine aircraft to create counter-rotating motor pairs. This setup cancels out rotational torque, improving yaw stability and flight control without requiring the flight controller to compensate as heavily.

Are the included hole adapters necessary for installation?

Yes, the adapters are essential. The propeller hub has a large central hole designed to accept these interchangeable inserts. You must select the adapter that matches your specific brushless motor shaft diameter (e.g., 5mm for many large motors) and press it into the hub before securing the propeller with the motor's prop nut or bolt.

Is this propeller suitable for high-RPM, 6S LiPo drone setups?

While the glass fiber-nylon composite offers good durability, the 9x6 size is typically used on medium-sized drones or planes with moderate RPM. For aggressive 6S freestyle or racing drones, ensure your motor's KV rating and power output are appropriate for a 9-inch prop. Always check the motor manufacturer's recommended prop size to avoid overloading the ESC or motor.

How should I balance this propeller before use?

For optimal performance and minimal vibration, dynamic balancing is recommended. Use a propeller balancer to check for weight imbalance. If needed, carefully add small pieces of clear tape to the lighter blade's underside or lightly sand material from the heavier blade's tip. Proper balancing extends motor bearing life and results in smoother flight and video footage.

Package Includes

  • 1 x Pro-Range 9X6R VORTEX Glass Fiber Nylon Propeller (Dark Grey)
  • 1 x Set of Hole Adapters (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm)

Additional Information

Weight 0.02 kg
Dimensions 10 × 30 × 2 cm
