SKU: DRFC-1459
📋 GST Invoice Available

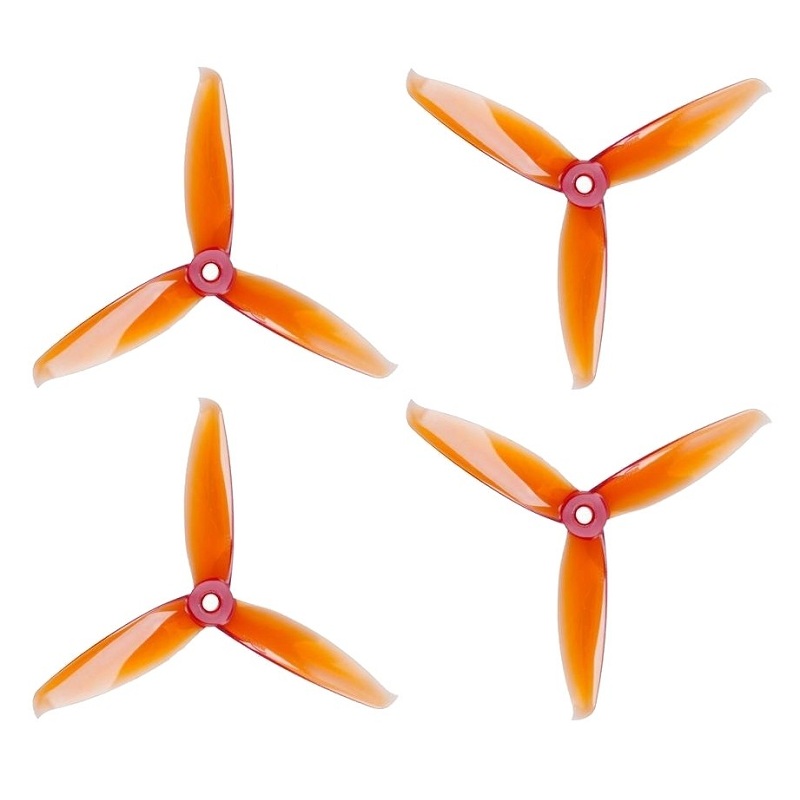

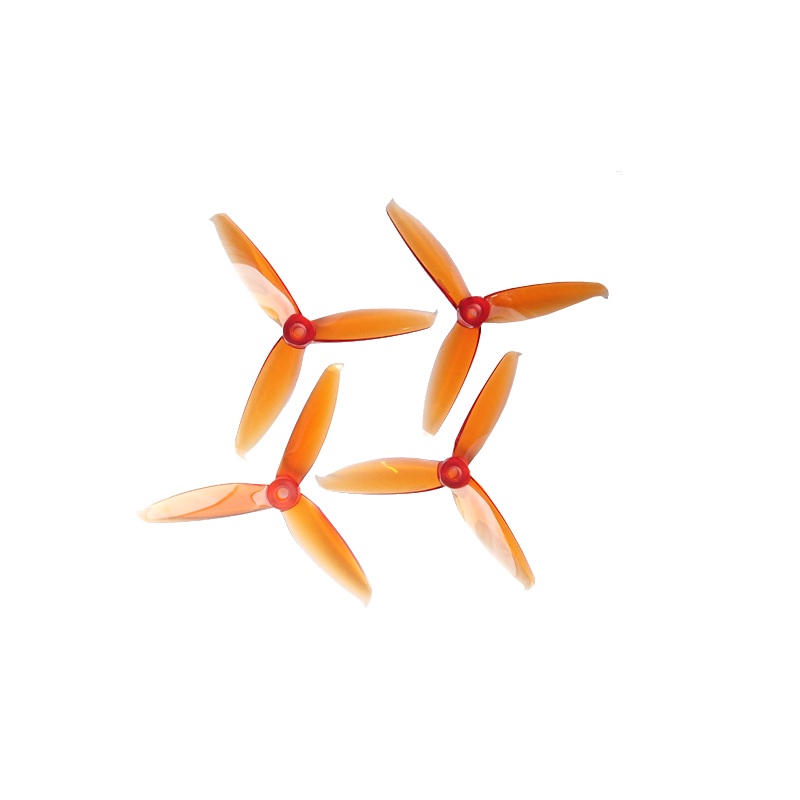

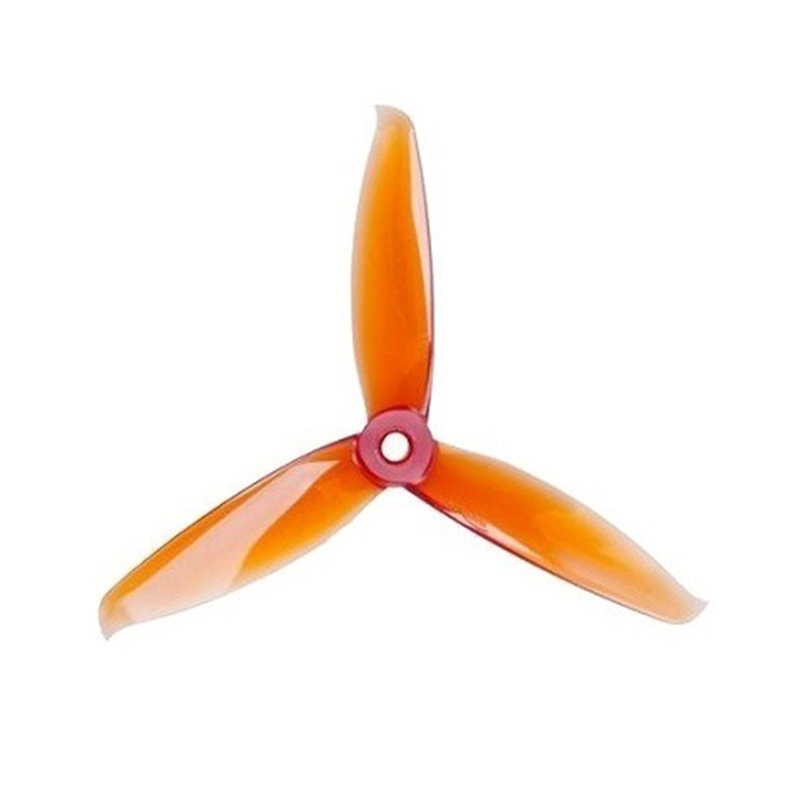

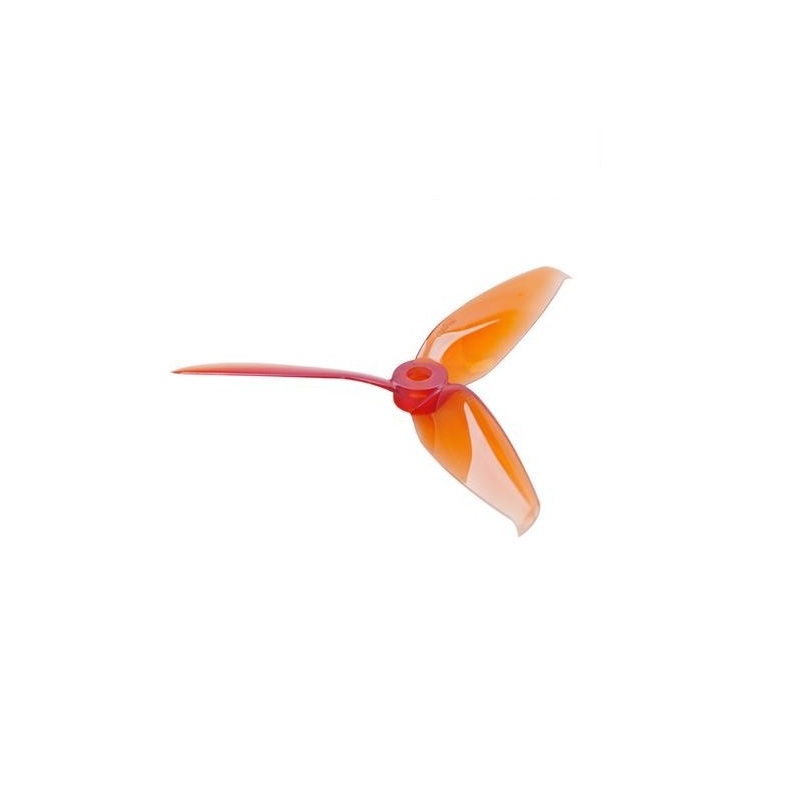

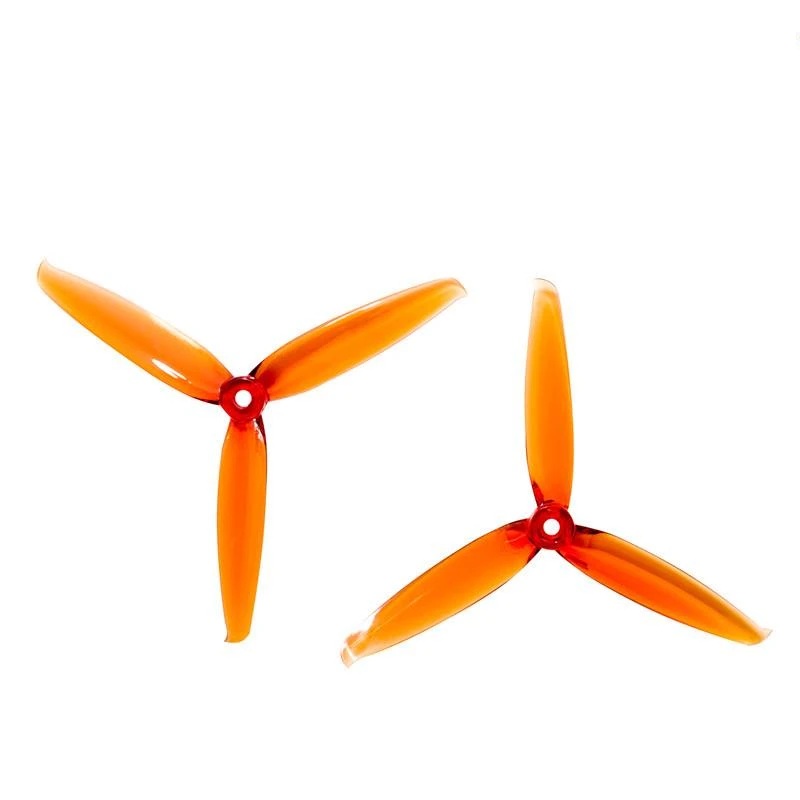

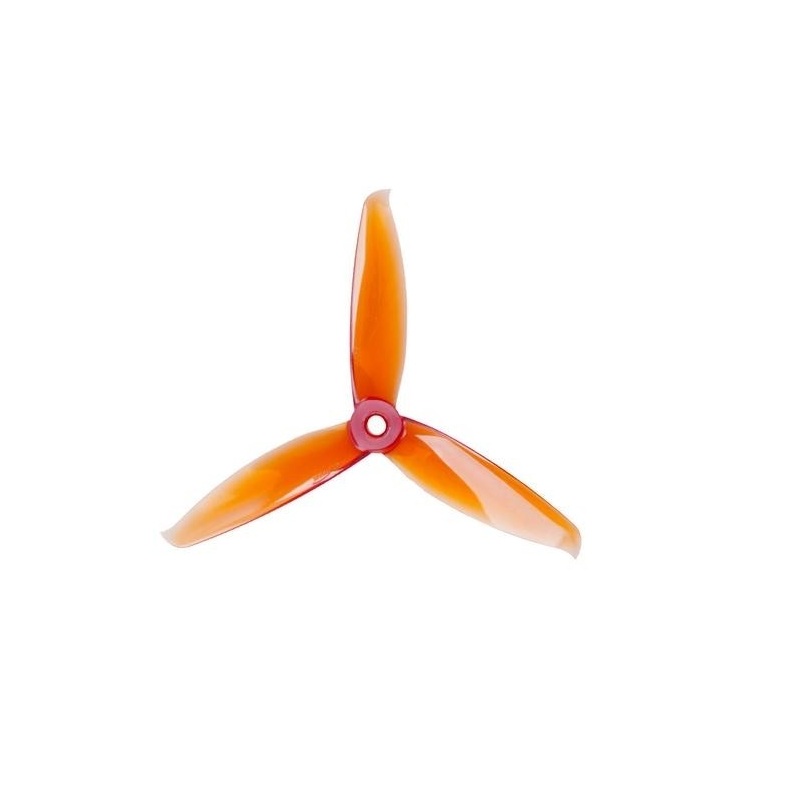

Pro-Range 5152 (5.1x5.2) Tri-Blade Flash Propellers 2CW+2CCW 2 Pair - OrangeRX

₹209.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 5152 (5.1×5.2) Tri-Blade Flash propeller is a high-performance PC prop designed for 5-inch FPV racing and freestyle drones, offering a balance of lightweight construction, fast response, and strong thrust for high-speed multirotors.

Features

  • 5.1×5.2-inch tri-blade design optimized for high-speed 5-inch racing and freestyle drones.
  • Constructed from advanced polycarbonate (PC) for excellent dash and bending resistance.
  • Inverse tip design reduces blade tip vortex for improved aerodynamic efficiency.
  • Lightweight blade with low moment of inertia ensures fast throttle response.
  • 5mm shaft hole diameter compatible with standard 2306, 2207, and similar brushless motors.

Out of stock

Description

The Pro-Range Flash series 5152 propeller combines a professional pneumatic outlook with high-precision production quality to deliver strong, consistent thrust. Its 5.1-inch diameter and 5.2-inch pitch create an aggressive lift profile suitable for demanding FPV flight maneuvers and rapid acceleration.

Engineered from advanced polycarbonate, this propeller provides an optimal blend of ultra-durability and lightweight performance. The material’s inherent resistance to impact and bending ensures the prop maintains its shape and efficiency through rigorous use, making it a reliable choice for competitive pilots.

Key Features

  • High-Quality Polycarbonate (PC) Construction: Offers superior strength-to-weight ratio and impact resistance for extended propeller life.
  • Aerodynamic Inverse Tip Design: Minimizes turbulent vortices at the blade tip, enhancing overall flight efficiency and reducing power consumption.
  • Optimized for Fast Response: Lightweight blade mass and low rotational inertia allow for instantaneous throttle changes and precise control.
  • Professional Pneumatic Profile: The blade shape is engineered to generate strong, smooth thrust across a wide RPM range.
  • Wide Motor Compatibility: The 5mm bore fits a broad range of standard 5-inch drone brushless motors like the RS2306 and GT2205.
  • Vibrant OrangeRX Color: Provides high visibility for orientation during flight and easy identification in your parts collection.

Applications

  • 5-inch FPV Racing Drones: Ideal for high-speed track racing where fast response and strong thrust are critical.
  • 5-inch Freestyle Quadcopters: Provides the aggressive lift and durability needed for dynamic tricks and proximity flying.
  • Builds using 2207, 2306, or similar sized brushless motors on 4S to 6S LiPo batteries.
  • FPV drones built on 130mm to 140mm wheelbase frames designed for 5-inch propellers.

Technical Specifications

Propeller Diameter5.1 inch (12.95 cm)
Propeller Pitch5.2 inch (13.20 cm)
Number of Blades3 (Tri-Blade)
MaterialPolycarbonate (PC)
Shaft Hole Diameter5 mm
Rotation Direction2x Clockwise (CW), 2x Counter-Clockwise (CCW)
Weight (per propeller)27 grams
ColorOrangeRX
Propeller TypeFlash Series (High-Performance)

Frequently Asked Questions

What size drone frame are these Pro-Range 5152 propellers designed for?

The Pro-Range 5152 propellers, with a 5.1-inch diameter, are specifically designed for 5-inch FPV drone frames. They are an ideal match for builds with a wheelbase in the 130mm to 140mm range, which is standard for 5-inch racing and freestyle quadcopters.

Are these propellers compatible with 6S LiPo batteries?

Yes, the polycarbonate construction of the Flash series provides the necessary strength and rigidity to handle the high RPM and power generated by 6S systems. They are suitable for use with 4S, 5S, and 6S LiPo batteries when paired with appropriately rated motors like 2207 or 2306 sizes.

What is the advantage of the inverse tip design on these props?

The inverse tip design helps reduce the formation of blade tip vortices, which are a source of aerodynamic drag and inefficiency. This results in smoother airflow, improved thrust efficiency, and potentially longer flight times due to reduced power consumption at high speeds.

Package Includes

  • 2 x Pro-Range 5152 (5.1x5.2) Tri-Blade Flash Propellers - Clockwise (CW) Rotation - OrangeRX
  • 2 x Pro-Range 5152 (5.1x5.2) Tri-Blade Flash Propellers - Counter-Clockwise (CCW) Rotation - OrangeRX

Additional Information

Weight 0.03 kg
Dimensions 20 × 20 × 3 cm
