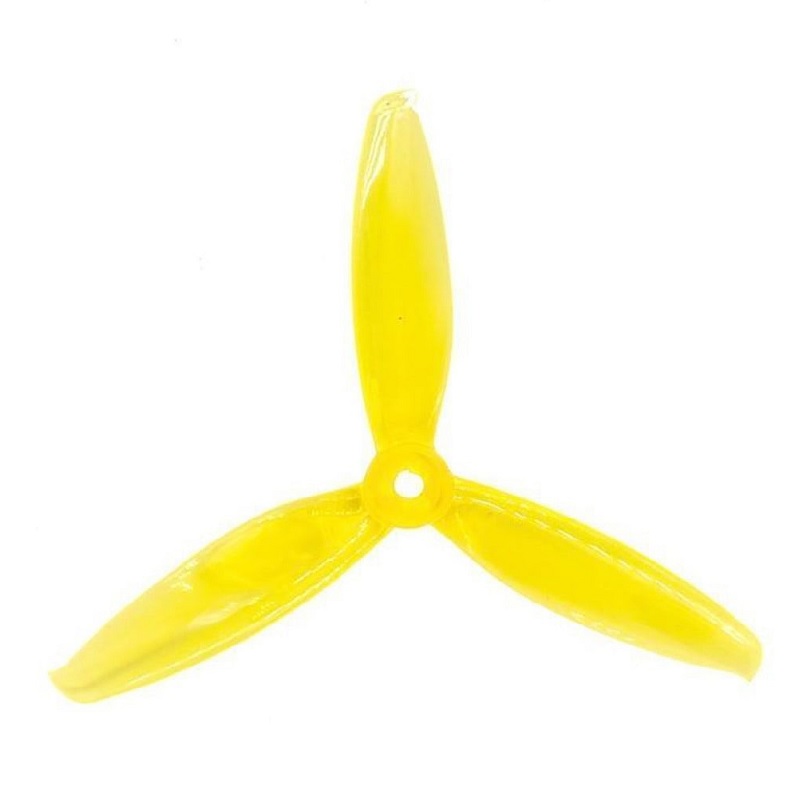

The Pro-Range 5043 WinDancer is a set of 5-inch, three-blade propellers crafted from durable Polycarbonate (PC), designed for 2204-2306 size motors. This 2CW+2CCW pack offers balanced thrust and flight stability for FPV racing and freestyle drones.

Features

5-inch (5043) three-blade propeller design optimized for high thrust and responsive handling.
Constructed from durable Polycarbonate (PC) for an optimal balance of rigidity and impact resistance.
Clear Yellow color provides high visibility for orientation and style.
Compatible with 2204, 2205, 2206, 2207, 2305, and 2306 brushless motor sizes.
Includes a balanced set of 2 Clockwise (CW) and 2 Counter-Clockwise (CCW) propellers for immediate use.

Out of stock

Get Notified When Available

Description

The Pro-Range 5043 WinDancer propellers are engineered for pilots seeking a reliable performance upgrade. The 5-inch diameter and 4.3-inch pitch (127.93mm x 86.36mm) provide a strong thrust-to-weight ratio, ideal for aggressive maneuvers and efficient cruising. The three-blade configuration offers a favorable compromise between raw power and flight time.

Manufactured from high-grade Polycarbonate, these blades deliver the necessary stiffness to maintain pitch accuracy at high RPMs while offering sufficient flexibility to absorb minor impacts. The 7mm thick hub and 5mm center bore ensure a secure, concentric fit on standard M5 motor shafts, minimizing vibration for smoother video footage and precise flight control.

Key Features

High-Visibility Polycarbonate Construction: Clear Yellow PC material provides excellent durability and high-visibility aesthetics for orientation tracking.
Optimized Aerodynamic Profile: The 5043 blade geometry is tuned for efficient thrust generation across a wide range of throttle settings.
Precision Balanced Hubs: The 7mm thick hub with a 5mm center hole ensures minimal runout and vibration for smooth operation.
Wide Motor Compatibility: Designed for seamless integration with popular 22xx and 23xx series brushless motors (2204-2306).
Flight-Tuned Performance: Delivers a balanced mix of top-end speed, acceleration, and mid-throttle efficiency for dynamic flying.

Applications

5-inch FPV Racing Drones: Ideal for lightweight, high-speed builds requiring responsive throttle control and precise cornering.
5-inch Freestyle & Cinematic Drones: Provides the thrust and stability needed for aggressive tricks and smooth, controlled footage.
Long-Range & Cruiser Builds: The efficient 5043 pitch offers a good balance of speed and flight time for extended exploration.
General-Purpose 5-inch Quadcopters: A reliable upgrade for standard multirotor platforms using 22xx or 23xx motors.

Technical Specifications

Model	5043 WinDancer
Diameter	127.93 mm (5 in)
Pitch	86.36 mm (3.4 in)
Blade Count	3
Material	Polycarbonate (PC)
Rotation Direction	CW & CCW
Color	Clear Yellow
Center Hole Diameter	5 mm
Hub Thickness	7 mm
Compatible Motor Size	2204, 2205, 2206, 2207, 2305, 2306
Weight (per propeller)	~4.1 g

Frequently Asked Questions

What size motors are these 5043 WinDancer propellers compatible with?

These propellers are designed for 22xx and 23xx series brushless motors, specifically covering sizes from 2204 up to 2306. They feature a standard 5mm center bore to fit the M5 motor shaft common on these models, making them a direct fit for most 5-inch FPV drone builds.

What is the advantage of the three-blade design on a 5043 propeller?

A three-blade 5043 propeller offers a performance balance between a two-blade and a four-blade design. It provides more thrust and better braking/grip in corners than a two-blade, while typically drawing less current and offering slightly longer flight times than a four-blade prop. This makes it versatile for both racing and freestyle flying.

Are these propellers balanced out of the package?

While Pro-Range propellers are manufactured to good tolerances, it is always recommended to dynamically balance propellers before use, especially for high-performance or HD video applications. Minor imbalances can cause motor vibrations that affect flight smoothness and video feed quality. A proper balance ensures optimal performance.

Package Includes

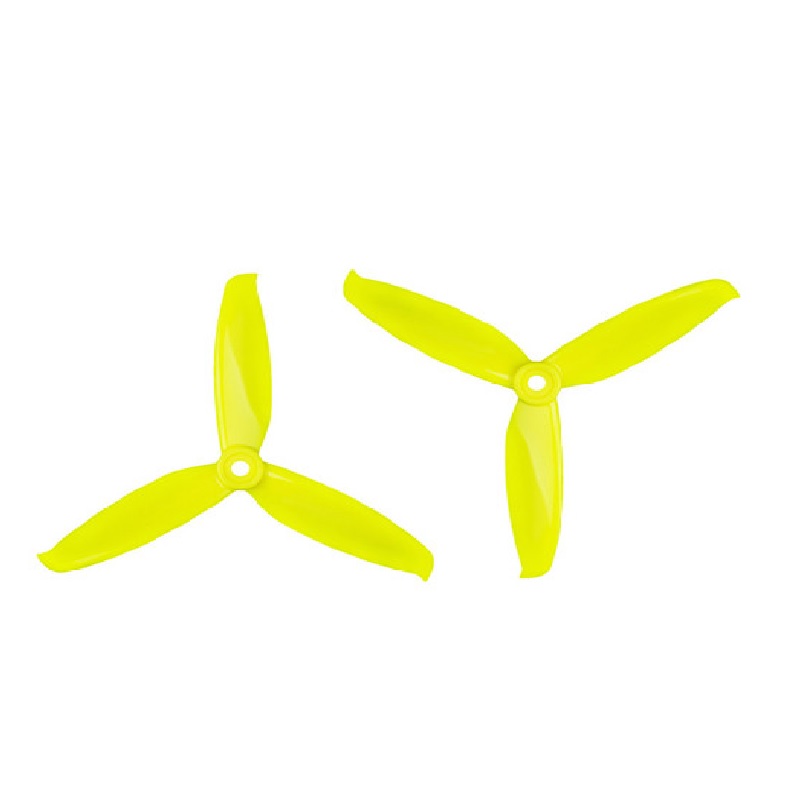

2 x Pro-Range 5043 WinDancer PC 3-Blade Propellers (CW Rotation) - Clear Yellow
2 x Pro-Range 5043 WinDancer PC 3-Blade Propellers (CCW Rotation) - Clear Yellow
