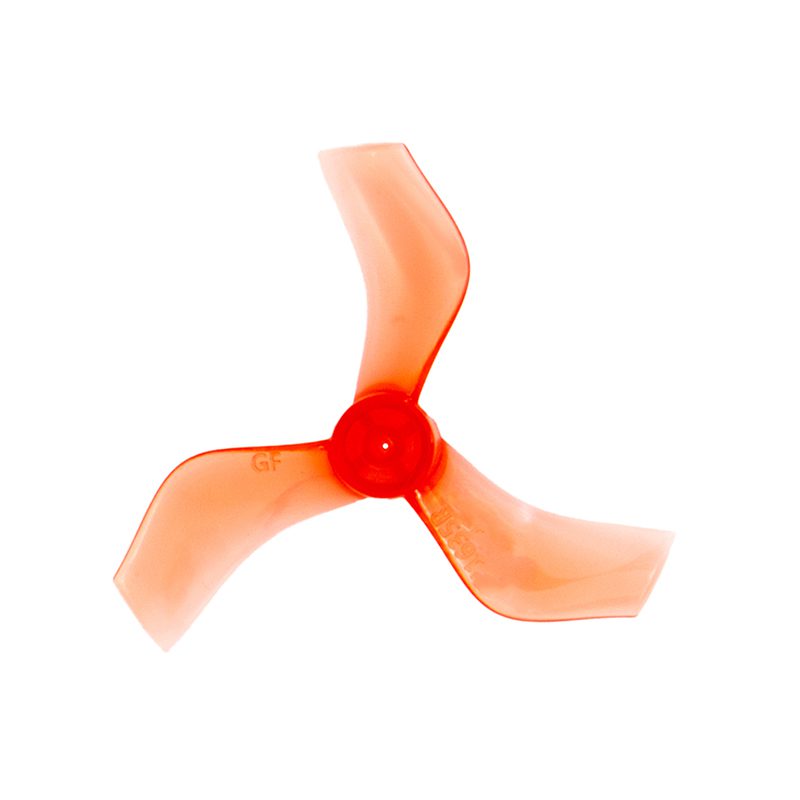

Pro-Range 40mm 1635 PC 3-Blade 1mm Propellers 4CW+4CCW - Clear Red

Name: Pro-Range 40mm 1635 PC 3-Blade 1mm Propellers 4CW+4CCW - Clear Red
Brand: Pro-Range
SKU: DRFC-1216
Price: 117.00 INR
Availability: OutOfStock

₹117.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range 1635 series 40mm PC propellers are a 3-blade design optimized for micro and nano drone builds. Featuring a 1mm single-hole mounting hub, they are engineered for 1103-1105 KV brushless motors and deliver a balanced thrust-to-weight ratio for stable, efficient flight.

Features

40mm (1.2-inch) diameter with a 3.5-inch pitch for optimized thrust efficiency.
Constructed from durable Polycarbonate (PC) for a high strength-to-weight ratio.
1mm single-hole mounting hub compatible with standard micro motor shafts.
Recommended for 1103-1105 KV brushless motors on 1S-2S LiPo micro drones.
Includes a balanced 4CW + 4CCW set for a complete quadcopter build.

Out of stock

Get Notified When Available

Description

The Pro-Range 1635 propellers utilize a three-blade aerodynamic profile to generate smooth, responsive thrust for micro FPV and cinewhoop platforms. The Polycarbonate construction provides the necessary rigidity to maintain blade shape under load while minimizing rotational mass for rapid motor response.

Designed with a 1mm center bore, these props secure directly onto the motor shaft of common 1103 and 1105 size motors. The 3.5-inch pitch and 40mm diameter are calibrated to offer a balanced performance profile, providing ample lift for acrobatic flight without overloading smaller ESC systems on 1S to 2S power systems.

Key Features

High-performance three-blade design reduces vortex ring state and improves low-speed control.
Polycarbonate material ensures excellent impact resistance and long-term durability.
Precision-molded blades are factory-balanced for minimal vibration and smoother video feed.
Clear Red translucent finish allows for easy visual inspection of blade integrity and adds a distinctive style to builds.
Optimized airfoil geometry enhances flight efficiency, extending battery life on micro drone platforms.

Applications

1S-2S powered 65mm to 75mm micro FPV whoop and toothpick drones.
Indoor cinewhoop builds requiring quiet, duct-compatible propellers.
Lightweight nano long-range or freestyle builds using 1103-1105 motors.
Micro drone racing platforms where low mass and quick throttle response are critical.
DIY micro aerial photography drones where stable, efficient hover is needed.

Technical Specifications

Model Series	1635
Diameter	40mm (1.2in)
Pitch	3.5in
Blade Count	3
Material	Polycarbonate (PC)
Mounting Hole Diameter	1mm
Rotation Direction	CW & CCW
Color	Clear Red
Weight (per propeller)	~0.54g
Recommended Motor	1103-1105 KV

Frequently Asked Questions

What size motors are these 40mm Pro-Range propellers designed for?

These 40mm 1635 propellers are specifically recommended for 1103 to 1105 size brushless motors, typically used in 1S and 2S micro drone builds. The 1mm single mounting hole is the standard shaft diameter for this motor class, ensuring a secure fit without adapters.

Can I use these propellers on a 3S LiPo powered micro drone?

While possible, it is not generally recommended. These props are optimized for the lower torque and RPM of 1S-2S systems on 1103-1105 motors. Using them on 3S may over-stress the propeller blades and motor, leading to potential failure or reduced efficiency. Always verify your motor's maximum recommended prop load.

What is the advantage of the three-blade design over two blades?

The three-blade (tri-blade) design provides greater thrust density at a given diameter and RPM compared to a two-blade prop. This results in better low-speed control, improved braking response, and reduced prop wash oscillation, which is beneficial for acrobatic flying and stable video footage on micro platforms.
