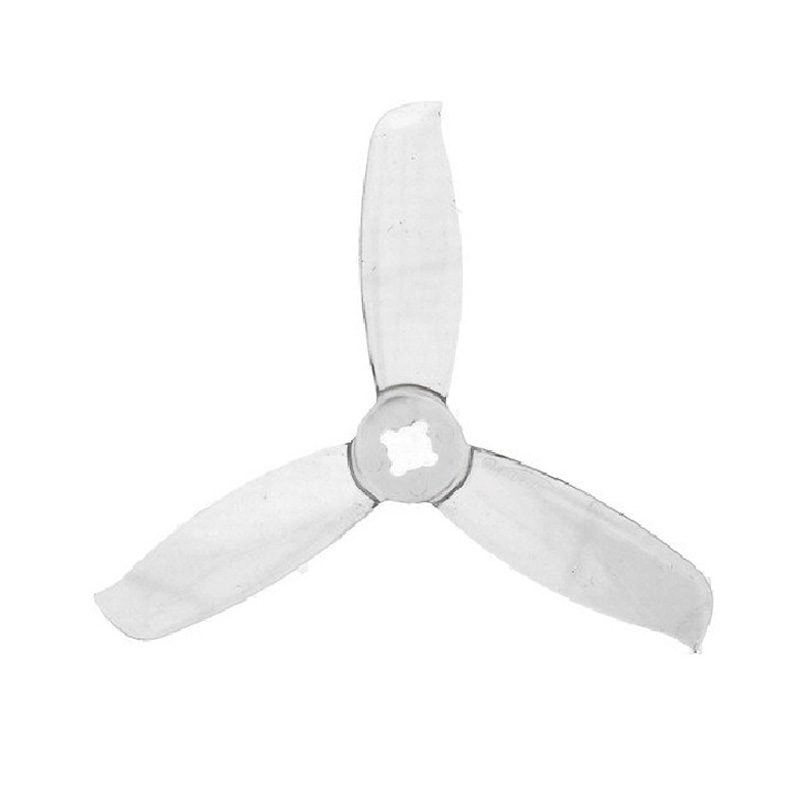

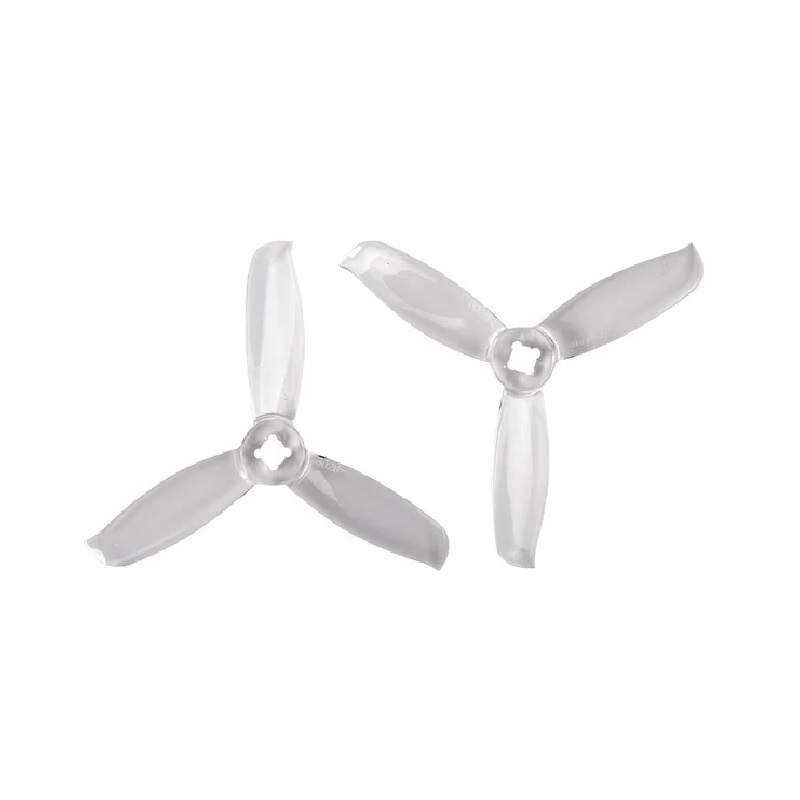

Pro-Range 3028 WinDancer PC 3-Blade Propellers 2CW+2CCW - Clear

Name: Pro-Range 3028 WinDancer PC 3-Blade Propellers 2CW+2CCW - Clear
Brand: Pro-Range
SKU: DRFC-1148
Price: 131.00 INR
Availability: OutOfStock

₹131.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range 3028 WinDancer is a set of 3-blade polycarbonate propellers designed for 1106-1306 size brushless motors, featuring a 1.5mm T-mount and M5 center hole for secure mounting. With a 77mm diameter and 2.1-inch pitch, they deliver optimized thrust for 3-inch micro and cinewhoop drone builds.

Features

3-inch (77mm) diameter, 3-blade polycarbonate (PC) propeller design
Dual mounting compatibility: 1.5mm T-mount and standard M5 center hole
Optimized 2.1-inch pitch for efficient thrust generation on 1106-1306 motors
Includes a balanced 2CW + 2CCW set for immediate quadcopter installation
Lightweight 1.49g per blade construction for responsive flight performance

Out of stock

Get Notified When Available

Description

The Pro-Range 3028 WinDancer propellers are engineered for micro FPV and cinewhoop drones utilizing 1106 to 1306 brushless motors. Their polycarbonate construction provides a high stiffness-to-weight ratio, resisting deformation at high RPMs while maintaining low rotational mass for quick throttle response.

The dual-mounting system, featuring both a 1.5mm T-mount and an M5 threaded hole, ensures broad compatibility with common micro motor shaft types. The 2.1-inch pitch is carefully tuned to balance static thrust and top-end speed, making these props suitable for both agile freestyle and smooth cinematic flight profiles on 2S-4S LiPo batteries.

Key Features

High-Strength Polycarbonate Material: Offers excellent impact resistance and fatigue life for durable, long-lasting performance.
Precision-Balanced Blades: Each propeller is manufactured to tight tolerances for minimal vibration, promoting smoother video footage and reduced motor wear.
Dual Mounting System: Compatible with both 1.5mm T-mount (push-on) and standard M5 threaded motor shafts, providing versatile installation options.
Optimized Aerodynamic Profile: The 3-blade design and specific pitch provide a favorable thrust-to-power ratio for efficient flight on micro drone platforms.
Complete Flight Set: Supplied as a ready-to-fly pack with two clockwise (CW) and two counter-clockwise (CCW) propellers for immediate quadcopter use.

Applications

3-inch Micro FPV Racing Drones: Ideal for lightweight, agile builds using 1106-1306 motors on 2S-3S power.
Cinewhoop & Tiny Whoop Drones: Provides smooth, controlled thrust for ducted micro drones used for indoor or proximity cinematic filming.
Micro Long-Range & Exploration Drones: Efficient pitch suitable for extended flight times on optimized 3-inch platforms.
FPV Simulator Practice Drones: Durable props for real-world training on small-scale, crash-resistant quadcopters.

Technical Specifications

Model Series	3028 WinDancer
Blade Count	3
Material	Polycarbonate (PC)
Diameter	77.06 mm (3.0 in)
Pitch	2.1 in
Weight (per blade)	1.49 g
Center Hole Diameter	M5 & 1.5mm T-mount
Center Thickness	5.5 mm
Compatible Motor Size	1106, 1204, 1306
Rotation Direction	2 x CW, 2 x CCW
Color	Clear

Frequently Asked Questions

What motor sizes are these 3028 WinDancer propellers compatible with?

These propellers are designed for 1106, 1204, and 1306 size brushless motors. The dual mounting system (1.5mm T-mount and M5 threaded hole) ensures compatibility with the most common shaft types found on these micro motor models. Always verify your motor's shaft diameter and threading before installation.

What is the advantage of the 3-blade design on a 3-inch propeller?

A 3-blade design on a 3-inch propeller typically offers a higher thrust-to-diameter ratio compared to a 2-blade prop, providing better acceleration and low-speed control, which is beneficial for tight maneuvers and carrying payloads like an FPV camera. The trade-off is a slight increase in current draw and potential reduction in top-end speed compared to a similarly pitched 2-blade design.

Can I use these clear propellers on 4S LiPo batteries with my 1306 motor?

Yes, provided your 1306 motor is rated for 4S voltage. The polycarbonate material is robust enough to handle the higher RPMs. However, you must ensure your electronic speed controller (ESC) can supply the increased current these props will draw at full throttle on 4S. Always perform a bench test at partial throttle first to monitor motor and ESC temperatures.
