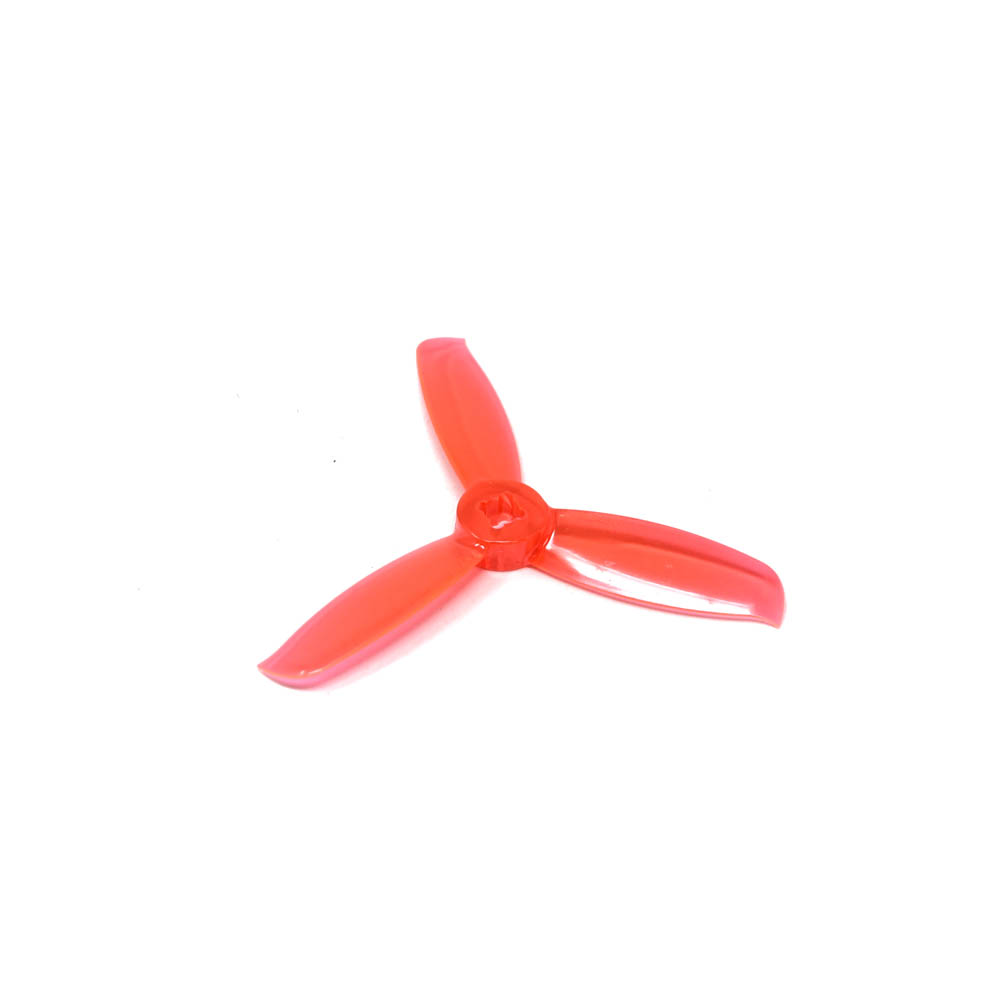

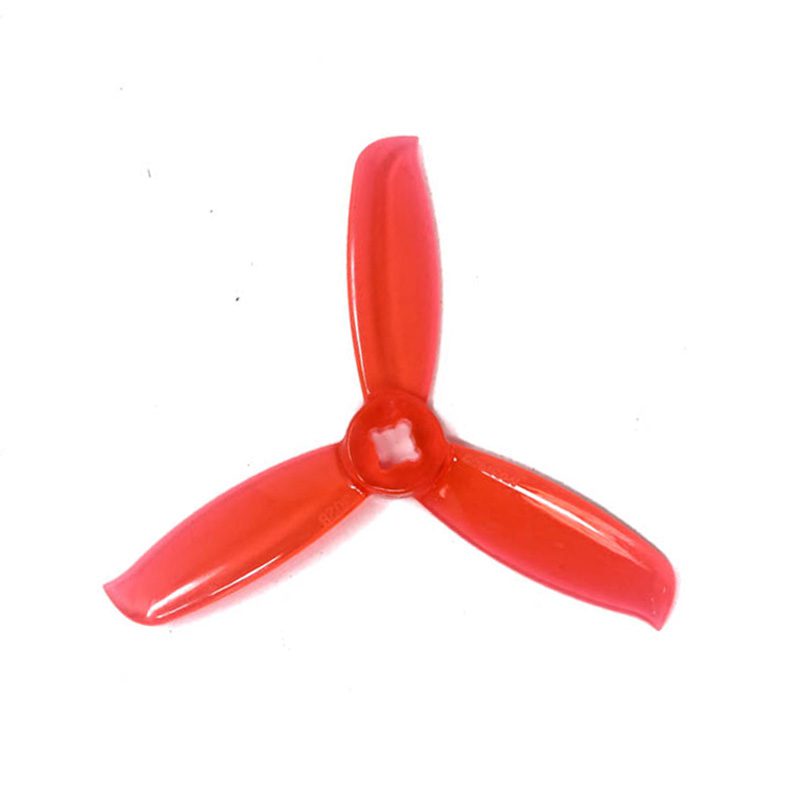

Pro-Range 3028 WinDancer PC 3-Blade Propellers 2CW+2CCW - Clear Red

Name: Pro-Range 3028 WinDancer PC 3-Blade Propellers 2CW+2CCW - Clear Red
Brand: Generic
SKU: DRFC-1145
Price: 152.00 INR
Availability: OutOfStock

₹152.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range 3028 WinDancer is a 3-blade propeller crafted from durable Polycarbonate (PC), featuring a 77mm diameter and a 2.1-inch pitch. This 2CW+2CCW set is compatible with both 1.5mm and M5 motor shafts, designed to provide a balanced thrust-to-weight ratio for 3-inch FPV drone builds.

Features

3-blade design with a 77mm diameter and 2.1-inch pitch for efficient thrust
Constructed from durable Polycarbonate (PC) for a high strength-to-weight ratio
Dual mounting compatibility for 1.5mm and M5 motor shafts
Includes a balanced 2CW+2CCW set for immediate installation
Clear Red finish for visual orientation and style

Out of stock

Get Notified When Available

Description

The Pro-Range 3028 WinDancer propeller is engineered for 3-inch FPV drones requiring a precise balance of agility and efficiency. Its three-blade configuration and 2.1-inch pitch are optimized to generate responsive thrust while managing current draw, making it suitable for both freestyle and light racing applications.

Manufactured from high-grade Polycarbonate, the blade structure resists deformation under high RPMs, ensuring consistent performance and flight characteristics. The dual mounting system accommodates a wide range of micro and lightweight motor platforms, offering flexibility for various 3-inch quadcopter builds.

Key Features

Polycarbonate (PC) construction delivers high-impact resistance and low weight
Precision-balanced blade geometry for smooth operation and reduced vibration
Dual-bore hub design supports 1.5mm and M5 motor shafts for broad compatibility
Optimized 3-blade aerodynamics provide a favorable mix of thrust and efficiency
Vibrant Clear Red coloring aids in motor orientation and visual tracking during flight

Applications

3-inch FPV freestyle drones requiring agile and responsive handling
Lightweight 3-inch racing quadcopters where efficiency is critical
Micro long-range or cinewhoop builds on 1.5mm or M5 shaft motors
DIY micro drone projects needing durable, color-coded propellers

Technical Specifications

Model Series	3028 WinDancer
Material	Polycarbonate (PC)
Blade Count	3
Diameter	77.06 mm
Pitch	2.1 inch
Rotation Direction	CCW, CW
Set Configuration	2CW + 2CCW
Center Hole Diameter	1.5mm & M5
Color	Clear Red

Frequently Asked Questions

What motor shaft sizes are these 3028 WinDancer propellers compatible with?

These propellers feature a dual-bore hub, making them compatible with two common motor shaft sizes: a smaller 1.5mm diameter and a larger M5 thread. This allows them to fit a wide range of micro and lightweight brushless motors used in 3-inch drone builds.

What is the diameter and pitch of the Pro-Range 3028 WinDancer propeller?

The propeller has a disk diameter of 77.06mm (approximately 3 inches) and a pitch of 2.1 inches. This size and pitch combination is specifically tailored for 3-inch FPV drones, providing a balance of thrust and efficiency suitable for freestyle and light racing.

Are these propellers sold as a matched set for a quadcopter?

Yes, the package includes a complete and balanced set for one quadcopter: two Clockwise (CW) rotation propellers and two Counter-Clockwise (CCW) rotation propellers. This 2CW+2CCW configuration allows for immediate installation without needing to purchase additional pieces.
