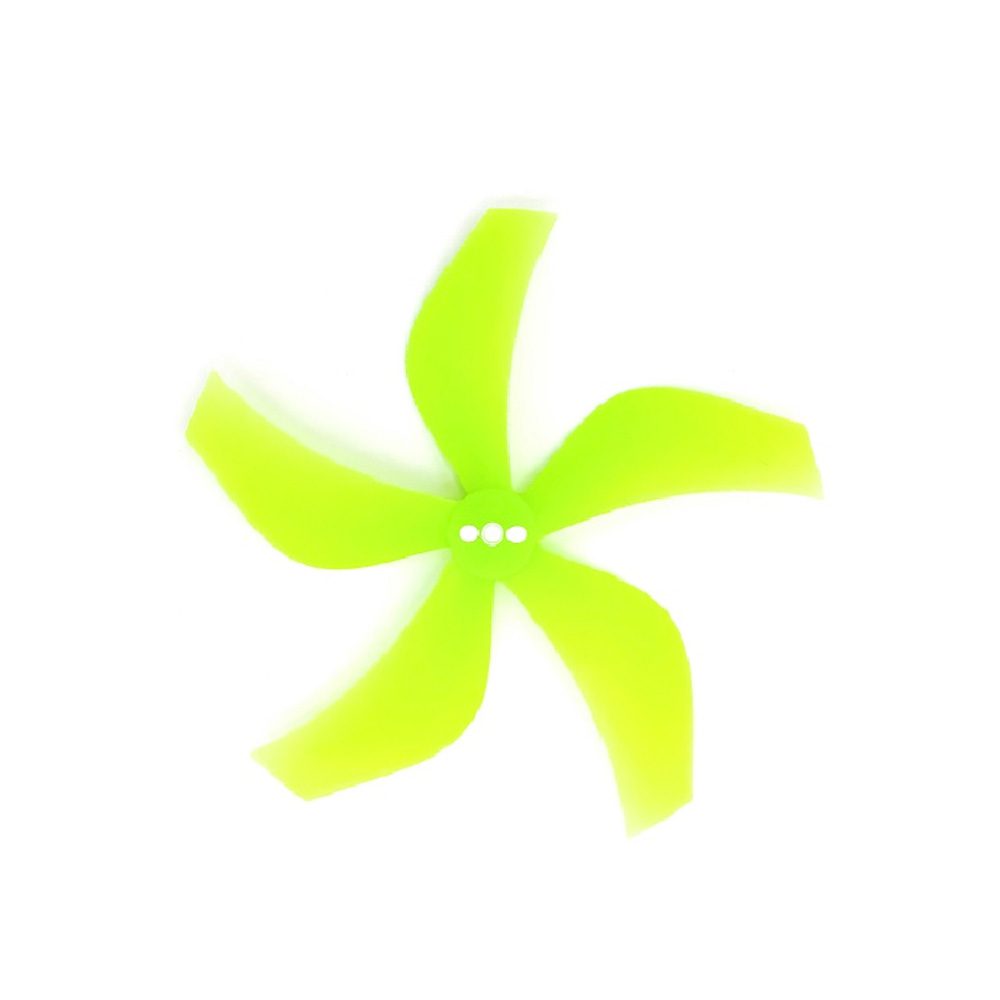

Pro-Range 2925 Ducted PC 5 Blade 2mm Propellers 2CW+2CCW - Yellow

Name: Pro-Range 2925 Ducted PC 5 Blade 2mm Propellers 2CW+2CCW - Yellow
Brand: Pro-Range
SKU: DRFC-1285
Price: 203.00 INR
Availability: OutOfStock

₹203.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range 2925 is a set of 5-blade ducted propellers crafted from durable Polycarbonate (PC), featuring a 2.5-inch pitch and a 2mm shaft bore. This 2CW+2CCW pack is engineered for enhanced thrust and stability in ducted drone platforms, compatible with motors such as the DJI Avata 1507 and similar 2004-sized brushless motors.

Features

Five-blade ducted propeller design for high-thrust, stable flight in confined spaces.
Constructed from durable Polycarbonate (PC) for an optimal strength-to-weight ratio.
2.5-inch pitch and 2mm shaft bore optimized for 1507 and 2004-sized brushless motors.

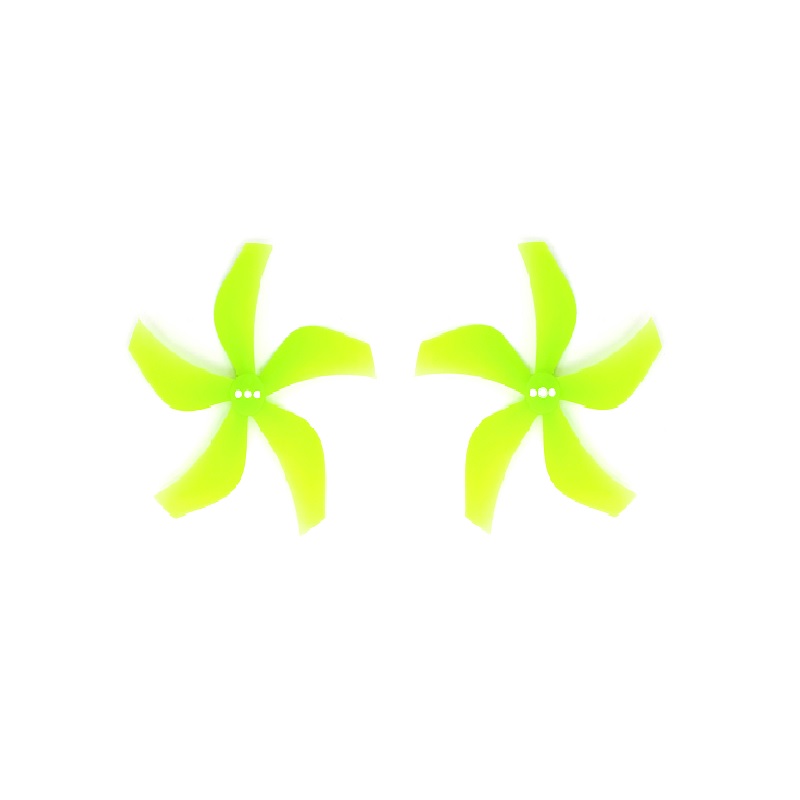

Pack includes 2x CW and 2x CCW propellers for a complete quadcopter set.
Vibrant yellow color aids in visual orientation and propeller tracking during flight.

Out of stock

Get Notified When Available

Description

The Pro-Range 2925 ducted propellers are precision-engineered for FPV drones utilizing ducted frames, such as CineWhoops and micro racing quads. The five-blade configuration generates significant thrust at lower RPMs compared to tri-blade designs, improving low-end torque and flight smoothness in acrobatic maneuvers and proximity flying.

Manufactured from high-grade Polycarbonate, these blades offer exceptional impact resistance and fatigue durability, maintaining their aerodynamic profile through rigorous use. The 2.5-inch pitch is calibrated to work efficiently with the high-KV motors typical in 2-3S micro drone builds, balancing thrust output with current draw for extended flight times.

Key Features

Five-Blade High-Thrust Design: Delivers increased static thrust and smoother airflow over tri-blade alternatives, ideal for ducted applications.
Polycarbonate (PC) Construction: Provides high rigidity and impact resistance, ensuring consistent performance and longevity.
Optimized 2.5-Inch Pitch: Engineered for efficient thrust generation across a wide RPM range, compatible with 2S-4S LiPo setups.
Precision 2mm Shaft Bore: Ensures a secure, concentric fit on standard 1507 and 2004 motor shafts, minimizing vibration.
Vibrant Color for Orientation: The bright yellow finish aids pilots in quickly identifying motor rotation and orientation during pre-flight checks and in-flight.
Balanced for Smooth Operation: Each propeller is factory-balanced to reduce high-frequency vibrations, protecting motor bearings and flight controller gyros.

Applications

DJI Avata and compatible ducted CineWhoop builds for cinematic indoor/outdoor flight.
3-inch micro FPV racing and freestyle drones requiring high thrust in a ducted configuration.
Compact HD digital FPV platforms (Walksnail, DJI O3) where propeller clearance within ducts is critical.
Lightweight DIY micro drone projects utilizing 1507 or 2004 brushless motors on 2S-3S LiPo power.

Technical Specifications

Model Series	2925
Number of Blades	5
Material	Polycarbonate (PC)
Color	Yellow
Rotation Direction	2x CW, 2x CCW
Pitch	2.5 inches
Shaft Bore Diameter	2mm
Propeller Weight (approx.)	4.2g
Compatible Motors	DJI Avata 1507, 2004, similar ducted-frame brushless motors

Frequently Asked Questions

What motors are these Pro-Range 2925 propellers compatible with?

These propellers are designed for brushless motors with a 2mm shaft diameter, specifically those used in ducted drone platforms. They are a direct fit for the DJI Avata's 1507 motors and are also well-suited for other 2004-sized motors commonly found in 2-3 inch micro and CineWhoop builds.

What are the advantages of a 5-blade propeller design for FPV drones?

A 5-blade design offers higher static thrust and smoother power delivery at lower RPMs compared to standard tri-blade props. This is particularly beneficial for ducted drones, as it improves low-speed control, enhances stability in turbulent air, and can provide a more locked-in feel during aggressive freestyle or precise cinematic flying.

Can I use these propellers on a 4S LiPo battery system?

While primarily optimized for 2S and 3S systems common in micro drones, these Polycarbonate propellers can handle 4S power on suitable motors. However, on 4S, motor and ESC current draw will increase significantly. Ensure your 1507 or 2004 motors and ESCs are rated for the higher RPM and current load before use.
