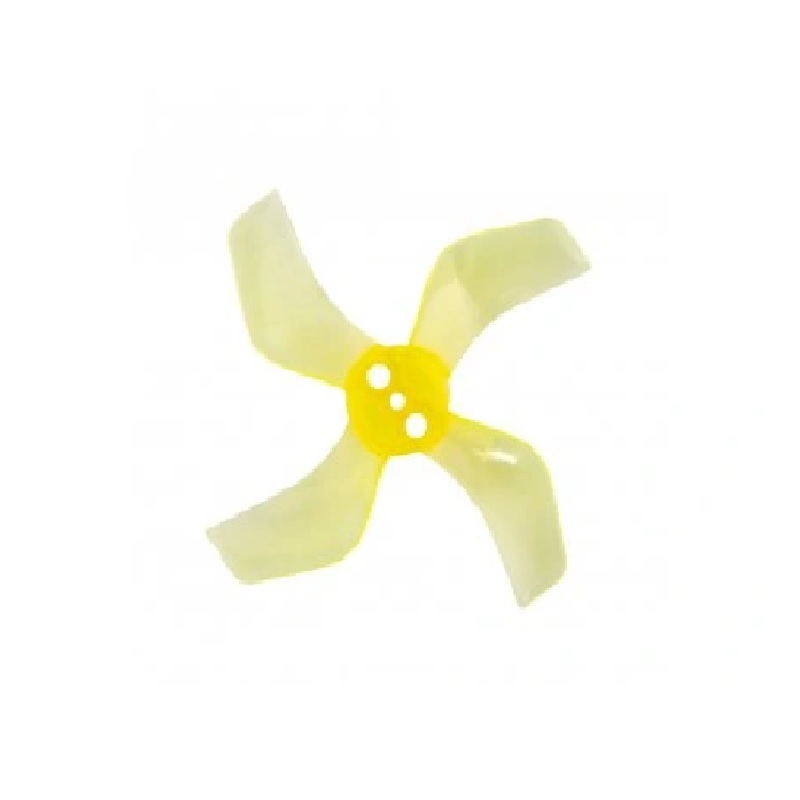

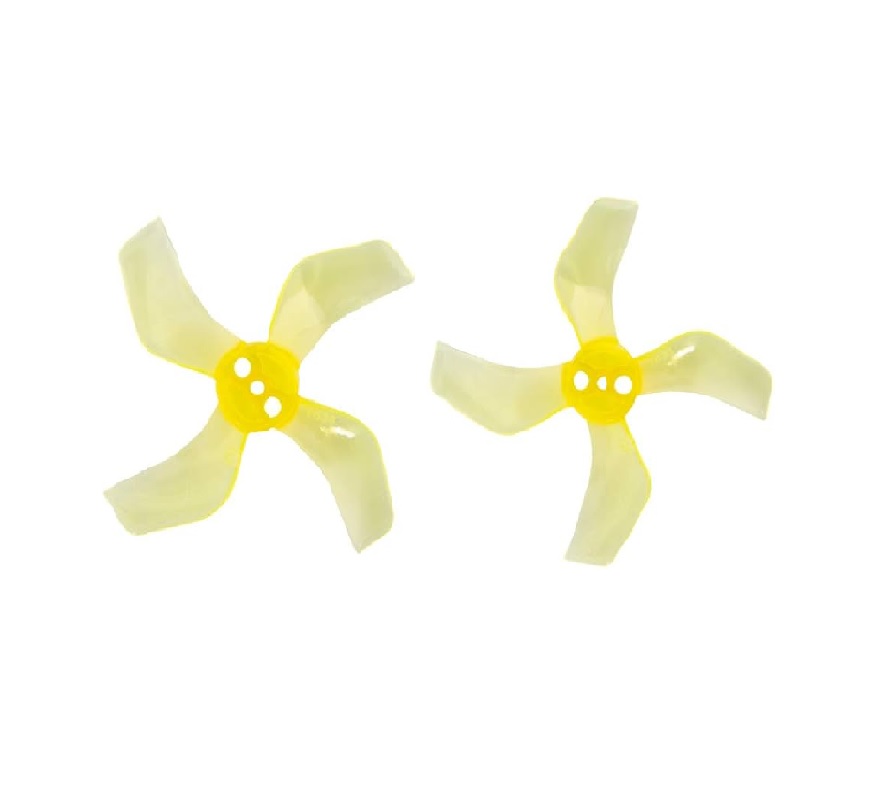

Pro-Range 1636 40mm PC 4-Blade Propellers 4CW+4CCW - Clear Yellow

Name: Pro-Range 1636 40mm PC 4-Blade Propellers 4CW+4CCW - Clear Yellow
Brand: Pro-Range
SKU: DRFC-1204
Price: 122.00 INR
Availability: OutOfStock

₹122.00 (Inclusive of all taxes)

Out of Stock

Pro-Range 1636 series 40mm 4-blade propellers, constructed from durable Polycarbonate (PC) with a 3.5-inch pitch, designed for 1103-1105 size brushless motors on micro and cinewhoop drones. This 8-piece set includes 4 CW and 4 CCW rotation propellers for a complete build.

Features

40mm diameter, 4-blade design with a 3.5-inch pitch for optimized thrust and efficiency.
Constructed from durable Polycarbonate (PC) for a high strength-to-weight ratio.
Features a 1.5mm center hole, compatible with 1103, 1104, and 1105 size brushless motors.
Clear Yellow color provides high visibility for orientation and a distinctive aesthetic.
Includes 4 CW and 4 CCW propellers (8 total) for a complete micro drone setup.

Out of stock

Get Notified When Available

Description

The Pro-Range 1636 propellers are engineered for micro FPV drones and cinewhoops requiring precise thrust control and durability. The 4-blade configuration and 3.5-inch pitch deliver a balanced combination of responsive thrust and efficient flight characteristics, suitable for both agile freestyle and smooth cinematic footage.

Made from injection-molded Polycarbonate, these blades offer significant impact resistance while maintaining a minimal weight of 0.61g per propeller. The design prioritizes aerodynamic efficiency and mechanical balance, reducing vibration for cleaner video feed and stable flight performance on Betaflight and other flight control firmware.

Key Features

High-visibility Clear Yellow polycarbonate construction for durability and orientation.
Four-blade aerodynamic profile designed for efficient thrust and responsive control.
Precision-balanced hub and blade design to minimize motor vibration and jello effect.
1.5mm center hole diameter compatible with standard micro motor shafts (1103-1105).
Optimized performance-to-weight ratio for extended flight times on 2S-3S LiPo setups.
Rigid polycarbonate material maintains pitch integrity under high-RPM loads.

Applications

3-inch micro FPV racing and freestyle drones using 1103-1105 motors.
75mm-85mm Cinewhoop builds for indoor or proximity cinematic filming.
TinyWhoop and micro brushless drone platforms on 2S or 3S LiPo power.
Lightweight DIY micro quadcopters requiring durable, high-thrust propellers.

Technical Specifications

Model Series	1636
Propeller Diameter	40mm
Number of Blades	4
Pitch	3.5 inch
Material	Polycarbonate (PC)
Center Hole Diameter	1.5mm / 1.0mm
Compatible Motors	1103, 1104, 1105
Rotation Direction	CW & CCW
Color	Clear Yellow
Propeller Weight (approx.)	0.61g

Frequently Asked Questions

What size motors are these Pro-Range 40mm propellers compatible with?

These propellers are designed for 1103, 1104, and 1105 size brushless motors, which are standard for micro and cinewhoop drones. The center hole is 1.5mm, fitting the typical motor shaft diameter for this class. Always verify your motor's shaft size before installation.

What is the pitch and how does it affect flight performance?

The pitch is 3.5 inches. A higher pitch generally generates more thrust per revolution, which can improve responsiveness and top speed, but may also draw more current. This 3.5" pitch offers a balanced performance suitable for both agile freestyle and smooth cinematic flying on 2S-3S LiPo batteries.

Are these propellers balanced, and do I need to balance them myself?

Pro-Range propellers are manufactured to a good standard of balance. However, for optimal performance, especially in high-RPM applications or for the smoothest video footage, it is recommended to perform a final dynamic balance check before use. Minor imbalances can be corrected with balancing tape.
