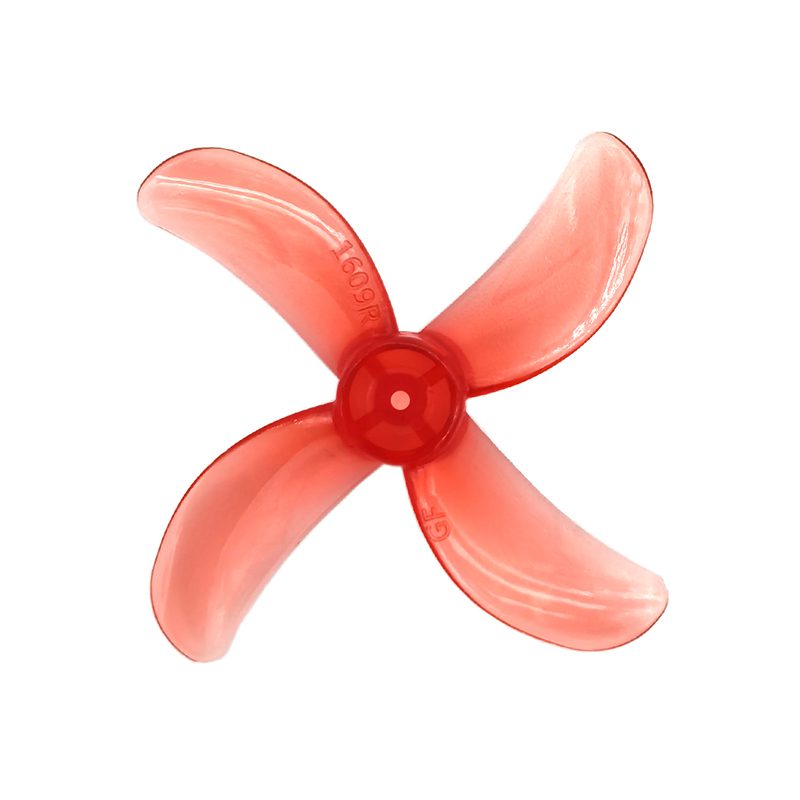

Pro-Range 1609 40mm 4-Blade 1.5mm Shaft Propellers 4CW+4CCW - Macho Pink

Name: Pro-Range 1609 40mm 4-Blade 1.5mm Shaft Propellers 4CW+4CCW - Macho Pink
Brand: Pro-Range
SKU: DRFC-1228
Price: 127.00 INR
Availability: OutOfStock

₹127.00 (Inclusive of all taxes)

Out of Stock

The Pro-Range 1609 series 40mm 4-blade propellers are precision-engineered from durable Polycarbonate (PC) for micro and nano FPV drones. Designed for 1.5mm motor shafts, they are optimized for 0802, 1102, and 1103 brushless motors to deliver high thrust efficiency and stability in compact builds.

Features

40mm diameter, 4-blade design with a 0.8-inch pitch for high thrust density.
Constructed from durable Polycarbonate (PC) for a robust strength-to-weight ratio.
Compatible with 1.5mm motor shafts on 0802, 1102, and 1103 brushless motors.

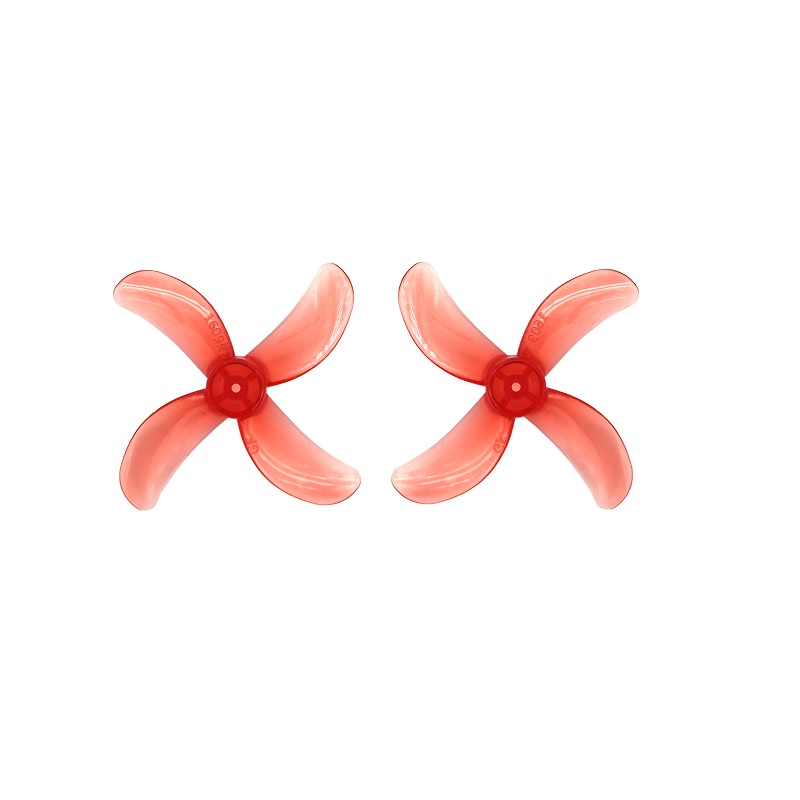

Includes 4 clockwise (CW) and 4 counter-clockwise (CCW) propellers for a complete 8-prop set.
Vibrant Macho Pink color for easy visual orientation and personalization.

Out of stock

Get Notified When Available

Description

The Pro-Range 1609 propellers are engineered for micro and nano drone applications where space and weight are critical constraints. The 40mm diameter and 4-blade configuration provide a significant increase in disc area and thrust over traditional 2-blade designs, improving low-speed control and punch-out performance in tight spaces. The 0.8-inch pitch is carefully calibrated to maximize static thrust without overloading smaller 0802 to 1103 class motors.

Manufactured from high-grade Polycarbonate, these blades offer exceptional impact resistance and fatigue life, maintaining their precise balance and shape through repeated flights. The 1.5mm bore is a standard for the micro motor segment, ensuring a secure and concentric fit on common motor shafts. The set includes matched pairs of CW and CCW rotation propellers, essential for maintaining yaw authority and stable flight in multirotor configurations.

Key Features

High-Thrust 4-Blade Design: Four-blade configuration maximizes thrust and improves flight stability at lower RPMs compared to two-blade props.
Durable Polycarbonate Construction: PC material provides excellent rigidity and impact resistance, ensuring longevity and consistent performance.
Precision 1.5mm Bore: Specifically designed for the standard shaft diameter of 0802, 1102, and 1103 series micro brushless motors.
Optimized 0.8-Inch Pitch: Pitch geometry balances high static thrust with efficient motor loading for responsive flight characteristics.
Matched CW/CCW Set: Includes a balanced set of 4 CW and 4 CCW propellers for immediate installation on a standard quadcopter.
Vibrant Color Coding: Macho Pink finish allows for quick visual identification of motor rotation direction and adds a personalized aesthetic to builds.

Applications

Ultra-lightweight 1S and 2S micro FPV racing drones (e.g., Toothpick-style builds).
Indoor-friendly CineWhoops and TinyWhoops under 75mm wheelbase.
Nano long-range exploration builds utilizing 1102 or 1103 motors.
Lightweight aerial photography platforms requiring stable, low-vibration hover.
DIY micro drone projects and educational platforms where durability is key.

Technical Specifications

Model Series	1609
Diameter	40mm
Number of Blades	4
Pitch	0.8 inch
Material	Polycarbonate (PC)
Shaft Bore Diameter	1.5mm
Rotation Direction	CW & CCW
Color	Macho Pink
Recommended Motor Size	0802, 1102, 1103
Approx. Weight per Propeller	0.50g

Frequently Asked Questions

What motor sizes are these 40mm Pro-Range propellers compatible with?

These propellers are specifically designed for micro brushless motors with a 1.5mm shaft diameter, such as the 0802, 1102, and 1103 motor sizes. They are ideal for 1S to 2S LiPo powered micro and nano drone builds where low weight and high thrust are required.

What is the advantage of a 4-blade design over a 2-blade for micro drones?

A 4-blade propeller provides greater disc area and thrust density at a given diameter, which improves low-speed control, stability, and punch-out acceleration. This is particularly beneficial for micro drones flying in confined spaces or carrying lightweight payloads, as it allows the motors to operate at a lower, more efficient RPM to generate equivalent lift.

Are these propellers balanced and ready for flight?

Pro-Range propellers are manufactured to tight tolerances for good inherent balance. However, for optimal performance, especially in high-RPM micro FPV applications, it is always recommended to perform a final dynamic balance check before installation. This minimizes vibration, which protects flight controller sensors and ensures smoother video footage.
