SKU: DRFC-1662
📋 GST Invoice Available

Pro-Range 1038 (10x3.8) Propellers 1CW+1CCW Pair - OrangeRX

₹67.00 (Inclusive of all taxes)
Out of Stock

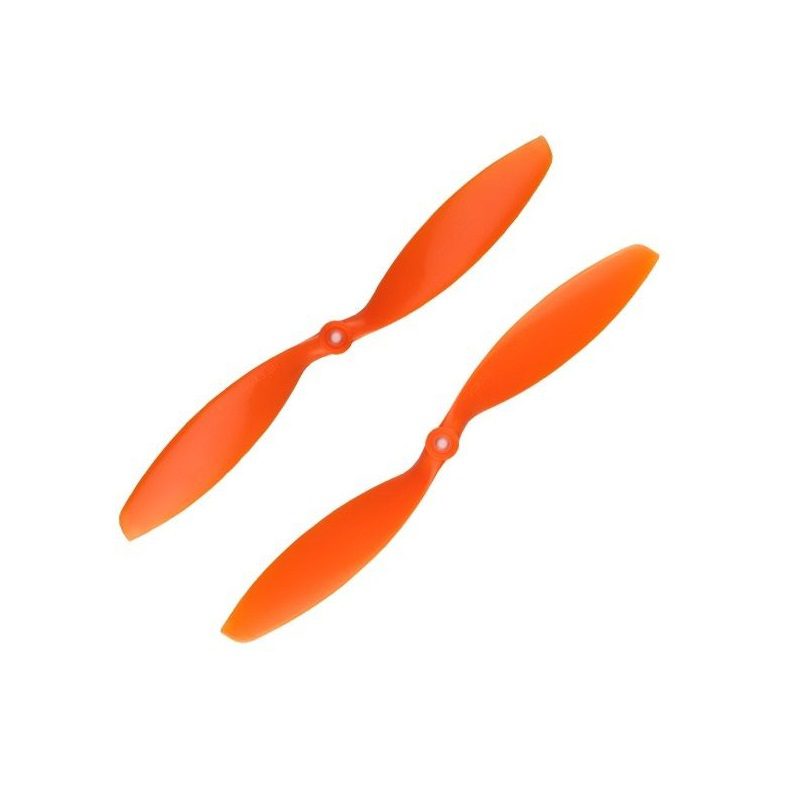

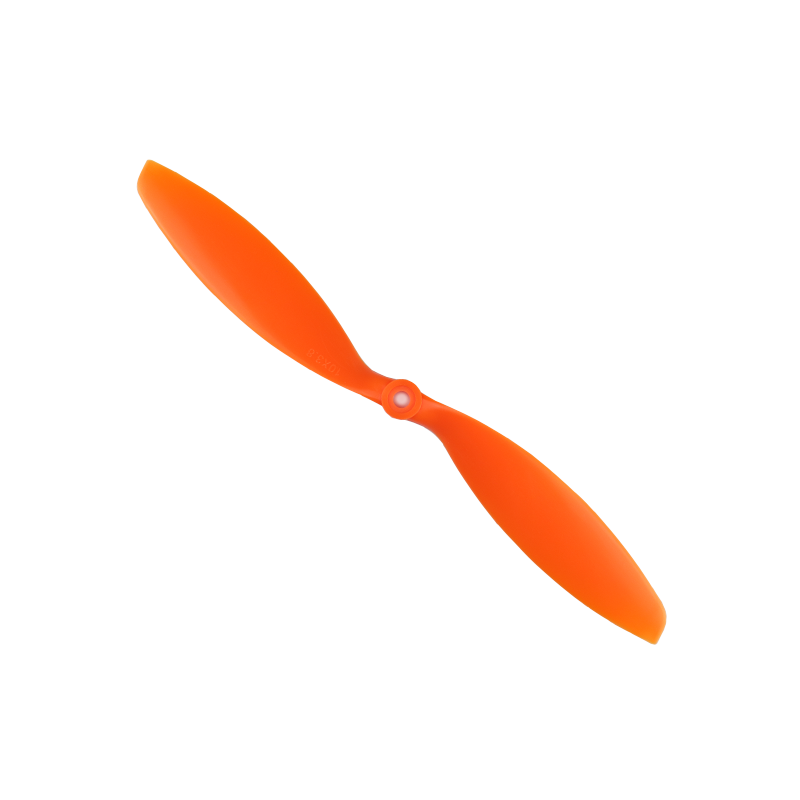

The Pro-Range 1038 (10×3.8) propellers are a 2-blade ABS set designed for 10-inch multirotor platforms, offering a balanced pitch for efficient lift and stable flight characteristics.

Features

  • 10-inch diameter with a 3.8-inch pitch for balanced thrust and efficiency.
  • Constructed from durable ABS plastic for impact resistance and consistent performance.
  • Includes one clockwise (CW) and one counter-clockwise (CCW) propeller for a complete pair.
  • Features a 9.5mm shaft bore compatible with standard large brushless motors.
  • Lightweight design at approximately 25 grams per propeller minimizes rotational mass.

Out of stock

Description

The Pro-Range 1038 propellers are engineered for 10-inch aerial platforms, including heavy-lift drones and large FPV frames. The 3.8-inch pitch provides an optimal balance between static thrust and forward flight efficiency, making them suitable for both agile maneuvering and stable hovering applications.

Manufactured from high-grade ABS plastic, these propellers deliver a robust combination of stiffness and flexibility. This material choice helps absorb minor impacts while maintaining precise blade geometry for consistent aerodynamic performance across a wide range of RPMs.

Key Features

  • Precision-molded ABS construction ensures consistent blade geometry and balance.
  • Optimized 10x3.8 airfoil profile provides efficient lift with manageable torque requirements.
  • High-visibility OrangeRX color enhances orientation visibility during flight.
  • 9.5mm bore accommodates a wide range of large-diameter motor shafts.

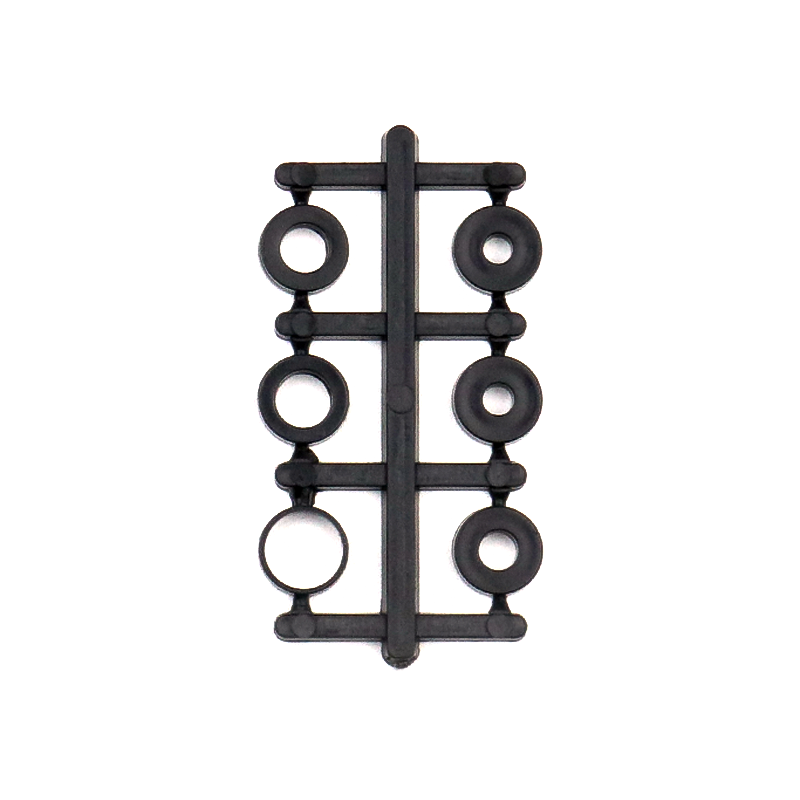

  • Includes plastic reducers (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm) for universal motor shaft compatibility.
  • Lightweight design reduces inertial load on motors, improving throttle response.

Applications

  • Heavy-lift and cargo drone platforms requiring 10-inch propellers for maximum thrust.
  • Large-scale FPV and aerial photography drones built on 450mm+ frame sizes.
  • DIY multirotor projects and educational platforms designed for 10-inch propellers.
  • Agricultural and mapping drones where efficient, large-diameter props are needed.

Technical Specifications

BrandPro-Range
Model1038
Diameter10 inch / 254 mm
Pitch3.8 inch
Blade Count2
MaterialABS Plastic
Shaft Bore Diameter9.5 mm
Rotation Direction1x CW, 1x CCW
Included Reducers3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm
Weight (per propeller)Approx. 25 g

Frequently Asked Questions

What is the shaft bore size of these Pro-Range 1038 propellers?

The primary shaft bore is 9.5mm. The package includes a set of plastic reducers to adapt the bore down to 8mm, 6mm, 5mm, 4mm, 3.17mm, and 3mm shafts, ensuring compatibility with a wide range of large brushless motors.

Are these propellers suitable for high-RPM FPV racing drones?

No, these 10x3.8 propellers are designed for larger, slower-rotating motors typical of heavy-lift, aerial photography, or large-scale DIY drones. Their size and pitch generate high torque loads unsuitable for the high KV motors used in standard FPV racing builds.

Do I need to balance these ABS propellers before use?

While they are precision-molded, it is always recommended to dynamically balance all propellers, especially on larger platforms, to minimize vibration. This ensures smoother flight, reduces strain on motor bearings, and improves video transmission quality.

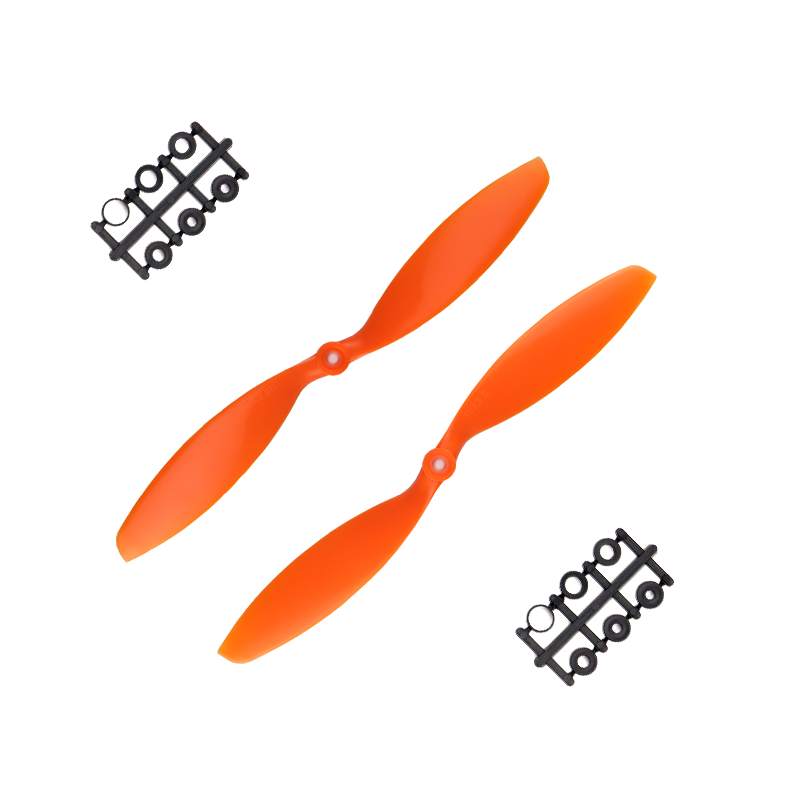

Package Includes

  • 1x OrangeRX Clockwise (CW) Rotation Propeller
  • 1x OrangeRX Counter-Clockwise (CCW) Rotation Propeller
  • Set of plastic shaft reducers (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm)

Additional Information

Weight 0.03 kg
Dimensions 4 × 27 × 1 cm
