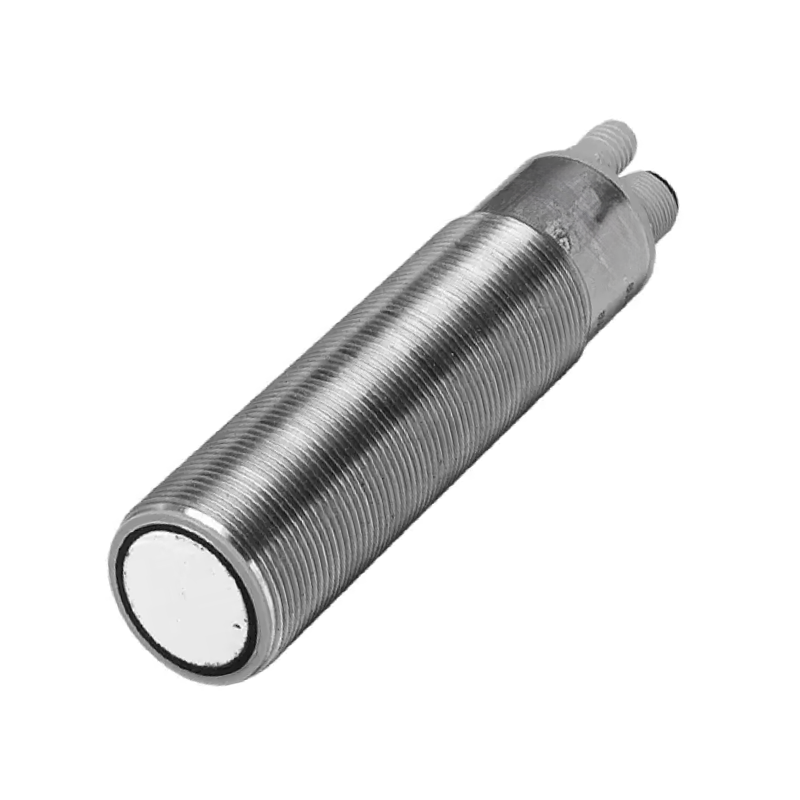

Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic Sensor, 80mm-2000mm Range, 4-20mA/0-10V Output

Name: Pepperl+Fuchs UC2000-30GM-IUR2-V15 Ultrasonic Sensor, 80mm-2000mm Range, 4-20mA/0-10V Output
Brand: Pepperl+Fuchs
SKU: SENS-4159
Price: 77629.00 INR
Availability: OutOfStock

₹77,629.00 (Inclusive of all taxes)

Out of Stock

The Pepperl+Fuchs UC2000-30GM-IUR2-V15 is an industrial-grade ultrasonic sensor offering precise non-contact distance measurement from 80 mm to 2000 mm. It operates on a 10–30 V DC supply and provides configurable 4–20 mA and 0–10 V analog outputs for seamless integration with PLCs, industrial controllers, and data acquisition systems.

Features

Industrial ultrasonic sensor with 80 mm to 2000 mm sensing range.
Dual analog outputs: 4–20 mA current loop and 0–10 V voltage.
Robust stainless-steel housing with IP65 protection for harsh environments.
Configurable via RS-232 interface using ULTRA3000 software.
Features temperature compensation and synchronization to prevent crosstalk.

Out of stock

Get Notified When Available

Description

The UC2000-30GM-IUR2-V15 utilizes high-frequency (~180 kHz) ultrasonic pulses for reliable, non-contact distance measurement and object detection. Its advanced signal processing includes temperature compensation to maintain accuracy across its operating temperature range, ensuring stable performance in variable industrial climates.

Designed for industrial automation, the sensor’s stainless-steel construction and IP65 rating provide durability against dust and water jets. The RS-232 interface allows for detailed parameterization, including adjustable acoustic power, sensitivity, and evaluation windows, enabling precise tuning for specific application requirements such as level monitoring, object positioning, and collision avoidance.

Key Features

Wide measurement range from 80 mm to 2000 mm for versatile application.
Dual programmable analog outputs (4–20 mA / 0–10 V) for flexible system integration.
Industrial-grade stainless-steel housing with IP65 environmental protection.
RS-232 configuration interface for setting sensing parameters and diagnostics.
Built-in temperature compensation ensures measurement stability.
Synchronization input prevents acoustic interference in multi-sensor setups.
Adjustable acoustic power and sensitivity for optimizing performance in challenging conditions.
Low power consumption (≤ 900 mW) suitable for continuous operation.

Applications

Industrial level monitoring in tanks, silos, and hoppers.
Object detection and positioning on conveyor belts and assembly lines.
Collision avoidance and presence sensing in automated guided vehicles (AGVs).
Distance measurement in packaging and material handling machinery.
Process control and monitoring in harsh industrial environments.

Technical Specifications

Model Number	UC2000-30GM-IUR2-V15
Sensing Range	80 – 2000 mm
Operating Voltage	10 – 30 V DC
Output Signals	Analog 4–20 mA, 0–10 V
Protection Rating	IP65
Transducer Frequency	~180 kHz
Configuration Interface	RS-232
Data Rate	9600 Bit/s
Power Consumption	≤ 900 mW
Ripple	≤ 10 %SS
Output Impedance	> 12 kΩ
Housing Material	Stainless Steel
Length	141.5 mm
Outer Diameter	30 mm
Weight	170 g

Frequently Asked Questions

What are the output options for this ultrasonic sensor?

The sensor provides two configurable analog outputs: a 4–20 mA current loop and a 0–10 V voltage signal. You can select and parameterize the desired output via the RS-232 interface to match your PLC or controller's input requirements.

How do I configure the sensor's parameters like sensing window or output scaling?

Configuration is performed using the built-in RS-232 interface and Pepperl+Fuchs's ULTRA3000 software. This allows you to set the evaluation range, acoustic power, sensitivity, output type, and scaling directly from a PC, enabling precise tuning for your specific application.

Is this sensor suitable for use in damp or dusty environments?

Yes. The sensor features a robust stainless-steel housing with an IP65 protection rating, making it resistant to dust ingress and water jets from any direction. It is designed for reliable operation in demanding industrial settings.

Can multiple sensors be used close together without interference?

Yes. The sensor includes a synchronization function (Sync input) that allows you to synchronize the firing of multiple ultrasonic sensors. This prevents acoustic crosstalk and ensures reliable, interference-free operation in multi-sensor installations.
