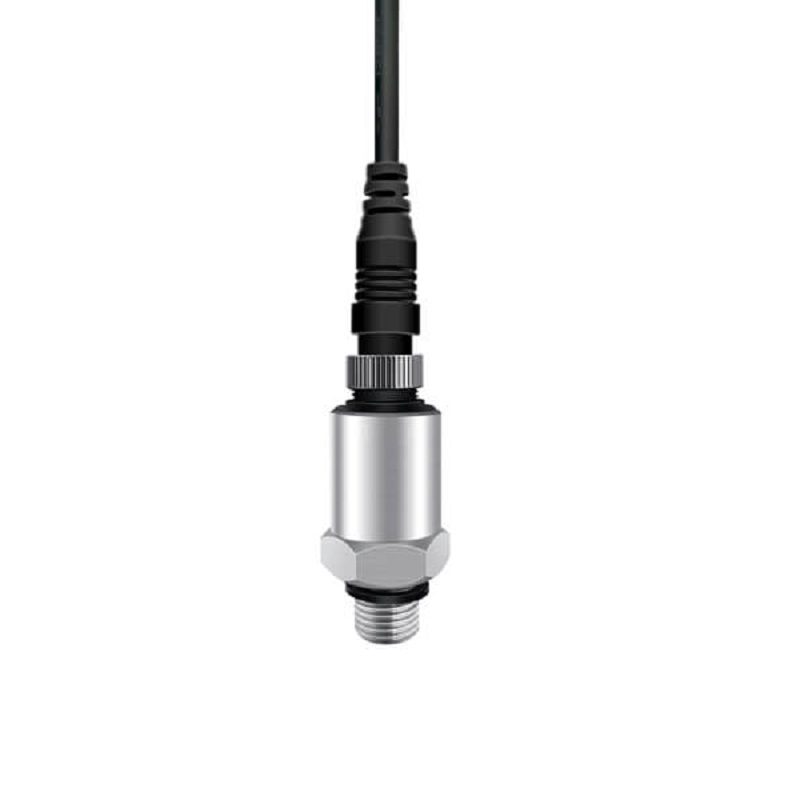

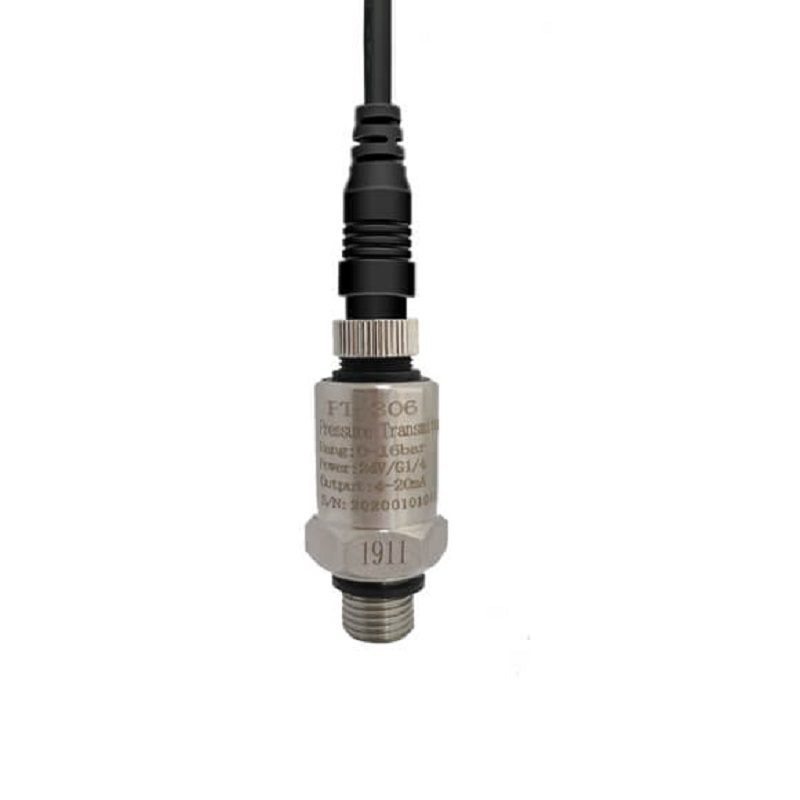

OULD PT-306 Air Pressure Transmitter (0-4MPa) | 4-20mA Output | 0.5% Accuracy

Name: OULD PT-306 Air Pressure Transmitter (0-4MPa) | 4-20mA Output | 0.5% Accuracy
Brand: OULD
SKU: SENS-2170
Price: 1549.00 INR
Availability: OutOfStock

₹1,549.00 (Inclusive of all taxes)

Out of Stock

The OULD PT-306 is a 4-20mA output pressure transmitter designed for industrial monitoring and control systems. It provides a 0-4 MPa measurement range with 0.5% accuracy, featuring a stainless steel isolated structure for durability and stable performance across a wide temperature range.

Features

4-20mA current loop output for robust industrial signal transmission.
0-4 MPa measurement range with 0.5% full-scale accuracy.
Stainless steel isolated sensor structure for durability and corrosion resistance.
Wide 10-36V DC supply voltage range for flexible system integration.
CE certified and designed as a direct replacement for similar imported transmitters.

Out of stock

Get Notified When Available

Description

The PT-306 pressure transmitter integrates an imported sensor core within a compact, stainless steel isolated housing. This construction ensures reliable pressure measurement while providing excellent resistance to environmental factors and mechanical stress, making it suitable for demanding industrial applications.

Engineered for stability across a broad operating temperature range, the transmitter delivers a consistent 4-20mA analog signal proportional to the applied pressure. Its design facilitates easy installation and seamless integration into existing control panels, PLCs, or data acquisition systems requiring precise pneumatic or hydraulic pressure monitoring.

Key Features

High-quality imported sensor core ensures long-term measurement reliability and repeatability.
Stainless steel isolated structure provides robust protection and a compact, space-saving footprint.
Wide 10-36V DC supply voltage compatibility simplifies power supply selection.
Excellent temperature stability maintains specified accuracy across varying environmental conditions.
CE certification confirms compliance with European safety and environmental standards.
Direct form-fit-function replacement for similar transmitters from brands like Atlas, MSI, and HUBA.
Customizable process connection and appearance options available for OEM applications.

Applications

Pressure monitoring in refrigeration, HVAC, and air compressor systems.
Hydraulic and pneumatic pressure control in industrial automation.
Process pressure measurement in water treatment and fluid handling equipment.
Replacement and upgrade of existing pressure transmitters in legacy control panels.

Technical Specifications

Model Number	PT-306
Pressure Range	0 - 4 MPa
Output Signal	4-20 mA (2-wire)
Accuracy	±0.5% FS
Supply Voltage	10 - 36 V DC
Housing Material	Stainless Steel (Isolated)
Length	530 mm
Weight	112 g
Certification	CE

Frequently Asked Questions

What is the output signal and wiring configuration of the PT-306 transmitter?

The PT-306 provides a standard 2-wire 4-20mA analog current loop output. This means the same two wires carry both the power supply (10-36V DC) and the output signal, simplifying installation and providing excellent noise immunity for long-distance transmission in industrial environments.

What is the meaning of the '0.5% accuracy' specification?

The 0.5% accuracy refers to ±0.5% of Full Scale (FS). For the 0-4 MPa model, this equates to a maximum error of ±0.02 MPa across the entire measurement range. This level of precision is suitable for most process control and monitoring applications in HVAC and industrial automation.

Can this transmitter be used with 24V DC industrial power supplies?

Yes, the PT-306's wide 10-36V DC supply voltage range is fully compatible with standard 24V DC industrial power systems. Its 2-wire loop-powered design allows it to be directly integrated into existing 24V control panels or PLC analog input modules that support 4-20mA current loop sensing.
