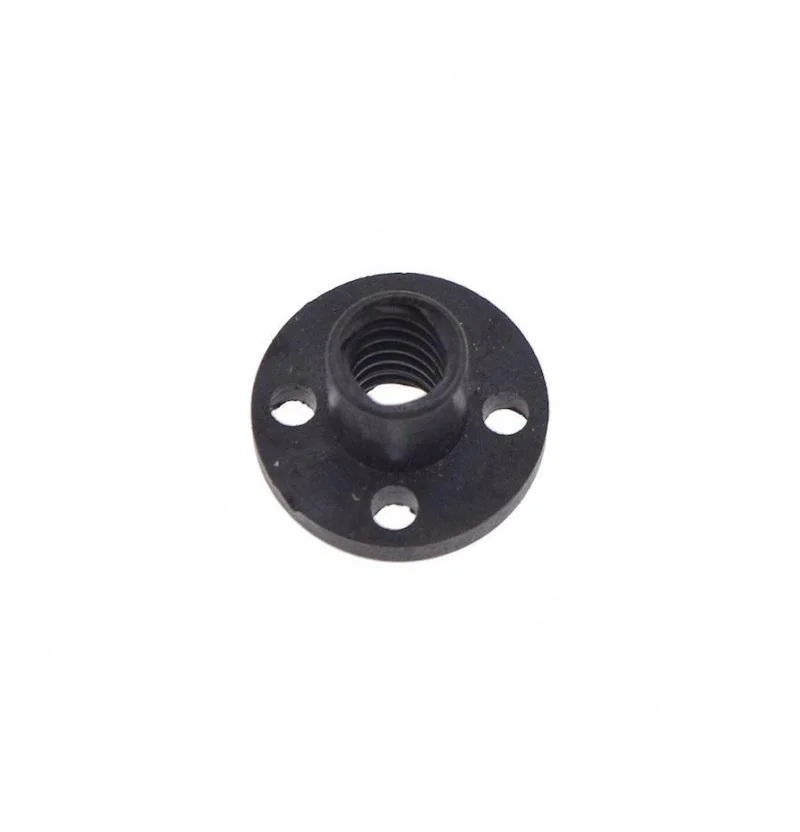

Original Prusa Trapezoid Nut
SKU: 3DDF-0499
📋 GST Invoice Available

Original Prusa Trapezoid Nut

₹609.00 (Inclusive of all taxes)
Out of Stock

This Original Prusa Trapezoid Nut, crafted from durable POM/Acetal with a Tr8x8 thread, ensures smooth and precise linear motion for your Prusa i3 series 3D printer.

Features

  • Engineered for smooth, precise linear motion in Original Prusa i3 series and compatible printers (MK3S, MK4, etc.).
  • Constructed from high-durability POM (Acetal) for superior wear resistance and consistent performance.
  • Features a Tr8x8 thread design, crucial for accurate Z-axis movement and minimizing backlash.
  • Direct OEM replacement part, guaranteeing proper fit and restoration of print quality.

Out of stock

Description

The Original Prusa Trapezoid Nut is a crucial component in 3D printers, notably the Prusa i3 series. Its unique trapezoidal shape enables smooth and precise linear motion along threaded rods.

Crafted from durable materials, this nut ensures consistent and reliable movement of the printer’s print head and bed. Its design minimizes backlash, contributing to high-quality 3D prints by maintaining accurate positioning during the printing process.

Key Features

  • Optimized Linear Motion: Specifically engineered with a trapezoidal thread (Tr8x8) to provide exceptionally smooth and accurate Z-axis linear movement.
  • Premium POM Construction: Manufactured from high-grade Polyoxymethylene (POM / Acetal) for superior wear resistance, low friction, and long-term durability.
  • Backlash Minimization: Designed to significantly reduce backlash, ensuring precise print head and bed positioning for consistent, high-quality 3D prints.
  • Broad Prusa Compatibility: A direct replacement part compatible with a wide range of Original Prusa i3 series printers, including MK3S, MK4, MK2.5S, MMU2S, and more.
  • Reliable Performance: Ensures stable and repeatable vertical movement, critical for maintaining layer consistency and overall print accuracy.
  • Easy Integration: Designed for straightforward replacement, restoring optimal Z-axis functionality with minimal downtime.

Technical Specifications

Item TypeTrapezoid Nut
CompatibilityMK3S, MK3, MK3S+, MK4, MK2.5S, MK2.5, MK2S, MK2, MMU2S, MK3.9
MaterialPOM
ColorBlack
Thread SizeTr8x8
Outer Diameter22 mm
Body Length15 mm
Net Weight8 g
Shipping Weight0.01 kg
Shipping Dimensions5 × 5 × 1 cm

Frequently Asked Questions

What 3D printer models is this Trapezoid Nut compatible with?

This trapezoid nut is compatible with Original Prusa i3 series 3D printers, including the MK3S, MK3, MK3S+, MK4, MK2.5S, MK2.5, MK2S, MK2, and MMU2S. It's designed for specific Prusa Z-axis lead screw configurations.

What material is the Trapezoid Nut made from, and what are its advantages?

The trapezoid nut is manufactured from POM (Polyoxymethylene), also known as Acetal. POM offers excellent dimensional stability, low friction, and high wear resistance, making it ideal for smooth and precise linear motion in 3D printer Z-axes.

What is the thread size of this Trapezoid Nut and why is it important for 3D printing?

This trapezoid nut features a Tr8x8 thread size. The Tr8 refers to an 8mm trapezoidal thread diameter, and x8 indicates an 8mm lead (pitch multiplied by number of starts). This specification ensures correct Z-axis movement and layer accuracy.

How does proper installation of the trapezoid nut impact print quality?

Correct installation of the trapezoid nut is critical for minimizing Z-wobble and achieving consistent layer height. Ensure it is not overtightened or misaligned, allowing the lead screw to move freely. This prevents binding and improves overall print surface finish.

Package Includes

  • 1 x Trapezoid Nut

Additional Information

Weight 0.01 kg
Dimensions 5 × 5 × 1 cm
