OrangeRX HD Propellers 5045 (5x4.5) Tri-Blade Bullnose Polycarbonate 2CW+2CCW - OrangeRX

Name: OrangeRX HD Propellers 5045 (5x4.5) Tri-Blade Bullnose Polycarbonate 2CW+2CCW - OrangeRX
Brand: OrangeRX
SKU: DRFC-1478
Price: 302.00 INR
Availability: OutOfStock

₹302.00 (Inclusive of all taxes)

Out of Stock

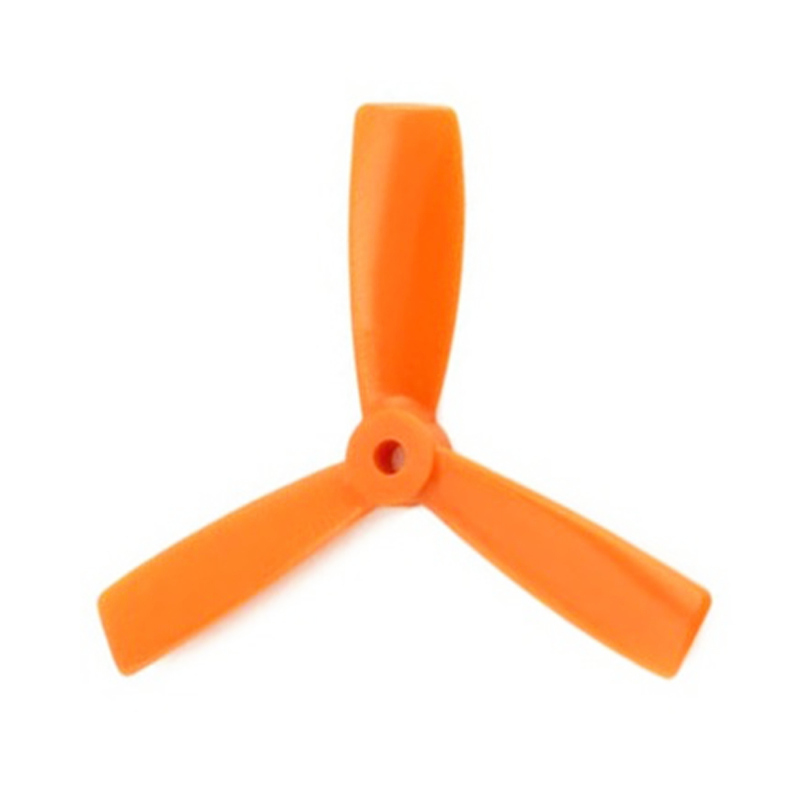

The OrangeRX HD 5045 tri-blade bullnose propellers are 5-inch polycarbonate props designed for multirotor and FPV drone applications, offering a 4.5-inch pitch for a balance of thrust and efficiency in a durable 2CW+2CCW set.

Features

5-inch diameter with 4.5-inch pitch tri-blade bullnose design
Constructed from durable, lightweight polycarbonate material

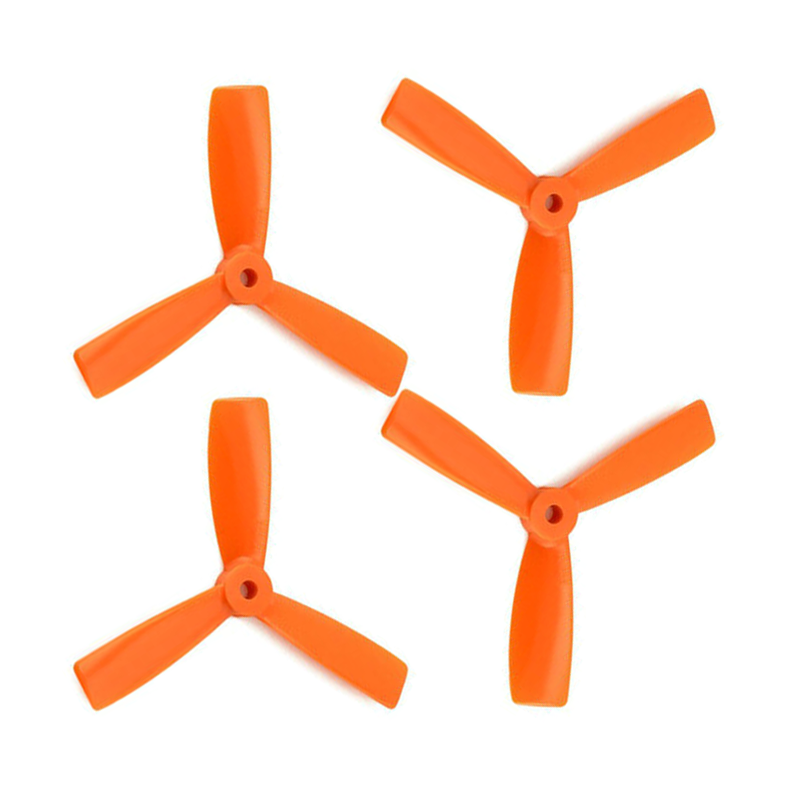

Includes 2 clockwise (CW) and 2 counter-clockwise (CCW) propellers
Features a 5mm central shaft diameter for secure motor mounting
Optimized for multirotor thrust and aerodynamic stability

Out of stock

Get Notified When Available

Description

The OrangeRX HD 5045 propellers utilize a tri-blade bullnose design to maximize thrust density and low-speed control for 5-inch class multirotor drones. The polycarbonate construction provides a high rigidity-to-weight ratio, reducing flex at high RPMs for consistent flight performance.

With a 4.5-inch pitch, these props deliver a balanced thrust profile suitable for both aggressive freestyle maneuvers and efficient cruising. The set includes matched pairs of CW and CCW rotation propellers, ensuring proper motor direction for standard Betaflight and ArduPilot configurations.

Key Features

High-density tri-blade bullnose design for increased thrust
Polycarbonate material ensures durability and impact resistance
Precision-molded blades for consistent weight and balance
5mm shaft hole diameter compatible with standard 5mm motor shafts
Epoxy resin cover enhances blade root strength and longevity
Optimized aerofoil profile for stable flight and efficient power draw

Applications

5-inch FPV racing and freestyle quadcopter builds
DIY multirotor platforms requiring 5-inch props
Aerial photography drones in the 5-inch class
Betaflight and ArduPilot-compatible drone configurations

Technical Specifications

Propeller Diameter	5 inch
Propeller Pitch	4.5 inch
Number of Blades	3 (Tri-Blade)
Rotation Direction	2CW + 2CCW
Shaft Diameter	5 mm
Material	Polycarbonate
Color	OrangeRX
Approx. Weight (per set)	25-27 g
Total Length	125 mm

Frequently Asked Questions

What is the shaft diameter for these OrangeRX HD 5045 propellers?

These propellers feature a 5mm central shaft hole, which is the standard size for most 5-inch class brushless motors. Ensure your motor shaft matches this diameter for a secure, wobble-free fit.

Are these propellers suitable for 6S LiPo setups?

While the polycarbonate construction is durable, the 5045 bullnose design creates significant load. They are best used within recommended motor amp limits on 4S or 6S systems, but always monitor motor and ESC temperatures during initial flights.

Do these come balanced and ready to install?

These are production-grade propellers and should be checked for balance before high-performance use. It is recommended to dynamically balance the propellers on your specific motor to minimize vibration for optimal flight controller performance and video feed clarity.
