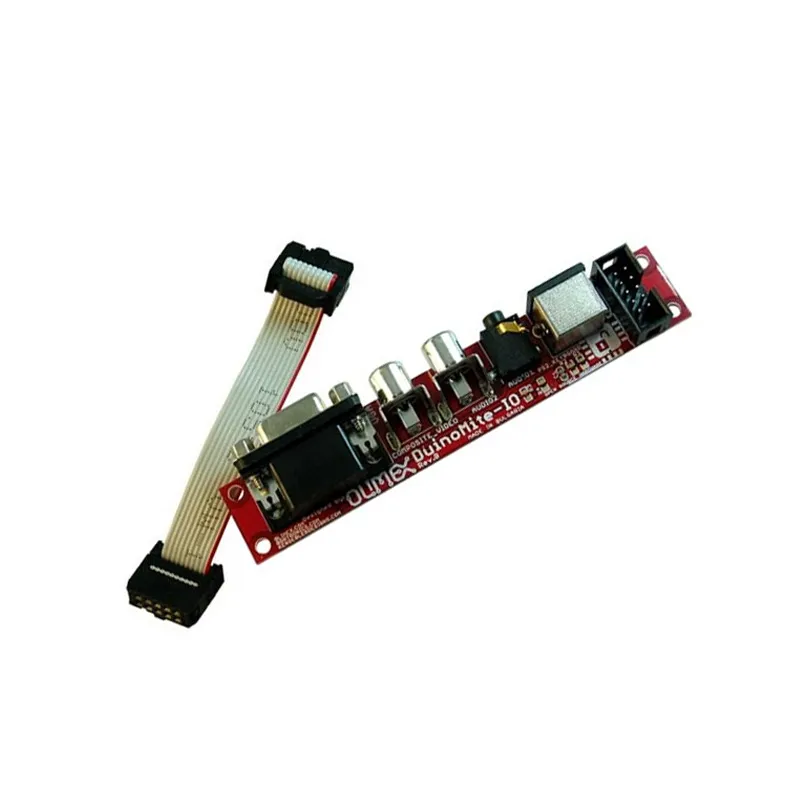

Olimex DUINOMITE-IO Extension Board
The Olimex DUINOMITE-IO is an extension board designed to expand the connectivity of your Duinomite development board, providing essential interfaces for human-machine interaction and display output. It integrates PS/2, audio, composite video, and VGA ports, facilitating comprehensive peripheral integration for embedded projects.
Features
- PS/2 connector for keyboard and mouse input.
- 3.5mm audio jack and RCA composite video/audio outputs.
- VGA monitor connector for standard display output.
- 10-pin IO connector with cable for Duinomite integration.
- Ribbon cable included for direct board connection.
Out of stock
The Olimex DUINOMITE-IO is a dedicated expansion board meticulously engineered to augment the input/output capabilities of the Duinomite development platform. This board centralizes several common peripheral interfaces, allowing developers to easily connect standard human interface devices and display technologies without requiring complex external circuitry. It provides a robust solution for projects that necessitate direct user interaction and visual feedback.
Featuring a PS/2 connector, the DUINOMITE-IO supports legacy keyboard and mouse inputs, critical for embedded systems requiring precise control or data entry. For multimedia applications, it includes both a 3.5mm audio jack and RCA composite video/audio outputs, alongside a VGA monitor connector, enabling versatile display options from basic text interfaces to graphical outputs. Its direct 10-pin IO connection ensures seamless integration with the Duinomite board, making it ideal for prototyping and educational projects.
Additional Information
| Weight | 0.032 kg |
|---|---|
| Dimensions | 11.25 × 2.6 cm |
