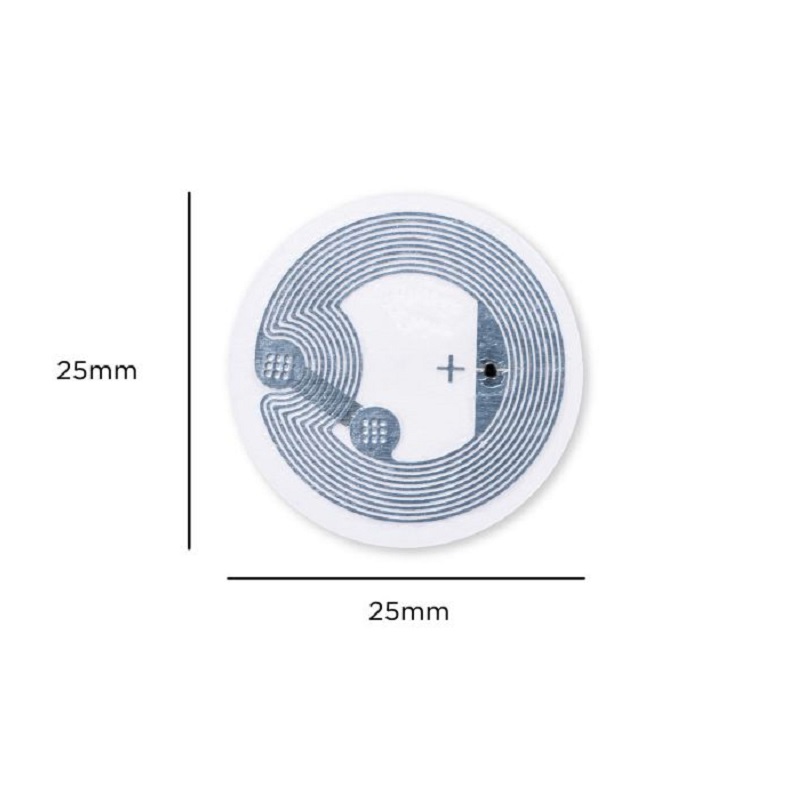

NTAG215 NFC Tag 13.56 MHz 504Byte Sticker - 25x25mm
The NTAG215 is a passive 13.56 MHz NFC/RFID tag sticker compatible with NFC-enabled smartphones and readers. It features 504 bytes of user-accessible EEPROM for data storage and is ideal for embedding into IoT projects, asset tracking systems, and interactive applications.
Features
- NTAG215 NFC/RFID IC with 504 bytes of user EEPROM
- Passive operation at 13.56 MHz ISO 14443 Type A standard

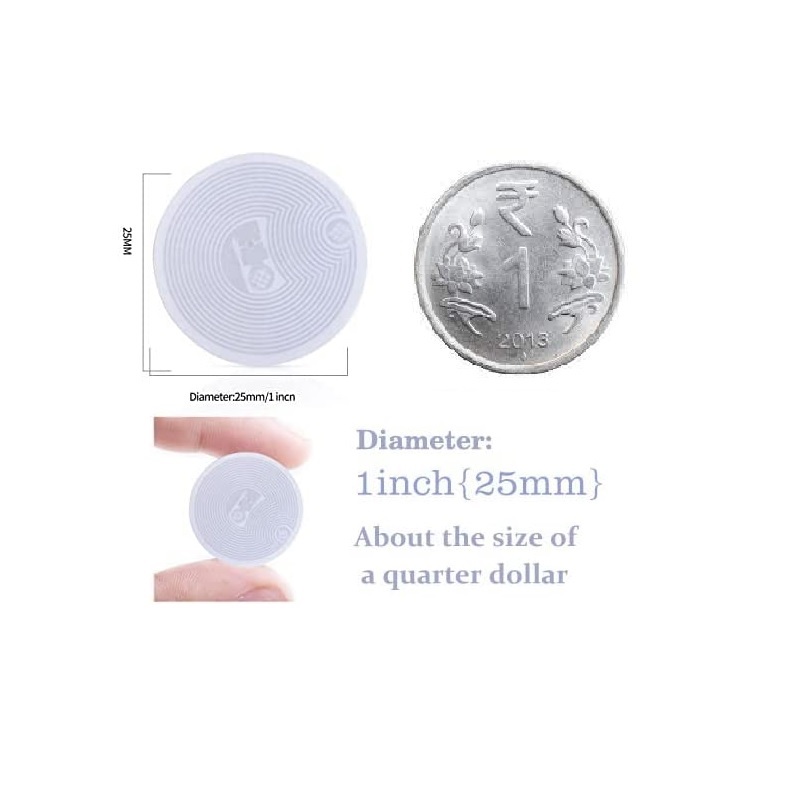

- Compact 25 x 25 mm form factor with adhesive backing
- Supports over 100,000 write cycles for data updates
- Typical read/write range up to 10 cm, dependent on reader
Out of stock
The NTAG215 NFC Tag is a passive, sticker-form transponder operating at the 13.56 MHz high-frequency band, compliant with the NFC Forum Type 2 Tag and ISO/IEC 14443 Type A standards. It is powered entirely by inductive coupling from an NFC reader’s RF field, requiring no internal battery. The integrated NTAG215 IC provides 504 bytes of non-volatile EEPROM memory, organized into configurable data banks for storing URLs, text, or custom commands.

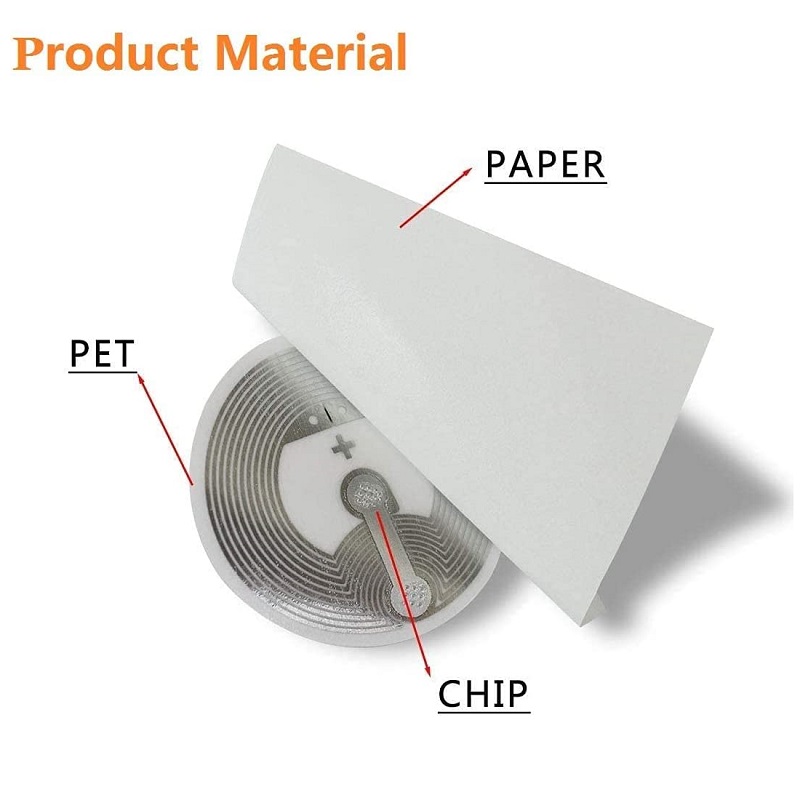

Designed for seamless integration, the tag combines a miniature antenna and chip laminated within a thin, adhesive sticker. Its performance, including the effective read/write distance, is optimized by the integrated antenna geometry and is influenced by the reader’s power and antenna configuration. This tag is engineered for high-reliability applications requiring repeated data updates, with a robust memory endurance rating.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 2.5 × 2.5 cm |
