Mini TS5828 FPV Set 5.8G 32CH 600mW AV RC Transmitter

Name: Mini TS5828 FPV Set 5.8G 32CH 600mW AV RC Transmitter
Brand: Generic
SKU: DRFC-2219
Price: 1249.00 INR
Availability: OutOfStock

₹1,249.00 (Inclusive of all taxes)

Out of Stock

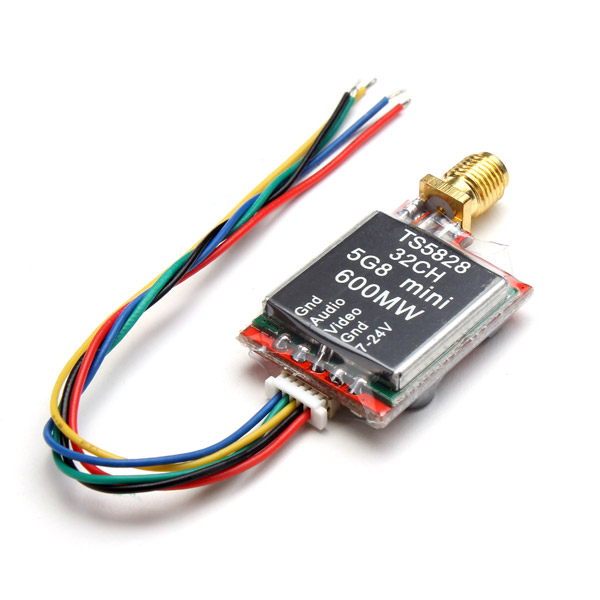

The Mini TS5828 is a 5.8GHz 32-channel video transmitter (VTX) designed for FPV drone applications, offering a maximum output power of 600mW. It operates on a wide 7-24V DC input range and features a compact, lightweight design ideal for micro and mini quadcopters.

Features

32-channel 5.8GHz video transmitter with 600mW maximum output power.
Wide 7-24V DC input voltage range compatible with 2S to 6S LiPo batteries.
Compact dimensions (40x23x8mm) and lightweight build for micro/mini FPV drones.
Features a user-friendly interface with band/channel buttons and a two-digit display.
Includes RP-SMA female antenna connector and a comprehensive accessory cable set.

Out of stock

Get Notified When Available

Description

The Mini TS5828 FPV video transmitter provides a reliable, high-power video link for first-person-view drone pilots. Its 600mW output ensures a strong, stable signal for extended range flying, while the 32-channel spectrum across A, B, E, F, H, and L bands offers flexibility to find a clear frequency in crowded RF environments. The unit’s memory function retains the last used band and channel after power cycling, simplifying setup for repeat flights.

Engineered for durability, the VTX operates within a broad temperature range from -10°C to 85°C, making it suitable for various flying conditions. Its pre-wired harness and included cabling simplify integration with common FPV cameras and flight controllers, reducing build time and potential wiring errors.

Key Features

High-Density RF Circuitry: Delivers a stable 600mW video transmission signal with minimal interference.
Broad Voltage Compatibility: Built-in voltage regulation supports direct connection to 2S, 3S, 4S, 5S, and 6S LiPo packs without an external BEC.
Intuitive Control Interface: Dedicated tactile buttons and a two-digit seven-segment display for straightforward band and channel selection.
Memory Retention: Non-volatile memory saves the last configured channel and band settings upon power loss.
Robust Thermal Design: Operates reliably across an extended temperature range from -10°C to 85°C.

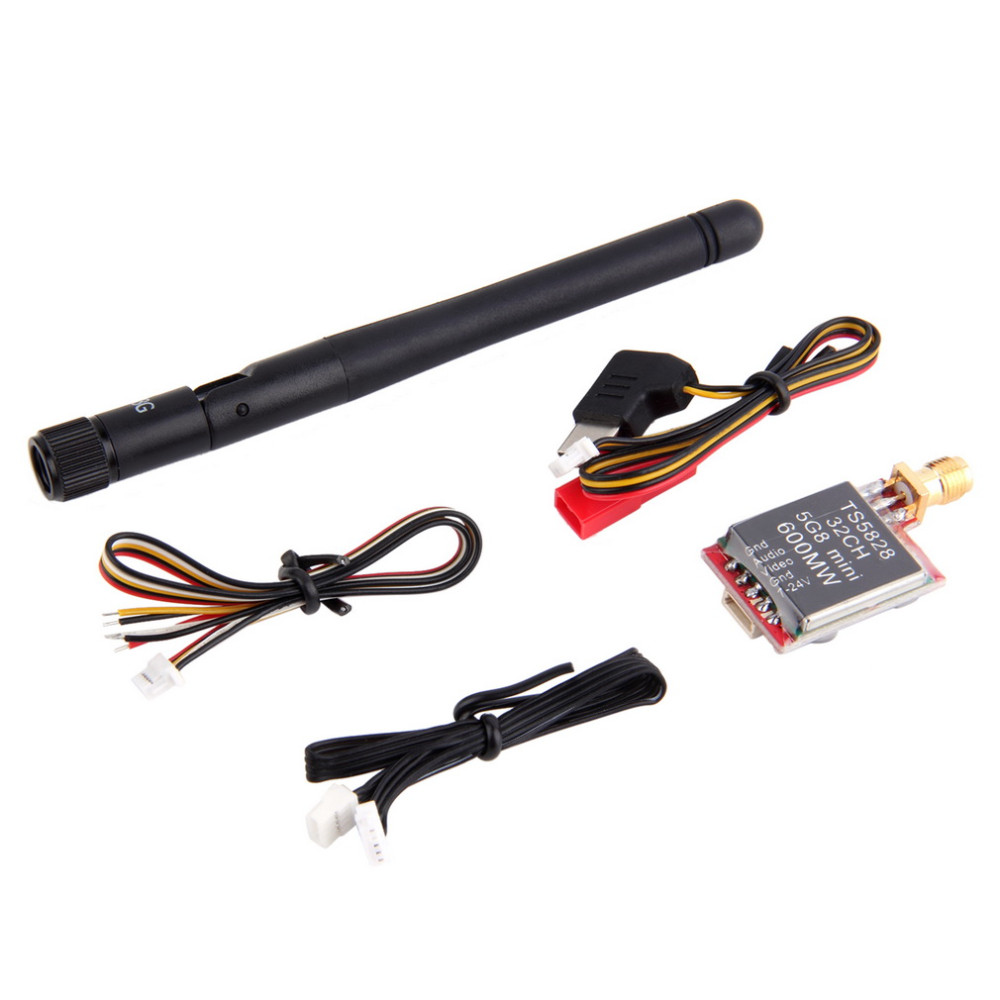

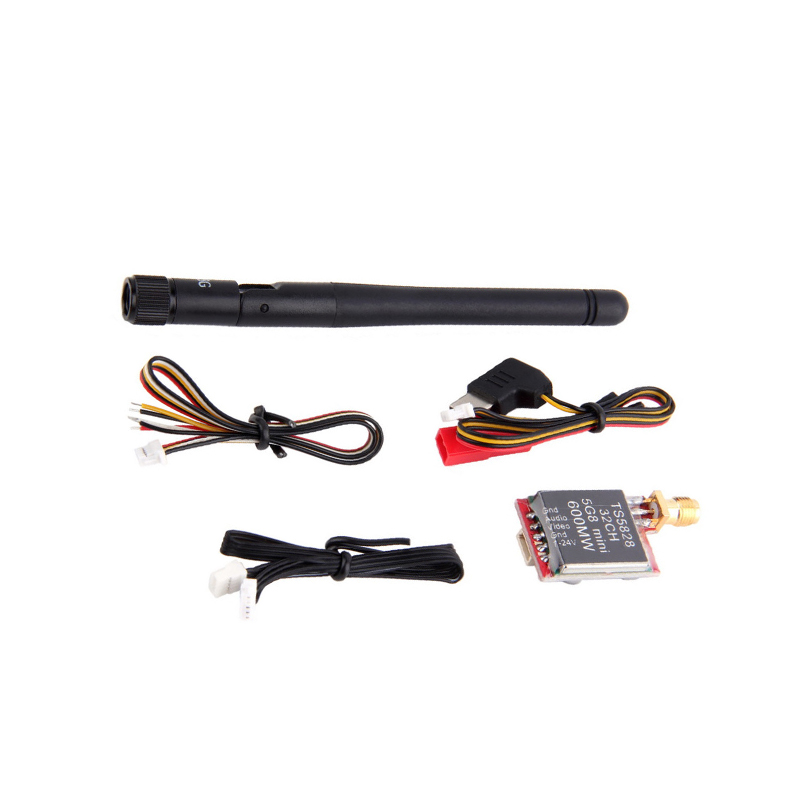

Integrated Connector System: Features an RP-SMA female antenna port and includes multiple pre-terminated cables for versatile installation.

Applications

Micro and Mini FPV Racing Drones requiring a compact, high-power VTX.
Long-Range FPV Explorers needing stable 600mW video transmission.
DIY FPV Quadcopter and Fixed-Wing builds where easy integration is key.
Freestyle and Cinematic drones where reliable video feed is critical.
Educational and Hobbyist projects utilizing 5.8GHz FPV systems.

Technical Specifications

Item Type	Video Transmitter (VTX)
Model	TS5828
Frequency Range	5.6 - 5.9 GHz
Channels	32
Max Output Power	600mW (27dB)
Input Voltage	7 - 24V DC
Output Voltage	5V (for camera)
Antenna Connector	RP-SMA Female
Operating Temperature	-10°C to 85°C

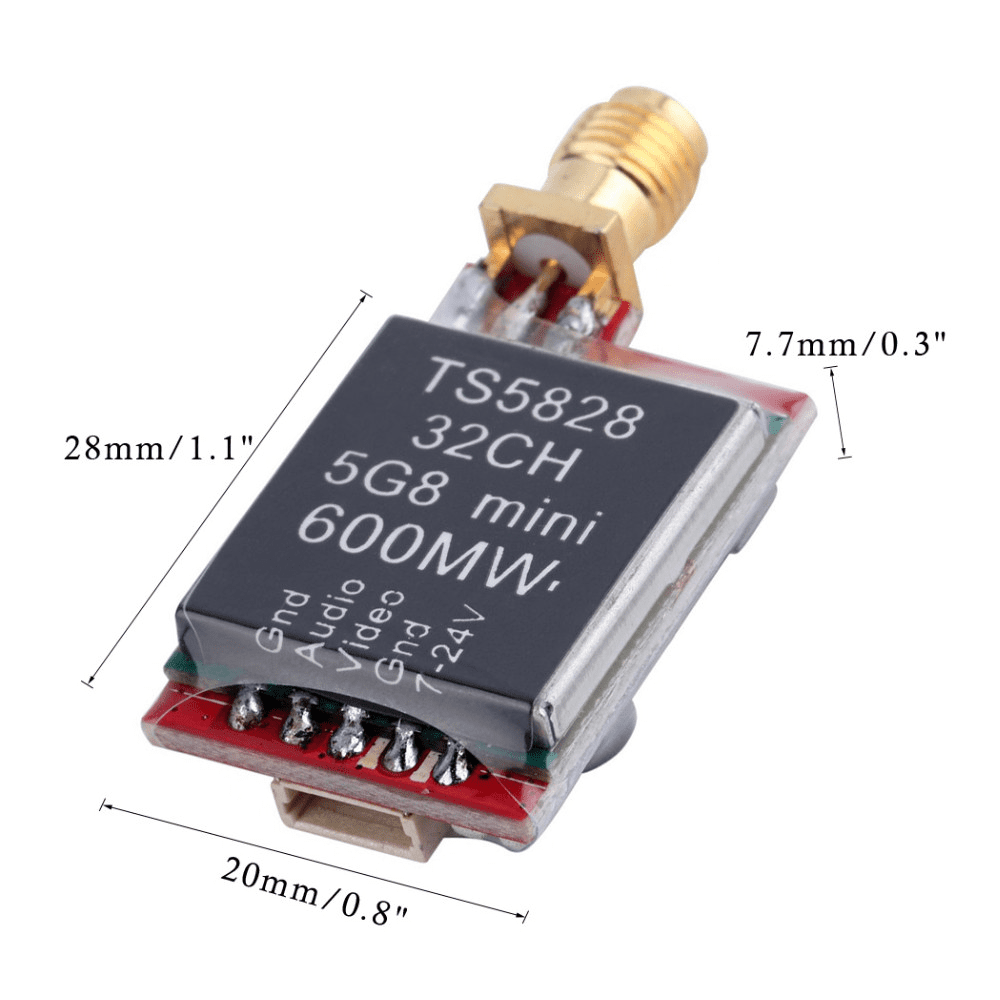

Dimensions (LxWxH)	40 x 23 x 8 mm
Weight	23 g

Frequently Asked Questions

What is the input voltage range for the Mini TS5828 VTX?

The Mini TS5828 accepts a wide input voltage range from 7V to 24V DC. This makes it directly compatible with 2S (7.4V), 3S (11.1V), 4S (14.8V), 5S (18.5V), and 6S (22.2V) LiPo batteries without requiring an external voltage regulator or BEC.

How many channels does this 5.8GHz transmitter support?

This transmitter supports 32 channels across multiple bands (A, B, E, F, H, L) within the 5.6GHz to 5.9GHz frequency spectrum. This provides ample flexibility to select a clear channel and avoid interference from other pilots or RF sources.

What type of antenna connector does the TS5828 use?

The VTX is equipped with a standard RP-SMA female antenna connector. It is supplied with a 2dBi RP-SMA antenna. Ensure any replacement or upgraded antenna also uses an RP-SMA male connector for proper compatibility and signal transmission.
