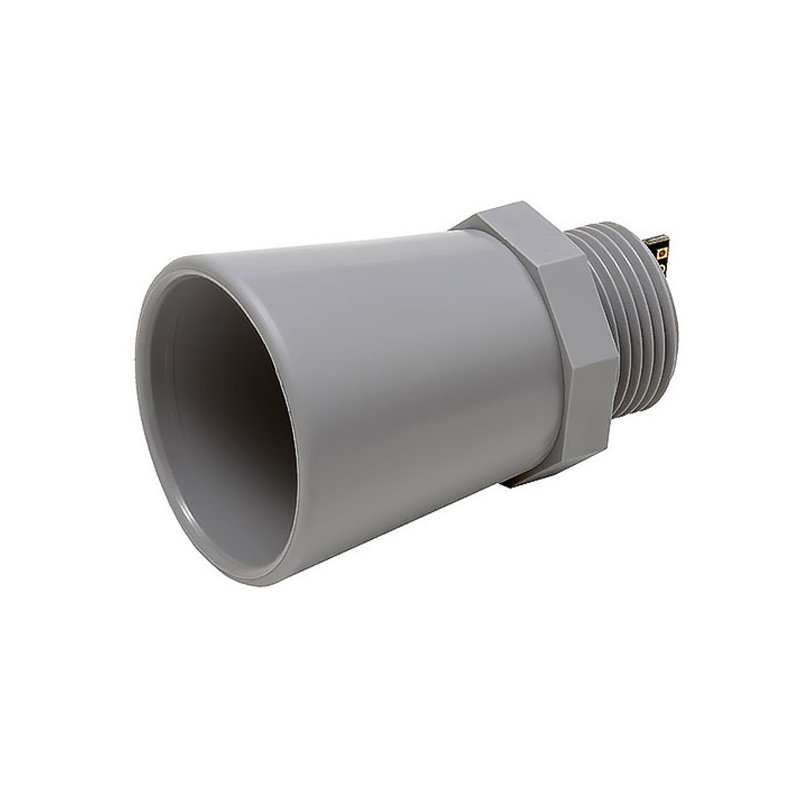

MaxBotix MB7137 I2CXL-TrashSonar-WR Ultrasonic Range Finder Module - IP67 Weather Resistant
The MaxBotix MB7137 I2CXL-TrashSonar-WR is a high-performance, weather-resistant ultrasonic range finder module offering 0-350 cm object detection with 1-cm resolution via I2C interface. It is designed for reliable operation in demanding environments and is compatible with 3.3V and 5V microcontroller systems like Arduino, Raspberry Pi, and industrial PLCs.
Features
- IP67-rated, weather-resistant housing for reliable outdoor and industrial use.
- I2C digital interface provides stable, noise-free distance readings up to 350 cm with 1-cm resolution.
- Real-time automatic calibration adapts to changing voltage, humidity, and acoustic noise conditions.
- Wide operating voltage range from 3.0V to 5.5V for flexible system integration.
- High-power 42 kHz acoustic output and advanced filtering algorithms for superior clutter rejection.
Out of stock
The MB7137 I2CXL-TrashSonar-WR ultrasonic sensor utilizes advanced sonar technology to deliver precise, stable distance measurements. Its firmware incorporates real-time waveform signature analysis and noise rejection algorithms, ensuring virtually noise-free readings even in electrically or acoustically noisy environments. The sensor’s high-output acoustic power and continuously variable gain enable it to detect objects from 0 cm to 350 cm, with a typical near-field reporting distance of 20 cm.

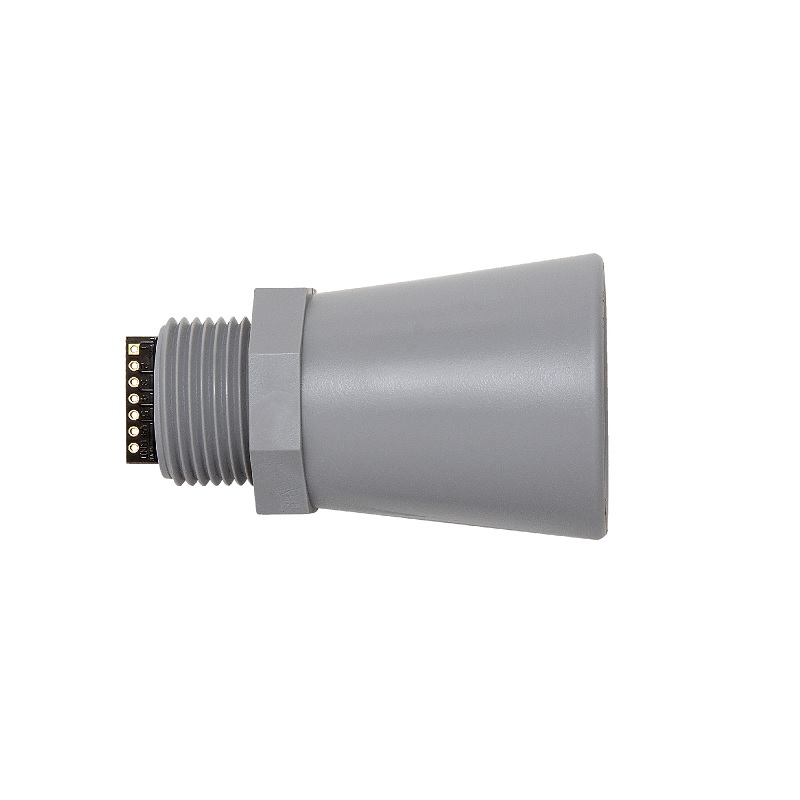

Engineered for durability, the module features a robust, IP67-protected housing capable of withstanding harsh conditions within an operating temperature range of -40°C to +70°C. Its design includes standard pipe fitting threads for easy mechanical mounting. The integrated real-time automatic calibration continuously adjusts for supply voltage sag and ambient changes, guaranteeing consistent performance and a high mean time between failures (MTBF).
Additional Information
| Weight | 0.055 kg |
|---|
