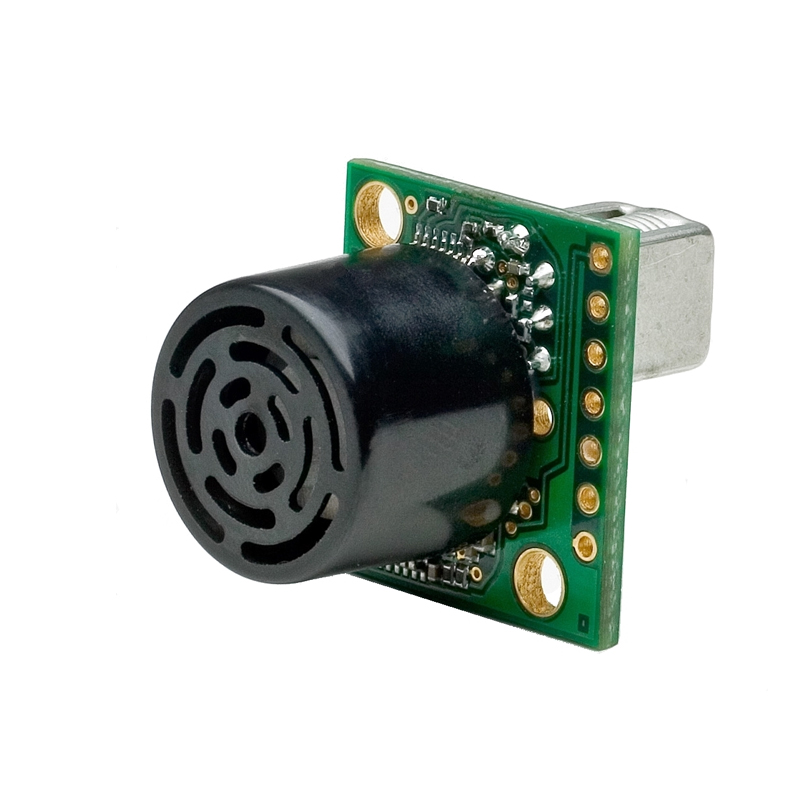

MaxBotix MB1220 XL-MaxSonar-EZ2 Ultrasonic Distance Sensor
The MaxBotix MB1220 XL-MaxSonar-EZ2 is a high-performance ultrasonic distance sensor module offering 20cm to 765cm range detection with 1cm resolution. It provides simultaneous analog voltage, RS232 serial, and pulse width outputs for easy integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- Wide detection range from 20cm to 765cm with 1cm resolution.
- Simultaneous analog voltage, RS232 serial, and pulse width outputs.
- Advanced firmware with real-time noise rejection and automatic calibration.
- Low power consumption at 3.4mA, operating from 3.3V to 5.5V DC.

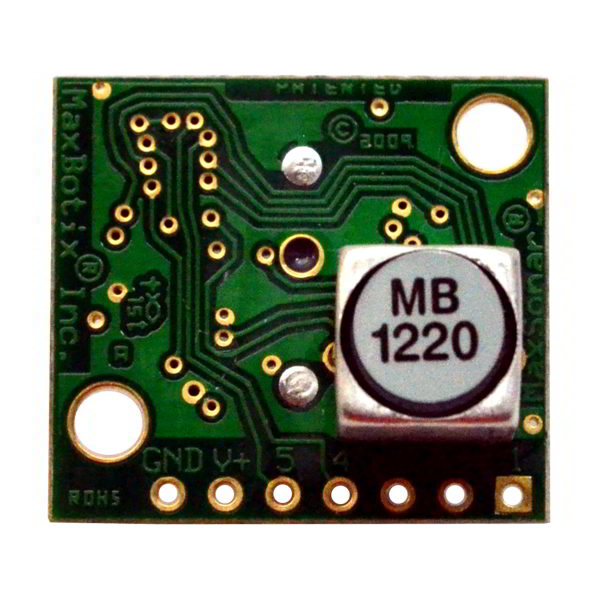

- Compact, board-mounted module with pre-drilled mounting holes.
Out of stock
The MB1220 utilizes a 42kHz ultrasonic transducer to provide accurate, non-contact distance measurements. Its advanced firmware incorporates real-time waveform signature analysis and continuously variable gain to deliver stable readings even in acoustically noisy environments. The sensor performs a background calibration with every ranging cycle to maintain accuracy.
Designed for easy integration, the module outputs distance data concurrently through three interfaces, allowing flexibility for various system architectures from simple analog reads to serial communication. Its compact footprint and low current draw make it suitable for both battery-powered mobile applications and fixed industrial installations.
Additional Information
| Weight | 0.007 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
