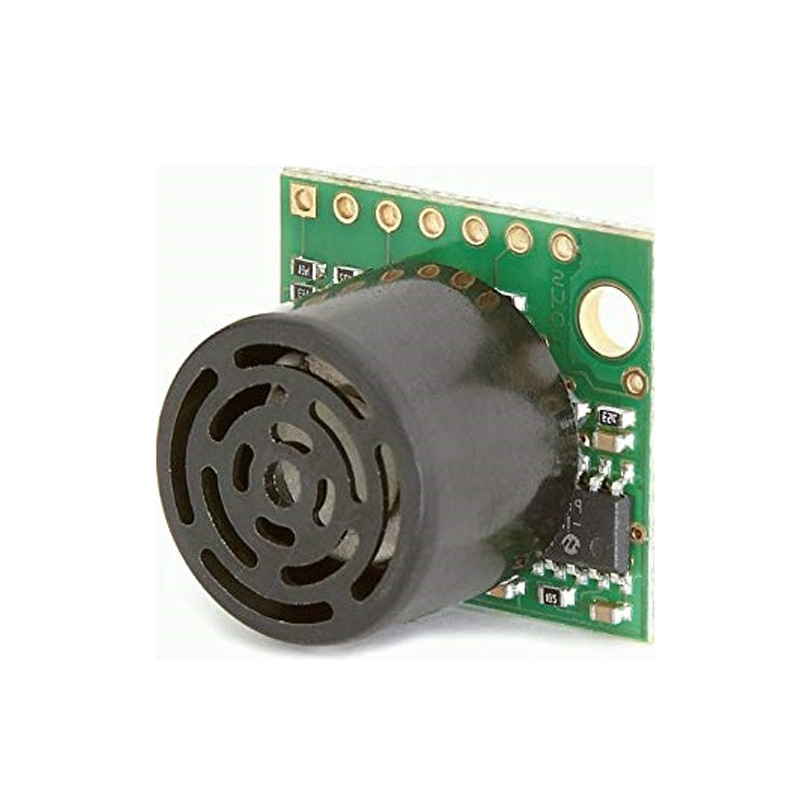

MaxBotix MB1030 LV-MaxSonar-EZ3 Ultrasonic Sensor - Narrow Beam, 254" Range
The MaxBotix MB1030 LV-MaxSonar-EZ3 is a high-performance, low-voltage ultrasonic distance sensor offering 1-inch resolution and a narrow detection beam. It provides three simultaneous output options (pulse-width, analog voltage, RS232 serial) for seamless integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- High-resolution 1-inch (2.54 cm) ultrasonic ranging up to 254 inches (6.45 meters).
- Simultaneous pulse-width, analog voltage, and RS232 serial output for flexible system integration.
- Low power operation at 2.5-5.5V DC with an average current draw of just 2.0mA.
- Narrow beam pattern with excellent side object rejection for precise target detection.
- Compact, board-mountable module with integrated mounting holes for easy installation.
Out of stock
The MB1030 utilizes a 42kHz ultrasonic transducer to accurately measure distance to objects. Its advanced signal processing provides a virtually non-existent dead zone, reliably detecting objects as close as 6 inches. The sensor features an auto-calibration routine that learns the acoustic environment upon startup, enhancing stability and ignoring fixed obstacles.
Designed for reliability in diverse applications, this RoHS-compliant sensor operates from 2.5 to 5.5V, making it compatible with both 3.3V and 5V logic systems. Its compact form factor, measuring less than one Cubic Sensor inch, and 20Hz reading rate make it ideal for robotics, level sensing, and proximity detection where space and power are constrained.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 3 × 3 × 3 cm |
