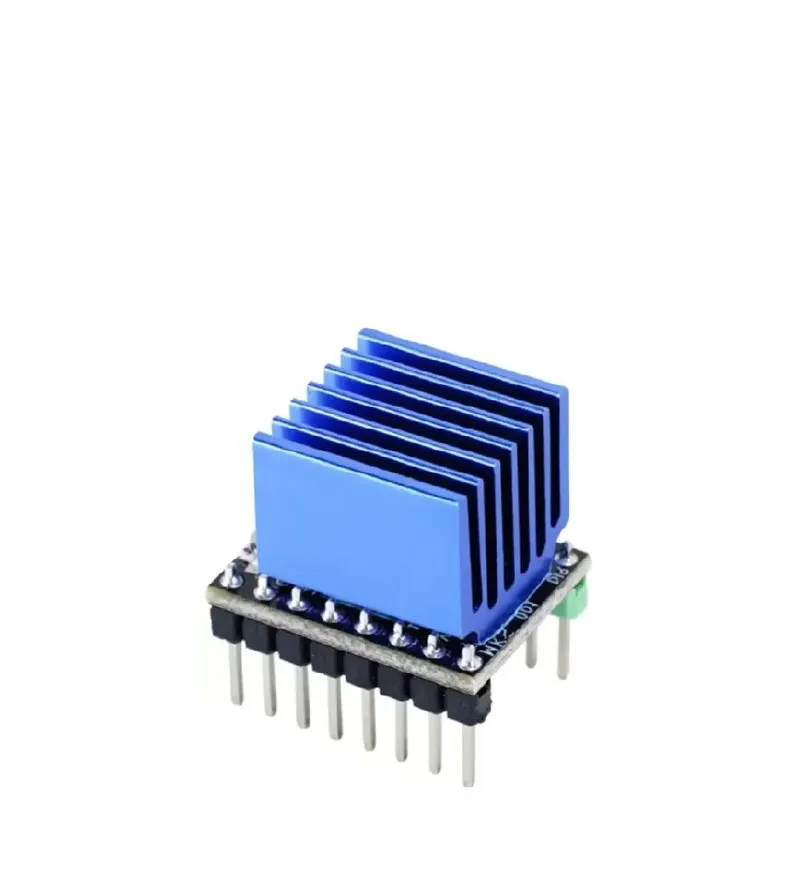

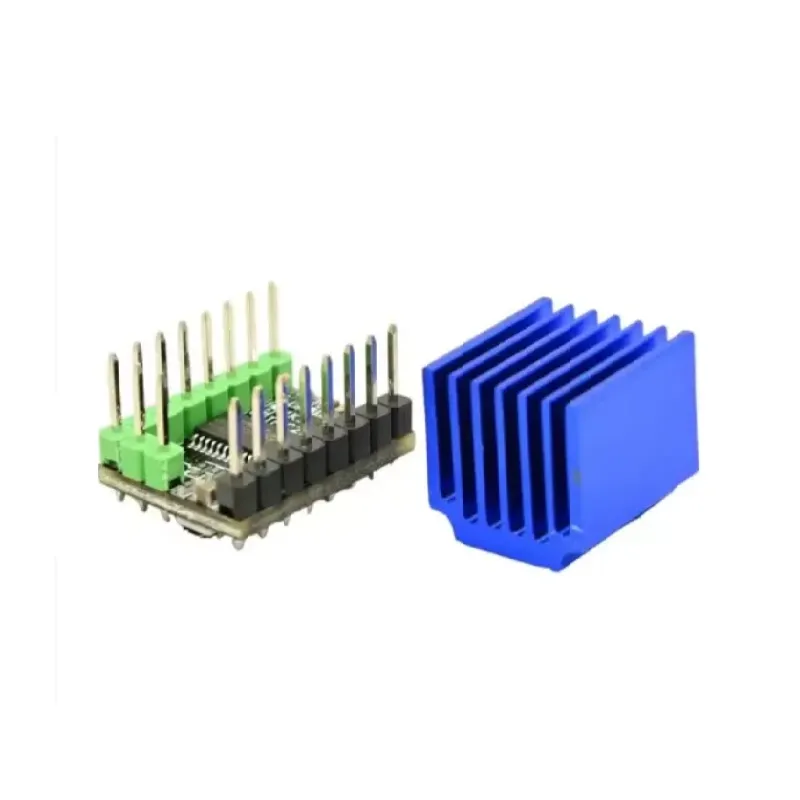

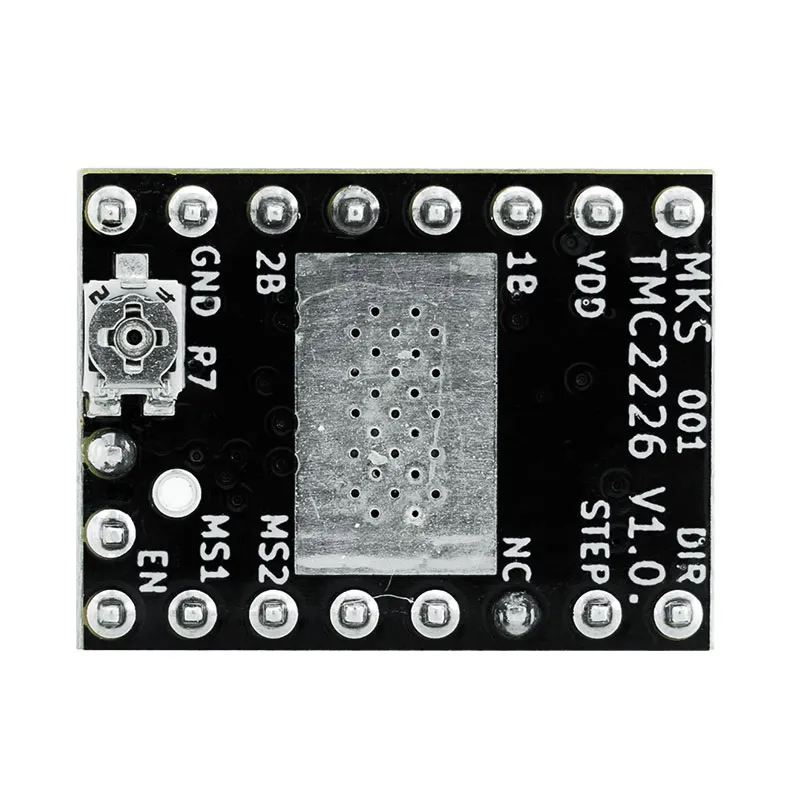

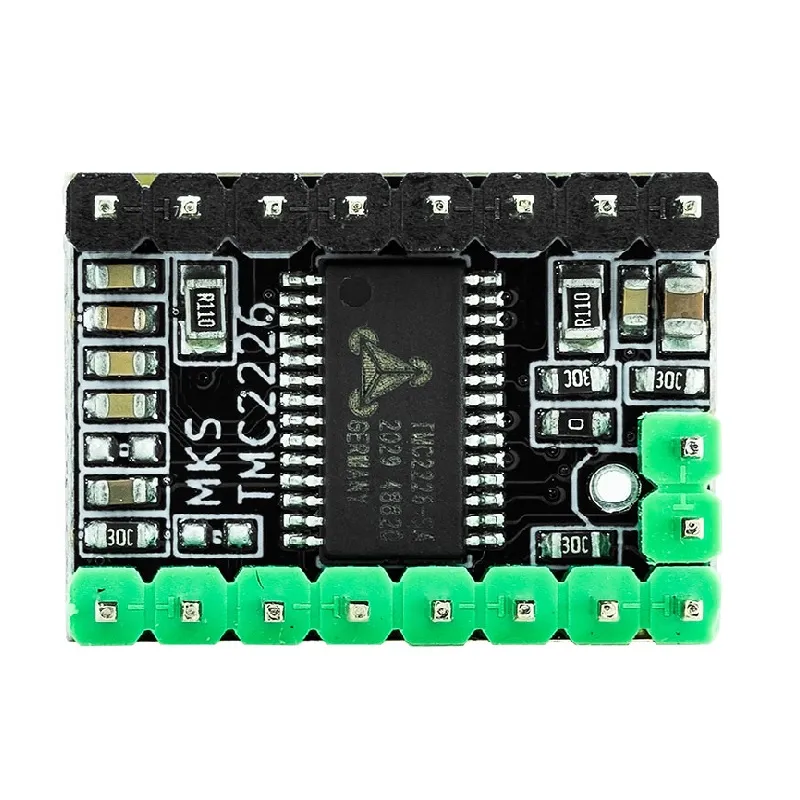

Makerbase MKS TMC2226 Stepper Motor Driver with Heatsink
The Makerbase MKS TMC2226 is an ultra-quiet stepper motor driver designed for 3D printers and CNC machines, featuring advanced thermal management for stable performance. This module provides smooth motion control and reduces noise significantly with its integrated heatsink.
Features
- Ultra-quiet operation with stealthChop2 technology for reduced noise.
- Integrated large heatsink ensures efficient thermal dissipation.
- Supports sensorless-homing for simplified printer setup.
- UART mode configurable via jumper caps on compatible MKS boards.
- Delivers up to 2.5A peak current for robust motor control.
Out of stock
The MKS TMC2226 is a high-performance stepper motor driver engineered for precision motion control in 3D printers, CNC machines, and various other devices utilizing stepper motors. Built around Trinamic’s advanced TMC2226 chip, a leader in motion control technology, this driver delivers robust and reliable operation.
Capable of providing up to 2A of continuous current to each phase of a stepper motor, with a peak of 2.5A, the TMC2226 operates efficiently across a wide supply voltage range from 5.5V to 28V. It incorporates advanced features such as stealthChop2 for exceptionally quiet operation, spreadCycle for high motor torque during dynamic movements, and coolStep for energy saving, dynamically adjusting motor current based on load.
Beyond its core performance, the MKS TMC2226 integrates built-in thermal protection, safeguarding the module against overheating and ensuring long-term reliability. These advanced features contribute to smooth, precise, and dependable stepper motor control, making it an ideal upgrade or replacement component for enhancing machine performance.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2 × 1.5 cm |
