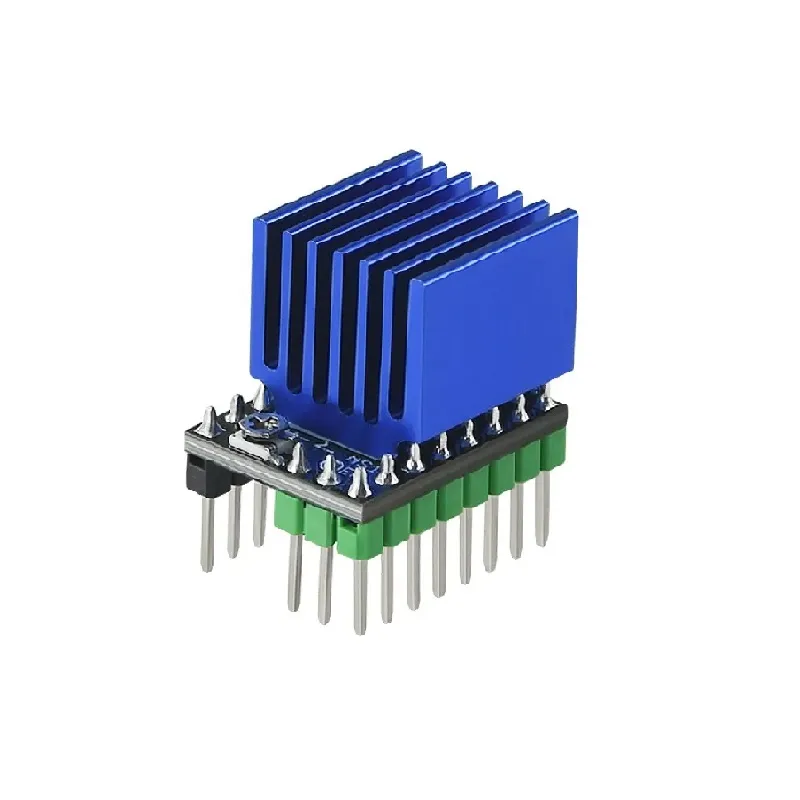

Makerbase MKS TMC2209 v2.0 Stepper Motor Driver

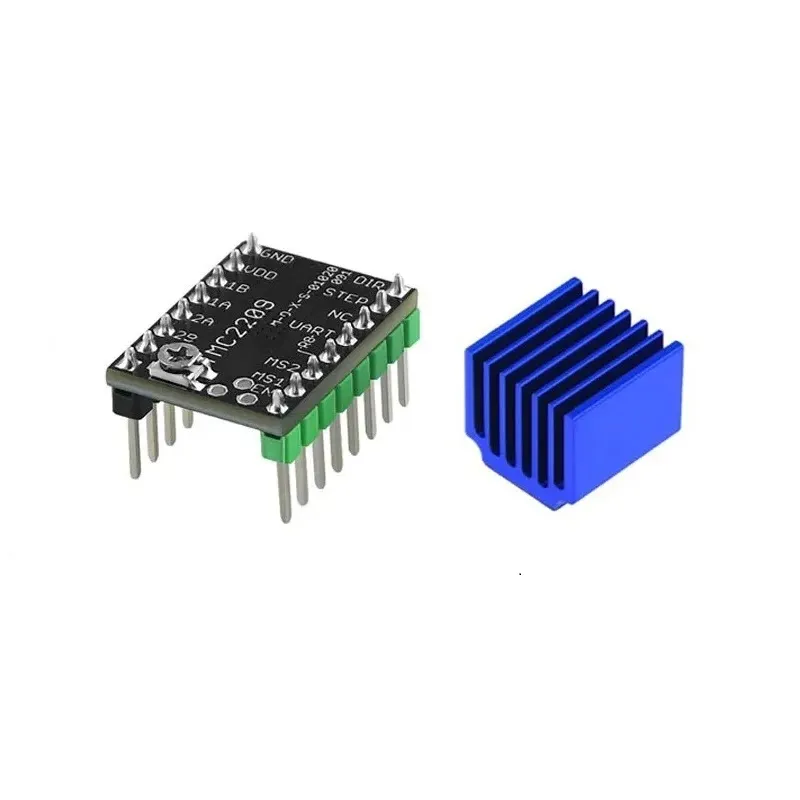

Makerbase MKS TMC2209 v2.0 Stepper Motor Driver - Image 2

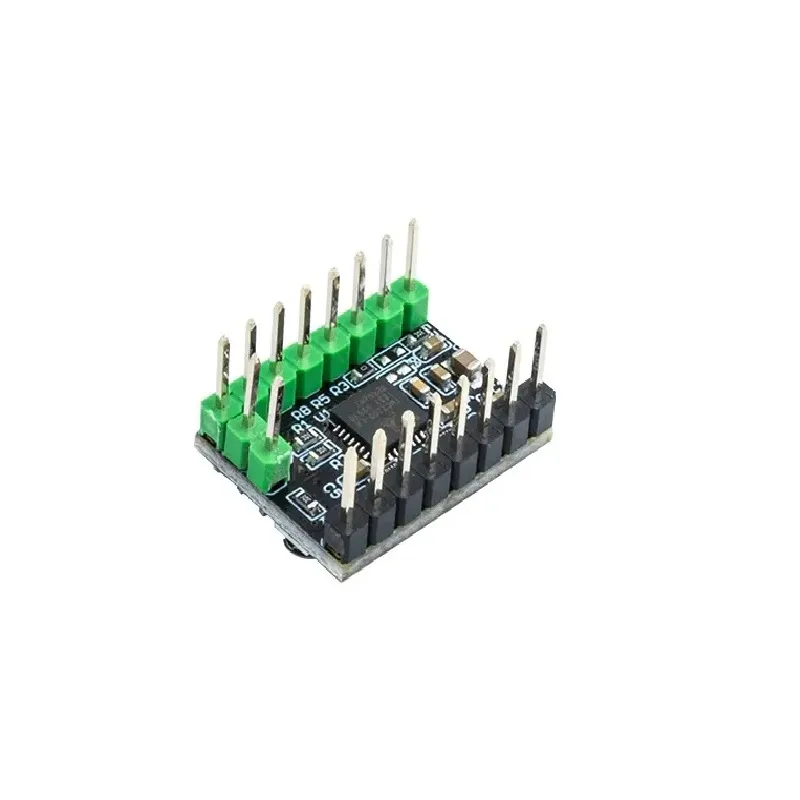

Makerbase MKS TMC2209 v2.0 Stepper Motor Driver - Image 3
SKU: 3DDF-1826
📋 GST Invoice Available

Makerbase MKS TMC2209 v2.0 Stepper Motor Driver

₹479.00 (Inclusive of all taxes)
Out of Stock

Upgrade your 3D printer or CNC machine with the Makerbase MKS TMC2209 v2.0 Stepper Motor Driver. This highly adaptable driver delivers ultra-quiet operation, precise microstepping control, and excellent thermal management for improved printing and engraving accuracy.

Features

  • Achieves ultra-quiet operation for significantly reduced motor noise.
  • Supports precise 1/256 microstepping for smoother, more accurate motion.
  • Features a large heatsink for superior thermal dissipation and stable performance.
  • Compatible with a wide range of MKS motherboards, including Ender 3 series.
  • Enables sensorless homing and UART mode configuration for advanced setups.

Out of stock

Description

The Makerbase MKS TMC2209 v2.0 stepper motor driver offers a significant upgrade for various digital fabrication machines, including 3D printers and CNC systems. Its high adaptability ensures seamless integration with a broad spectrum of MKS motherboards, such as the Robin E3D, Robin Nano V3 (ideal for Creality Ender 3, Ender 3 v2, and Ender 3 Pro), as well as the MKS DLC32 Laser Engraving CNC Cutter Machine Mainboard. Further compatibility extends to MKS Monser 8, MKS Skipr, and MKS Gen_L control boards, making it a versatile choice for diverse applications.

Engineered for silent and precise operation, the MKS TMC2209 v2.0 boasts a default current of 1.25A with a maximum current capability of 2.5A, supporting a logic voltage of 3.3V/5V and an input voltage range of 5.5V-28V. Its microstepping capability extends up to 1/256, providing exceptionally fine control over stepper motor movements. A key advantage is its optimized thermal design, featuring a large cooling area that significantly reduces heat generation, even during prolonged operation. This leads to up to 30% lower heat compared to other drivers, with tests showing temperatures as low as 37°C during a 10-hour print with passive cooling, ensuring enhanced reliability and longevity for your equipment.

Key Features

  • Ultra-quiet operation for reduced noise pollution during machine operation.
  • Large integrated heatsink ensures excellent heat dissipation, prolonging driver lifespan.
  • Supports sensorless-homing function for simplified setup and reduced wiring complexity.
  • Facilitates UART mode configuration via jumper caps, eliminating the need for complex welding on compatible MKS mainboards like Gen_L V2.0, SKR1.3/1.4, and SGen_L.
  • Wide input voltage range (5.5V-28V) and flexible logic voltage (3.3V/5V) for broad compatibility.
  • Precise microstepping up to 1/256 for smooth, accurate, and high-resolution motion control.

Applications

  • Upgrading FDM 3D printers (e.g., Creality Ender 3 series) for significantly quieter operation.
  • Enhancing motion control precision in DIY CNC routing and laser engraving machines.
  • Replacing stock stepper drivers for improved thermal performance and reliability in digital fabrication.
  • Enabling advanced features like sensorless homing on compatible MKS mainboards.
  • Custom 3D printer builds requiring high-performance, low-noise motor control.

Technical Specifications

Item TypeMKS Stepper Motor Driver
Voltage Rating5V to 28V
Current Rating1.25A to 2.5A
Default Current1.25A
Default Vref1.25V
Max Current2.5A
MicrostepUp to 1/256
Operation ModeUART
Length20 mm
Width15 mm
Weight3 gm

Frequently Asked Questions

What is the primary benefit of the MKS TMC2209 v2.0 driver?

The primary benefits include ultra-quiet operation from advanced stealthChop technology, precise microstepping up to 1/256 for smoother motion, and superior thermal management with its large heatsink, ensuring stable, long-term performance in 3D printing applications.

Which mainboards are compatible with this driver?

This driver offers high adaptability, compatible with a wide array of MKS motherboards like Robin E3D, Robin Nano V3 for Creality Ender 3 series, and MKS DLC32 for CNC. It also works with MKS Monser 8, MKS Skipr, and MKS Gen_L.

Does this driver support sensorless homing?

Yes, the MKS TMC2209 v2.0 natively supports sensorless homing. This feature allows compatible 3D printer mainboards to detect axis limits without needing physical endstop switches, simplifying wiring and offering cleaner machine aesthetics. Configuration is via UART mode.

What is the maximum current rating for this driver?

The MKS TMC2209 v2.0 is designed for robust performance, featuring a default current of 1.25A. It can safely operate up to a maximum current of 2.5A. This current capacity ensures efficient power delivery to stepper motors for various 3D printing and CNC tasks.

Package Includes

  • 1 x MakerBase MKS TMC2209 v2.0 Stepper Motor Driver with Heatsink
  • 1 x Heatsink

Additional Information

Weight 0.003 kg
Dimensions 2 × 1.5 cm
