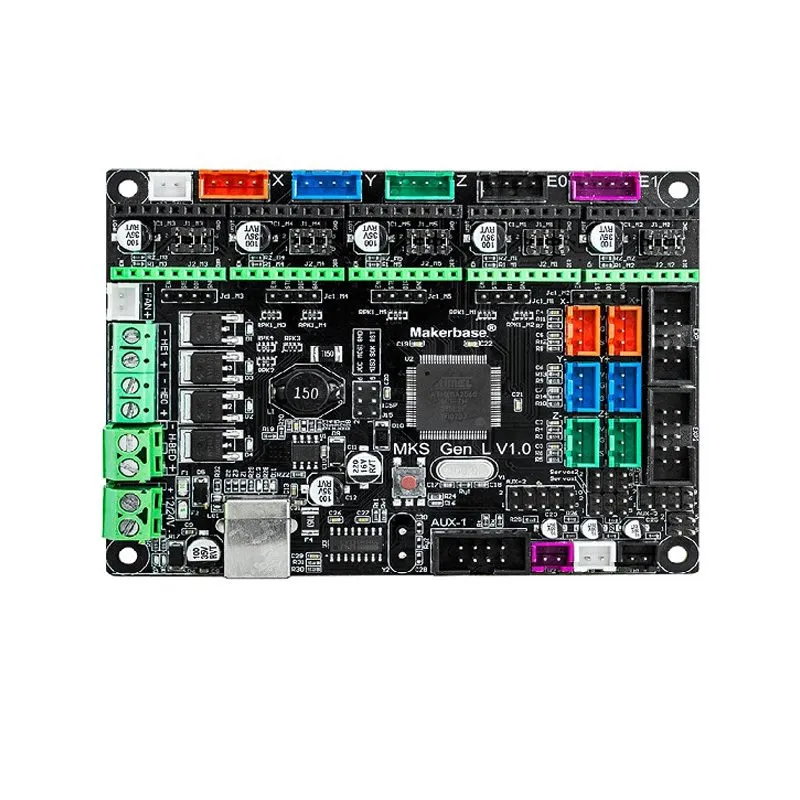

Makerbase MKS Gen_L v1.0 3D Printer Control Board

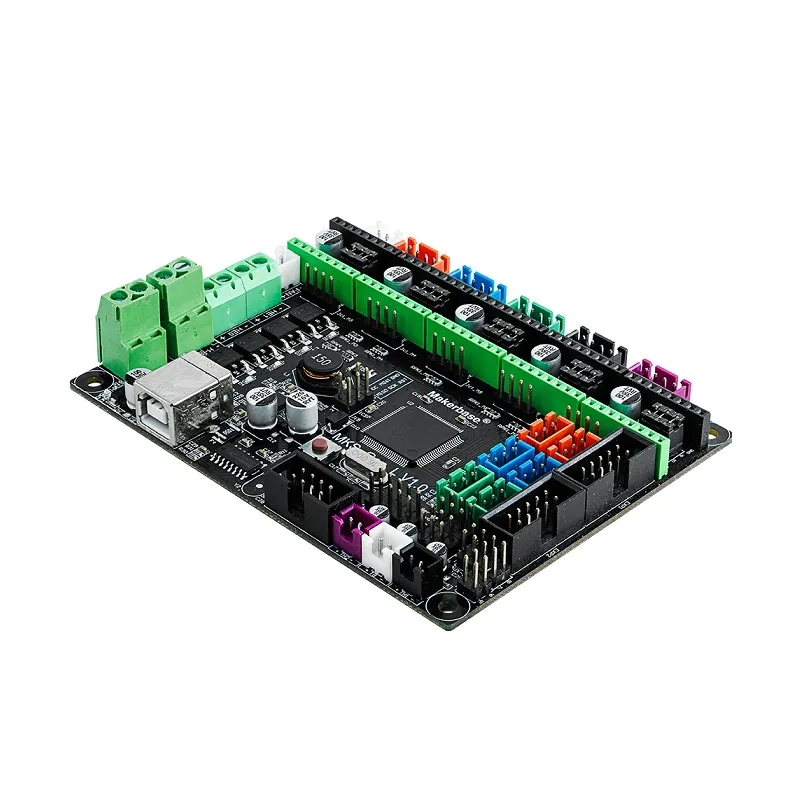

Makerbase MKS Gen_L v1.0 3D Printer Control Board - Image 2

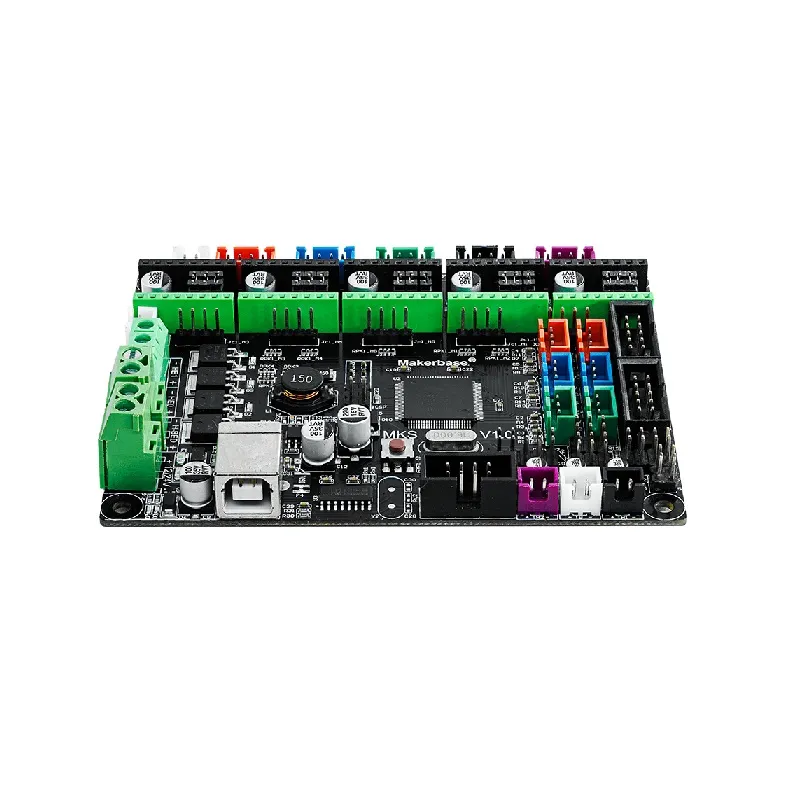

Makerbase MKS Gen_L v1.0 3D Printer Control Board - Image 3
SKU: 3DDF-1776
📋 GST Invoice Available

Makerbase MKS Gen_L v1.0 3D Printer Control Board

₹2,809.00 (Inclusive of all taxes)
Out of Stock

The Makerbase MKS Gen_L v1.0 is a highly integrated 3D printer control board, merging an ATmega2560 microcontroller with Ramps 1.4 functionality onto a single PCB. It provides stable performance and extensive connectivity for DIY FDM 3D printer builds and upgrades.

Features

  • Integrates ATmega2560 and Ramps 1.4 for simplified wiring and enhanced stability.
  • Supports a wide 12V-24V input voltage range with efficient Mosfet heat management.
  • Directly compatible with Marlin firmware, offering easy configuration for FDM 3D printers.
  • Features extensive connectivity including USB, SD card, and multiple LCD display options.
  • Robust 4-layer PCB design ensures reliable and stable long-term operation.

Out of stock

Description

The Makerbase MKS Gen_L v1.0 is an advanced and versatile 3D printer control board. It features a powerful Atmega2560 microcontroller, capable of handling complex printing tasks. The board supports multiple motor drivers and offers extensive connectivity options, including USB, SD card, and LCD display. With its robust design and efficient heat dissipation, it ensures reliable and stable performance. The Makerbase-Gen_L v1.0 is an excellent choice for DIY 3D printer enthusiasts, providing flexibility and control for high-quality prints.

Key Features

  • Integrates Atmega2560 and Ramps1.4 to one PCB for easier wiring and enhanced stability.
  • Utilizes a high-quality 4-layer PCB for improved durability and performance.
  • Compatible with Marlin firmware, maintaining the same configuration method as Ramps1.4, enabling direct replacement.
  • Equipped with a special power chip supporting a broad 12V-24V input voltage range.
  • Accepts 24V input, reducing heated bed current by 75% to efficiently resolve Mosfet heat issues.
  • Provides extensive display compatibility, working with LCD2004, LCD12864, and MKS TFT series (24/28/32/35/70).
  • Retains Servos, AUX-1, and AUX-2 interfaces from Ramps1.4, offering three 5V output and three 12V output interfaces.
  • Designed to connect external large stepper drivers for expanded motor control capabilities.

Applications

  • Custom FDM 3D printer construction and assembly.
  • Upgrading or replacing mainboards in existing DIY 3D printer setups.
  • Projects requiring robust and integrated electronics for stepper motor control.
  • Integration with a wide range of LCD and TFT displays for user interface.

Technical Specifications

Item TypeController Board
MicrocontrollerATmega2560
Input Voltage (VDC)12V-24V
CompatibilityMKS TFT Displays, Marlin Firmware, Ramps 1.4
PCB Layers4
Dimensions (L x W)110mm x 85mm
Weight79g

Frequently Asked Questions

What microcontrollers are integrated into the MKS Gen_L v1.0?

The MKS Gen_L v1.0 effectively integrates the functionality of an Arduino Mega 2560 and Ramps 1.4 onto a single printed circuit board. This design simplifies wiring and enhances overall system stability, providing a robust platform for 3D printer control without separate shields.

What power input voltage does the MKS Gen_L v1.0 support?

This controller board supports a versatile DC input voltage range from 12V to 24V. Utilizing a 24V input is particularly beneficial as it significantly reduces the current draw to the heated bed by 75%, effectively mitigating common Mosfet overheating issues and improving safety and longevity.

Is the MKS Gen_L v1.0 compatible with Marlin firmware?

Yes, the MKS Gen_L v1.0 is fully compatible with Marlin firmware. Its configuration method is identical to that of the Ramps 1.4 board, which means users can easily adapt existing Marlin setups or configure new ones with familiar parameters, making it a direct and simple replacement.

What display options are compatible with the MKS Gen_L v1.0?

The MKS Gen_L v1.0 offers broad compatibility with various 3D printer displays. It can seamlessly interface with traditional LCD2004 and LCD12864 screens, as well as the more advanced MKS TFT series, including models like MKS TFT24, MKS TFT28, MKS TFT32, MKS TFT35, and MKS TFT70.

Can the MKS Gen_L v1.0 support external stepper motor drivers?

Yes, the MKS Gen_L v1.0 is designed with flexibility for motion control. It retains interfaces from Ramps 1.4, allowing for the connection of external large stepper motor drivers. This feature is crucial for advanced setups requiring higher current, specialized motors, or expanded axis control beyond onboard driver capabilities.

Package Includes

  • 1 x MakerBase MKS Gen_L v1.0 3D Printer Controller Board
  • 1 x USB Cable

Additional Information

Weight 0.079 kg
Dimensions 11 × 8.5 cm
