MAD Components XC3000 T2 Shadow Brushless Motor 920KV - Pack of 4

Name: MAD Components XC3000 T2 Shadow Brushless Motor 920KV - Pack of 4
Brand: MAD Components
SKU: DRFC-2726
Price: 26159.00 INR
Availability: OutOfStock

₹26,159.00 (Inclusive of all taxes)

Out of Stock

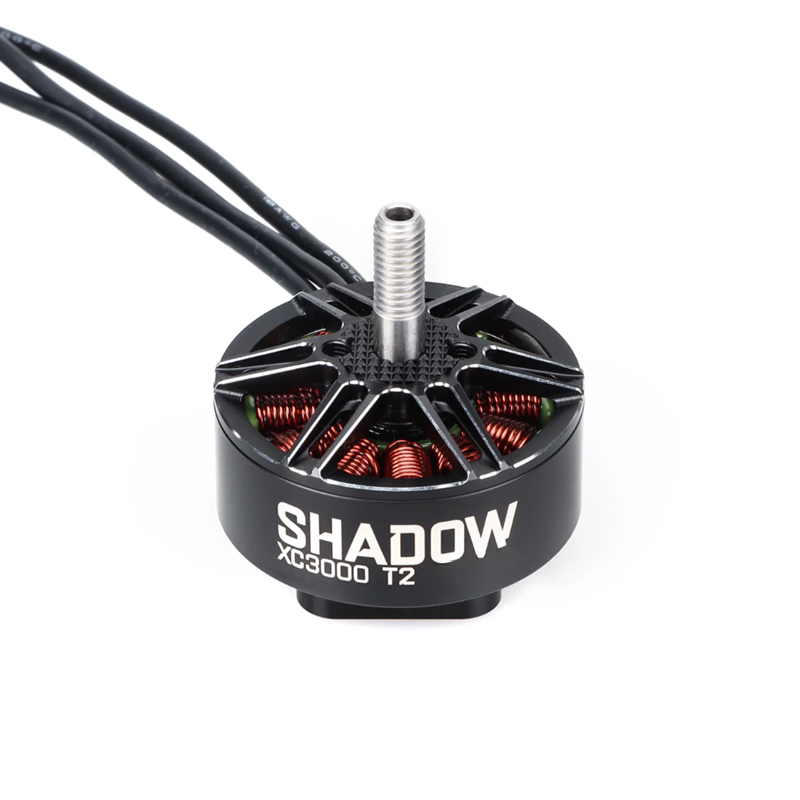

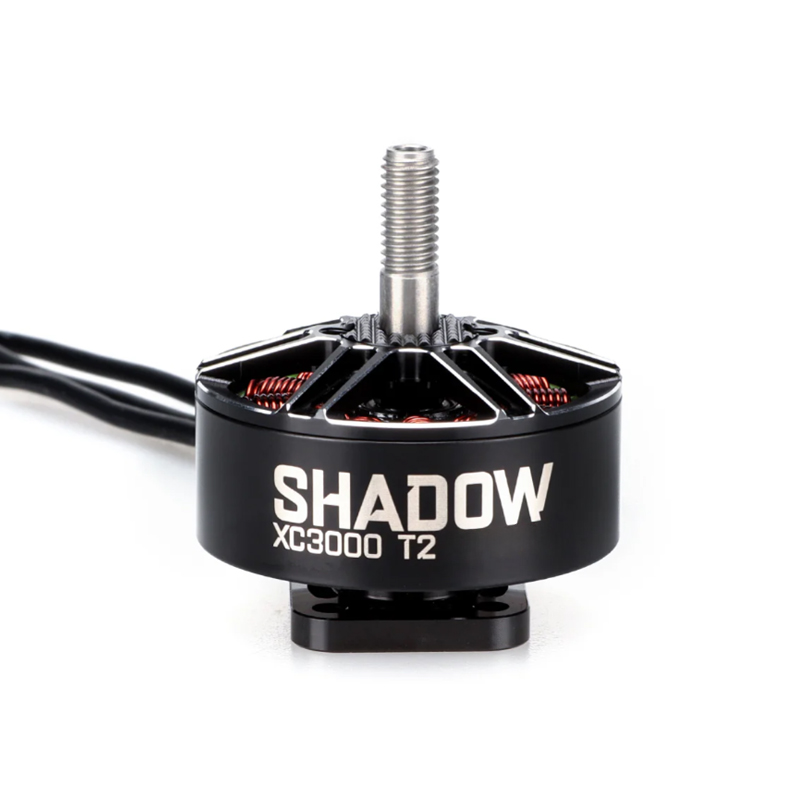

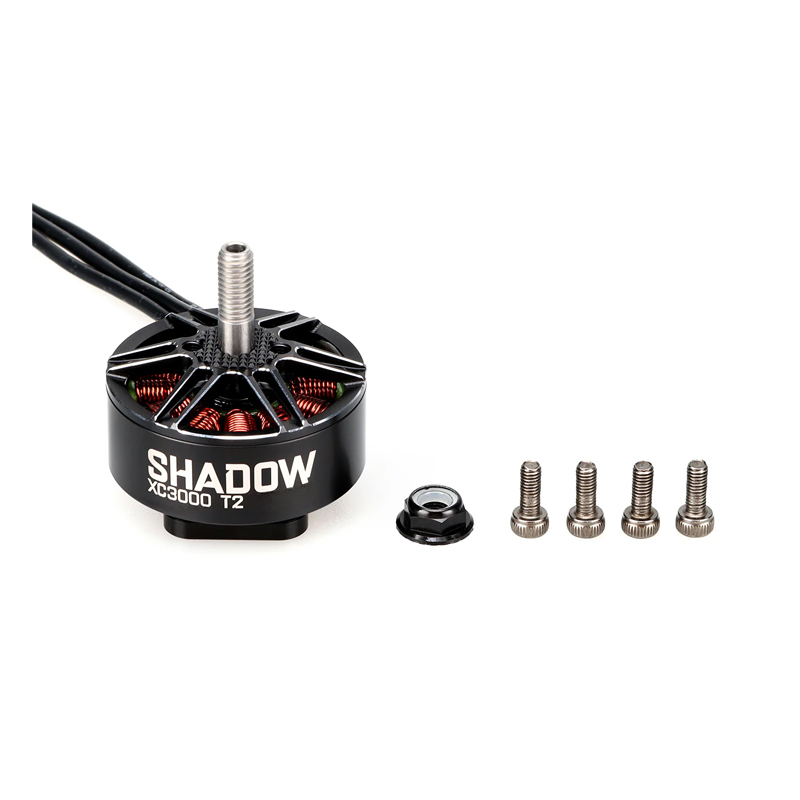

The MAD Components XC3000 T2 Shadow is a 920KV brushless motor engineered for high-performance multirotor applications, optimized for 6S to 8S LiPo battery systems. It delivers high thrust output with precision balancing for smooth, efficient flight.

Features

920KV rating optimized for high-voltage 6S to 8S LiPo systems.
Delivers up to 2.5kg of thrust per motor with a peak power output of 1088W.
Precision-balanced 12N14P stator-rotor configuration for minimal vibration.
Constructed with aerospace-grade materials for durability and thermal management.
Lightweight 70g design with a 5mm shaft for a high thrust-to-weight ratio.

Out of stock

Get Notified When Available

Description

The MAD Components XC3000 T2 Shadow brushless motor is engineered for demanding aerial platforms requiring a blend of high power, efficiency, and reliability. Its 920KV winding is specifically calibrated for 6S to 8S LiPo voltage ranges, providing robust torque and RPM for larger propellers on heavy-lift drones, professional cinematography rigs, and high-performance FPV builds.

Built with a 12N14P configuration and precision-balanced components, the motor operates with exceptionally low vibration, which is critical for flight controller stability and reducing video jello in camera-equipped drones. The advanced thermal design allows sustained operation under high loads, while the lightweight construction ensures optimal system-level performance without unnecessary mass.

Key Features

High-Thrust 920KV Design: Optimized winding for 6S-8S operation, delivering up to 2500g of thrust per motor.
Precision Engineering: 12N14P stator-rotor configuration with a balance tolerance ≤5mg for ultra-smooth operation.
Robust Thermal Management: Efficient cooling design supports continuous operation at temperatures up to 96°C.
Durable Aerospace Construction: Utilizes high-grade materials for extended service life in demanding flight environments.
Plug-and-Fly Ready: Includes pre-soldered 18AWG silicone wires (380mm length) for simplified installation.
Lightweight Performance: Weighs only 70g, contributing to an excellent overall thrust-to-weight ratio for the aircraft.

Applications

Heavy-lift cinematography drones and professional mapping UAVs requiring high torque on 6S-8S power.
Large-scale FPV racing or freestyle quadcopters (7-inch and above) where high thrust and smooth operation are critical.
Custom DIY multirotor builds for agricultural, inspection, or payload-carrying applications.
High-performance aerial platforms where low vibration is essential for gimbal-stabilized camera systems.

Technical Specifications

Motor KV (RPM/V)	920 KV
Model Number	XC3000
Motor Type	Brushless Outrunner
Compatible Voltage	6S to 8S LiPo
Max Continuous Current	39.6 A
Max Power Output	1088 W
Max Thrust	2500 g
No-Load Current	1.0 A
Internal Resistance	67.5 mΩ
Stator Configuration	12N14P
Shaft Diameter	5 mm
Motor Diameter	35.7 mm
Motor Height	40.55 mm
Operating Temp. Max	96 °C
Weight (per motor)	70 g

Frequently Asked Questions

What is the recommended battery voltage for the MAD Components XC3000 T2 920KV motor?

The MAD Components XC3000 T2 motor is optimized for high-voltage 6S (22.2V) to 8S (29.6V) LiPo battery systems. Its 920KV winding provides the ideal torque and RPM characteristics for larger propellers within this voltage range, ensuring efficient power delivery and thermal performance.

What propeller sizes are compatible with this 920KV motor?

This motor is designed for larger propellers typical of heavy-lift and high-performance platforms. It is well-suited for 3-blade props in the 7x4.5 to 8x4.5 inch range on 6S power, and slightly smaller diameters on 8S. Always use a thrust stand or manufacturer data to verify specific prop and current draw combinations for your build.

Does the motor come with wires pre-soldered?

Yes, each MAD Components XC3000 T2 motor includes pre-soldered, high-temperature 18AWG silicone wires with a length of 380mm. This plug-and-fly ready configuration simplifies installation and ensures a reliable electrical connection to your Electronic Speed Controllers (ESCs).

What is the significance of the 12N14P configuration?

The 12N14P (12 stator arms, 14 rotor poles) configuration contributes to the motor's smooth operation and high torque density. This design minimizes cogging torque, reduces vibration, and provides consistent power delivery across the throttle range, which is beneficial for flight stability and reducing video noise in FPV systems.
