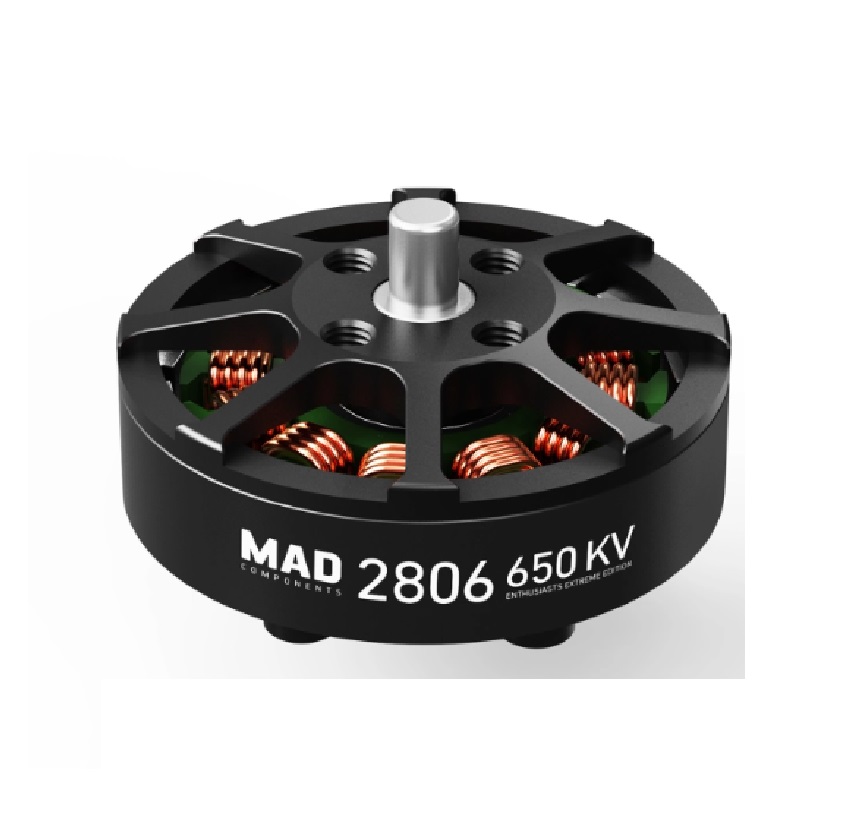

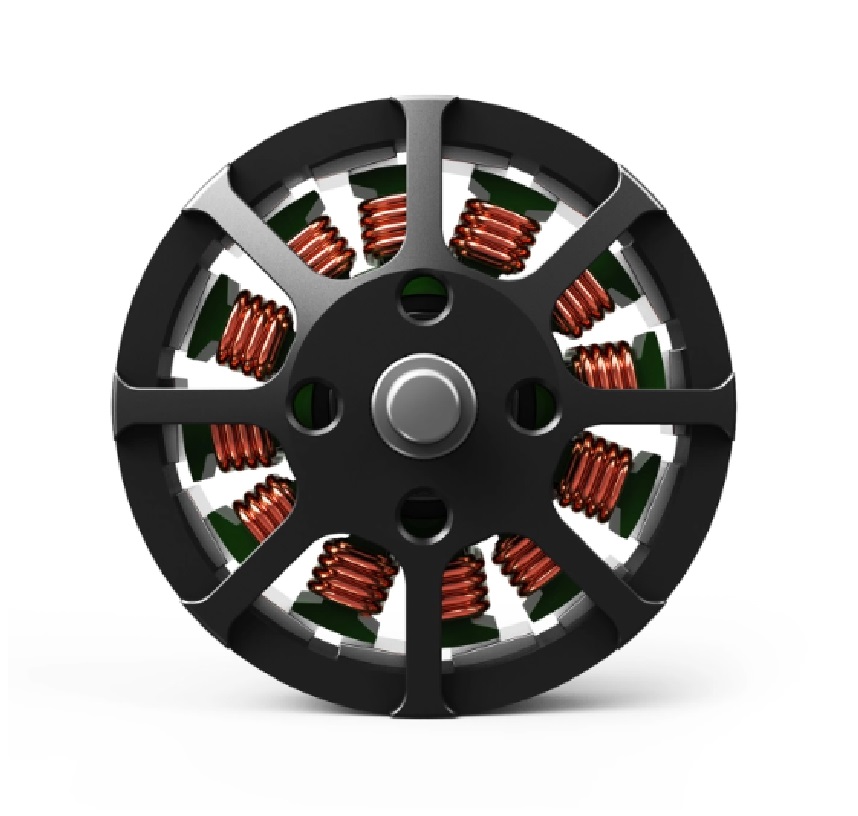

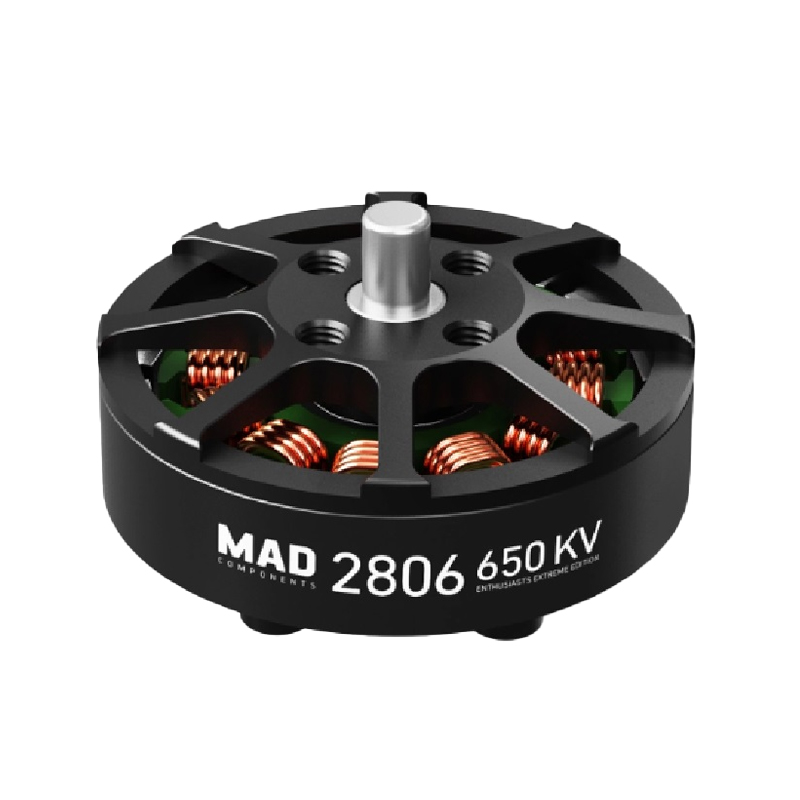

MAD Components Components MAD Components Components 2806 Brushless Motor 650KV (1PC)
The MAD Components Components MAD Components Components 2806 is a 650KV brushless motor engineered for stable, efficient propulsion in training and industrial-grade multirotor platforms, optimized for 4S LiPo battery systems.
Features
- 650KV rating for efficient, high-torque operation on 4S LiPo systems.
- 200W max power output with a peak current handling of 13.4A.
- Lightweight 44g design using durable materials for reliable flight endurance.
- Low internal resistance of 218mΩ for improved electrical efficiency and thermal management.
- 2806 stator size (28mm diameter, 6mm height) provides a balanced torque-to-weight ratio.
Out of stock
The MAD Components Components 2806 brushless motor delivers precise and reliable thrust for drone applications requiring stable, controlled flight characteristics. Its 650KV winding is specifically tuned for 4S voltage, offering an optimal balance of rotational speed and torque for training quadcopters and larger multirotor frames.
Constructed with a focus on durability and thermal performance, the motor’s low internal resistance minimizes power loss and heat generation during extended operation. The 28mm stator diameter and 6mm stack height contribute to a robust magnetic circuit capable of delivering 0.2Nm of torque, supporting consistent performance under load.
Additional Information
| Weight | 0.458 kg |
|---|---|
| Dimensions | 12 × 12 × 9 cm |
