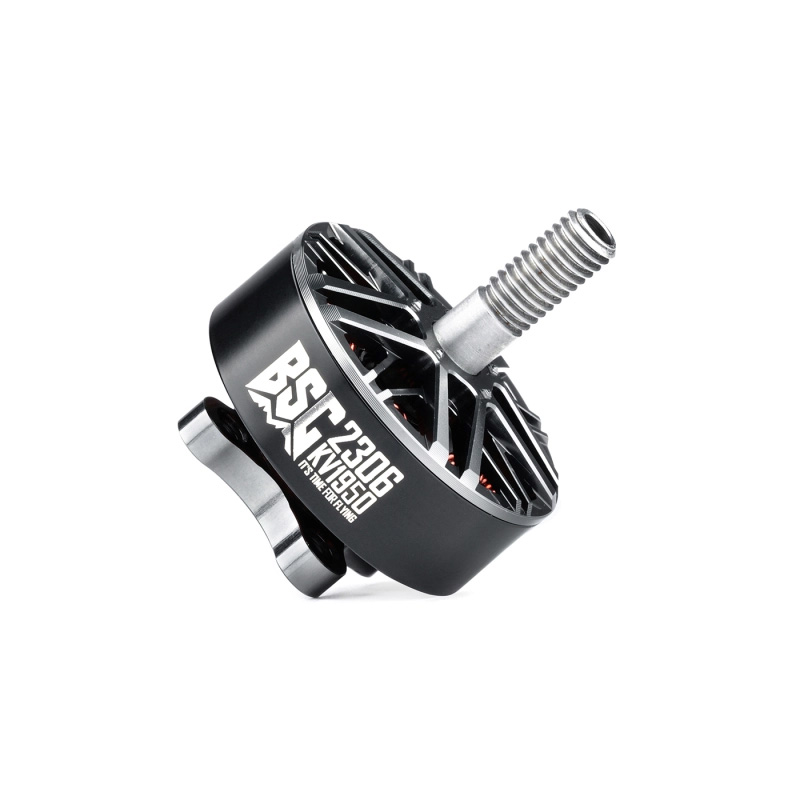

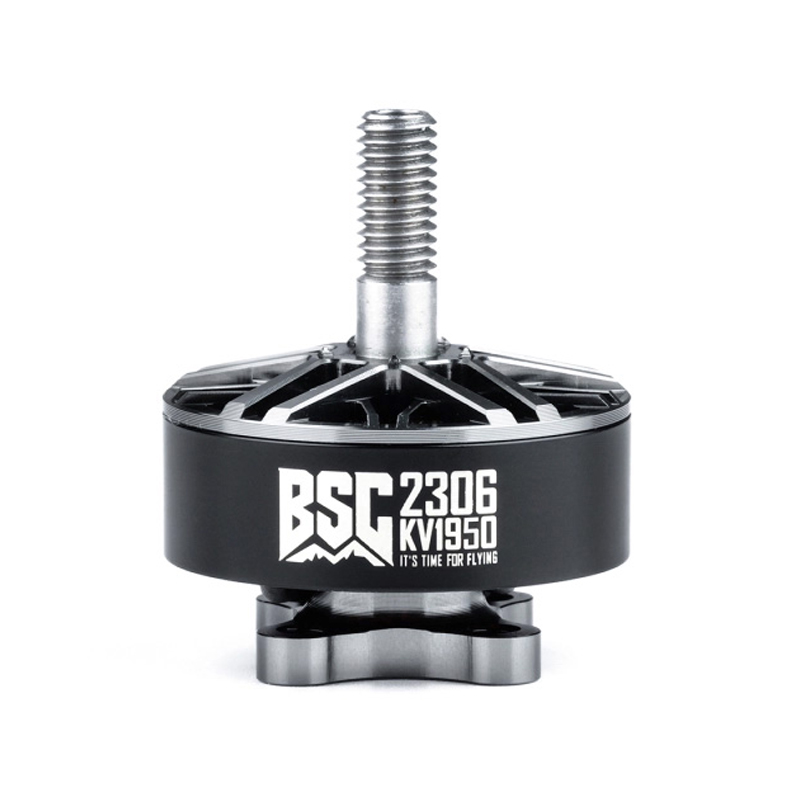

MAD Components Components BSC 2306 V1.0 1950KV 6S Brushless Motor

Name: MAD Components Components BSC 2306 V1.0 1950KV 6S Brushless Motor
Brand: MAD Components
SKU: DRFC-2662
Price: 1899.00 INR
Availability: OutOfStock

₹1,899.00 (Inclusive of all taxes)

Out of Stock

The MAD Components Components BSC 2306 V1.0 is a 1950KV brushless motor engineered for high-performance 6S FPV racing and freestyle drones, featuring a 12N14P stator configuration and M5 propeller mounting for robust power delivery.

Features

1950KV rating optimized for high-RPM performance on 4S to 6S LiPo batteries.
12N14P stator configuration for smooth torque delivery and efficient power conversion.
M5 threaded shaft for secure propeller mounting on 5-inch and 6-inch FPV frames.
High thrust-to-weight ratio, delivering up to 1640 grams of maximum thrust.
Precision rotor balancing (≤5 mg) for reduced vibration and smooth flight characteristics.

Out of stock

Get Notified When Available

Description

The MAD Components BSC 2306 V1.0 motor is designed for pilots demanding high power density and efficiency in competitive FPV environments. Its 2306 stator size (27mm diameter x 32.3mm height) provides an optimal balance between torque and rotational speed, enabling aggressive throttle response and sustained performance throughout the flight envelope.

Constructed with high-grade materials, the motor features a robust bell housing and precision-machined components to withstand the physical demands of racing crashes and freestyle maneuvers. The internal windings and magnetic circuit are optimized for minimal electrical losses, translating battery energy directly into propulsive force.

Key Features

High-Performance 2306 Stator: Delivers exceptional power density for 5-inch and 6-inch propeller setups.
12N14P Magnetic Design: Enhances torque smoothness and improves mid-throttle efficiency.
6S LiPo Optimized: Engineered to handle high voltage input for maximum power output.
Precision Dynamic Balancing: Factory-balanced rotor minimizes vibration for cleaner video feed and reduced frame stress.
Durable Construction: High-temp magnets and reinforced shaft ensure longevity under extreme operational loads.
Efficient Thermal Management: Design promotes effective heat dissipation during sustained high-current operation.

Applications

5-inch and 6-inch FPV racing drones requiring high top-end speed and punch-outs.
Freestyle quadcopters where a balance of power, efficiency, and throttle control is critical.
High-performance 6S builds targeting long-range cruising with aggressive maneuvering capability.
Heavy-lift cinematic platforms needing reliable, high-torque motors for stabilized flight.

Technical Specifications

Motor Model	MAD Components BSC 2306 V1.0
KV Rating	1950 KV
Motor Type	Brushless Outrunner
Stator Size	2306 (27mm x 32.3mm)
Pole Configuration	12N14P
Max Thrust	1640 g
Max Power	872.5 W
Max Efficiency Current	39.1 A
No-Load Current	1.4 A
Shaft Thread	M5
Rotor Balance	≤ 5 mg

Frequently Asked Questions

What is the recommended battery voltage (S count) for the MAD Components BSC 2306 1950KV motor?

The MAD Components BSC 2306 1950KV motor is optimized for 4S to 6S LiPo battery packs. Its design handles the high RPM and current draw associated with 6S voltage, providing maximum power output for aggressive flying. Always pair with a suitably rated ESC (e.g., 45A+ per motor).

What size propellers are compatible with this motor's M5 shaft?

The motor features an M5 threaded shaft, which is the standard for most 5-inch and 6-inch bi-blade and tri-blade FPV propellers. Ensure your propellers have a corresponding M5 hub hole. Use a matching M5 lock nut and a washer for secure installation.

Is this motor suitable for long-range or cinematic FPV builds?

Yes, its 12N14P configuration and efficient design provide smooth torque and good mid-throttle efficiency, which is beneficial for long-range cruising. However, its 1950KV rating is on the higher side; for maximum efficiency on long-range builds, consider pairing it with lower-pitch propellers.

What is the motor's mounting hole pattern?

The BSC 2306 uses the standard 16x19mm mounting hole pattern common to 2306-class motors. This pattern is compatible with most 5-inch and 6-inch FPV drone frames designed for this motor size. Use M3 screws for installation.
