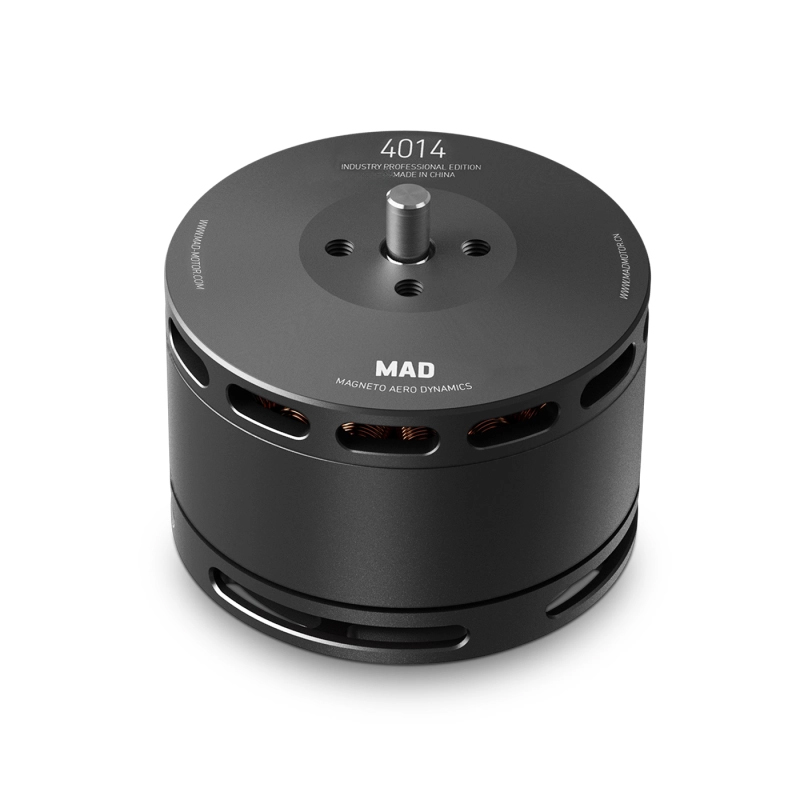

MAD Components Components 4014 IPE Brushless Motor 450KV (Pack Of 2)

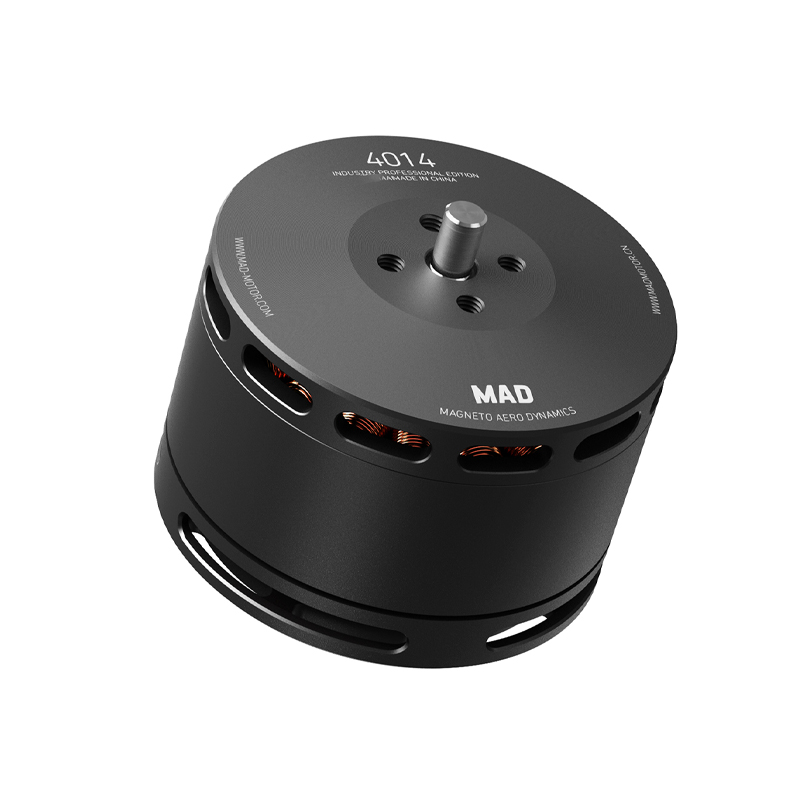

MAD Components Components 4014 IPE Brushless Motor 450KV (Pack Of 2) - Image 2

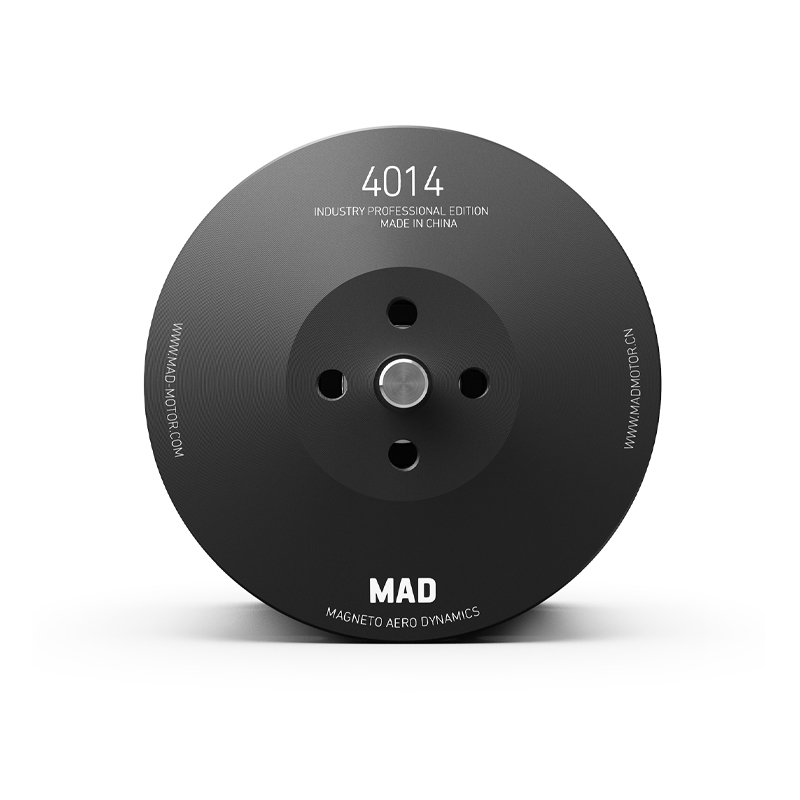

MAD Components Components 4014 IPE Brushless Motor 450KV (Pack Of 2) - Image 3
MAD Components Components 4014 IPE Brushless Motor 450KV (Pack Of 2) - Image 4
SKU: DRFC-2949
📋 GST Invoice Available

MAD Components Components 4014 IPE Brushless Motor 450KV (Pack Of 2)

₹15,559.00 (Inclusive of all taxes)
Out of Stock

The MAD Components Components 4014 IPE is a 450KV brushless motor engineered for heavy-lift UAV applications, featuring IP35-rated construction, anticorrosive varnished windings, and centrifugal heat dissipation for reliable 6S LiPo operation.

Features

  • 450KV brushless motor optimized for 6S LiPo voltage systems, delivering up to 761W maximum power.
  • IP35-rated housing with anticorrosive varnished stator wire for protection against dust and light moisture ingress.
  • Centrifugal heat dissipation design and precision-balanced rotor (≤5 mg) for smooth, cool-running operation.
  • High-thrust output capable of up to 3.6 kg per motor, suitable for demanding payload applications.
  • Includes comprehensive mounting hardware, prop adapters, and connectors for straightforward integration.

Out of stock

Description

The MAD Components Components 4014 IPE brushless motor is built around a high-quality Taiwan-manufactured stator, providing a robust foundation for sustained high-power operation. Its 450KV rating is specifically tuned for 6S LiPo batteries, balancing torque and RPM for efficient heavy-lift and industrial drone platforms.

Engineered for durability, the motor features an IP35 protection rating and anticorrosive varnished windings to withstand environmental challenges. The integrated centrifugal heat dissipation system, combined with high-precision 685ZZ and 695ZZ bearings, ensures stable thermal performance and extended service life under continuous load.

Key Features

  • High-Efficiency Stator Design: Taiwan-made stator with 12N14P configuration for smooth torque and efficient power conversion.
  • Environmental Protection: IP35-rated enclosure protects internal components from dust and light water spray.
  • Advanced Thermal Management: Centrifugal airflow design actively dissipates heat during operation, preventing thermal throttling.
  • Precision Dynamic Balancing: Rotor balanced to ≤5 mg and motor assembly to ≤10 mg for minimal vibration and smooth flight characteristics.
  • Heavy-Duty Mechanical Construction: Features a 5mm shaft, 25mm M3 motor mounting pattern (D: 25 M3×4), and a 12mm M3 prop mounting pattern (D: 12 M3×4) for secure attachment.
  • Optimized Weight: Weighs approximately 168g per motor, offering a high thrust-to-weight ratio for payload efficiency.

Applications

  • Heavy-Lift Cinematography Drones: Ideal for gimbal-stabilized camera platforms carrying professional cinema cameras like the Sony Venice 2 or DJI Ronin 4D.
  • Industrial Logistics & Delivery VTOLs: Suitable for medium-cargo UAVs requiring reliable, shock-resistant propulsion for urban or suburban delivery routes.
  • Survey & Mapping Hexacopters/Octocopters: Provides the stable, efficient thrust needed for long-endurance flights with LiDAR, multispectral, or high-resolution mapping payloads.

Technical Specifications

Model Number4014
Motor KV450 KV
Compatible Battery6S LiPo
Shaft Diameter5 mm
Max Power761W
Maximum Thrust3600 g
Number of Poles12N14P
Bearings685ZZ ×1, 695ZZ ×1
Prop Mount HolesD: 12 M3×4
Motor Mount HolesD: 25 M3×4
Weight (per motor)~168 g

Frequently Asked Questions

What is the maximum recommended battery voltage for the MAD Components Components 4014 450KV motor?

The MAD Components Components 4014 motor is rated for 6S LiPo battery operation, with a maximum voltage of approximately 25.2V. Exceeding this voltage may damage the motor windings and insulation. Always use a compatible ESC rated for 6S operation to ensure safe and efficient performance.

What mounting pattern and propeller size does this motor support?

This motor uses a 25mm M3 mounting hole pattern (D: 25 M3×4) for attachment to the frame. For propellers, it features a 12mm M3 hole circle (D: 12 M3×4) and includes prop adapters and plates to accommodate a wide range of large-diameter propellers typically used in heavy-lift applications, often in the 15-inch to 18-inch range.

Is the MAD Components Components 4014 motor suitable for waterproof or wet environment operation?

The motor features an IP35 rating, which offers protection against dust ingress and light water spray from any direction. It is not fully waterproof or submersible. For operations in damp conditions or very light rain, it provides adequate protection, but should not be subjected to heavy rain, direct water jets, or immersion.

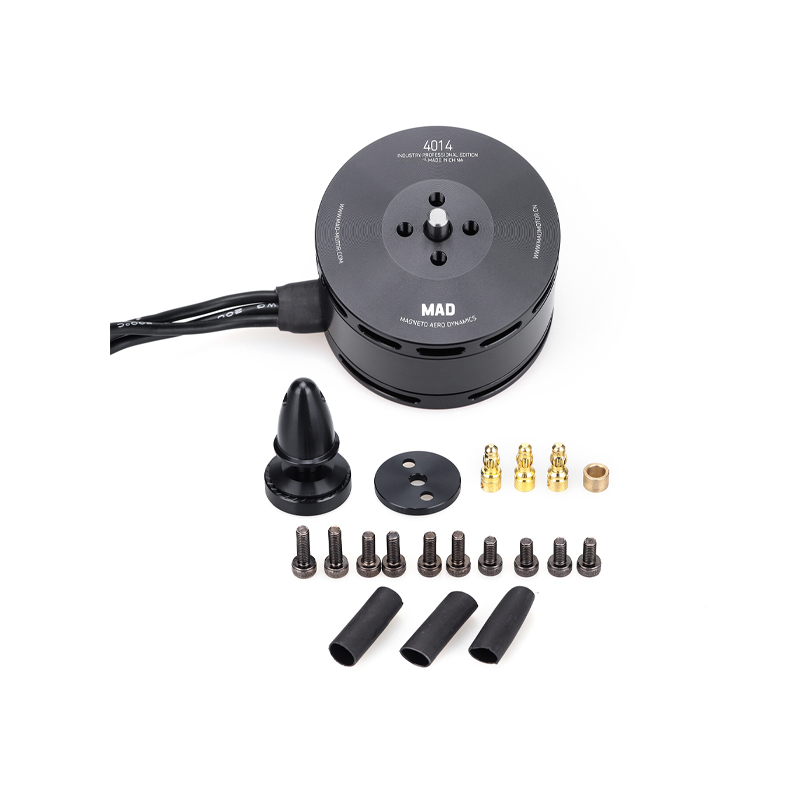

Package Includes

  • 2 × MAD Components Components 4014 IPE 450KV Brushless Motor
  • 2 × Propeller Plates
  • 2 × Prop Adapters
  • 2 × M6 Bullet Adapter Plates
  • 6 × 3.5mm Bullet Connectors
  • 2 × Ø4–6 Adapter Rings
  • 6 × Heat Shrink Tubes
  • 8 × M3×6 Motor Mounting Screws
  • 8 × M3×8 Prop Adapter Screws
  • 4 × M3×10 Propeller Screws
  • 2 × Branding Stickers

Additional Information

Weight 0.4 kg
Dimensions 11 × 11 × 7 cm
