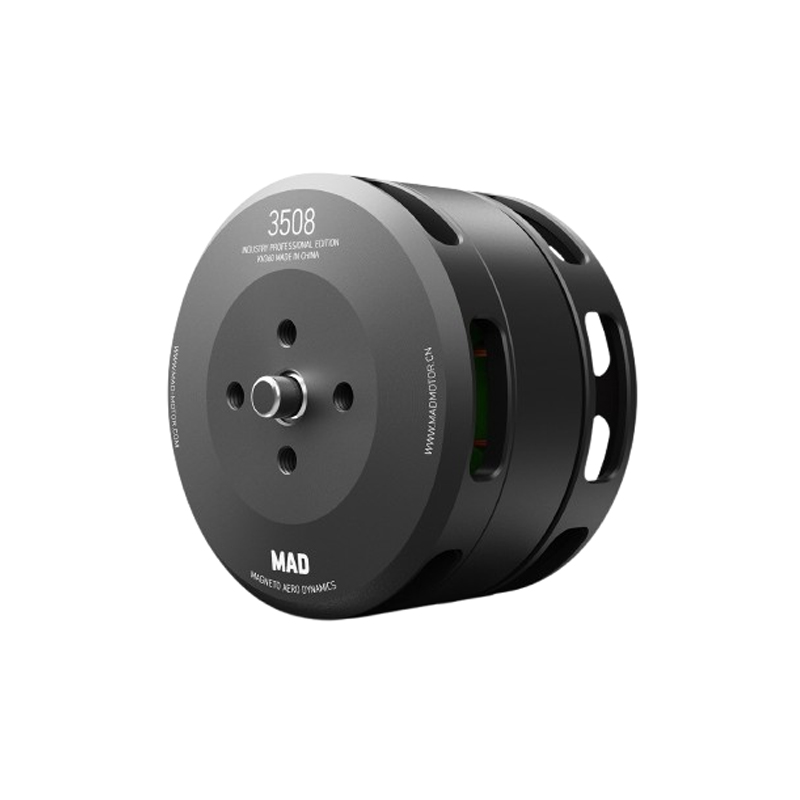

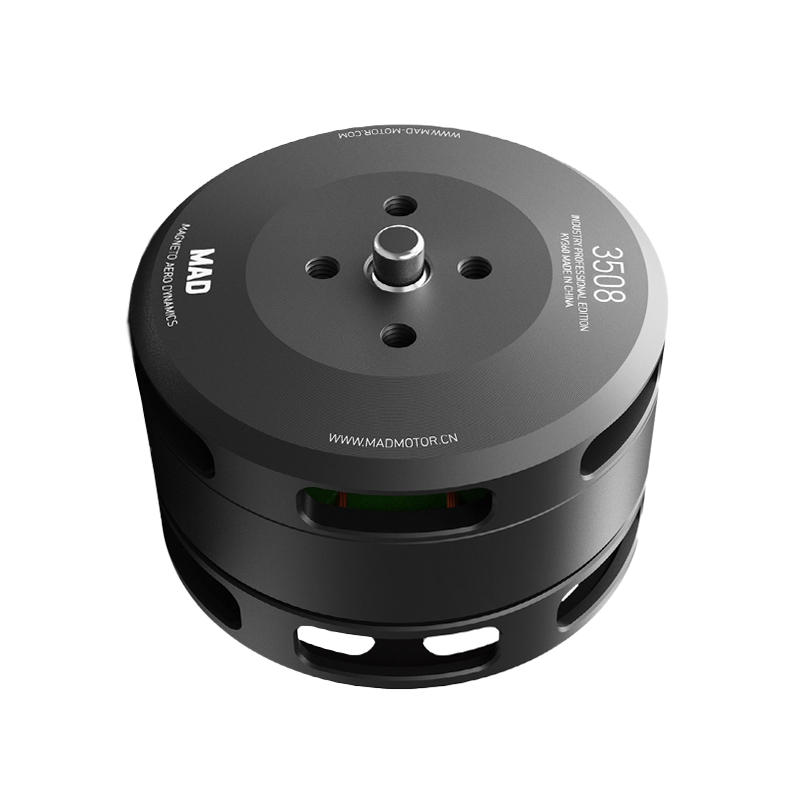

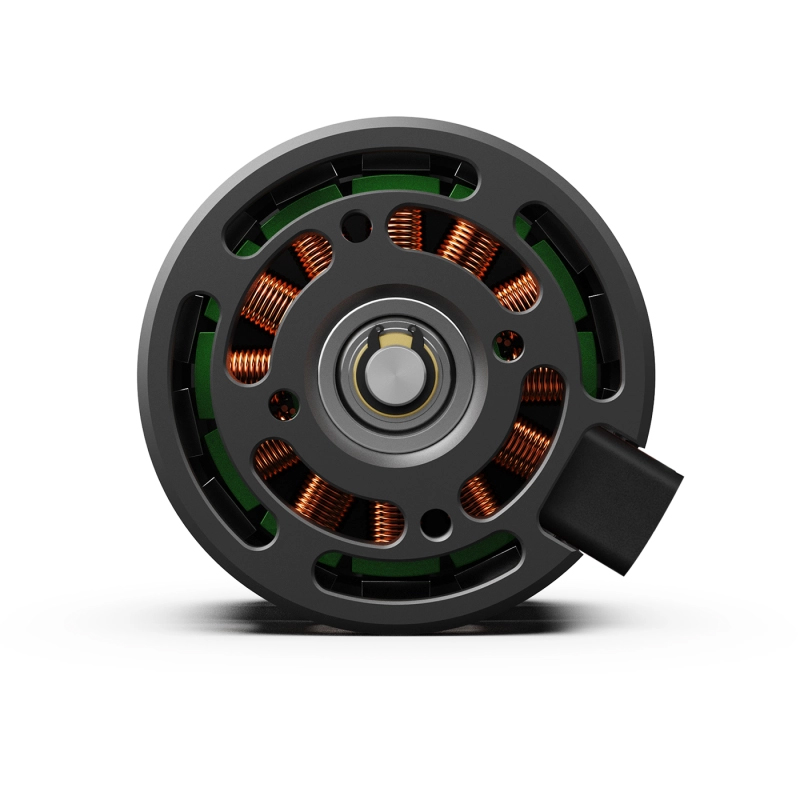

MAD Components Components 3508 IPE Brushless Drone Motor 360KV (Pack Of 2)
The MAD Components Components 3508 IPE is a 360KV brushless motor engineered for heavy-lift and professional UAV platforms. Operating on 4S–6S LiPo power, it delivers 1.6kg of thrust per axis with a peak power of 245W, making it ideal for stable, high-torque applications in demanding environments.
Features
- 360KV IPE brushless motor optimized for 4S–6S LiPo battery systems.
- Delivers up to 1.6kg of thrust per axis with a maximum power output of 245W.
- Ultra-lightweight construction at 99g per motor for improved flight efficiency.
- Features a 5mm shaft diameter and is compatible with 13–16″ propellers.
- IP35-rated protection and anti-corrosive varnished windings for industrial durability.
Out of stock
The MAD Components Components 3508 IPE brushless motor is designed for professional-grade UAVs requiring high torque and smooth operation. Its 360KV rating and support for 4S–6S LiPo batteries provide a versatile power band suitable for heavy-lift quadcopters, hexacopters, and octocopters. The motor’s precision-balanced rotor and stator assembly minimize vibration, which is critical for cinematic and inspection platforms.
Constructed with an IP35 ingress protection rating and corrosion-resistant components, the 3508 motor is built to withstand harsh operational environments. The lightweight 99g design reduces overall system weight without sacrificing the 1.6kg thrust capability, enabling longer flight times and increased payload capacity for agricultural, mapping, and payload delivery drones.
Additional Information
| Weight | 0.356 kg |
|---|---|
| Dimensions | 11 × 11 × 6 cm |
