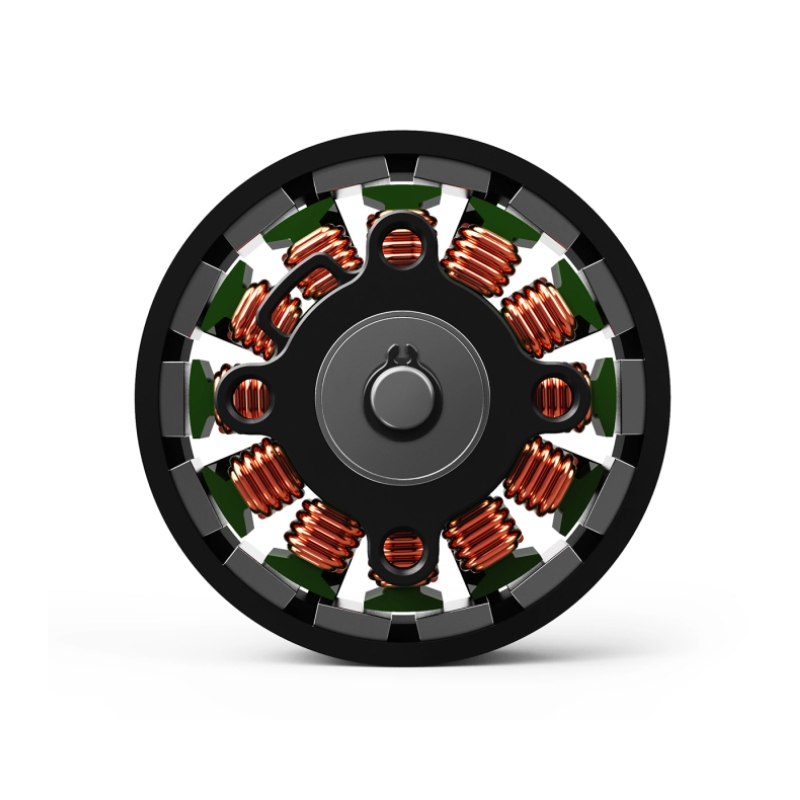

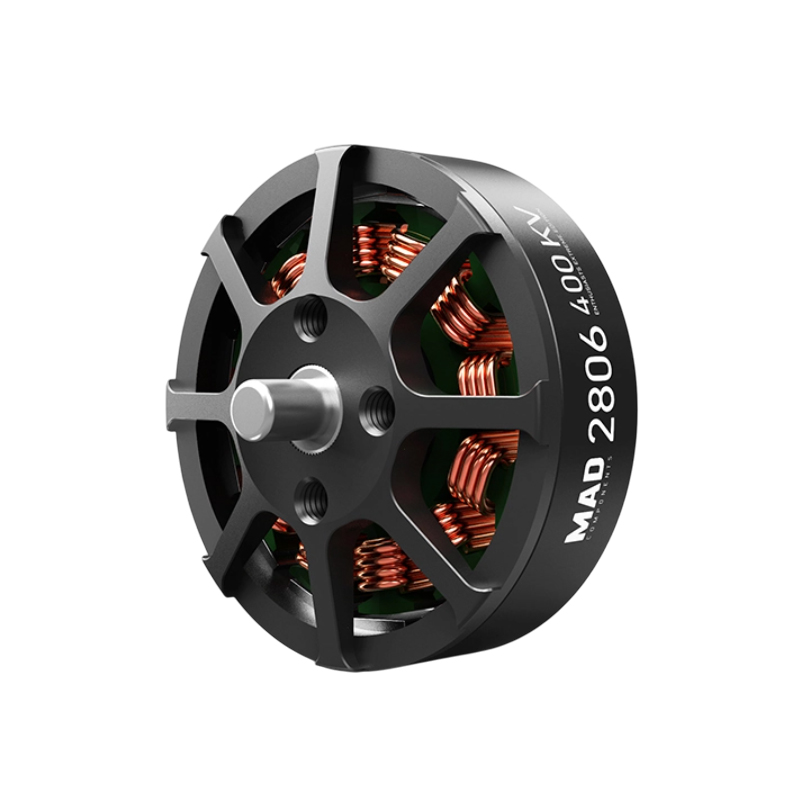

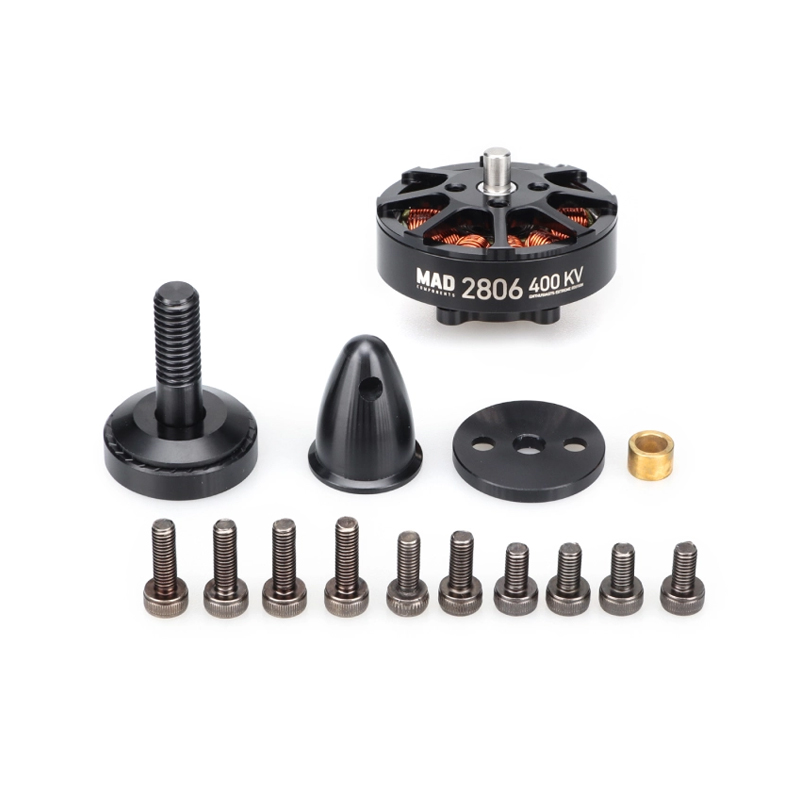

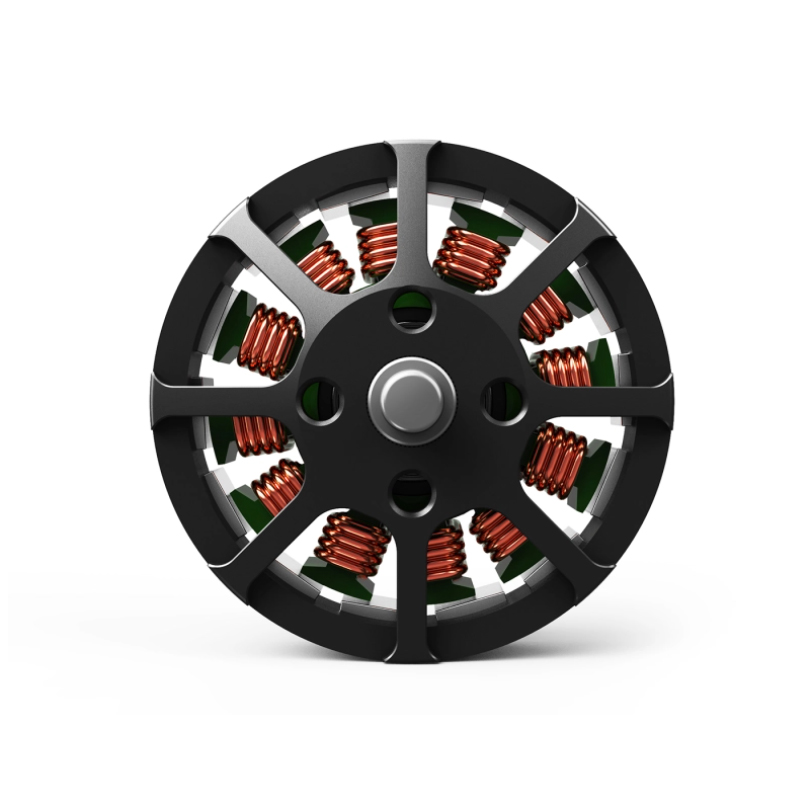

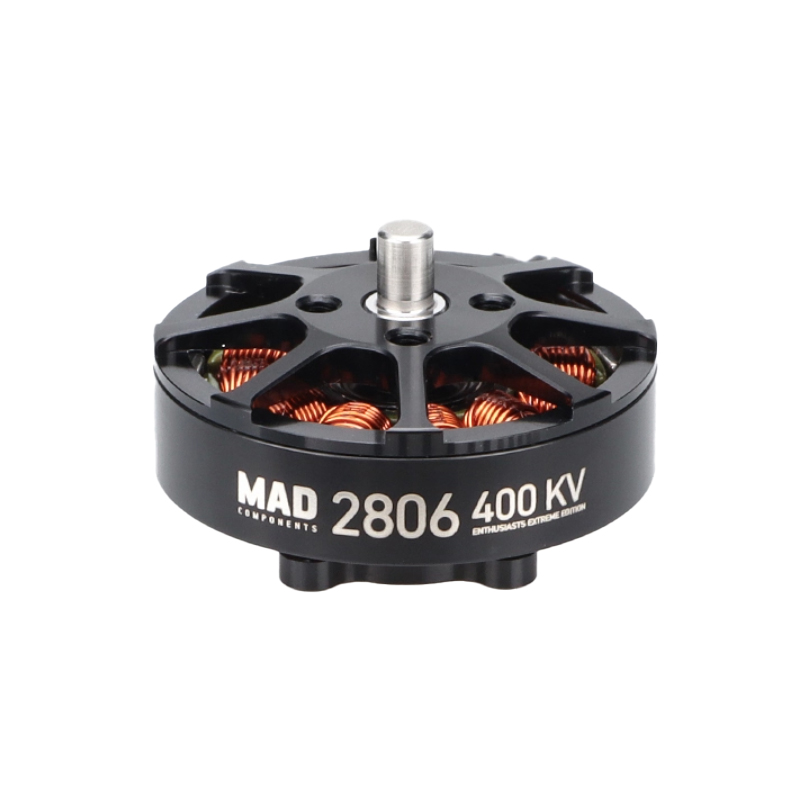

MAD Components 2806 EEE Drone Motor 400KV (Pack Of 4)
The MAD Components 2806 EEE is a 400KV brushless outrunner motor engineered for efficient, high-thrust performance in lightweight UAVs, supporting 2S to 6S LiPo batteries and compatible with 12×4.0 to 13×4.4 propellers.
Features
- 400KV rating optimized for smooth throttle response and high torque on 2S-6S LiPo systems.
- Delivers up to 1.1 kgf maximum thrust with a high efficiency rating exceeding 74%.
- Lightweight 44g construction with a 4mm shaft and 35mm diameter for compact builds.
- Features precision EZO 694ZZ bearings and a rainproof, durable housing.
- Low no-load current of 0.22A @ 20V for extended flight durations and reduced power loss.
Out of stock
The MAD Components 2806 EEE 400KV brushless motor is designed for builders seeking a balance of power, efficiency, and durability for medium-sized multirotor applications. Its outrunner architecture and optimized magnetic circuit provide high torque and smooth operation across a wide voltage range from 2S to 6S LiPo, making it versatile for both training drones and endurance-focused mapping platforms.
Constructed with high-temperature resistant materials rated for operations up to 45°C and featuring a 500V insulation-tested stator, the motor ensures reliability under demanding conditions. The integration of premium EZO bearings minimizes rotational friction, contributing to the motor’s overall efficiency and longevity, even in damp environments.
Additional Information
| Weight | 0.45 kg |
|---|---|
| Dimensions | 11.5 × 11.5 × 9 cm |
