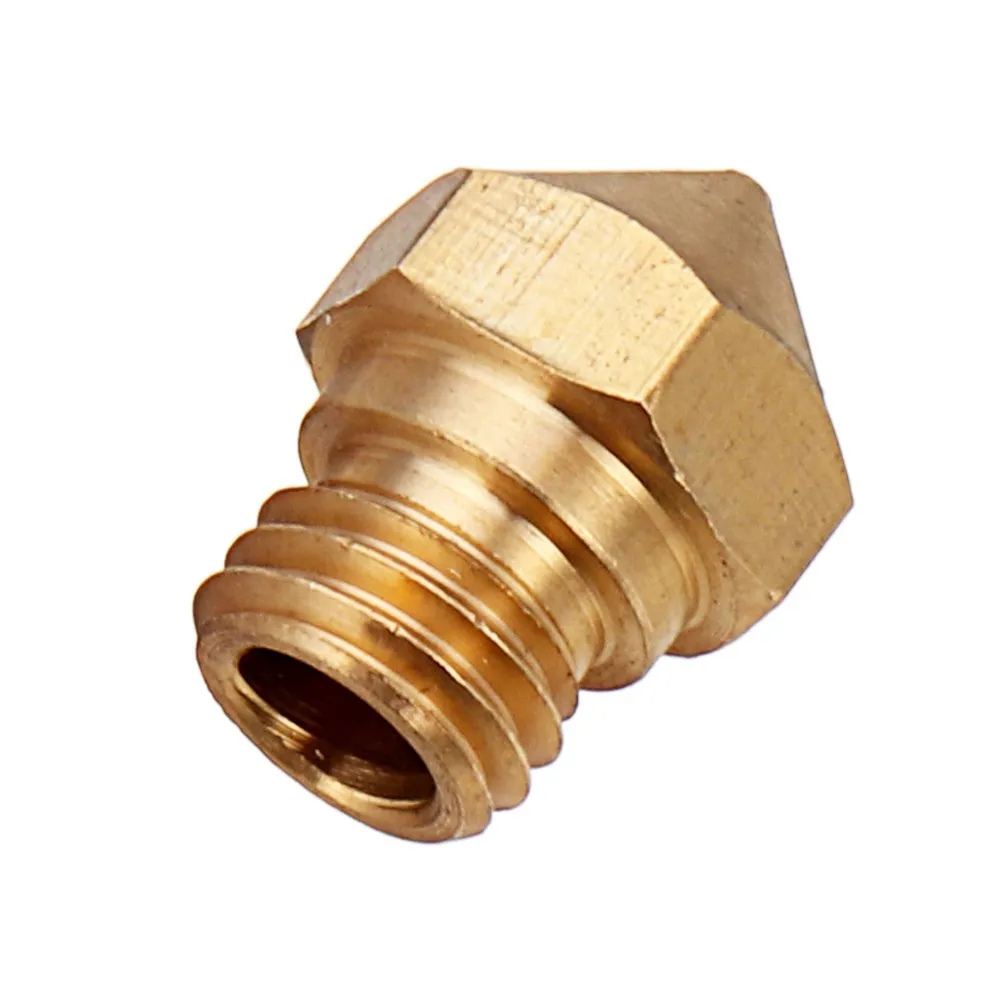

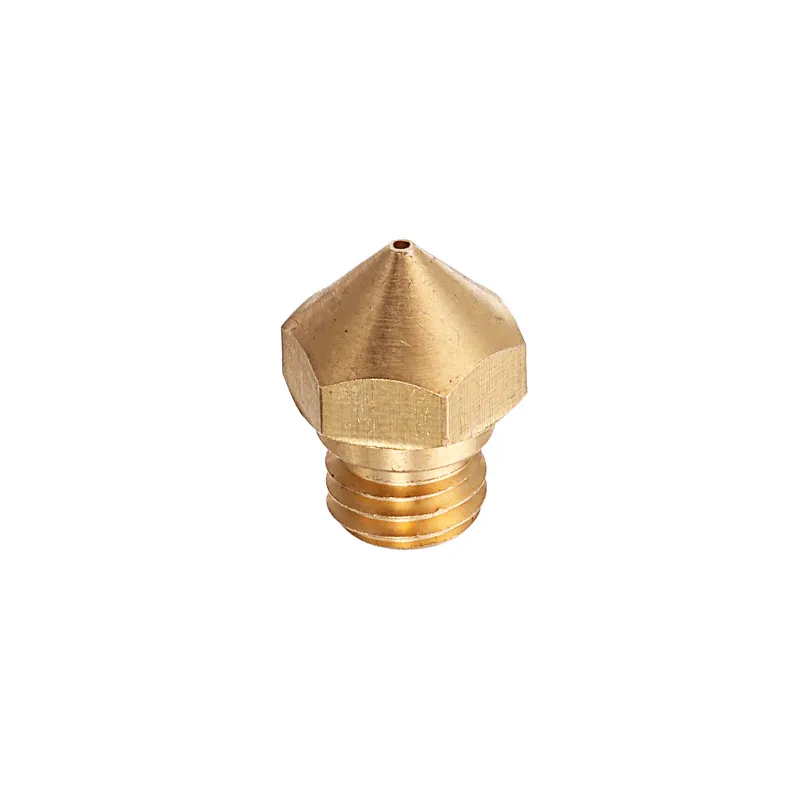

M7 Brass MK10 Nozzle - 1.75mm Filament, 0.5mm Orifice

This M7 brass nozzle is primarily designed for MK10 hotends and 3D printers using UM-style systems. It supports 1.75mm filament diameter. Ensure your printer's hotend accepts M7 threaded nozzles for proper fit and function, enhancing your printing setup.

A 0.5mm nozzle allows for faster print times by enabling thicker extrusion lines per pass, significantly reducing overall print duration. It also mitigates clogging, especially with certain filament types, facilitating smoother, more reliable high-flow 3D printing, ideal for larger models.

This brass MK10 nozzle is suitable for a wide range of standard 3D printing filaments, including PLA, ABS, PETG, Nylon, and TPU. For highly abrasive filaments such as carbon fiber or glow-in-the-dark, consider a hardened steel nozzle to prevent premature wear and ensure longevity.

To install, heat your hotend to printing temperature (e.g., 200°C), then carefully unscrew the old nozzle using a wrench. Screw the new M7 brass MK10 nozzle into place, ensuring it is tightened securely without applying excessive force to prevent damage to the hotend or leaks during operation.

Regularly inspect the nozzle for signs of wear or partial blockages. Use a brass brush or a thin cleaning needle to remove any accumulated filament residue from the tip. If heavily clogged, perform a 'cold pull' method or heat the hotend and manually push cleaning filament through for best results.
