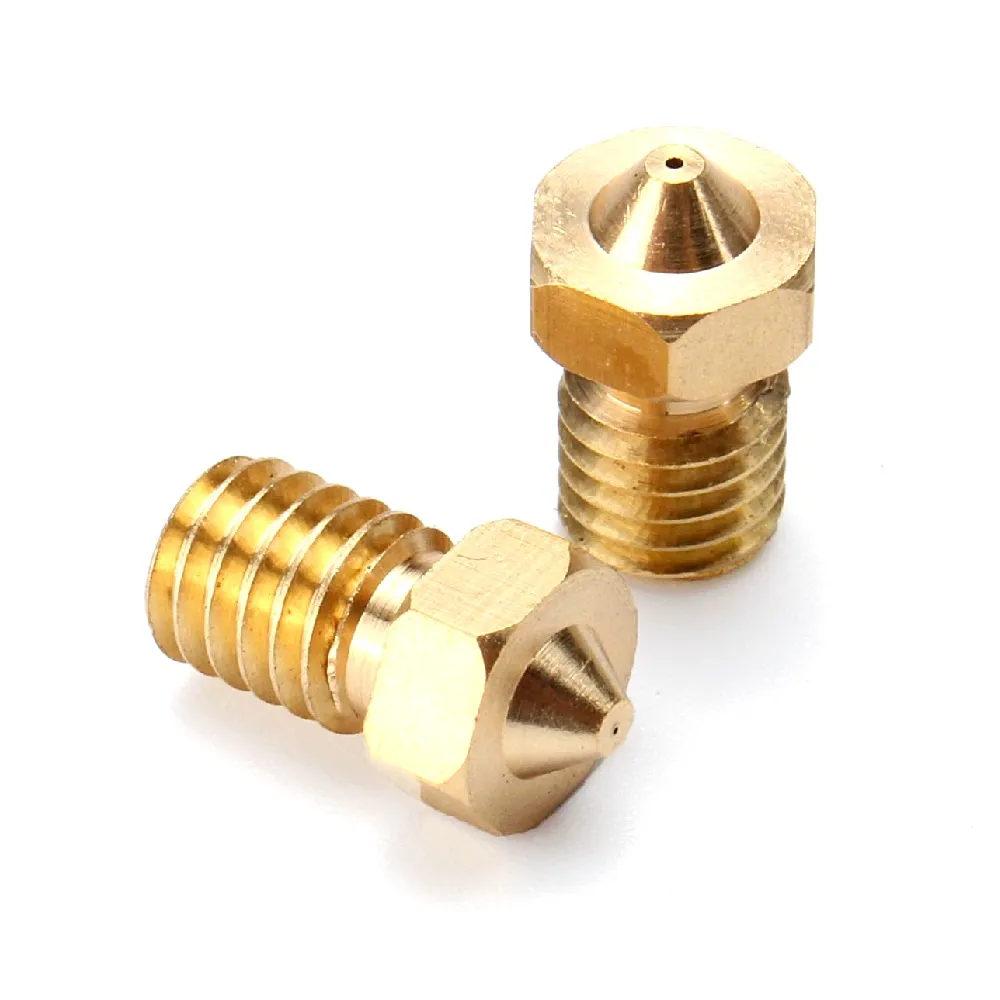

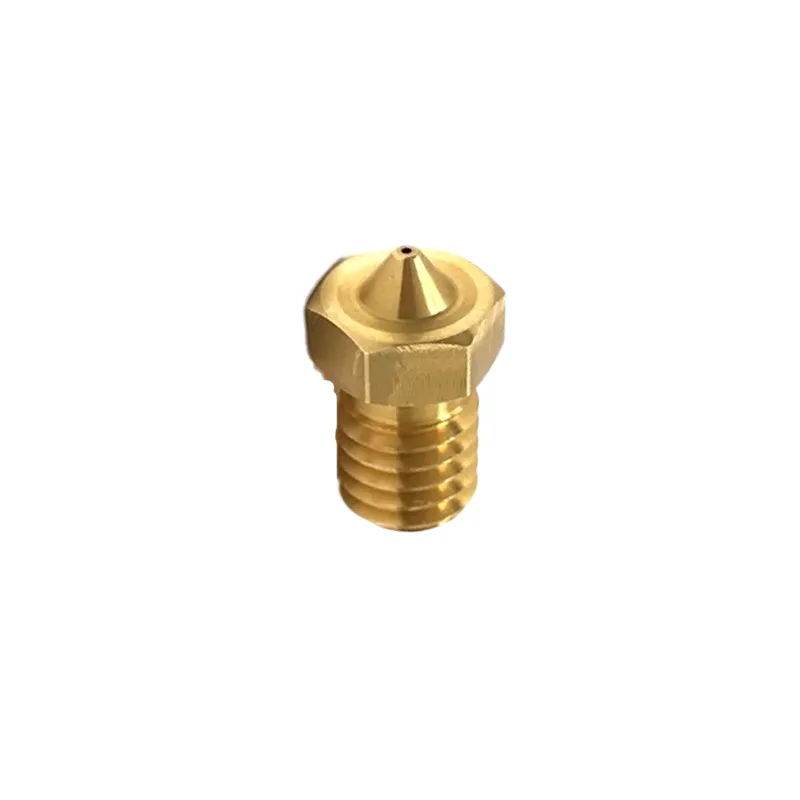

M6 Thread Brass Nozzle V6 0.6mm (UM Compatible) 3mm Filament

Name: M6 Thread Brass Nozzle V6 0.6mm (UM Compatible) 3mm Filament
Brand: Generic
SKU: 3DDF-1595
Price: 30.00 INR
Availability: OutOfStock

₹30.00 (Inclusive of all taxes)

Out of Stock

Upgrade your 3D printer with this M6 thread brass nozzle, compatible with V5, V6, and UM ecosystems, including Prusa i3 models. Achieve precise details or efficient large prints with its optimized 0.6mm diameter for 3mm filament.

Features

Optimized internal geometry reduces back-pressure for smooth 3mm filament flow.
M6 thread compatibility with V5, V6, Lite6, Titan Aero, and Prusa 3D printers.
Precision-machined flat tip for consistent layer flattening and improved print quality.
Durable brass construction ensures reliable performance for various standard filaments.
Identifiable markings on hex head for easy size recognition and management.

Out of stock

Get Notified When Available

Description

This M6 thread brass nozzle is engineered to enhance the performance of a wide range of 3D printers, including those utilizing the V5, V6, Lite6, and Titan Aero ecosystems, as well as popular Prusa i3 and i3 MK2 models. Designed specifically for 3mm diameter filament, its optimized internal geometry is crafted to minimize back-pressure on the filament, promoting a consistent and smooth material flow throughout the printing process. This design also significantly improves retraction effectiveness, leading to cleaner prints with reduced stringing and blobs.

Crafted from high-quality brass, this 0.6mm nozzle offers a balance of durability and thermal conductivity, making it suitable for printing with common filaments like PLA, ABS, PETG, and more. Each nozzle features a custom-machined flat surface tip that effectively flattens down layers, contributing to superior print adhesion and surface finish. The series also incorporates convenient identification markings on the hex head, simplifying nozzle recognition and management for busy workshops and makers.

Key Features

Optimized Internal Geometry: Engineered to minimize back-pressure and ensure smooth 3mm filament extrusion.
Enhanced Retraction: Improves retraction performance for cleaner prints and reduced material waste.
Universal M6 Thread: Compatible with V5, V6, Lite6, Titan Aero, and Prusa i3/MK2 3D printers.
Precision 0.6mm Aperture: Ideal for balancing detail and speed in 3D printing tasks with 3mm filament.
Durable Brass Construction: Offers excellent thermal conductivity and wear resistance for standard filaments.
Custom-Machined Flat Tip: Ensures consistent layer flattening and improved surface quality.
Clear Identification Markings: Hex head features distinct markings for easy size and type recognition.

Applications

Standard FDM 3D printing with 3mm diameter filaments.
Replacement or upgrade nozzle for V5/V6 hotends and compatible systems.
Printing parts requiring a 0.6mm layer width for balanced detail and speed.
Enhancing flow characteristics on Prusa i3 and i3 MK2 3D printers.

Technical Specifications

Item Type	Nozzle
Compatibility	V5, V6, UM, Lite6, Titan Aero, Prusa i3/MK2
Material	Brass
Thread	M6
Filament Diameter	3mm
Nozzle Diameter	0.6mm
Product Width	7mm
Product Weight	3g

Frequently Asked Questions

What printers are compatible with this M6 brass nozzle?

This M6 thread brass nozzle is compatible with 3D printers using the V5, V6, Lite6, Titan Aero, and UM ecosystems. This includes popular models like the Prusa i3 and i3 MK2, ensuring broad applicability for many setups in the maker community.

What filament diameter does this nozzle support?

This specific nozzle is designed to work with 3mm diameter filament. It has an output aperture of 0.6mm, allowing for a good balance between print speed and layer detail when using thicker filaments, which is crucial for specific projects.

How does the internal geometry improve printing performance?

The optimized internal geometry of this V6 nozzle reduces back-pressure on the filament. This leads to a smoother, more consistent flow, which minimizes clogs and improves retraction effectiveness, resulting in cleaner and more accurate 3D prints with higher success rates.

Can this nozzle be used with abrasive filaments?

This nozzle is made of brass, which is suitable for standard, non-abrasive filaments like PLA, ABS, PETG. For abrasive materials (e.g., carbon fiber, glow-in-the-dark), a hardened steel or wear-resistant nozzle is strongly recommended for longevity and consistent performance.

How do I identify the nozzle size after installation?

This nozzle series features convenient identification markings located on the flats of the hex head. These markings allow for quick and easy visual identification of the nozzle's diameter without needing to remove it or use calipers, streamlining your workflow significantly.
