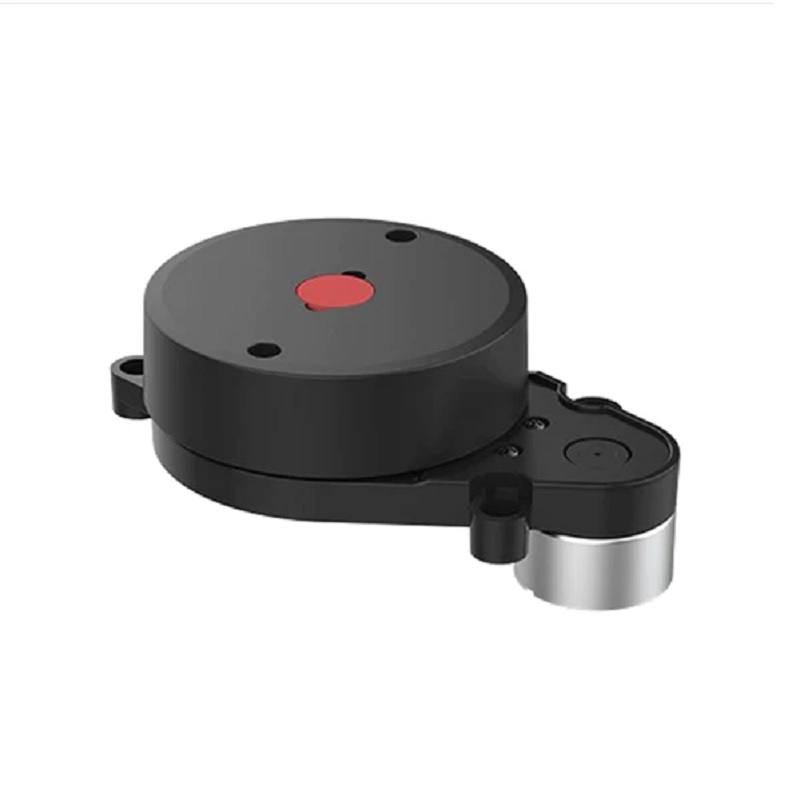

LDRobot D100 Triangulation LiDAR - 360° Scanning, 0.15-8m Range, 6Hz
The LDRobot D100 is a compact, 360° scanning triangulation LiDAR module designed for robotics and mapping applications. It provides precise distance measurements from 0.15 to 8 meters via UART serial communication, compatible with platforms like Raspberry Pi, Arduino, and ESP32.
Features
- 360° scanning LiDAR with 0.15-8m measurement range.
- Triangulation technology with high-performance light-sensitive CCD.
- 6Hz scanning frequency with 2300Hz ranging frequency.
- Compact, low-profile design (37mm height) for easy robot integration.
- UART (Tx/Rx) serial interface with 5V DC power input.
Out of stock
The LDRobot D100 employs laser triangulation technology to perform 360-degree environmental scanning and distance measurement. Its high-performance CCD sensor and optimized algorithm enable dense point cloud data collection for accurate 2D mapping and obstacle detection in robotic navigation systems.
Designed with a low-power, FDA Class I eye-safe infrared laser, the module ensures safe operation around humans and pets. The thin, compact mechanical profile minimizes space and power consumption, making it suitable for integration into a wide range of autonomous mobile robots, service robots, and SLAM applications.
Additional Information
| Weight | 0.158 kg |
|---|---|
| Dimensions | 9.63 × 5.98 × 3.88 cm |
