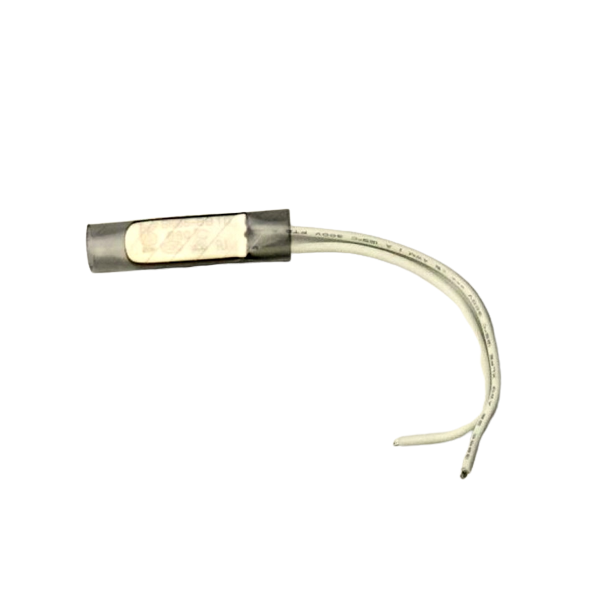

KSD9700/BK05-BB1D Metallic Shell Temperature Control Switch - 65°C NC, 5A 250V
The KSD9700/BK05-BB1D is a metallic-shell, snap-action thermal switch rated for 5A at 250V AC/DC, designed to open its normally closed (NC) contacts at a calibrated 65°C. This compact, durable protector integrates directly into circuits for over-temperature safety in appliances, power supplies, and industrial controls.
Features
- Metallic shell construction for robust thermal conduction and mechanical durability.
- Normally Closed (NC) contacts open at a precise 65°C (±5°C typical) set point.
- Rated for 5A continuous current at up to 250V AC/DC for broad circuit compatibility.
- Compact form factor with integrated 7cm lead wires for easy inline installation.
- Bimetallic snap-action mechanism ensures reliable, repeatable switching.
Out of stock
The KSD9700/BK05-BB1D is a bimetallic disc-type thermal switch housed in a metallic shell for optimal heat transfer and response. Its normally closed contacts remain conductive under normal operating temperatures but snap open when the sensing surface reaches 65°C, breaking the circuit to prevent overheating in motors, transformers, or heating elements.
This switch is designed for direct solder or screw-terminal integration into control panels, power supplies, and small appliances. The metallic housing ensures a fast thermal response and provides EMI shielding, while the snap-action mechanism offers a clear, audible click for positive contact operation, making it suitable for both safety cutoff and temperature alarm applications.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
