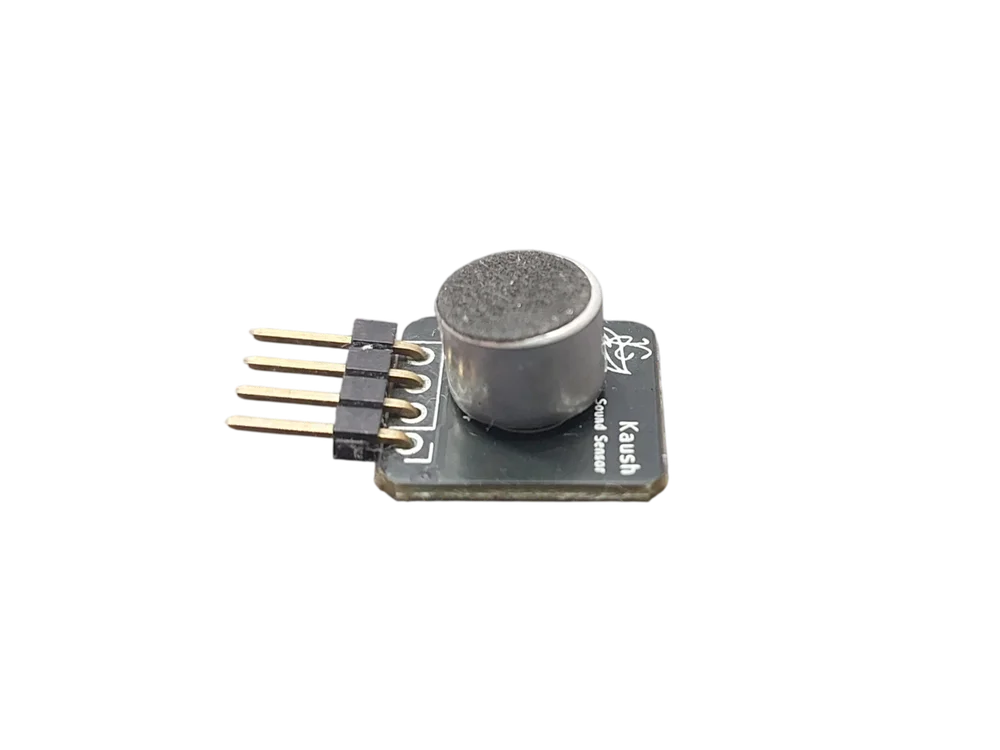

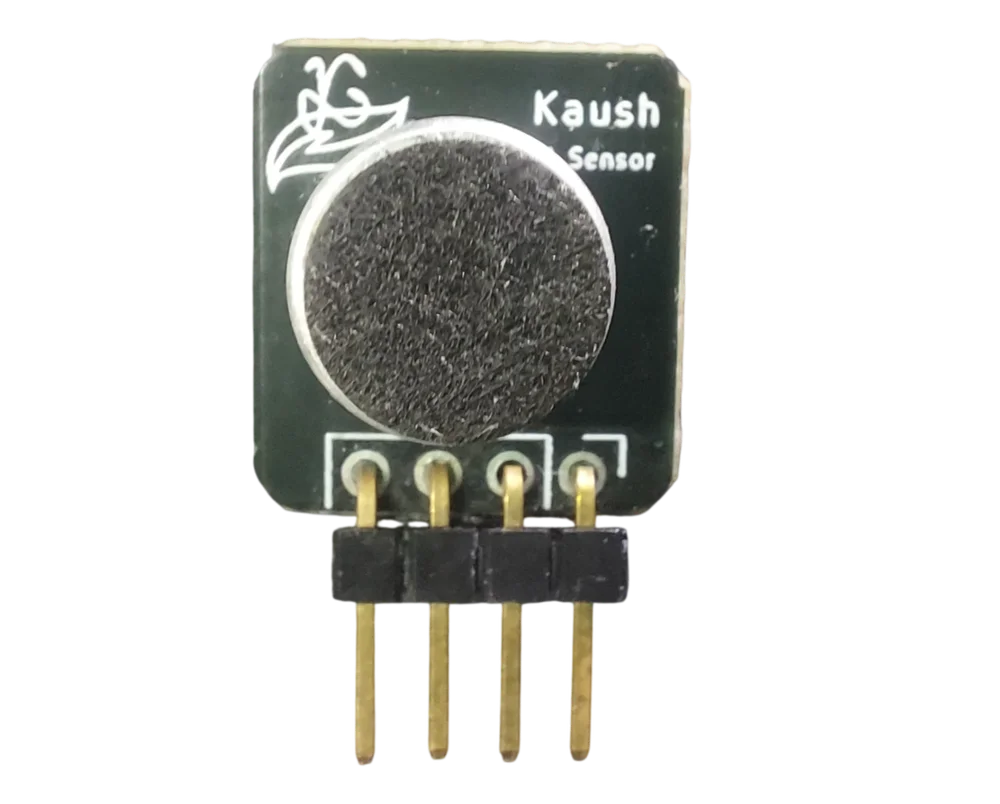

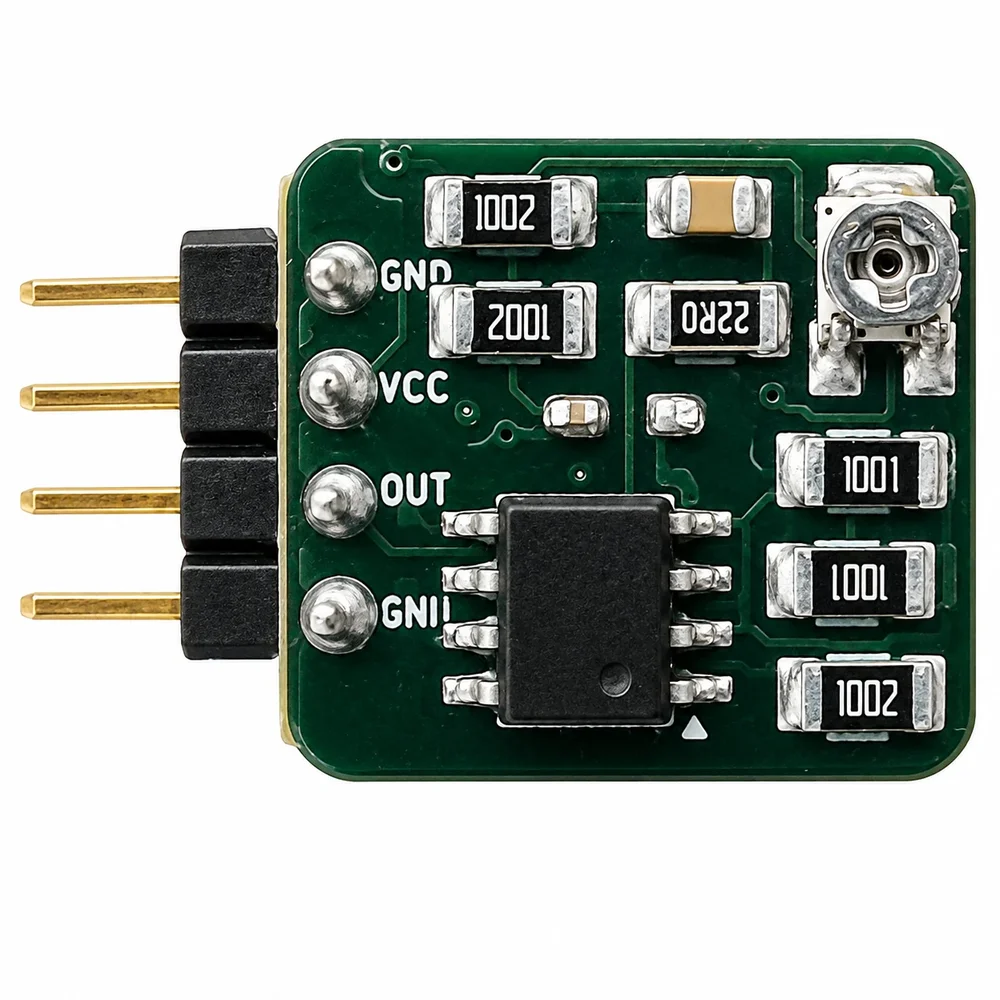

Kaush Sound Sensor Pro - MCP6002 Amplifier Module
The Kaush Sound Sensor Pro is a compact audio detection module featuring an MCP6002 rail-to-rail operational amplifier, delivering a 3.5V peak-to-peak output signal. It operates from a wide 1.8V to 6V DC supply, making it compatible with 3.3V and 5V microcontroller systems like Arduino, Raspberry Pi, and ESP32 for sound-triggered applications.
Features
- MCP6002 rail-to-rail op-amp for clean audio signal conditioning.
- Wide operating voltage range from 1.8V to 6V DC for versatile power compatibility.
- Delivers up to 3.5V peak-to-peak analog output signal.
- Ultra-compact PCB footprint measuring 15mm x 16.5mm for space-constrained designs.
- Ideal for sound detection, clap switches, and audio level monitoring projects.
Out of stock
The Kaush Sound Sensor Pro is a dedicated audio input module designed to convert acoustic pressure waves into a corresponding analog voltage signal. It employs an MCP6002 series operational amplifier configured for rail-to-rail input and output operation, maximizing the dynamic range of the captured audio signal within the supplied voltage rails. This design ensures efficient signal conditioning for precise sound detection and amplitude measurement.
The module’s broad supply voltage tolerance allows seamless integration with both 3.3V and 5V logic families, commonly found on development platforms such as Arduino, STM32, ESP8266/32, and Raspberry Pi. Its minimalistic, solderless design facilitates rapid prototyping, while the analog output provides direct compatibility with microcontroller ADC pins for real-time audio analysis or simple threshold-based triggering.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.65 × 1.5 cm |
