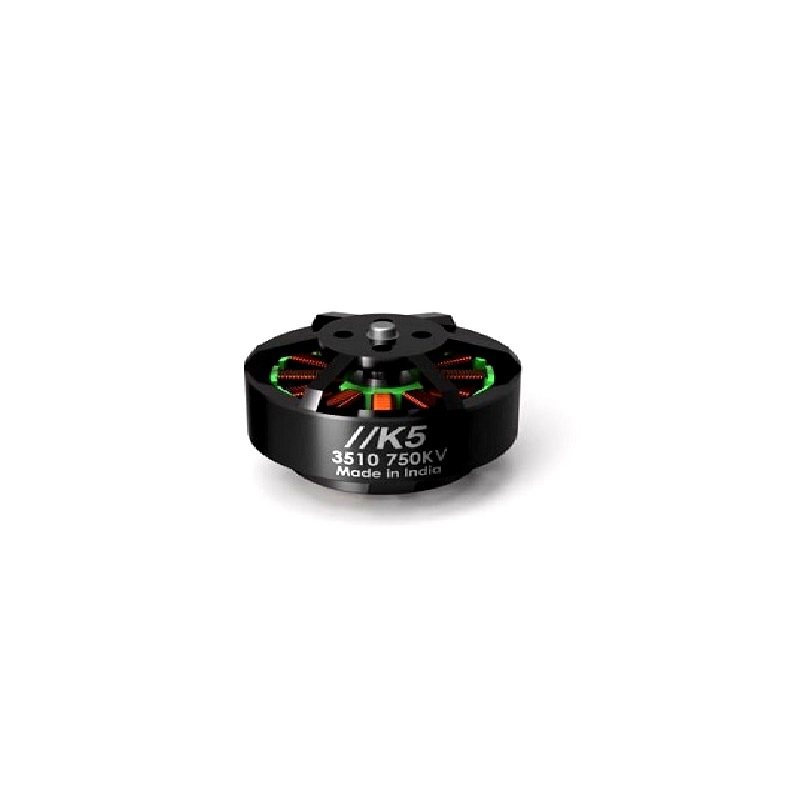

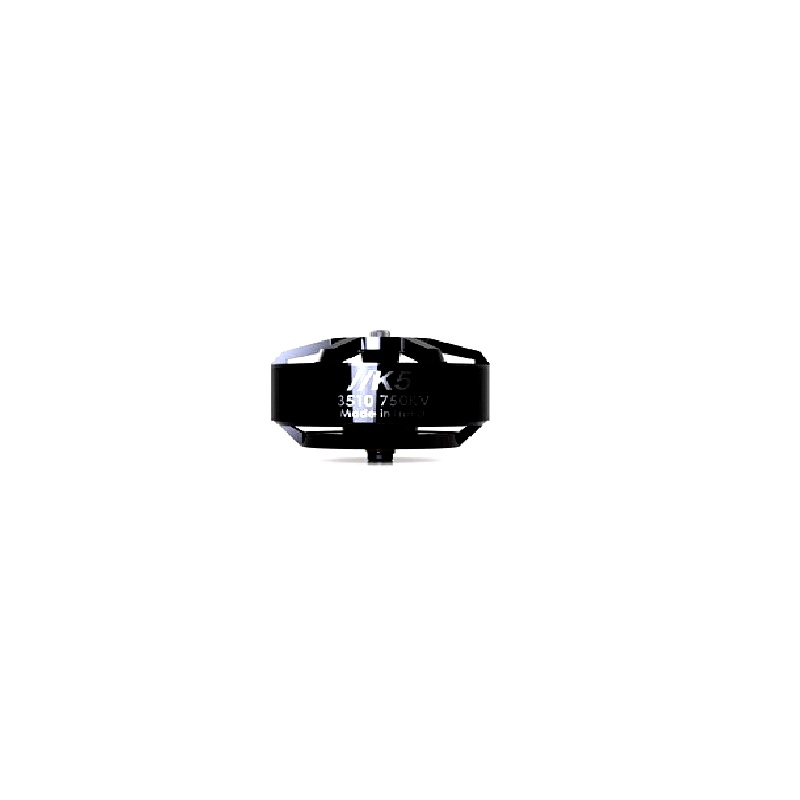

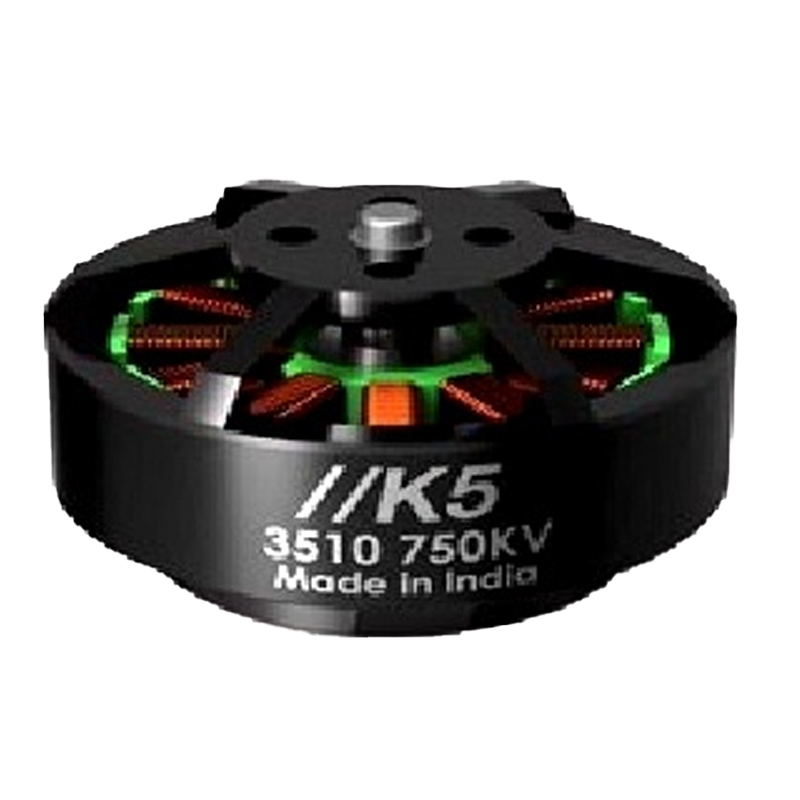

K5 Propulsion Propulsion CLX 3510 750KV Brushless DC Motor
The K5 Propulsion Propulsion CLX 3510 is a 750KV brushless motor engineered for moderate to heavy-lift multirotor applications, compatible with 3-4S LiPo battery systems and designed for efficient, vibration-free operation.
Features
- 750KV rating optimized for 3-4S LiPo power systems.
- Delivers up to 1900 grams of maximum thrust for lift-capable platforms.
- Features a 5mm hardened steel shaft for robust power transmission.
- 12N14P stator design balances torque and efficiency.
- High-purity copper windings and quality bearings ensure reliable, cool-running performance.
Out of stock
The CLX 3510 motor from K5 Propulsion Propulsion utilizes a 12N14P electromagnetic framework to deliver smooth, efficient power suitable for demanding UAV applications. Its 750KV rating is specifically tuned for 3-4S voltage ranges, providing the ideal balance of rotational speed and torque for larger propellers commonly used on heavy-lift and industrial drone platforms.
Constructed with high-grade silicone steel laminations and precision bearings, the motor minimizes eddy current losses and mechanical vibration, leading to cooler operation and extended flight times. The low center of gravity and lightweight design contribute to stable flight characteristics and improved overall system efficiency.
Additional Information
| Weight | 0.06 kg |
|---|---|
| Dimensions | 13 × 8 × 5 cm |
