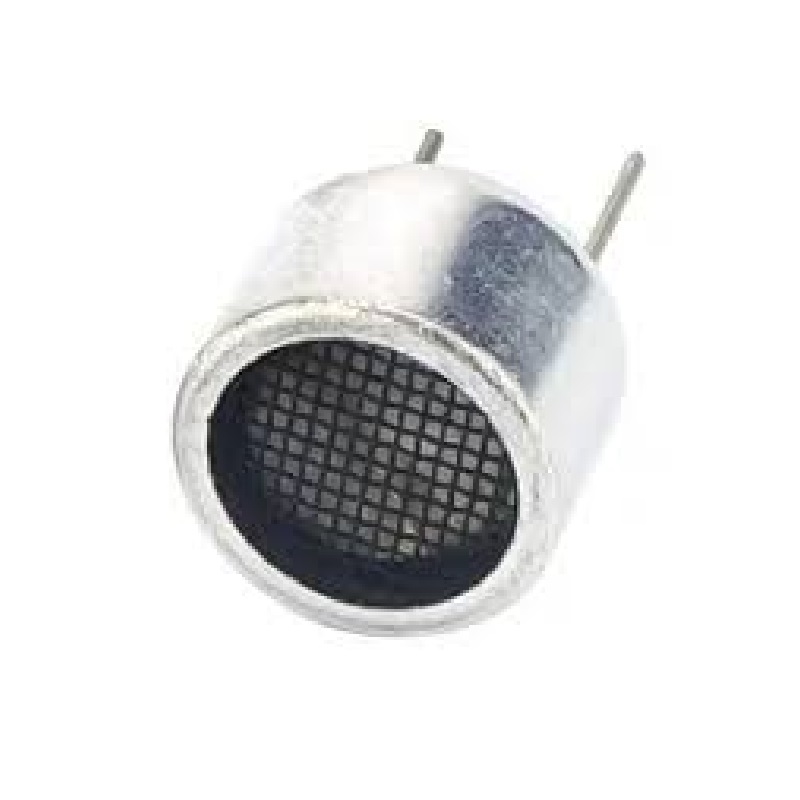

INGHAI GU1209C-40TR 40kHz Integrated Transmitter & Receiver Ultrasonic Sensor

The GU1209C-40TR operates on the piezoelectric effect. An applied electrical signal causes the internal ceramic element to vibrate at its resonant frequency of 40kHz, generating ultrasonic sound waves. Conversely, when incoming 40kHz sound waves strike the element, it generates a corresponding electrical signal, allowing the same unit to act as both transmitter and receiver for time-of-flight distance calculations.

Driving this transducer requires a pulsed AC signal at its resonant frequency of 40kHz. A typical circuit involves a microcontroller generating a 40kHz square wave, followed by a driver stage (like an H-bridge or MOSFET driver) to provide sufficient voltage and current to the transducer's capacitive load for effective sound transmission. The receiver side requires a high-impedance amplifier and filtering to detect the weak returning echo signal.

Yes, its specified operating temperature range of -30°C to +80°C makes it suitable for many outdoor and industrial environments. However, for prolonged outdoor use, consider environmental sealing of the overall sensor assembly, as the transducer itself is not inherently waterproof. Protection from direct moisture, condensation, and physical debris will ensure long-term reliability.
