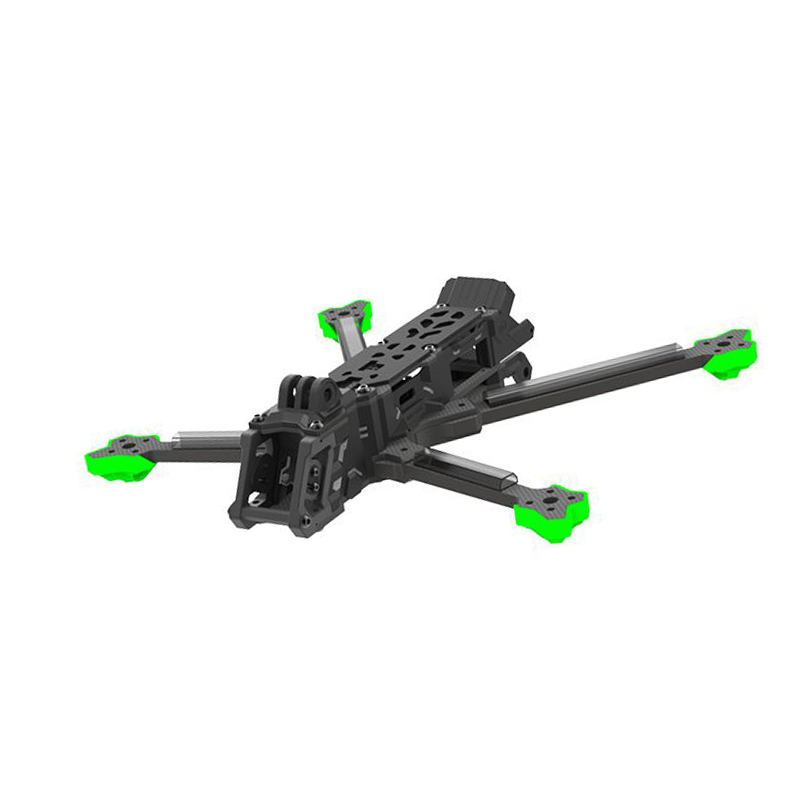

iFlight Nazgul Evoque F5D V2 Frame Kit for DJI O3
iFlight Nazgul Evoque F5D V2 Frame Kit for DJI O3 - Image 2
iFlight Nazgul Evoque F5D V2 Frame Kit for DJI O3 - Image 3
iFlight Nazgul Evoque F5D V2 Frame Kit for DJI O3 - Image 4
iFlight Nazgul Evoque F5D V2 Frame Kit for DJI O3 - Image 5
SKU: DRFC-0626
📋 GST Invoice Available

iFlight Nazgul Evoque F5D V2 Frame Kit for DJI O3

₹9,279.00 (Inclusive of all taxes)
Out of Stock

The iFlight Nazgul Evoque F5D V2 frame kit is engineered for FPV freestyle and racing, featuring enhanced durability, strategic airflow for component cooling, and improved structural integrity. Designed specifically for seamless integration with the DJI O3 HD Air Unit, it offers optimal mounting and protection for advanced digital FPV systems.

Features

  • Optimized V2 design for seamless DJI O3 HD Air Unit integration.
  • Includes custom heatsink and dual 5.8G antenna mount for enhanced O3 performance.
  • Redesigned camera mount with TPU damping supports wider FOV and reduces jello.
  • Robust 6mm arms, 3mm bottom plate, and 360-degree TPU protection for extreme durability.
  • Strategic internal airflow design keeps flight stack components clean and cool.

Out of stock

Description

The iFlight Nazgul Evoque F5D V2 frame kit represents a significant evolution in FPV drone chassis design, meticulously engineered to protect critical electronics from dirt, moisture, and impact damage. This frame incorporates strategic airflow channels that promote efficient cooling of the flight controller and ESCs, preventing thermal throttling and extending component lifespan without compromising the drone’s weight or performance characteristics. Reinforced with 360-degree TPU protective parts and illuminated side panels, the Evoque F5D V2 offers enhanced structural integrity and visibility in various flight conditions.

Key to the V2 upgrade is its specialized design for the DJI O3 HD Air Unit, ensuring optimal fitment and protection. The kit includes a custom heatsink for the O3 Air Unit to manage heat efficiently during demanding flights, along with a dual 5.8G VTX antenna TPU mount for superior signal strength and reliability. A newly designed camera mount with integrated TPU damping further enhances video quality by reducing vibrations and accommodating wider fields of view, making the Nazgul Evoque F5D V2 an ideal platform for high-performance freestyle, racing, and cinematic FPV applications.

Key Features

  • Optimized V2 frame design specifically for DJI O3 HD Air Unit integration, enhancing digital transmission reliability.
  • Includes a custom-engineered heatsink for the DJI O3 Air Unit, ensuring efficient thermal management during intense flight.

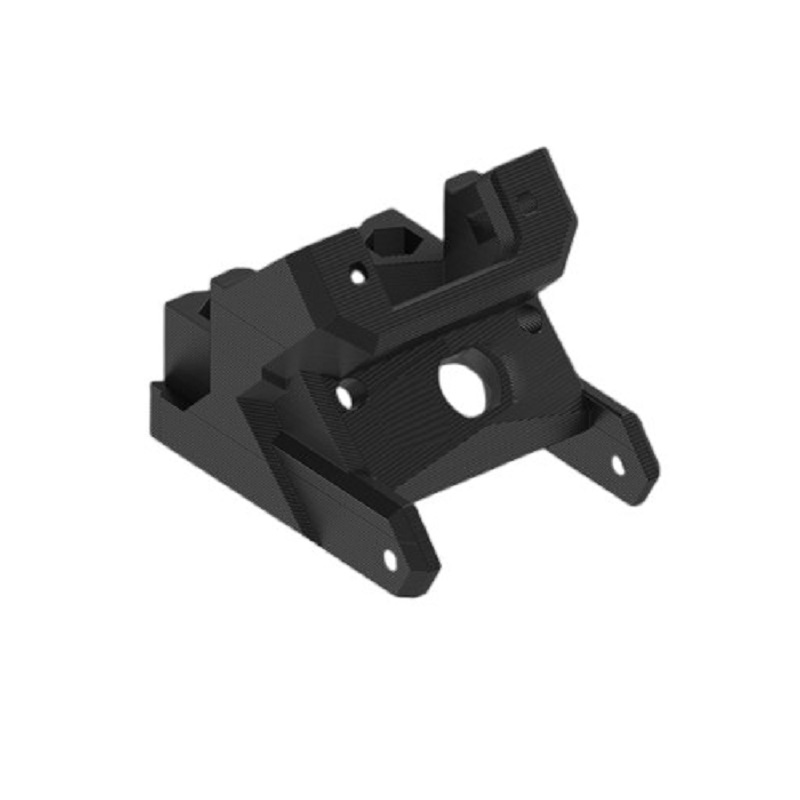

  • Redesigned camera mount with TPU damping inserts to accommodate a wider field of view and minimize vibration-induced jello.

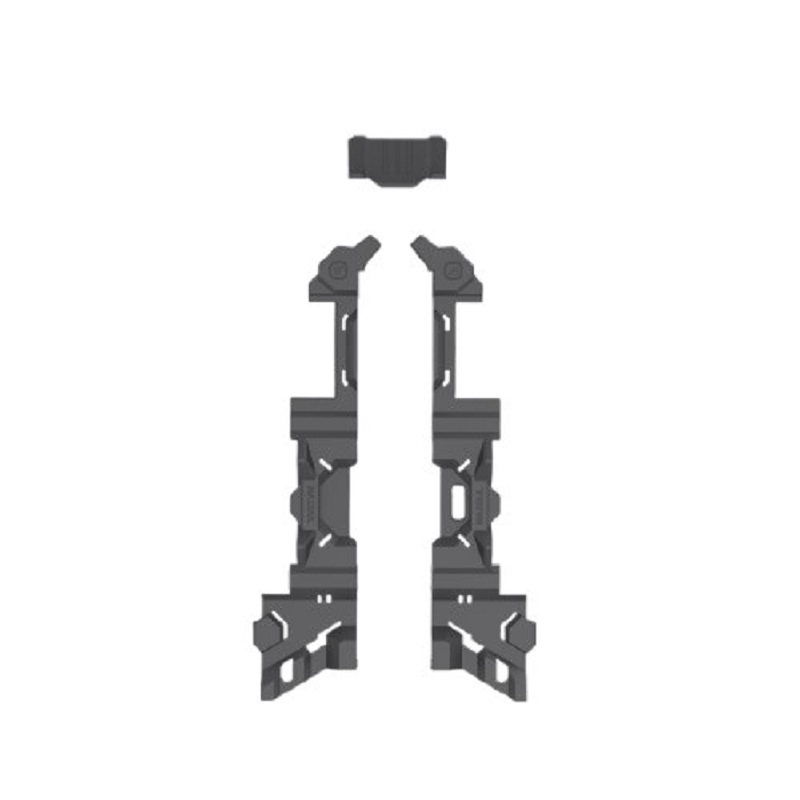

  • New side panels precisely engineered for a secure and protected mounting of the DJI O3 Air Unit.
  • Robust dual 5.8G VTX antenna TPU mount for superior signal strength and antenna durability.
  • Latest Nazgul frame structural upgrades provide maximum protection and enhanced durability for all onboard electronics.
  • Accommodates a maximum flight stack height of 22mm, supporting various FC/ESC configurations.
  • Supports 20x20mm or Φ3mm flight stack mounting patterns and 25.5x25.5mm (Φ1.6mm holes) VTX mounting.

Applications

  • FPV Freestyle & Racing: Provides a durable and high-performance platform for aggressive flight.
  • Cinematic FPV: Ensures stable video capture with vibration-damped camera mounting for smooth footage.
  • Long-Range FPV: Optimized for digital video systems to maintain signal integrity over extended distances.
  • Drone Mapping & Surveying: Offers a reliable and protected platform for precision data collection.
  • Industrial Inspection: Ideal for infrastructure and critical asset monitoring with robust component protection.

Technical Specifications

Product TypeF5D V2 Frame Kit
Wheelbase225mm
Arm Thickness6mm
Bottom Plate Thickness3mm
Top Plate Thickness2mm
Mid Plate Thickness3mm
Camera Plate Thickness3mm
Motor Mounting16x16mm
Flight Stack Mounting20x20mm / Φ3mm
VTX Mounting25.5x25.5mm (Φ1.6mm holes)
Max Flight Stack Height22mm
Max VTX Height23mm

Frequently Asked Questions

What are the key advantages of the Nazgul Evoque F5D V2 frame's design for the DJI O3 Air Unit?

This frame features a dedicated heatsink and precision-engineered side panels for the DJI O3 Air Unit, ensuring optimal thermal performance and secure mounting. It also includes a dual 5.8G VTX antenna TPU mount for reliable digital video transmission, crucial for maintaining strong signal integrity during demanding flights and ensuring system stability.

How does the frame's airflow and protection system benefit my drone's electronics?

The Evoque F5D V2 incorporates strategic internal airflow to cool sensitive components like the flight controller and ESCs, preventing overheating. Its robust design with 360-degree TPU protective parts significantly reduces exposure to dirt, moisture, and impact, thereby preventing short circuits and extending the lifespan of your valuable electronics, ensuring consistent performance.

What mounting options are available for flight stacks and motors on the F5D V2 frame?

The frame offers versatile mounting for flight stacks with both 20x20mm and Φ3mm hole patterns, accommodating various FC/ESC configurations. For motors, it supports a standard 16x16mm mounting pattern, allowing a wide range of brushless motors to be securely installed. This flexibility makes it adaptable for different build preferences.

Can this frame improve camera performance and reduce vibrations for cinematic footage?

Yes, the F5D V2 features a redesigned camera mount equipped with TPU damping inserts. This specialized design effectively isolates the FPV camera from frame vibrations, significantly reducing "jello" effects in your video. It also allows for wider camera fields of view, ensuring clearer, more stable, and professional-looking cinematic footage.

What materials are used in the construction of the Nazgul Evoque F5D V2 frame for durability?

The Nazgul Evoque F5D V2 frame is constructed from high-quality carbon fiber, with robust 6mm thick arms and 3mm bottom plates for superior strength and impact resistance. This is complemented by 360-degree TPU protective elements and bumpers, which collectively enhance durability and provide comprehensive protection for the frame and its components.

Package Includes

  • 1 x Evoque F5 V2 Frame Kit
  • 1 x O3 Air Unit Heatsink
  • 2 x O3 IPEX to RP-SMA Antenna Pigtails
  • 1 x O3 Dual Antenna TPU Mount

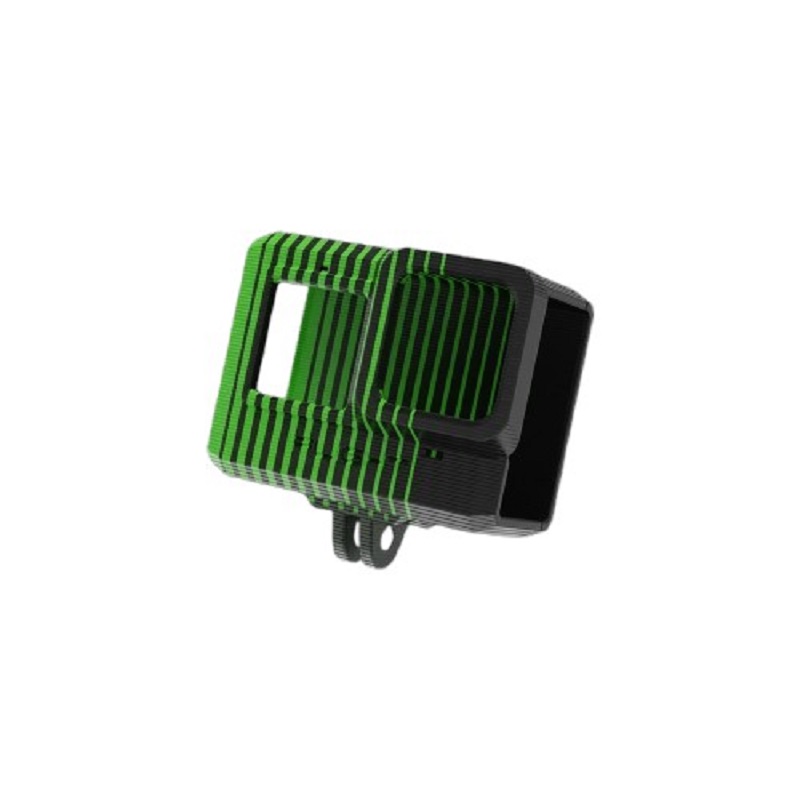

  • 1 x GoPro TPU Base Mount
  • 1 x Screw Bag
  • 4 x TPU Armguard
  • 1 x Front Bumper TPU
  • 1 x Rear Bumper TPU
  • 2 x Anti-slip Battery Pad
  • 2 x Battery Strap (20*250mm)

Additional Information

Dimensions 20 × 19 × 7 cm
