SKU: DRFC-1631
📋 GST Invoice Available

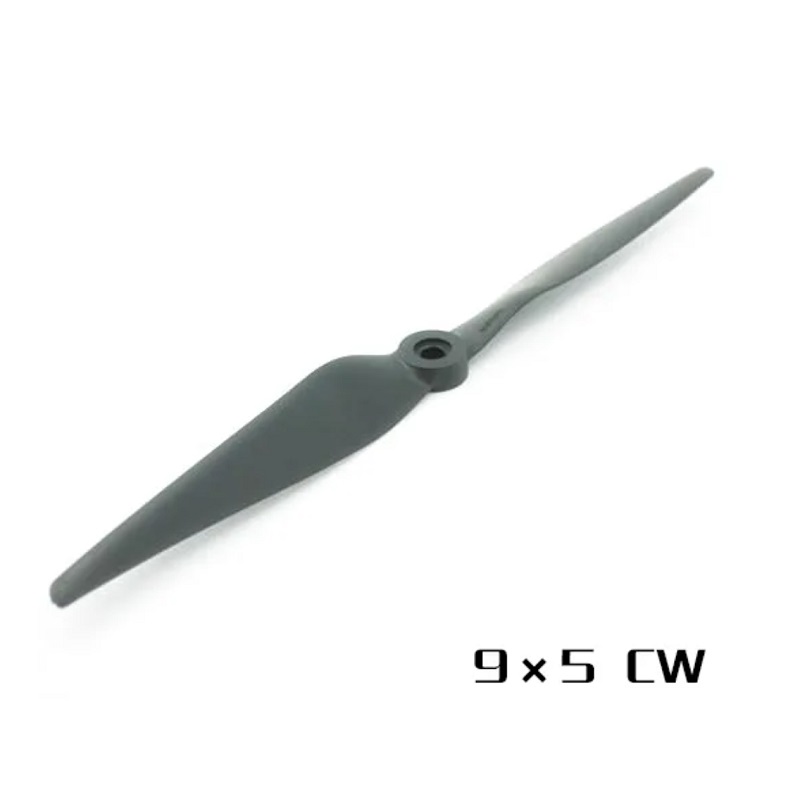

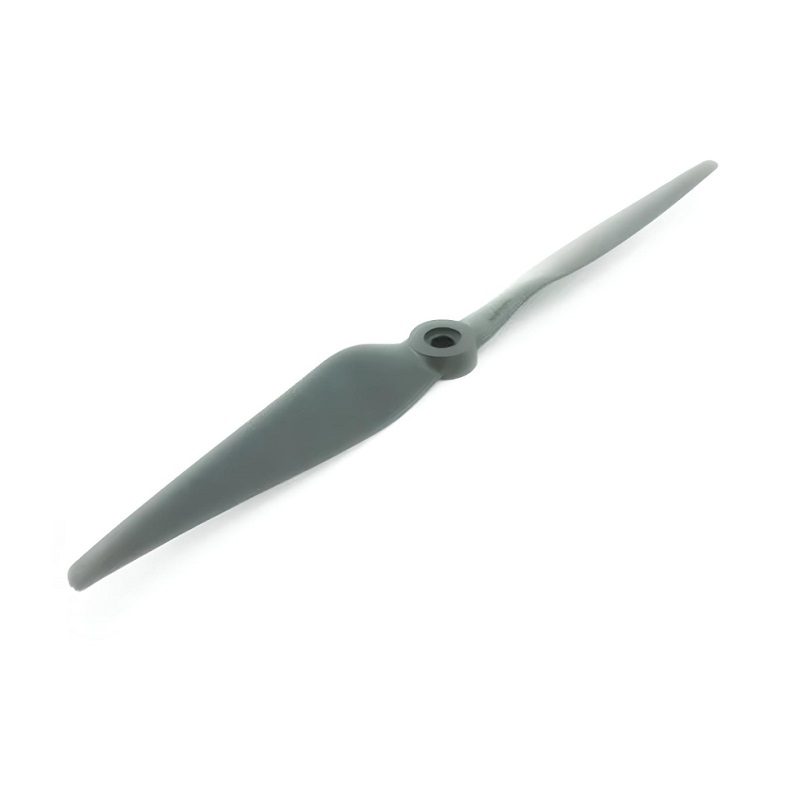

HQProp Thin Electric Pusher Prop 9x5R (2CW) Propeller - Dark Grey

₹479.00 (Inclusive of all taxes)
Out of Stock

The HQProp Thin Electric Pusher Prop 9x5R is a 2-blade, 9×5-inch carbon fiber propeller designed for efficient pusher-configuration multirotors and fixed-wing drones. This 2CW pack provides high thrust and smooth flight characteristics for medium-sized electric aircraft.

Features

  • 9-inch diameter, 5-inch pitch (9x5R) pusher propeller configuration
  • Constructed from durable, lightweight carbon fiber composite material
  • Clockwise (CW) rotation direction, supplied as a 2-piece set (2CW)
  • Includes multi-size adapter ringset (6mm, 5mm, 4mm, 3mm) for broad motor compatibility
  • Optimized thin electric design for efficient thrust and reduced noise

Out of stock

Description

The HQProp Thin Electric Pusher Prop 9x5R is engineered for pilots seeking a balance of efficiency and thrust in pusher-configuration aircraft. Its carbon fiber construction provides a high strength-to-weight ratio, ensuring durability during high-RPM operation while minimizing rotational mass for responsive throttle control.

The 9×5 pitch ratio is tailored for medium-sized multirotor and fixed-wing platforms, delivering a strong thrust curve suitable for both agile flight and efficient cruising. The included adapter ringset allows for secure mounting on a wide range of motor shaft sizes, from 3mm to 6mm, ensuring a vibration-free installation.

Key Features

  • High-Quality Carbon Fiber Composite: Offers superior stiffness and impact resistance compared to standard nylon or plastic props, reducing flex and improving efficiency.
  • Pusher Configuration Design: Specifically shaped for motors mounted in a pusher orientation, common on many fixed-wing and specialized multirotor builds.
  • Precision Balanced Blades: Manufactured to tight tolerances for minimal inherent vibration, leading to smoother video and reduced motor wear.
  • Broad Compatibility Kit: Includes a comprehensive set of adapter rings (6mm, 5mm, 4mm, 3mm) to fit virtually any standard brushless motor shaft.
  • Optimized Aerodynamic Profile: The thin electric airfoil and 2-blade design reduce drag and power consumption, potentially extending flight times.
  • Distinct Dark Grey Finish: Provides a professional, low-visibility aesthetic that helps with orientation during flight.

Applications

  • Medium-sized FPV racing or freestyle quadcopters (7-9 inch class) requiring efficient, high-thrust pusher props.
  • Fixed-wing UAVs and RC planes utilizing pusher motor configurations for clean aerodynamic profiles.
  • Heavy-lift multirotor platforms where the 9x5 size provides a good balance of lift and power efficiency.
  • Long-range cruising builds where the reduced drag of the 2-blade design maximizes flight time.
  • Aerial photography platforms benefiting from the smooth operation and reduced vibration of carbon fiber props.

Technical Specifications

Propeller Diameter9 inches
Propeller Pitch5 inches
Rotation DirectionClockwise (CW)
Blade Count2
MaterialCarbon Fiber
Hub Diameter18 mm
Hub Thickness7 mm
Compatible Shaft Sizes9.5mm, 8mm, 6mm (via adapters)
Adapter Rings Included6mm, 5mm, 4mm, 3mm
Weight (per propeller)9 grams
ColorDark Grey

Frequently Asked Questions

What does 'Pusher Prop' mean and where is it used?

A pusher propeller is designed for motors mounted in a 'pusher' configuration, where the motor is behind the wing or frame and pushes the aircraft forward. This is common on many fixed-wing UAVs and some specialized multirotor or VTOL designs to keep the prop wash clear of the fuselage or camera for cleaner aerodynamics and unobstructed video.

What motors are these 9x5R propellers compatible with?

These propellers are compatible with brushless motors featuring a shaft size that matches the included adapter rings: 3mm, 4mm, 5mm, or 6mm. They are suitable for medium-sized motors typically used on 7-9 inch multirotor drones or fixed-wing aircraft. Always ensure your motor's KV rating and battery voltage (e.g., 4S-6S) can handle the load of a 9-inch carbon fiber prop.

Why are there two propellers in the pack if they are both CW?

This 2CW pack is intended for aircraft configurations that utilize two motors spinning in the same clockwise direction, such as certain twin-engine fixed-wing planes or specialized multirotor designs. For a standard quadcopter, you would need a mix of CW and CCW props. Always verify your aircraft's motor rotation requirements before purchasing.

Package Includes

  • 2 x HQProp Thin Electric Pusher Prop 9x5R (CW) Propeller - Dark Grey
  • 2 x Adapter Ringset (6mm, 5mm, 4mm, 3mm sizes)

Additional Information

Weight 0.035 kg
Dimensions 6 × 26 × 3 cm
