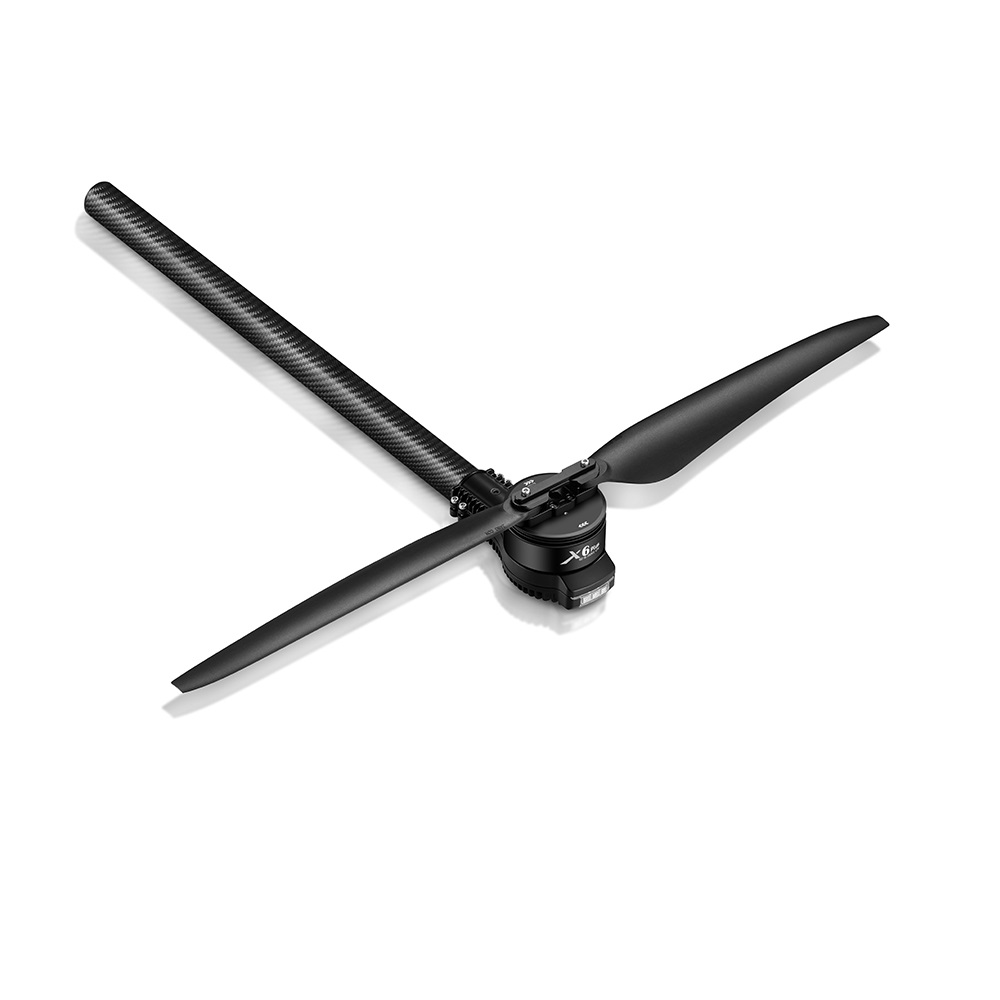

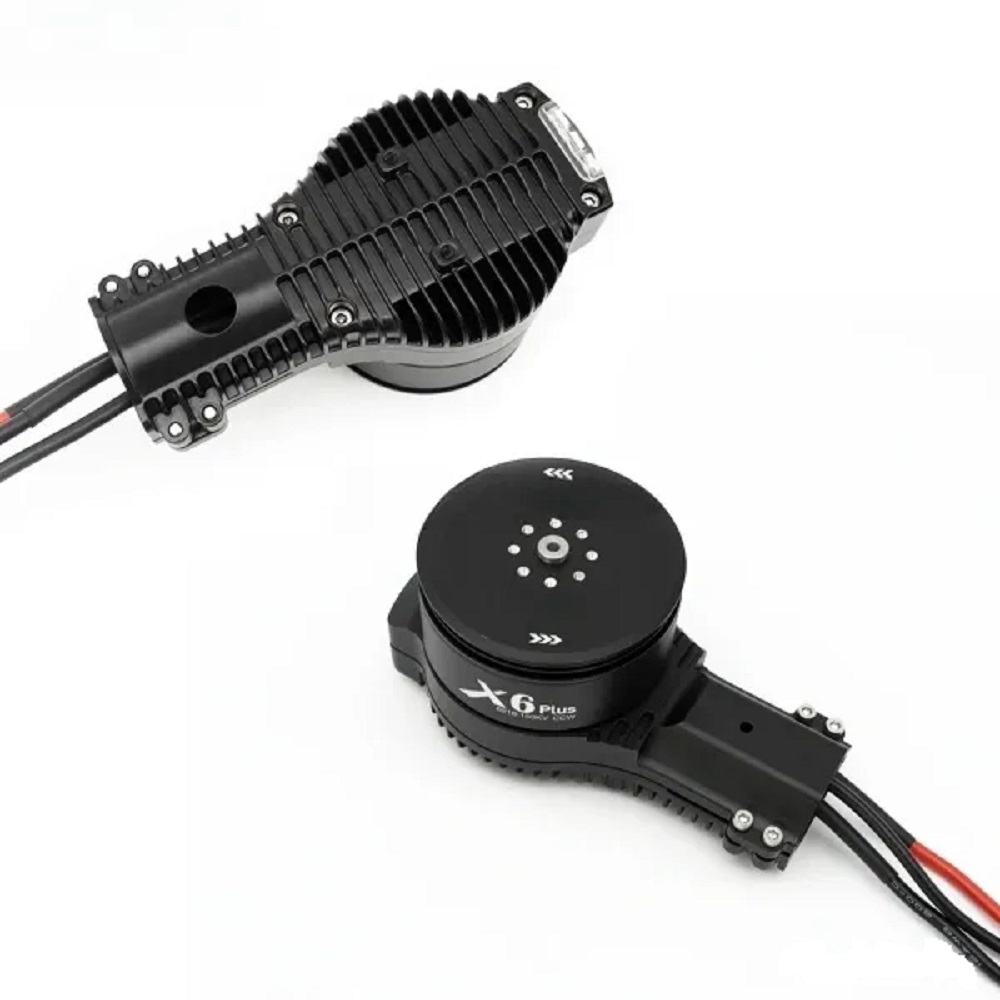

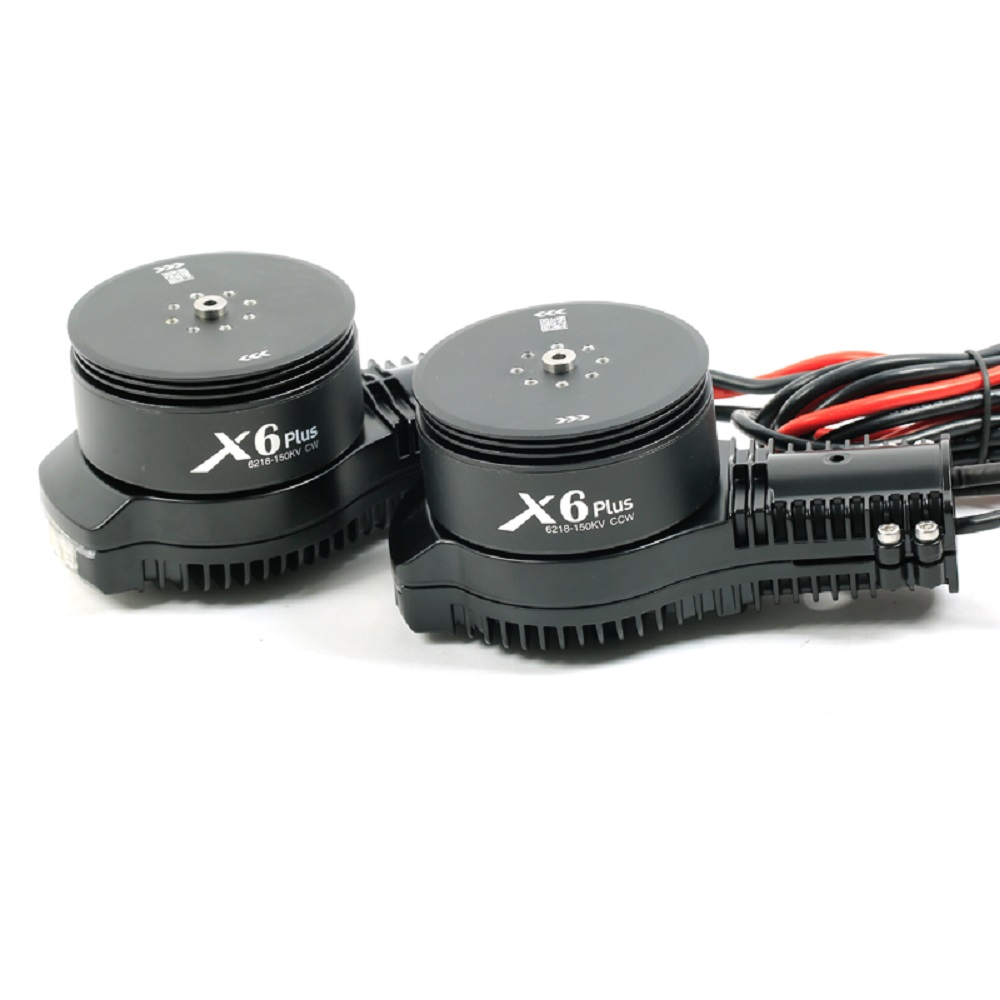

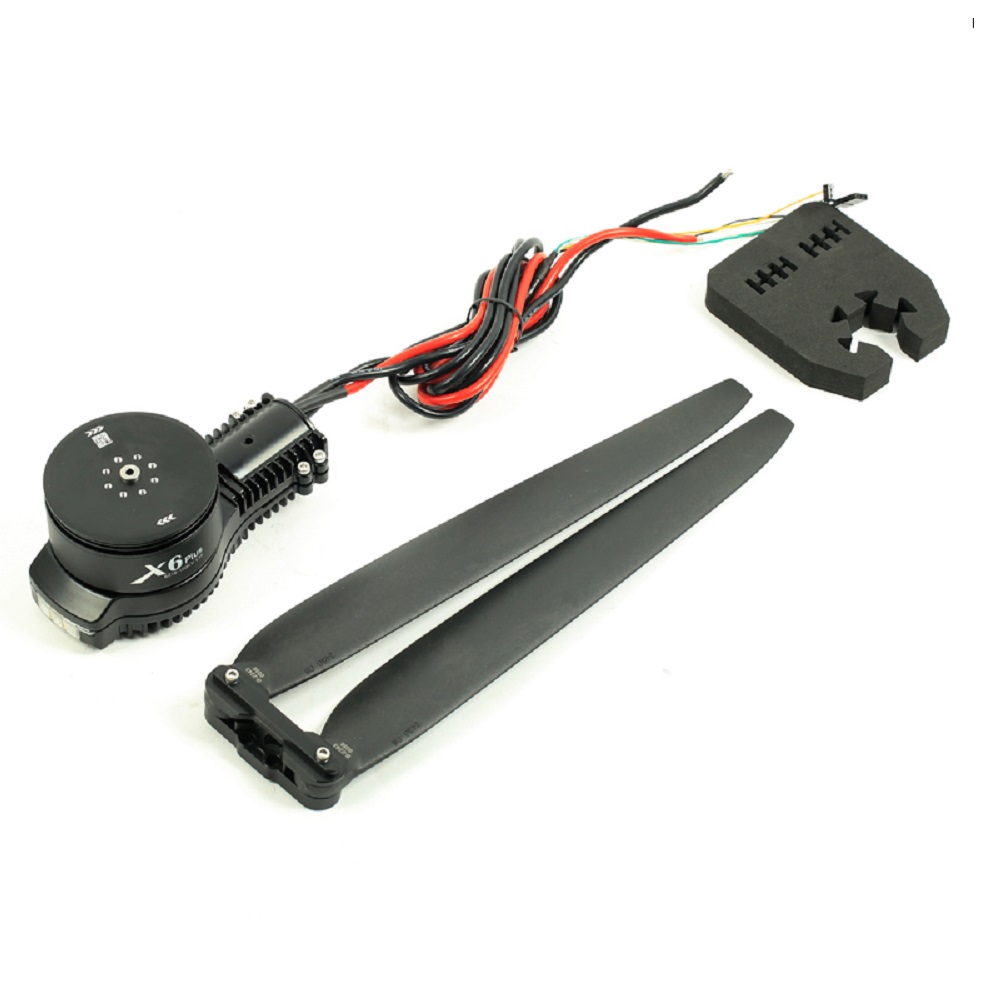

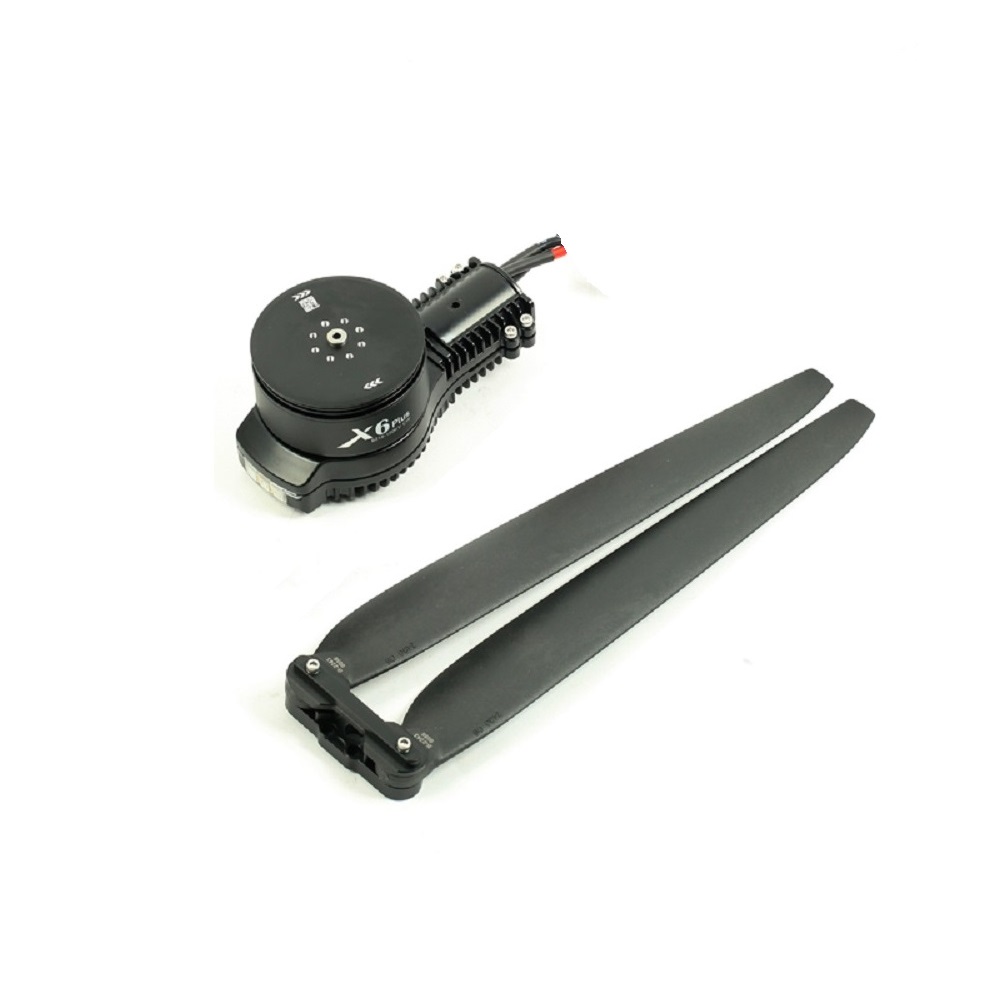

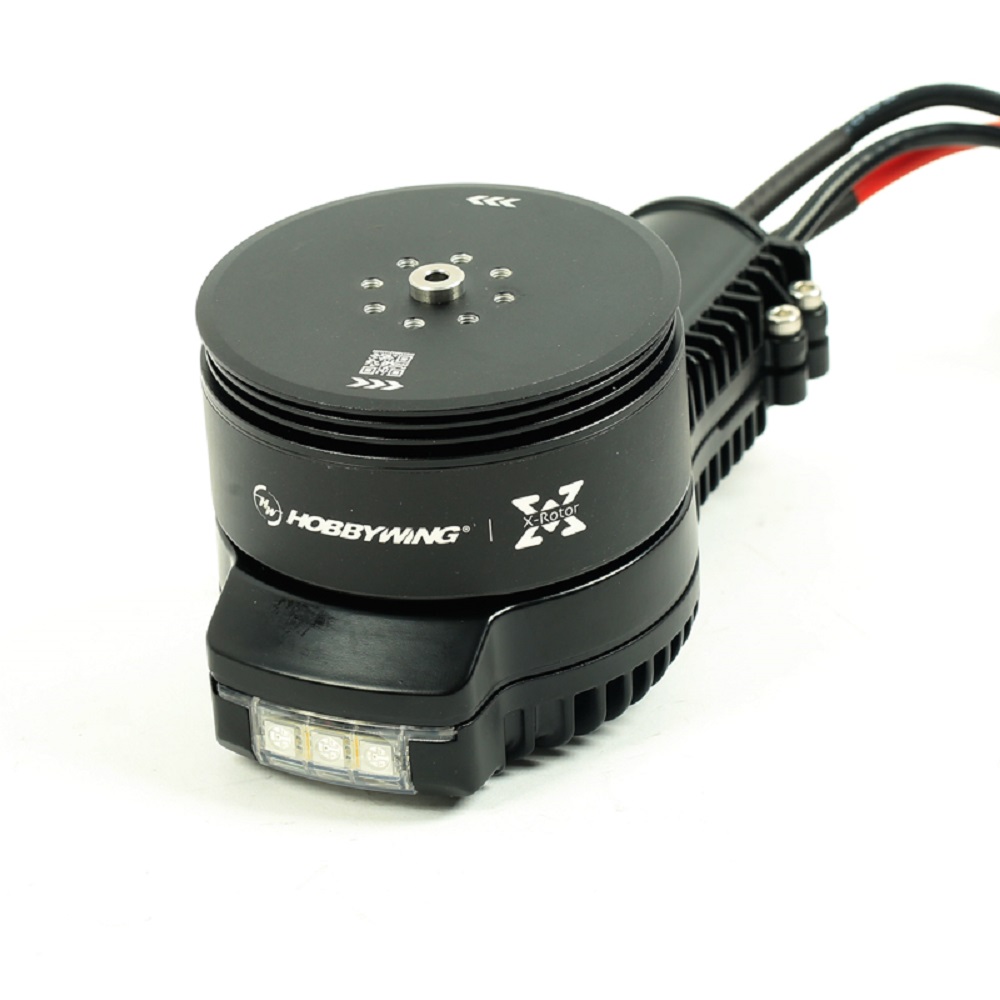

Hobbywing XRotor X6 Plus Motor & 2480 Folding Propeller CCW
The Hobbywing XRotor X6 Plus power system, featuring a 150KV motor and 2480 folding propeller, is engineered for agricultural drones requiring reliable, high-thrust propulsion. This CCW combo supports 12-14S LiPo batteries, delivering up to 11.8kg of thrust per axis for demanding industrial applications.
Features
- Designed for agricultural and heavy-lift industrial UAVs, providing up to 11.8kg thrust per axis.
- Optimized 150KV brushless motor with 62x18mm stator, paired with a high-efficiency 2480 folding propeller.
- Robust IPX6 waterproof and dustproof rating ensures reliable operation in harsh environmental conditions.
- Supports a broad 12-14S LiPo input voltage, delivering consistent power for extended flight durations.
- Features an optimized FOC algorithm for balanced motor and ESC performance, enhancing efficiency and stability.
Out of stock
The Hobbywing XRotor X6 Plus power system is a robust and highly integrated propulsion solution specifically designed for demanding agricultural and industrial drone applications. Capable of supporting a load of 3-5kg per axis, this combo delivers an impressive maximum thrust of 11.8kg, making it suitable for drones requiring substantial lifting power for payloads like spraying systems or inspection equipment. Its optimized design ensures compatibility with standard 28/30mm carbon fiber tube arms, facilitating straightforward integration into various airframe designs.
Engineered for reliability in challenging environments, the XRotor X6 Plus boasts an IPX6 waterproof and dustproof rating, offering superior protection against rainwater, pesticides, salt spray, sand, dust, mud, and even high temperatures or impacts. The system incorporates an advanced algorithm for optimizing the FOC (Field-Oriented Control) ESC and motor, resulting in a more balanced and efficient power delivery. Comprehensive safety features, including power-on self-detection, abnormal voltage protection, over-current safeguards, and motor lock-up protection, ensure secure and stable operation, complemented by real-time data output for enhanced system monitoring.
Additional Information
| Dimensions | 30 × 20 × 10 cm |
|---|
