Hobbywing XRotor X6 Plus G2 Motor with 24x8.0 Propeller Combo Kit - CW

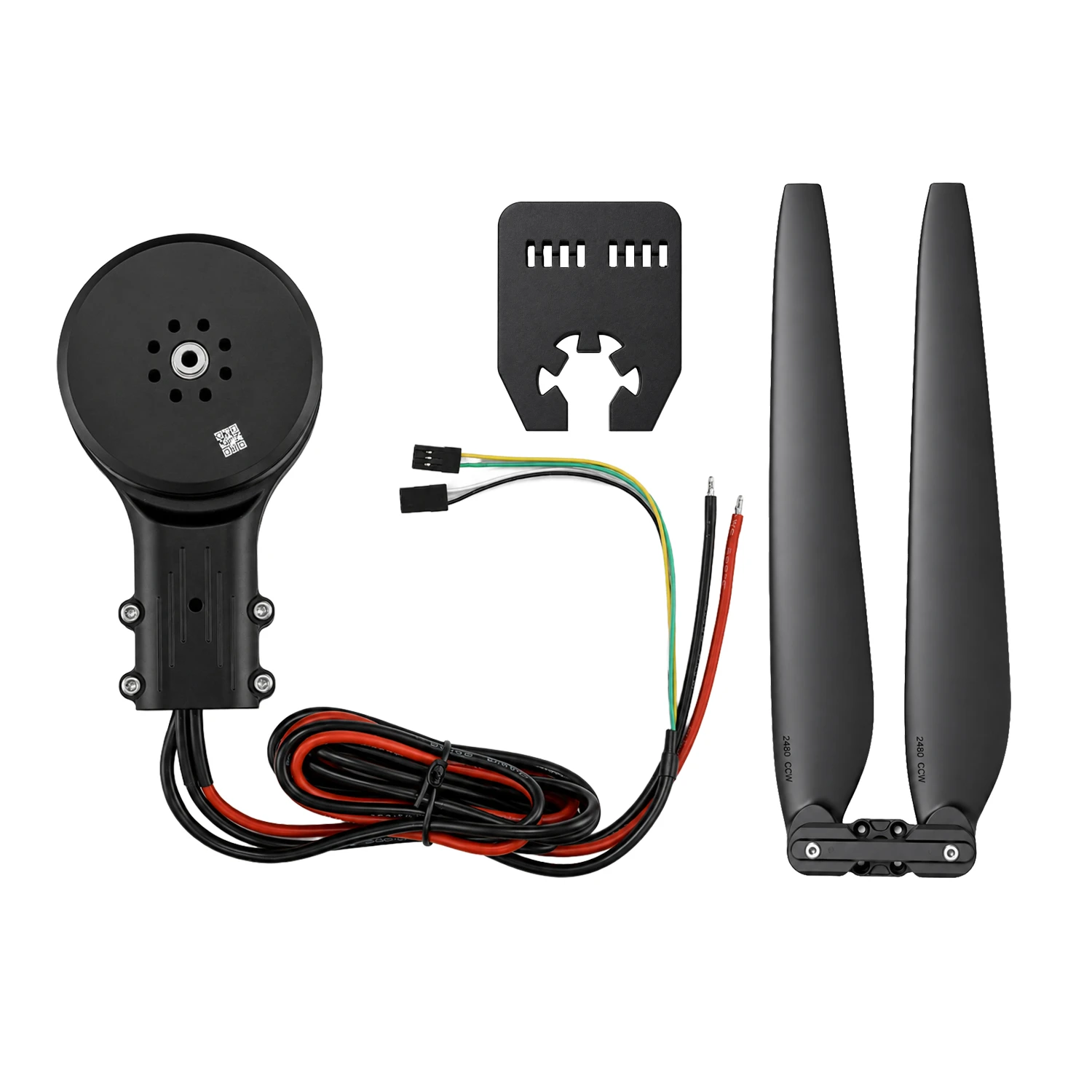

The Hobbywing XRotor X6 Plus G2 Motor Combo Kit integrates a 150KV brushless motor, intelligent ESC, and a 24×8.0 folding propeller into a single, IPX6-rated propulsion unit designed for 12S-14S LiPo systems, supporting PWM and Cyphal (UAVCAN) communication for integration with modern flight controllers like ArduPilot and PX4.
Features
- Integrated heavy-lift propulsion system delivering up to 12.5kg of maximum thrust at sea level.
- Supports 12S to 14S LiPo battery systems (18V-63V DC input) with a high efficiency rating of 7.3g/W.
- Features dual communication protocols: standard PWM and modern Cyphal (UAVCAN) for advanced flight control integration.
- IPX6 waterproof rating and an operating temperature range of -20°C to 50°C for reliable outdoor and industrial use.

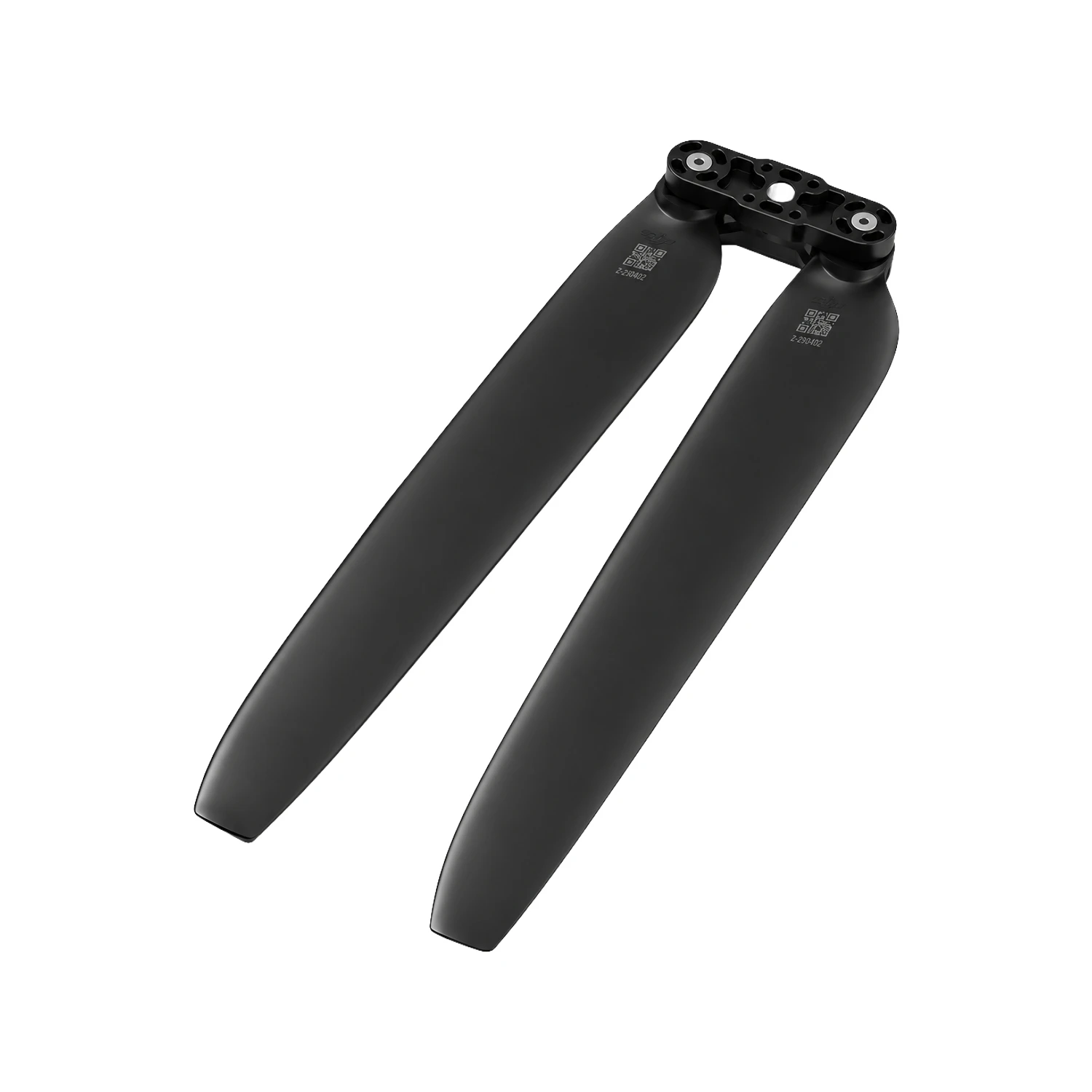

- Includes a carbon fibre-reinforced MFP 24×8.0 folding propeller compatible with 30mm outer diameter tubes.
Out of stock

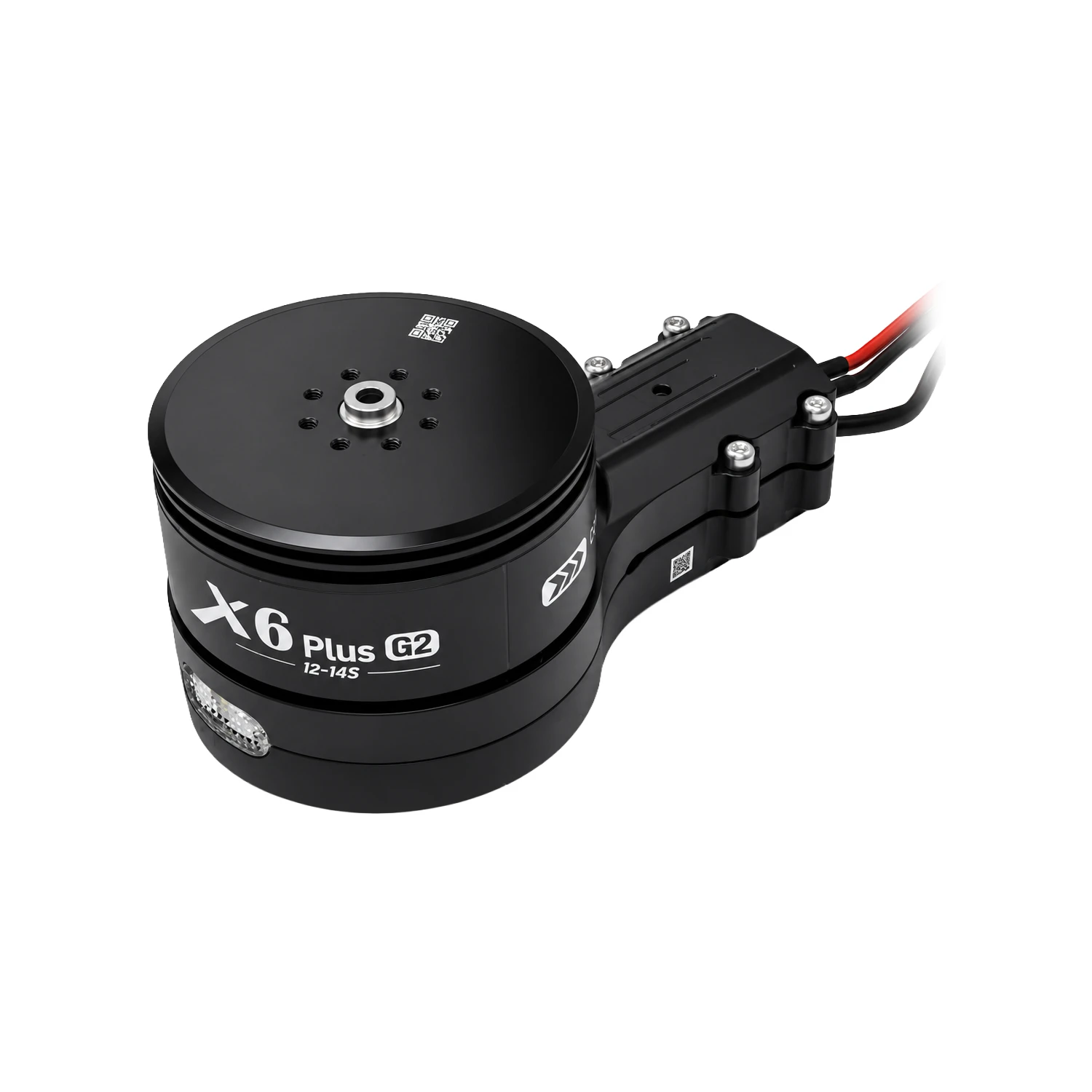

The Hobbywing XRotor X6 Plus G2 represents a professional-grade, integrated propulsion solution engineered for demanding UAV applications such as aerial mapping, agricultural spraying, and industrial inspection. Its design combines a high-torque 150KV brushless motor (28N24P configuration) with a robust Electronic Speed Controller (ESC) rated for continuous 25A output and peak currents up to 80A. This integration eliminates wiring complexity and potential points of failure, enhancing system reliability.
Constructed for durability, the system features an IPX6 ingress protection rating, safeguarding internal electronics from water and dust ingress in challenging environments. The included MFP 24×8.0 folding propeller, made from a carbon fibre-reinforced nylon composite, offers an optimized balance of stiffness and weight (33.5g per blade) for efficient thrust generation. The combo kit’s support for Cyphal (UAVCAN) communication protocol allows for seamless integration into modern, distributed avionics architectures, enabling precise motor control and detailed telemetry feedback for autonomous flight operations.
Additional Information
| Weight | 1.1 kg |
|---|---|
| Dimensions | 28 × 22 × 16 cm |
