SKU: DRFC-0645
📋 GST Invoice Available

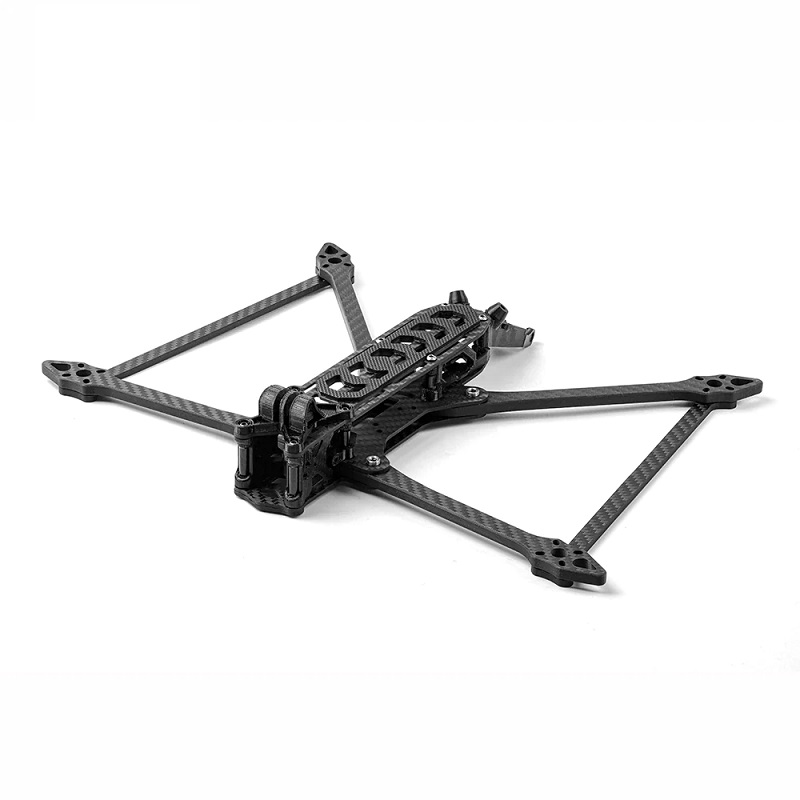

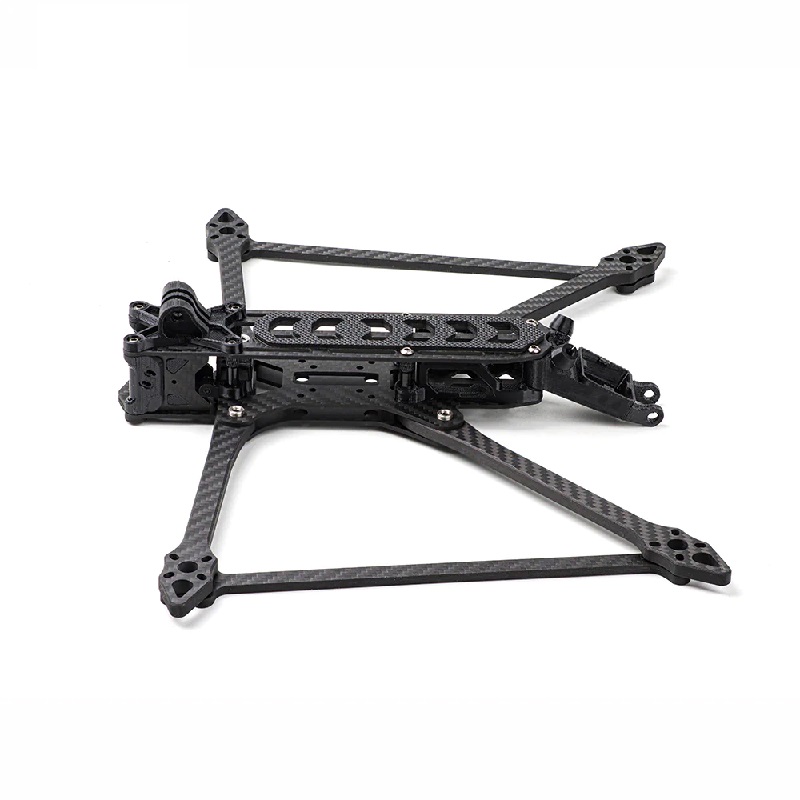

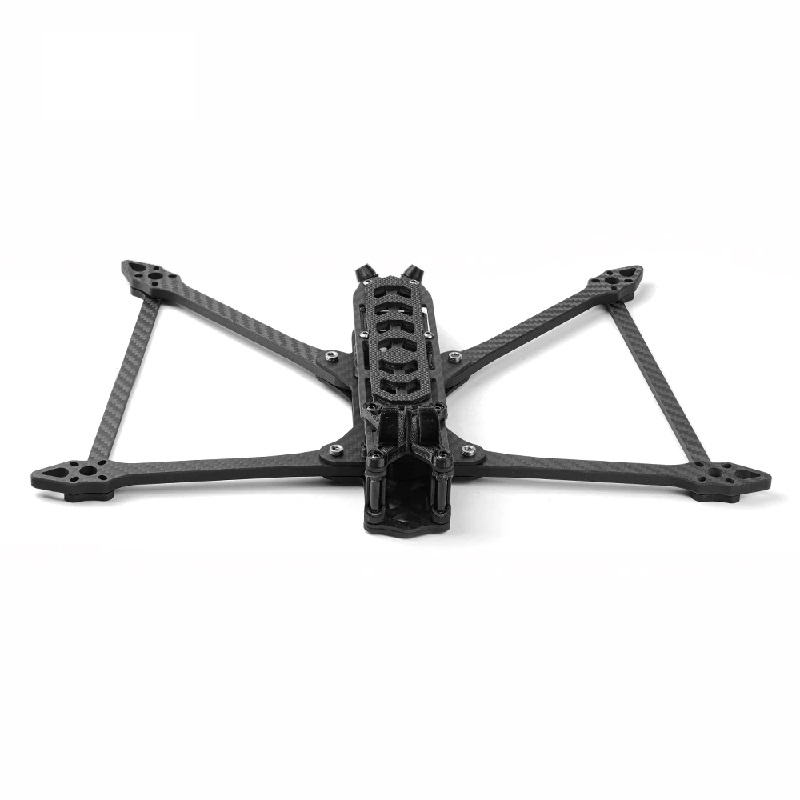

HGLRC Rekon7 Pro 7-Inch Long Range Drone Frame Kit

₹9,329.00 (Inclusive of all taxes)
Out of Stock

The HGLRC Rekon7 Pro is a purpose-built 7-inch long-range drone frame kit engineered for extended flight times and aerial exploration. Constructed from durable yet lightweight 3K carbon fiber, it provides a stable and optimized platform for efficient component integration.

Features

  • Optimized 7-inch wheelbase (324mm) for stable long-range flight performance.
  • Robust 3K carbon fiber construction ensures high durability while maintaining a lightweight profile (350g).
  • Designed for efficient component layout, accommodating various electronics and mounting options.
  • Includes dedicated TPU mounts for DJI O3 Air Unit, GPS, and GoPro for versatile applications.

Out of stock

Description

The HGLRC Rekon7 Pro Long Range Frame Kit provides a high-performance foundation for dedicated 7-inch long-range FPV drones. Crafted from premium 3K carbon fiber, this frame balances structural rigidity with a lightweight design, crucial for maximizing flight duration and payload capacity. Its thoughtful layout ensures ample space for flight controllers, ESCs, HD FPV systems like the DJI O3 Air Unit, and various power components, facilitating a clean and organized build.

Engineered for stability and precise control during extended aerial missions, the Rekon7 Pro features robust arm designs and reinforced plates to withstand impacts common in demanding flight environments. The included specialized TPU mounts for GPS, GoPro, and DJI O3 Air Unit offer versatile integration for cinematography, mapping, or exploration. This kit serves as a reliable platform for pilots building a capable drone for aerial photography, long-distance exploration, or specialized industrial applications requiring extended operational range.

Key Features

  • Specifically designed for 7-inch long-range FPV flights, offering enhanced stability.
  • Constructed from high-quality 3K carbon fiber for optimal strength and reduced weight.
  • Features a 324mm wheelbase, ideal for stable flight characteristics with 7-inch propellers.
  • Optimized component layout allows for clean wiring and efficient heat dissipation.
  • Includes comprehensive TPU mounts for DJI O3 Air Unit, GPS modules, GoPro cameras, and antennas.
  • Robust arm and plate design ensures structural integrity under demanding flight conditions.
  • Ample space provided for various flight controller and ESC stack sizes (20x20mm, 30.5x30.5mm).

Applications

  • Long-range FPV freestyle and exploration flights.
  • Cinematic aerial photography and videography with GoPro integration.
  • Autonomous mapping and surveillance missions requiring extended flight times.
  • Custom industrial or commercial UAV builds for inspection and delivery.

Technical Specifications

Item TypeFrame Kit
Frame Size7-inch
Body Material3K Carbon Fiber
Wheelbase324mm
Weight350g

Frequently Asked Questions

What flight controllers are compatible with the HGLRC Rekon7 Pro frame?

The Rekon7 Pro frame offers generous mounting space compatible with standard 20x20mm, 30.5x30.5mm, and even some 25.5x25.5mm flight controllers and ESC stacks. Its open design allows for flexible component selection, making it suitable for various FPV systems including those running Betaflight, ArduPilot, or INAV.

What is the primary advantage of the 7-inch wheelbase for this frame?

A 7-inch wheelbase, like the 324mm on the Rekon7 Pro, provides increased stability and a larger surface area for efficient propeller selection. This design minimizes oscillations and improves handling during long-range flights, allowing for smoother cinematic footage and more consistent GPS navigation. It also accommodates larger batteries for extended flight times.

How does the HGLRC Rekon7 Pro support digital HD FPV systems?

The Rekon7 Pro comes equipped with specialized TPU mounts designed specifically for popular digital HD FPV systems, including the DJI O3 Air Unit. These mounts ensure secure placement and optimal antenna positioning, protecting sensitive electronics while providing a clean build aesthetic. Dedicated space is also available for other digital VTX modules.

What materials are used in the Rekon7 Pro frame, and why?

The HGLRC Rekon7 Pro frame is constructed from high-quality 3K carbon fiber. This material is chosen for its exceptional strength-to-weight ratio, providing superior durability against crashes and impacts while keeping the overall drone weight low. The carbon fiber design is crucial for maximizing flight performance and extending flight duration on long-range missions.

Package Includes

  • 1x 2mm top plate
  • 1x 2mm base plate
  • 1x 2mm mid plate
  • 2x 6mm front arm
  • 2x 6mm rear arm
  • 2x 2mm rack protection board
  • 2x 2mm camera side panel
  • 2x 4mm Arm Reinforcement rod
  • 2x M3*28mm black mesh aluminum column
  • 4x M3*20mm black mesh aluminum column
  • 2x M3*18mm black mesh aluminum pillar
  • 4x M4*12 Screws
  • 4x M3*20 Screws
  • 4x M3*16 Screws
  • 4x M3*10 Screws
  • 8x M3*8 Screws
  • 4x M2*20 Screws
  • 1x M2*16 Screws
  • 1x M2*10 Screws
  • 2x M2*4 Screws
  • 1x M5 lock nut (red)
  • 4x M3 self-locking nuts
  • 5x M2 self-locking nuts
  • 8x M3*8 shock-absorption balls
  • 4x M2*4 shock-absorption balls
  • 2x battery straps 20x250mm
  • 1x Battery Anti-slip pad
  • 1x TPU black GoPro holder mount
  • 1x TPU black GPS mount
  • 1x TPU black antenna mount
  • 1x TPU black T-antenna mount
  • 1x TPU black buzzer mount
  • 1x TPU black DJI Air unit Block A
  • 1x TPU black DJI Air unit Block B
  • 1x TPU black DJI O3 holder mount
  • 1x TPU black Camera converting seat

Additional Information

Dimensions 24 × 17 × 6 cm
