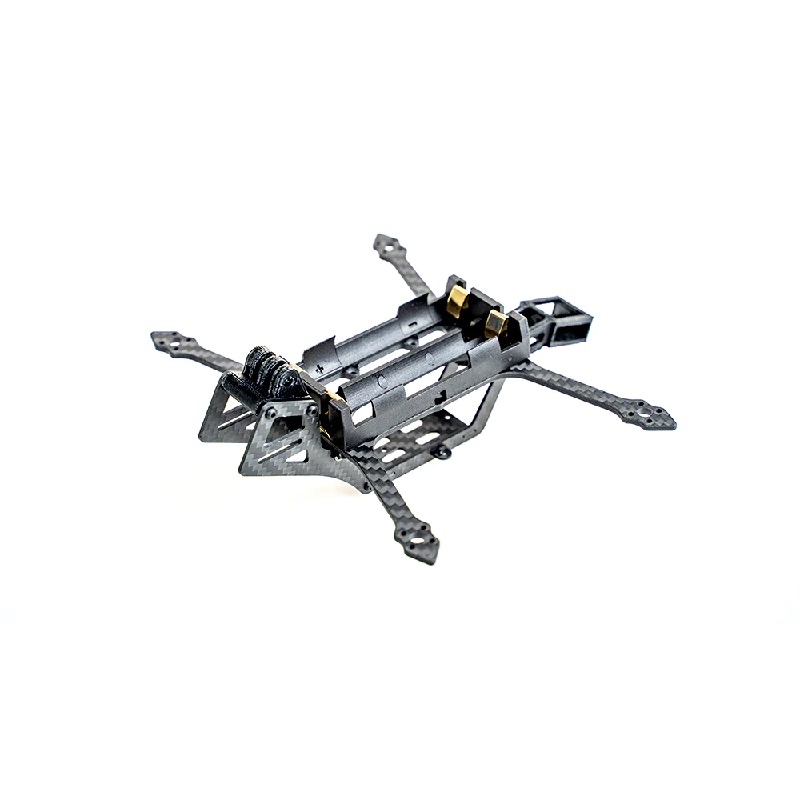

HGLRC Rekon35 Long Range 3.5 Inch Drone Frame
HGLRC Rekon35 Long Range 3.5 Inch Drone Frame - Image 2
HGLRC Rekon35 Long Range 3.5 Inch Drone Frame - Image 3
SKU: DRFC-0646
📋 GST Invoice Available

HGLRC Rekon35 Long Range 3.5 Inch Drone Frame

₹2,259.00 (Inclusive of all taxes)
Out of Stock

The HGLRC Rekon35 is a purpose-built 3.5-inch long-range drone frame crafted from durable 3K carbon fiber. Optimized for extended FPV flights and seamless integration of HD video systems, it provides a stable and efficient platform for aerial exploration.

Features

  • Lightweight 3.5-inch frame designed for sub-250g long-range FPV builds.
  • Constructed from high-strength 3K carbon fiber for durability and reduced weight.
  • Features a 160mm wheelbase, optimizing stability for extended flight times.
  • Designed for efficient component layout, supporting HD FPV systems and various camera options.
  • Compatible with 2S 18650 battery configurations for extended flight endurance.

Out of stock

Description

The HGLRC Rekon35 Long Range Frame is engineered for dedicated FPV pilots seeking a robust and lightweight platform for extended missions. Its 3.5-inch form factor, combined with a 160mm wheelbase, strikes an optimal balance between maneuverability and stability crucial for long-range navigation. The design prioritizes aerodynamic efficiency and component integration, making it ideal for carrying high-definition FPV gear and auxiliary payloads like Naked GoPro cameras.

Constructed from premium 3K carbon fiber, the Rekon35 frame ensures exceptional durability while maintaining a minimal weight, helping achieve sub-250g flight weights. Strategic design choices, including optimized plate thicknesses and precise mounting patterns, facilitate a clean and secure build. This frame empowers drone enthusiasts to create highly reliable, high-performance long-range FPV setups capable of delivering immersive and enduring aerial experiences.

Key Features

  • Efficient 3.5-inch platform enabling sub-250g builds with 15+ minute flight times.
  • Robust 3K carbon fiber construction ensures durability for rugged flight conditions.
  • Optimized design for seamless integration of HD FPV systems like DJI Vista.
  • Accommodates Naked GoPro or Insta360 Go cameras for cinematic capture.
  • Supports full GPS and return-to-home functionality for enhanced safety and navigation.
  • Features a 150x150mm outer size with a 160mm wheelbase for stable long-range flight.
  • Mid-plate arms with 2.5mm thickness and sidearms with 1.5mm thickness for structural integrity.
  • Flight controller mounting with 25.5x25.5mm M2 pattern, compatible with micro FCs.
  • Equipped with a dedicated 2S 18650 battery tray for extended power supply.

Applications

  • Long-range FPV exploration and cinematic cruising.
  • Sub-250g lightweight drone builds for regulatory compliance.
  • FPV freestyle flying in open environments.
  • Aerial photography and videography with lightweight action cameras.
  • Autonomous mapping and reconnaissance for extended flight missions.

Technical Specifications

Item TypeFrame
Material3K Carbon Fiber
Model NameRekon 3.5 LR frame kit
Frame Size3.5 inch
Wheelbase160 mm
Outer Dimensions150 x 150mm
Middle Plate Arm Thickness2.5mm
Side Arm Thickness1.5mm
Floor Thickness1mm
Flight Controller Mount25.5x25.5mm (M2)
Camera Support19mm (micro camera)

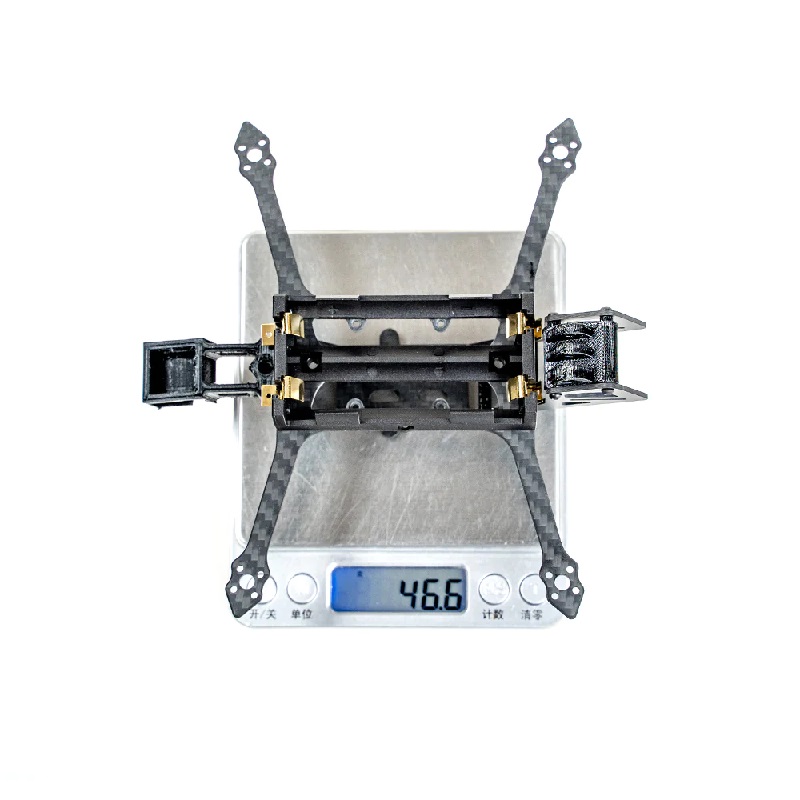

Weight46.4 g

Frequently Asked Questions

What flight controller mounting patterns does the Rekon35 frame support?

The HGLRC Rekon35 frame features a 25.5x25.5mm mounting pattern with M2 screw compatibility. This configuration is specifically designed for micro flight controllers, ensuring a secure and compact installation. It's essential to select an FC that matches these dimensions for optimal fit and performance within the frame's minimalist design.

What battery types are recommended for the HGLRC Rekon35 for long-range flights?

The Rekon35 is optimized for 2S 18650 Li-ion battery configurations, which are ideal for achieving extended flight times crucial for long-range FPV missions. This setup balances power and weight efficiently, contributing to the frame's ability to stay under the 250g threshold while maximizing endurance.

Can the Rekon35 frame accommodate HD FPV systems like the DJI O3 Air Unit or CaddxFPV Vista?

Yes, the HGLRC Rekon35 frame is specifically designed with compatibility for HD FPV systems. It includes features for efficient equipment arrangement and has a reliable power supply integration for units like the DJI Vista, making it suitable for high-definition aerial footage and immersive flying experiences.

What is the primary benefit of the HGLRC Rekon35's 3.5-inch frame size and carbon fiber construction?

The 3.5-inch size, combined with 3K carbon fiber, enables the Rekon35 to achieve sub-250g flight weights, crucial for regulatory compliance in many regions. This lightweight yet robust construction provides excellent durability for long-range FPV, ensuring stable flight characteristics and extended endurance without compromising strength.

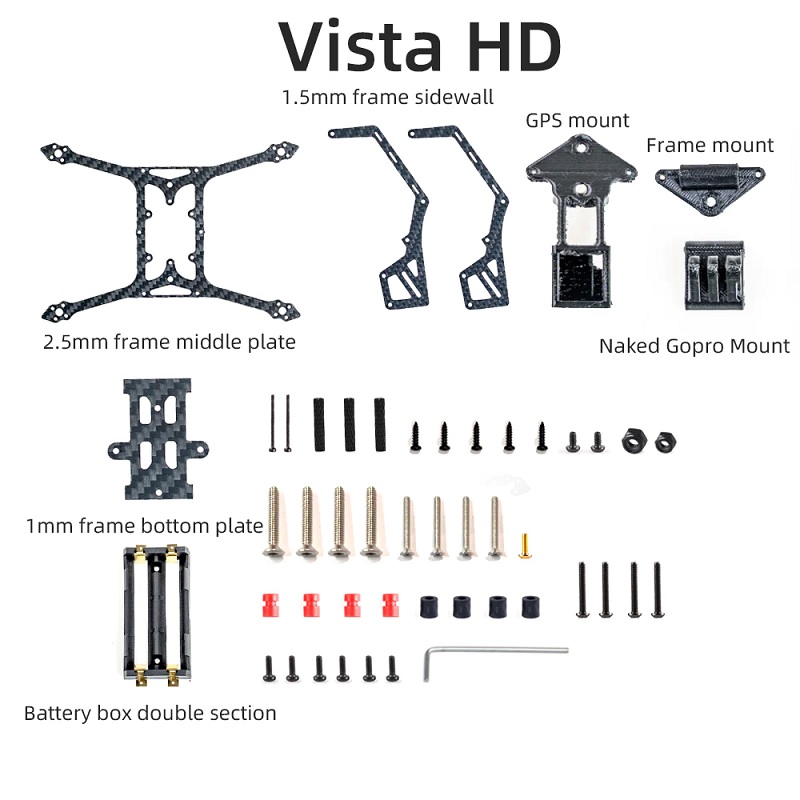

Package Includes

  • 2 x M3 8mm Screw
  • 2 x M2 25mm Screw
  • 4 x M2 10mm Screw
  • 6 x M2 6mm Screw
  • 2 x M2 4mm Screw
  • 2 x M3 Self-tightening nuts
  • 6 x M2 Self-tightening nuts
  • 3 x M2 28mm Aluminium Column
  • 1 x TPU GPS Mount
  • 1 x TPU Fixing bracket
  • 1 x Black TPU Naked GoPro Fixing base

Additional Information

Dimensions 24 × 18 × 5 cm
