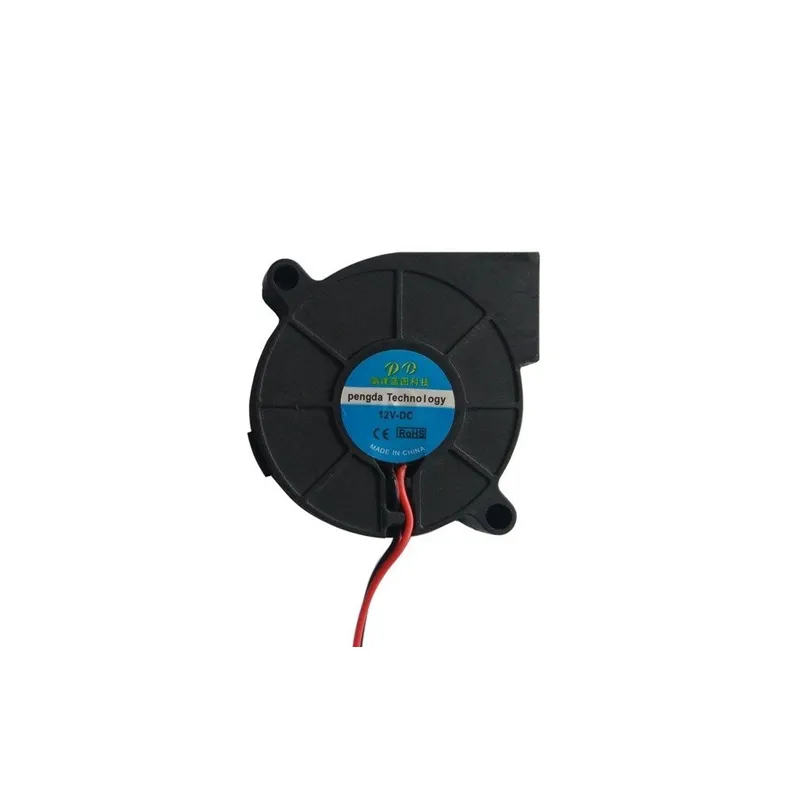

HE3D 5015 12V DC Vortex Turbo Cooling Fan

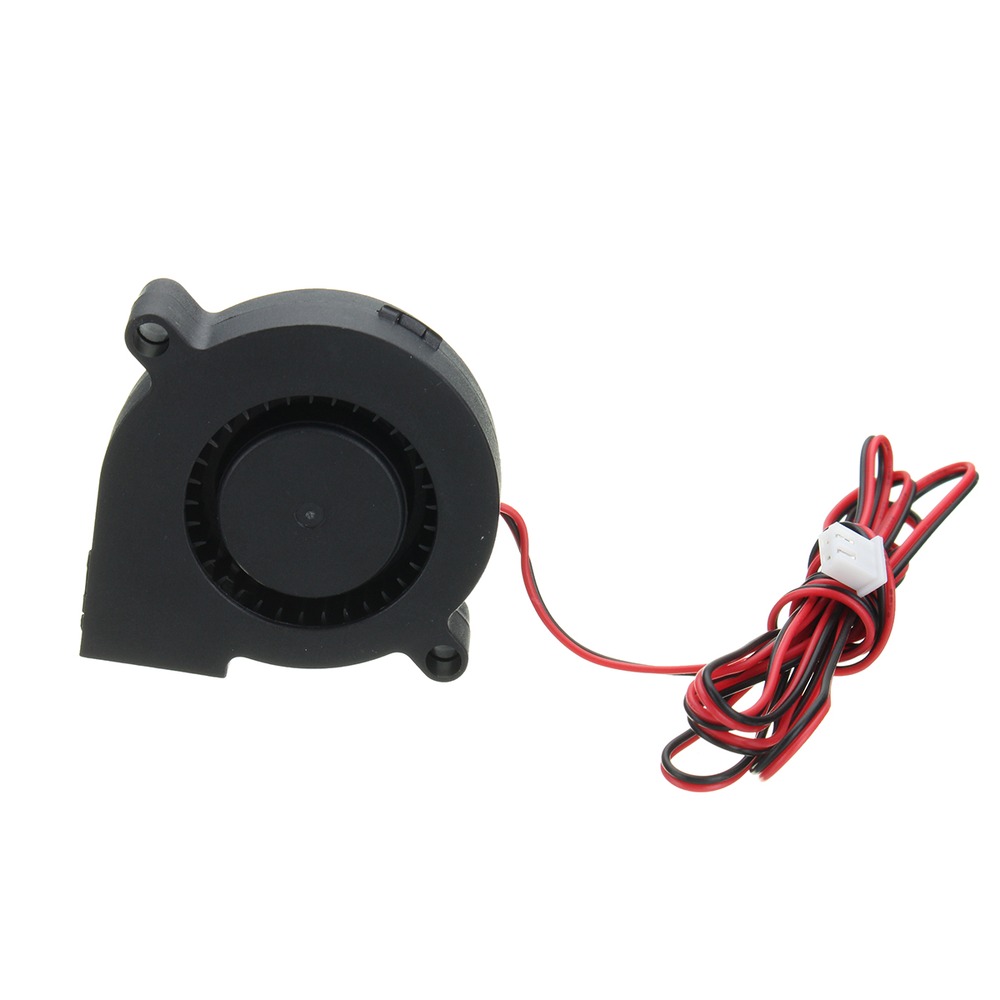

HE3D 5015 12V DC Vortex Turbo Cooling Fan - Image 2

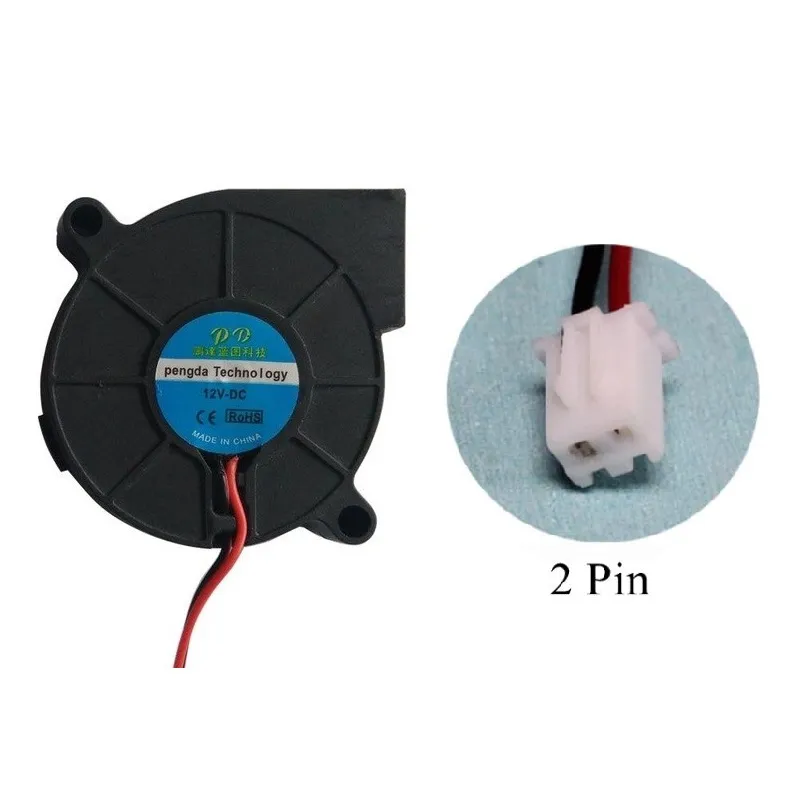

HE3D 5015 12V DC Vortex Turbo Cooling Fan - Image 3
SKU: 3DDF-1695
📋 GST Invoice Available

HE3D 5015 12V DC Vortex Turbo Cooling Fan

₹61.00 (Inclusive of all taxes)
Out of Stock

The HE3D 5015 12V DC Vortex Turbo Cooling Fan is a compact 50mm radial fan designed for efficient thermal management in 3D printers. Ideal for cooling hotends, part-cooling systems, or general electronic components, it delivers reliable airflow with low noise.

Features

  • 50mm radial turbo design ensures focused, efficient airflow for 3D printer components.
  • Operates on 12V DC, drawing 0.13A, compatible with standard 2-point pin connections.
  • Manufactured from durable PBT + 30% glass line + VO for high-temperature resistance.
  • Features a high-precision bearing, providing extended lifespan and exceptionally low operational noise.
  • Optimized for cooling hotends, print layers, and various electronic components within 3D printing systems.

Out of stock

Description

The HE3D 5015 Vortex Turbo Cooling Fan is engineered for superior thermal management in demanding 3D printing environments. Designed with high-quality PBT + 30% glass line + VO, this fan offers exceptional durability and resistance to high temperatures, ensuring reliable performance even under continuous operation at elevated temperatures up to 75℃.

Equipped with a high-precision bearing, the 5015 fan delivers a long operational lifespan while maintaining remarkably low noise levels. Its focused radial airflow is highly effective for critical applications such as cooling 3D printer hotends, rapidly solidifying extruded layers during printing, and dissipating heat from sensitive electronic components, thereby improving print quality and component longevity.

Key Features

  • Compact 50mm radial (vortex/turbo) fan design ensures directed and powerful airflow.
  • Operates on 12V DC input with a low current draw of 0.13A, utilizing a standard 2-point pin connector.
  • Constructed from high-quality PBT + 30% glass line + VO material for enhanced durability and heat resistance.
  • Integrated with a high-precision bearing system for extended operational life and significantly reduced noise output.
  • Optimally designed for critical cooling applications, including 3D printer hotends, newly extruded layers, and general component thermal regulation.
  • Capable of continuous operation for 24 hours at a working temperature of 40℃, with a maximum cooling temperature of 75℃.

Applications

  • Effective part cooling for 3D printer extrusions, improving overhangs and bridge quality.
  • Direct hotend cooling to prevent heat creep and maintain stable printing temperatures.
  • Cooling of stepper motor drivers, mainboards, and other sensitive electronic components.
  • Replacement or upgrade fan for various 3D printer models requiring 5015 radial fans.

Technical Specifications

Item TypeCooling Fan
Brand CompatibilityHE3D
MaterialHigh-Quality PBT + 30% Glass Line + VO Plastic
ColorBlack
Input Voltage (VDC)12V
Current Draw0.13A
RPM Tolerance±10%
Operating Temperature10°C to 60°C
Mounting Hole Diameter4mm
Dimensions (L x W x H)52 x 52 x 15 mm
Rated Speed7000 RPM
Air Inlet Size31mm
Air Outlet Size18 x 13 mm
Weight25g

Frequently Asked Questions

What are the key advantages of a 5015 radial fan over an axial fan for 3D printing?

A 5015 radial fan, like this HE3D model, excels at generating higher static pressure, making it ideal for ducting air through restrictive paths like hotend cooling or part cooling shrouds. This focused airflow is more effective for precise, localized cooling compared to the broader, lower-pressure flow of an axial fan.

Is this 12V fan compatible with 24V 3D printers?

No, this HE3D 5015 fan is specifically designed for 12V DC systems. Using it directly with a 24V power supply will likely cause it to burn out quickly. For 24V 3D printers, you would need a fan rated for 24V or a buck converter to step down the voltage.

What material is the fan constructed from, and how does it affect durability?

The fan is constructed from high-quality PBT + 30% glass line + VO plastic. This composite material provides excellent heat resistance and structural rigidity, making the fan highly durable and capable of withstanding the elevated temperatures often found within 3D printer enclosures, ensuring a longer operational lifespan.

How does the "high-precision bearing" contribute to the fan's performance?

The high-precision bearing minimizes friction and vibration, resulting in significantly lower operational noise and extended reliability. This design choice contributes to a smoother, more consistent rotation, directly enhancing the fan's lifespan and maintaining its rated speed and airflow capabilities over prolonged use in a 3D printer.

Package Includes

  • 1 x HE3D 12V DC 5015 Vortex Turbo Cooling Fan

Additional Information

Weight 0.025 kg
Dimensions 5.2 × 5.2 × 1.5 cm
